NCR 1668-2000 iPad Stand
Introduction
The NCR 1668-2000 iPad Stand provides mounting hardware remote mount an Apple
iPad. An Allen wretch is included for display angle adjustment.
2 NCR 1668-2000 iPad Stand
Display Viewing Adjustments

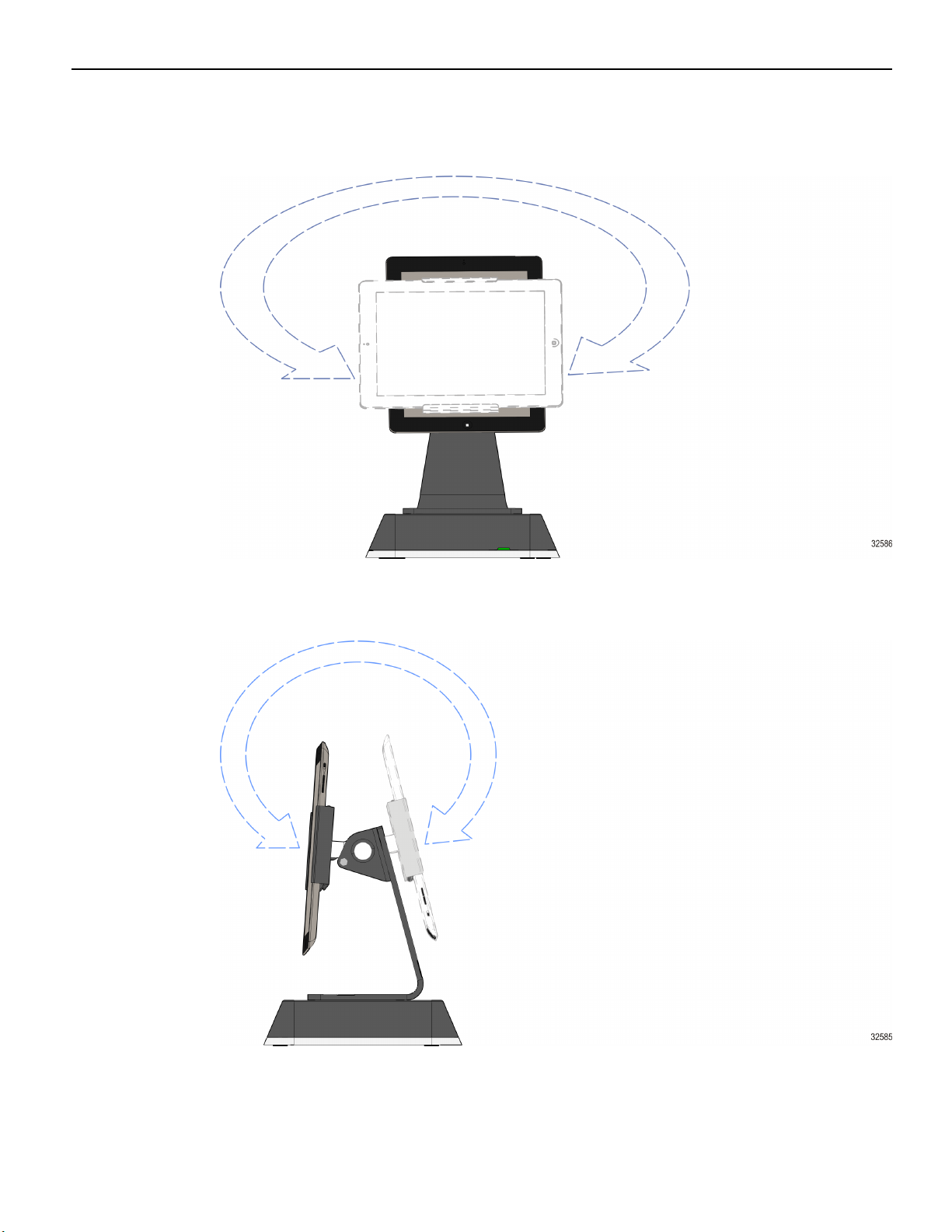

The Display Bracket can be rotated to display the iPad horizontally or vertically.
The Display Bracket can also be tilted 180 degrees from front to rear for customer
viewing/input.
NCR 1668-2000 iPad Stand 3
Installing the iPad

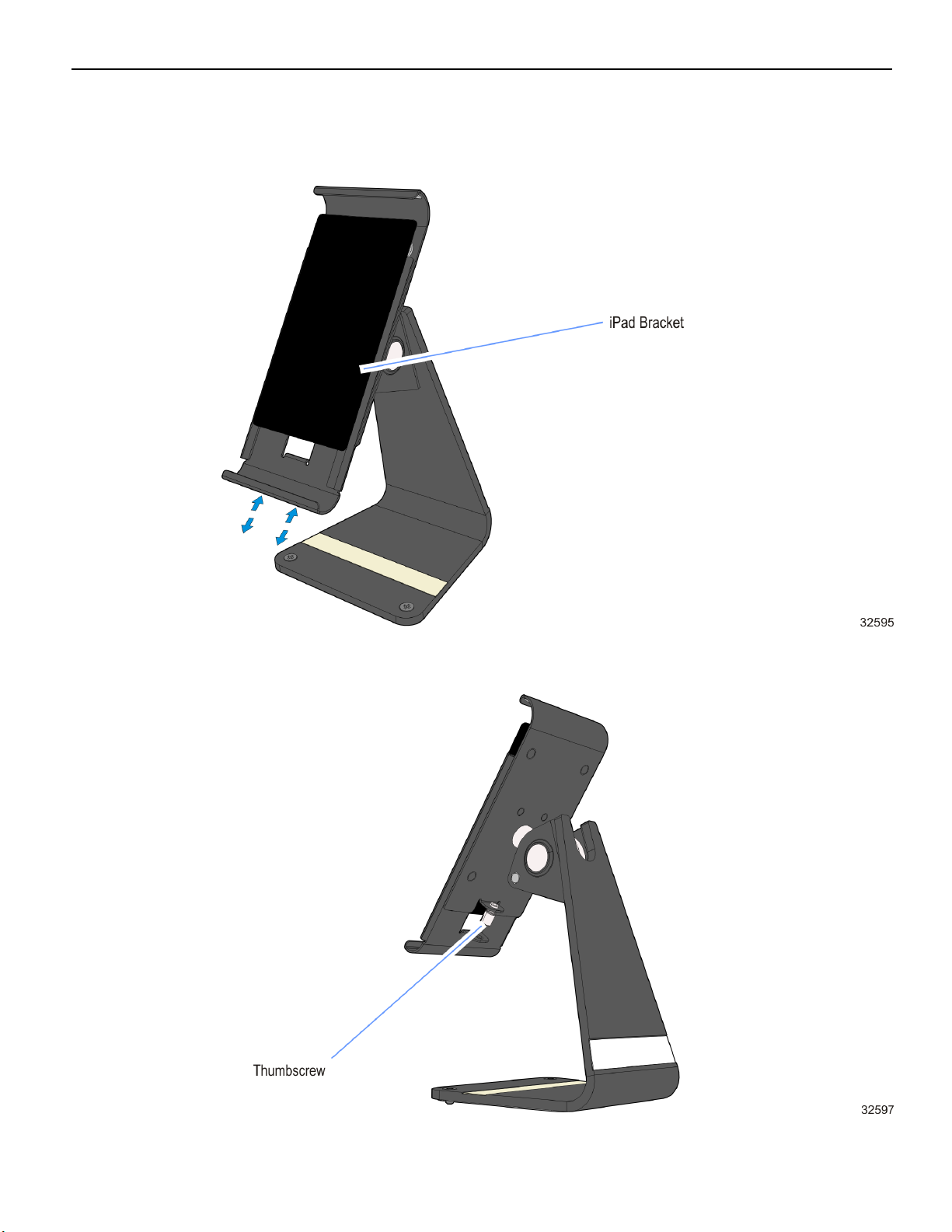

The iPad Bracket is spring loaded.
1. Loosen the thumbscrew on the iPad Bracket.
4 NCR 1668-2000 iPad Stand
2. Insert the edge of the iPad onto the bottom half of the bracket and press down to
spread the bracket apart sufficiently to accept the iPad.
3. Insert the top edge of the iPad into the top of the bracket and then allow the spring
tension of the bracket to grasp the iPad.
4. Secure the bracket by tightening the thumbscrew.
NCR 1668-2000 iPad Stand 5
NCR Mobile Gateway Controller Integration

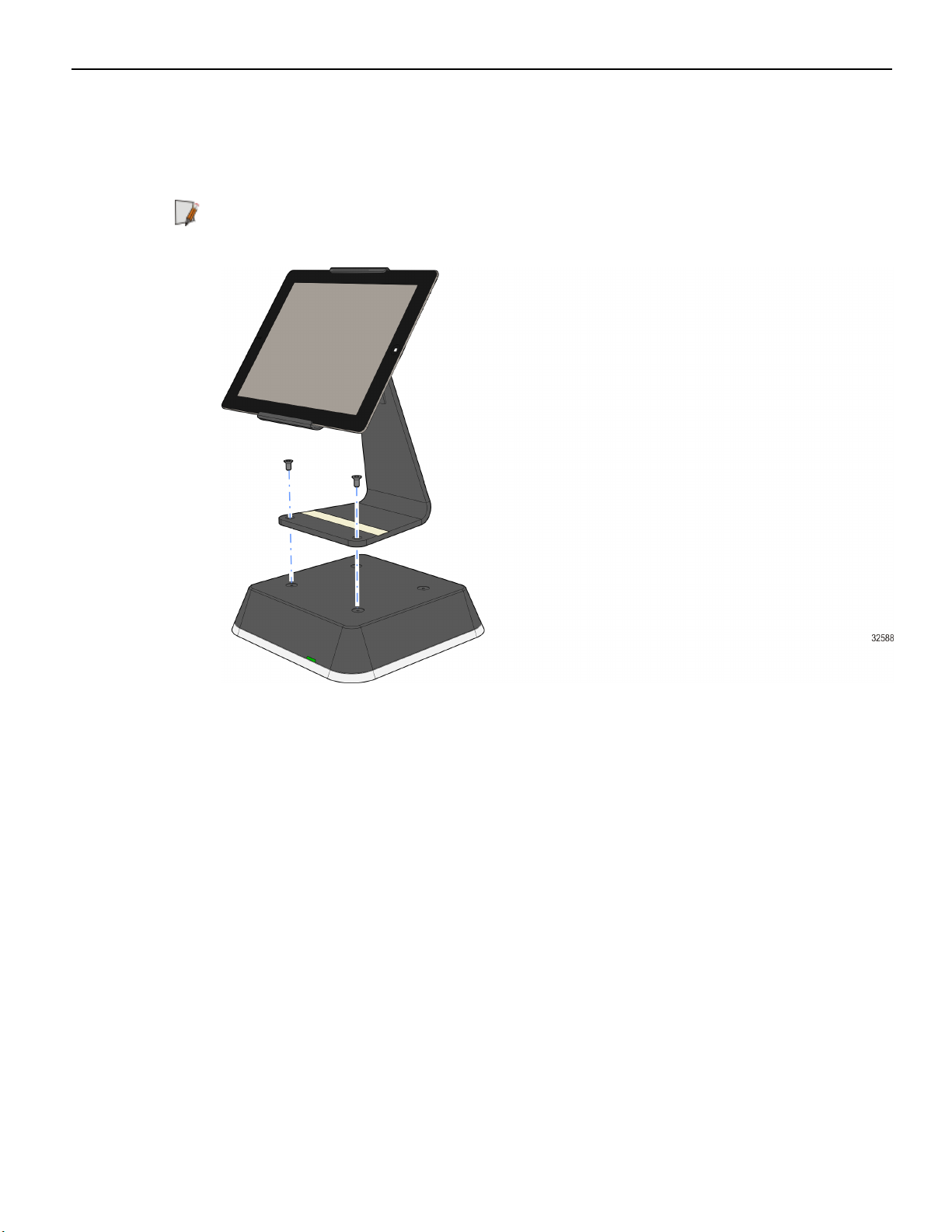

The stand can be used to integrate the iPAD on the NCR Mobile Gateway Controller.
The stand is secured with two screws into the top of the MGC (includedwith the MGC).
Note: There are two sets of screw holes in the top of the MGC, which facilitates
mounting the display to face the front or rear of the MGC.
