NCTeco WIFI NVR KIT Manuale utente
1
Quick Start Guide

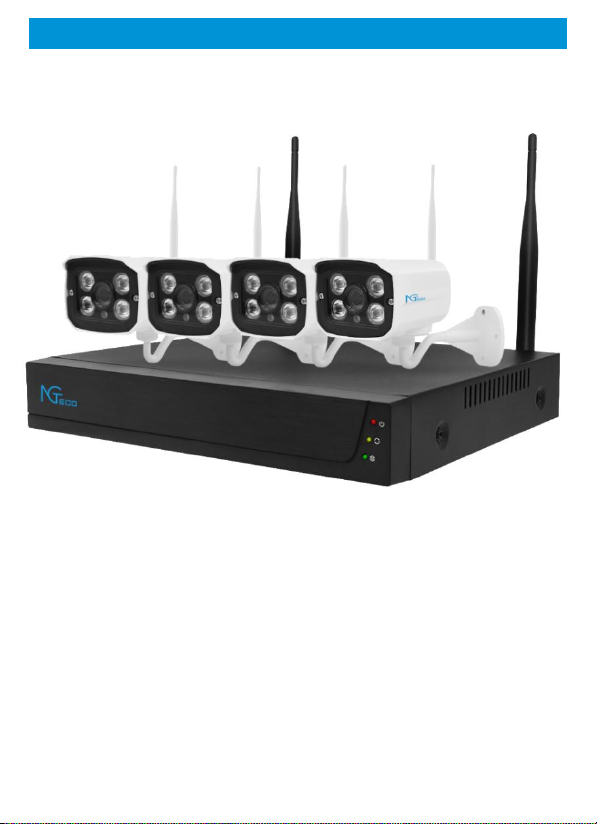

WIFI NVR KIT
Version: 1.0
Overview
1．POW：Power indicator 2．Net：Network indicator
3．HDD：Hard disk indicator
Overview
S/N
name
Description
1
Antenna
Install antenna
2
LAN
Connect to LAN or external
network
3
VGA
Connect a VGA monitor
4
HDMI
Connect an HDMI display
5
USB
Connect to operate mouse or U
disk
6
Power
Connect 12V2A power adapter
Installation and Connection
1、Note the following when installing and using：
1.1、In order to extend the life of the machine, the
machine should be kept away from water, high
temperature and dusty environment, and placed in a well-
ventilated place.
1.2、Please use SATA hard drives, USB devices, and mouse
devices purchased through regular channels.
1.3、Before use, please make sure that the network HD
recorder is properly grounded and the power supply cannot
exceed the normal operating voltage range of the power
supply.
2、Preparation Before Installation:
2.1、Determine where to place the NVR
It is recommended to put the NVR in the center of the
surveillance area, and avoid obstacles between the IPC
(wireless camera) installation location and the NVR. When 4
channels of video are connected at the same time, when
there is no obstacle between NVR and IPC, IPC is placed in
Installation and Connection
the spherical coverage area with NVR as the center of the
sphere and a radius of 100-120 meters. If blocked by wall,
it will reduce the radius to 30-50 meters
2.2、Connection steps
Install the hard disk to the NVR, as shown in the figure,
after the installation is complete, first connect the NVR to
the mouse and the display, turn on the power, and connect
the power to the IPC.
(1) Using a screwdriver, remove the top cover;
(2) Install the hard disk data cable and power cable, and
Installation and Connection
tighten the screws;
（3）Confirm that the wireless NVR package is working
properly
The NVR is connected to the monitor, and all supporting
IPCs are placed around the NVR. Can be installed to a
predetermined location.
3、Camera is Placed in a Preset Position：
3.1、Install the wireless camera to the preset position
within the effective coverage of the wireless signal and
provide 12V power supply;
Installation and Connection
3.2、When the wireless camera is powered on for about 1
minute, you can see the video on the NVR monitor;
3.3、If there is no image, it indicates that the distance is
too far, the distance needs to be shortened.

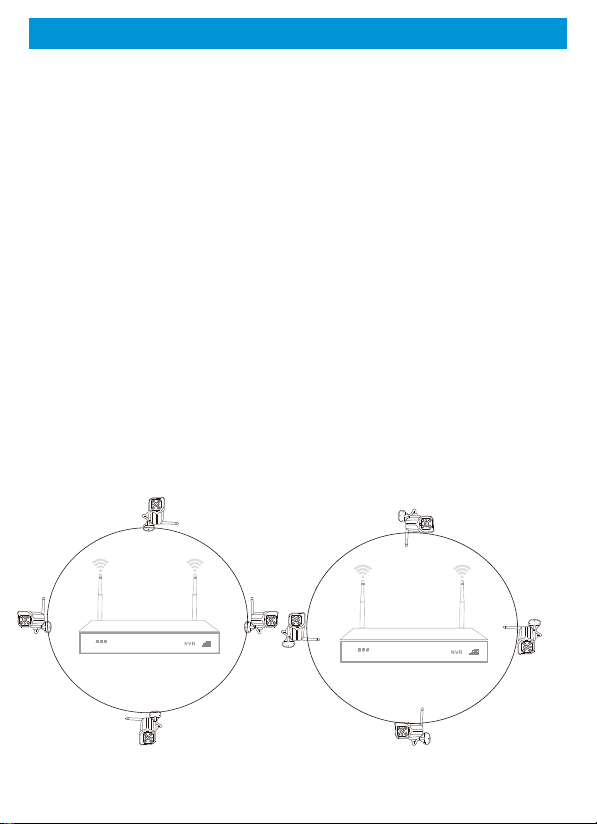

NVR antenna transmits signals to the surroundings. The NVR
and IPC antennas are at the same height and parallel to
each other. The best effect is if the antennas are not at the
same height. The IPC antenna should be tangent to the
spherical surface with the NVR as the center (Figure 6)
Point directly to the NVR (Figure 7)
Boot
Note：
Please confirm that the connected voltage matches the
requirements of the hard disk recorder, and ensure that the
ground terminal of the hard disk recorder is well grounded.
When the power supply is abnormal, it will cause the hard
disk recorder to not work normally, or even damage the
hard disk recorder. It is recommended to use a regulated
power supply.
Explanation: Before turning on, please make sure that a
monitor or monitor is connected to the video output port of
the device.
Specific boot steps are as follows:
1、Plug in the power supply, the power indicator on the
front panel is red
2、Device starts to boot, the boot screen is the boot
screen is as shown:
Boot
3、After the system is turned on and started, after the
system is initialized, the system automatically displays
the image preview interface. The login interface pops up
automatically after the user's operating system. As shown
below. The user needs to complete the login before
proceeding.
Boot
Steps:
1、Click the user name edit box with the left mouse button,
and enter the user name of the local login, default factory
set user name is admin.
2、Click the password edit box with the left mouse button,
and enter the password for local machine login, the default
factory-set password is admin.
3、Click "OK" with the left mouse button to complete the
login.
