Neat Bar Manuale utente

Neat Bar &Neat Pad

User Manual

Neat Bar

Collaboration System

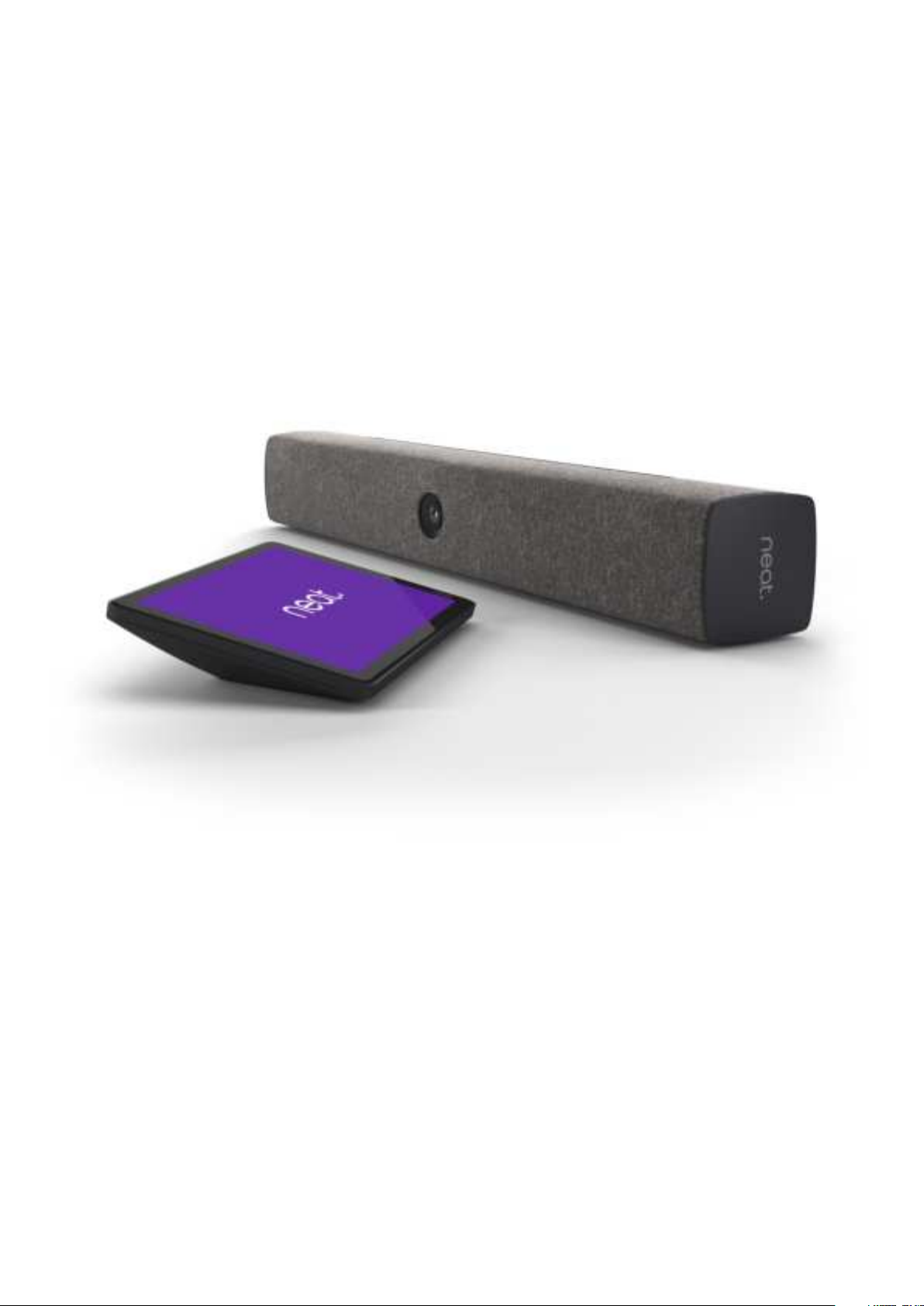

Neat Bar is a compact and highly

capable meeting device.

Neat Bar includes Camera, Speakers,

Microphones and environmental

sensors all in one compact design.

It’s perfect for bringing superior

-quality audio and video to your

huddle, focus and meeting spaces.

Neat Bar comes with a dedicated

Neat Pad Controller and optional

Scheduling Display.

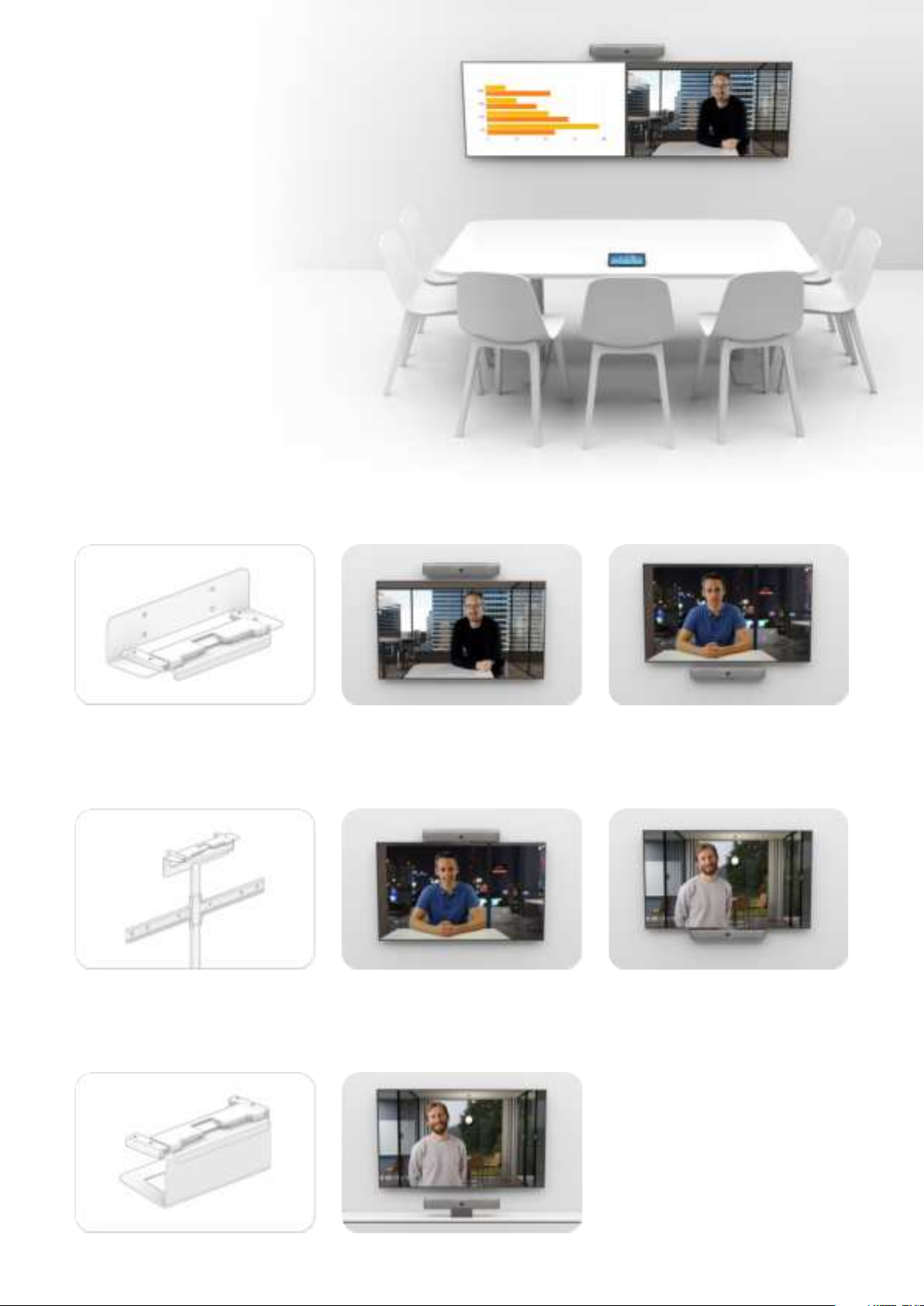

Simple

setup

All you need is in the box,

including mounts, cables

and clear instructions. So it’s

easy for anyone to install

and set-up, above or below

one or two screens.

Wall mount

Screen mount

Table stand

Neat Bar

Neat Bar comes with

everything you need to get

started, including cables,

wall mount, screen mount

and table stand.

In the box

Screws for mounting to the wall are not included. Mounting on a wall should only be performed

by qualiﬁed personnel in line with applicable facility and state regulations. The wall and the

mounting equipment must safely withstand the load of the product.

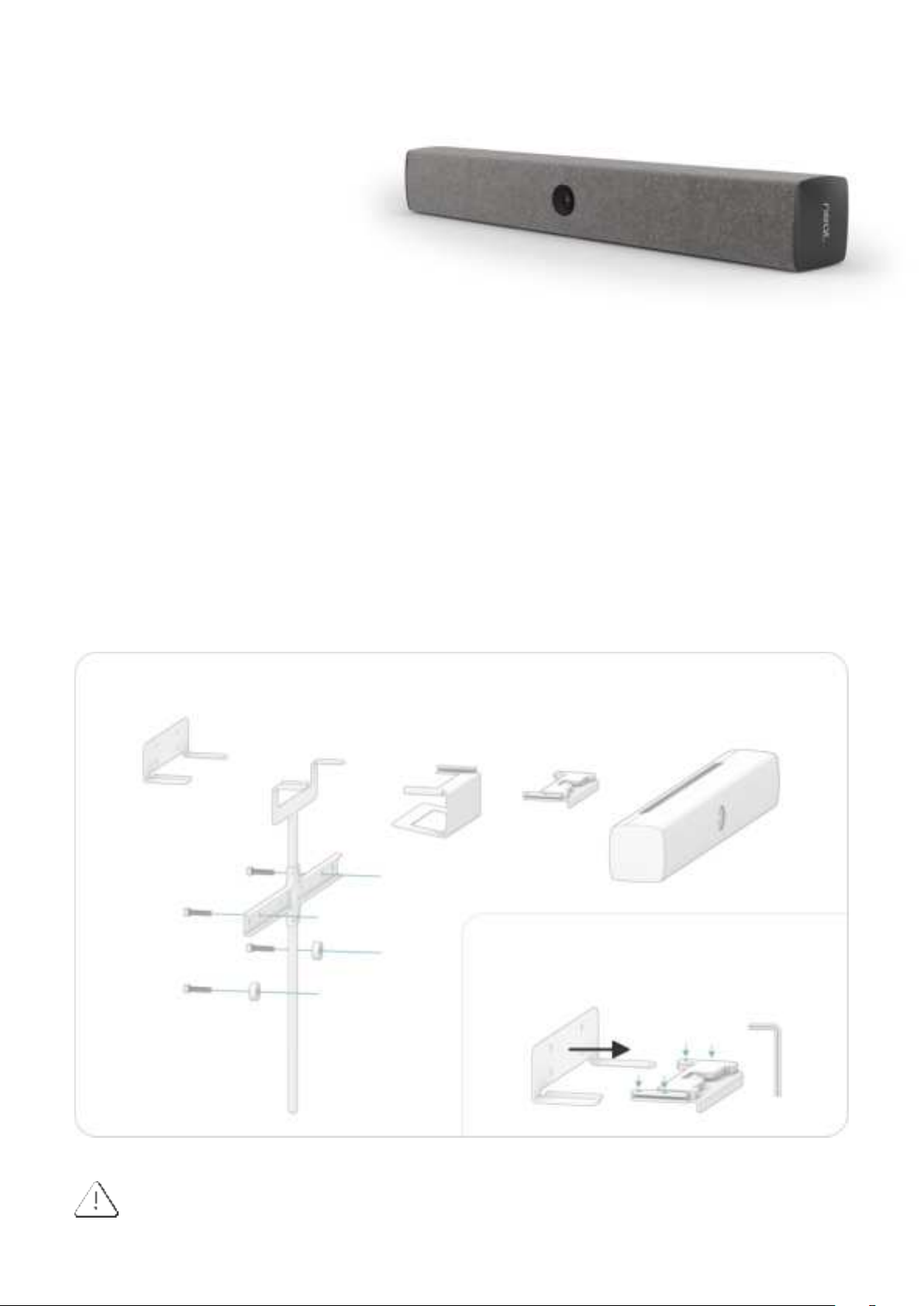

Neat BarMount adapterTable sta n dScreen mountWall mount

Slide the selected bracket onto the mount

adapter and secure with the hex wrench.

Neat Bar: All-in-one audio and

video device

HDMI cable: 6.5ft (2m)

Ethernet cable: 9.8ft (3m)

Power cord: 9.8ft (3m)

Mount adapter, wall mount, screen

mount and table stand

4 ×M6screw (0.94 in / 24 mm) for VESA mount

4 ×M8screw (0.94 in / 24 mm) for VESA mount

2 ×spacer to secure parallel TV mount

1 ×5 mm hex key for the screen mount

1 ×2 mm hex key for the mount adapter

Neat Pad

Screws for mounting to the wall are not included. Mounting on a wall should only be performed

by qualiﬁed personnel in line with applicable facility and state regulations. The wall and the

mounting equipment must safely withstand the load of the product.

Neat Pad works as a Controller for Neat

Bar and can also be conﬁgured as a

Scheduling Display for the Meeting

Room. It comes with everything you need

to get started, including cables and

mounting options.

In the box

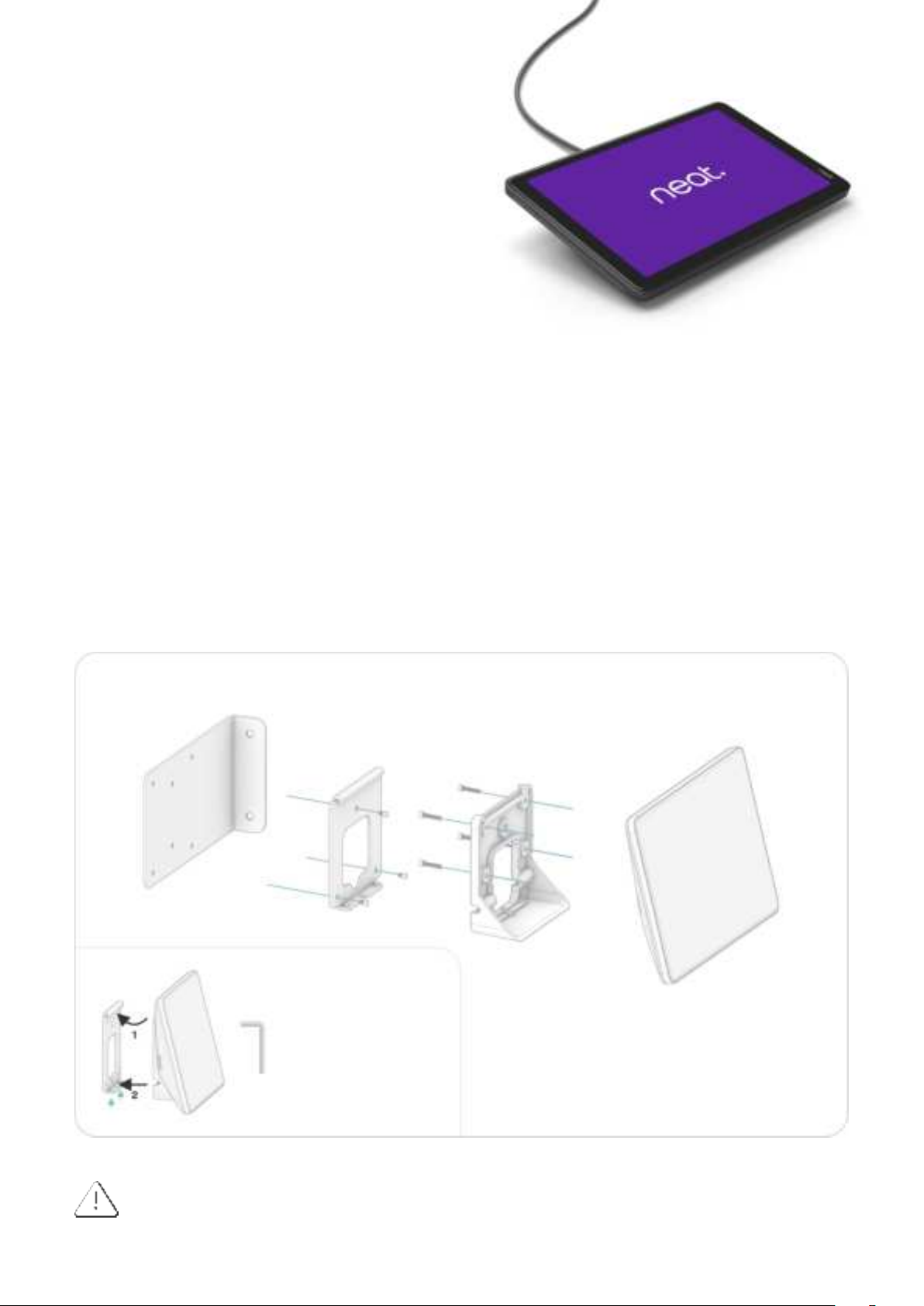

Wall mountSide mount

Hook the mount

adapter onto the

wall mount and

secure with the

hex wrench.

Mount adapter Neat Pad

Neat Pad: 8-inch touch screen

2 ×Ethernet cable: 9.8ft (3m) + 16.4ft (5m)

PoE power adapter

Mount adapter, side mount and wall mount

4 ×M4screw (0.30 in / 7.5 mm)

for the wall mount

3 ×M4screw (0.19 in / 4.7 mm)

for the side mount

1 ×2.5 mm hex key for the adapters

1 ×2 mm hex key to secure Neat Pad

to the wall mount

Mounting & releasing

Mounting

Slide Neat Bar onto the

selected mounting

option (1). When fully

inserted tilt Neat Bar

back to horizontal and

check if it is secure by

carefully pulling it

towards you.

Releasing

To re l e a s e N ea t B a r

from the selected

mounting option, tilt the

unit to maximum tilt (1)

and carefully slide the

unit towards you (2).

Warning: Do not leave

Neat Bar in a max tilted

position with the red

indicator showing as it

is not secured by the

lock spring.

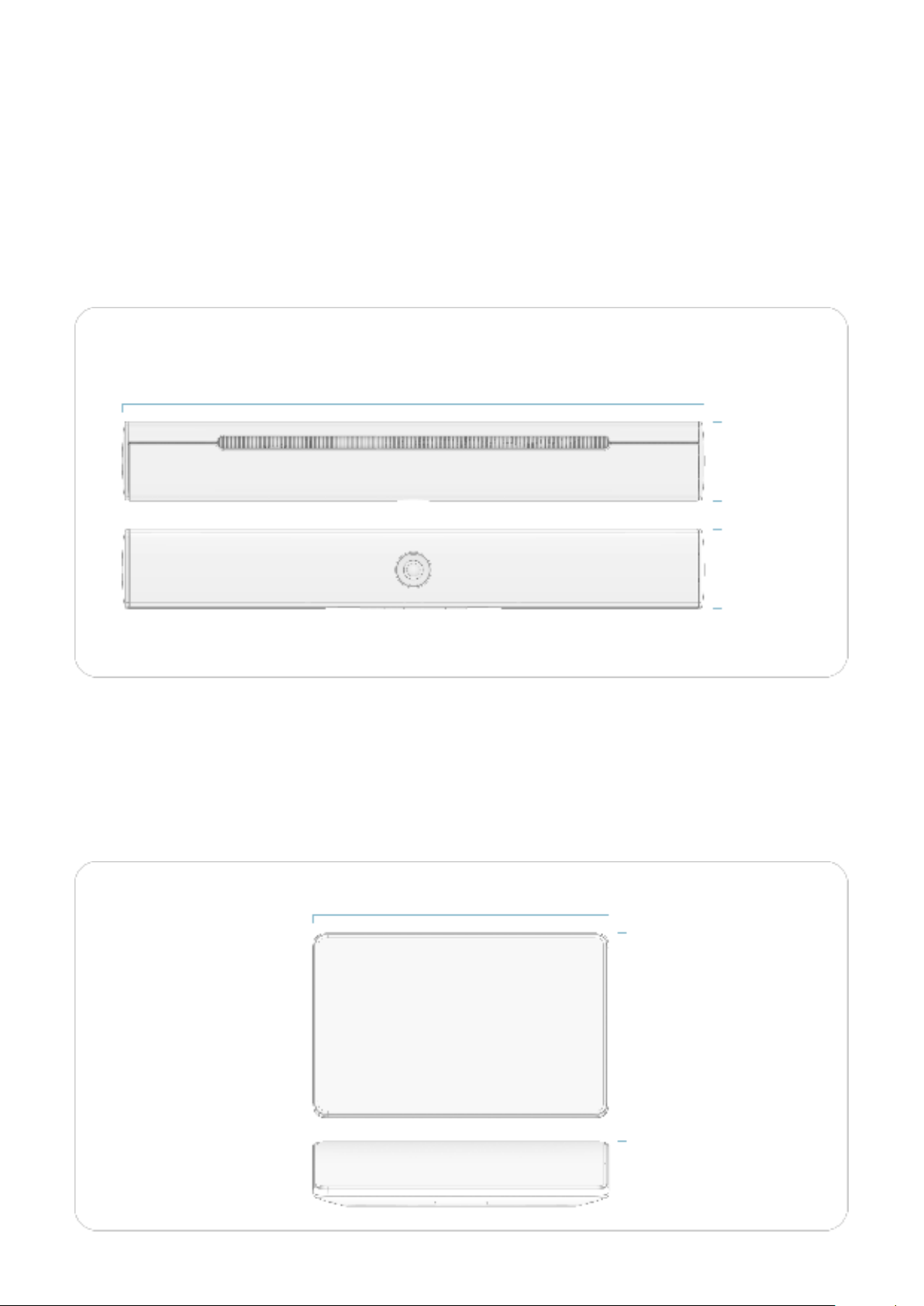

Size & weight

Neat Bar

Neat Pad

21.9 in (556 mm)

3 in

(76 mm)

3 in

(76 mm)

7. 8 i n ( 1 9 8 m m )

5 in

(127 mm)

1.7 in

(42 mm)

Width: 21.9 in (556 mm)

Height: 3 in (76 mm)

Depth: 3 in (76 mm)

Weight: 3.75 pounds (1.7 kg)

Width: 7.8 in (198 mm)

Height: 1.7 in (42 mm)

Depth: 5 in (127 mm)

Weight: 1.15 pounds (520 g)

Setup & connectivity

Setup

Use the provided cables to set up Neat Bar.

Connect the cables according to the illustration.

Cables marked are included. Cables marked

are optional and not required for basic use

of the system.

Requirements for

a complete setup

Display

Internet connection

Video service

Environmental Requirements

Ambient operating temperature:

32° to 95° F (0° - 35° C)

Storage temperature: 5° - 149° F (-15° - 65° C)

Relative humidity: 20% to 80%

Additional Product

Information

https://neat.no/bar

Neat Bar and Neat Pad - User Manual rev10

AC power

9.8ft (3m) Cable

Ethernet port

9.8ft (3m) Cable

USB-C

Factory reset button

HDMI-out for external screen

6.5ft (2m) Cable

HDMI-out for external screen

HDMI-in for screen sharing (1080p)

The 16.4ft (5m) Ethernet

Cable provided is not to

be used for in-wall

installation. In-wall cable

routing should only be

performed by qualiﬁed

personnel using

appropriate equipment.

USB-C Debug

Ethernet port

16.4ft (5m) Cable

Factory reset button

Power over Ethernet

(PoE)

Power adapter for AC

WiFi

Security lock slot

WiFi
