TTooCCoonnnneeccttaannddCChhaarrggeeBBaatttteerriieess

1. Slide the cover off the battery compartment on the bottom of the pod.

2. Connect the battery pack plug into the port in the compartment and insert the

battery pack. Slide the cover back into place.

3. Connect the power supply/charger to the conferencing pod and plug it into an

electrical outlet. Charge batteries for 15 hours prior to first use.

TTooCCoonnnneeccttBBaasseeUUnniitt

1. Connect one end of the telephone

cable into the phone jack on the

back of the base unit and the other

end into a wall jack.

2. Connect a recording device to the

2.5mm audio jack (if desired).

3. Connect the power cord to the

base unit and plug it into an

electrical outlet. The base unit

may be located up to 150 feet

from the conferencing pod.

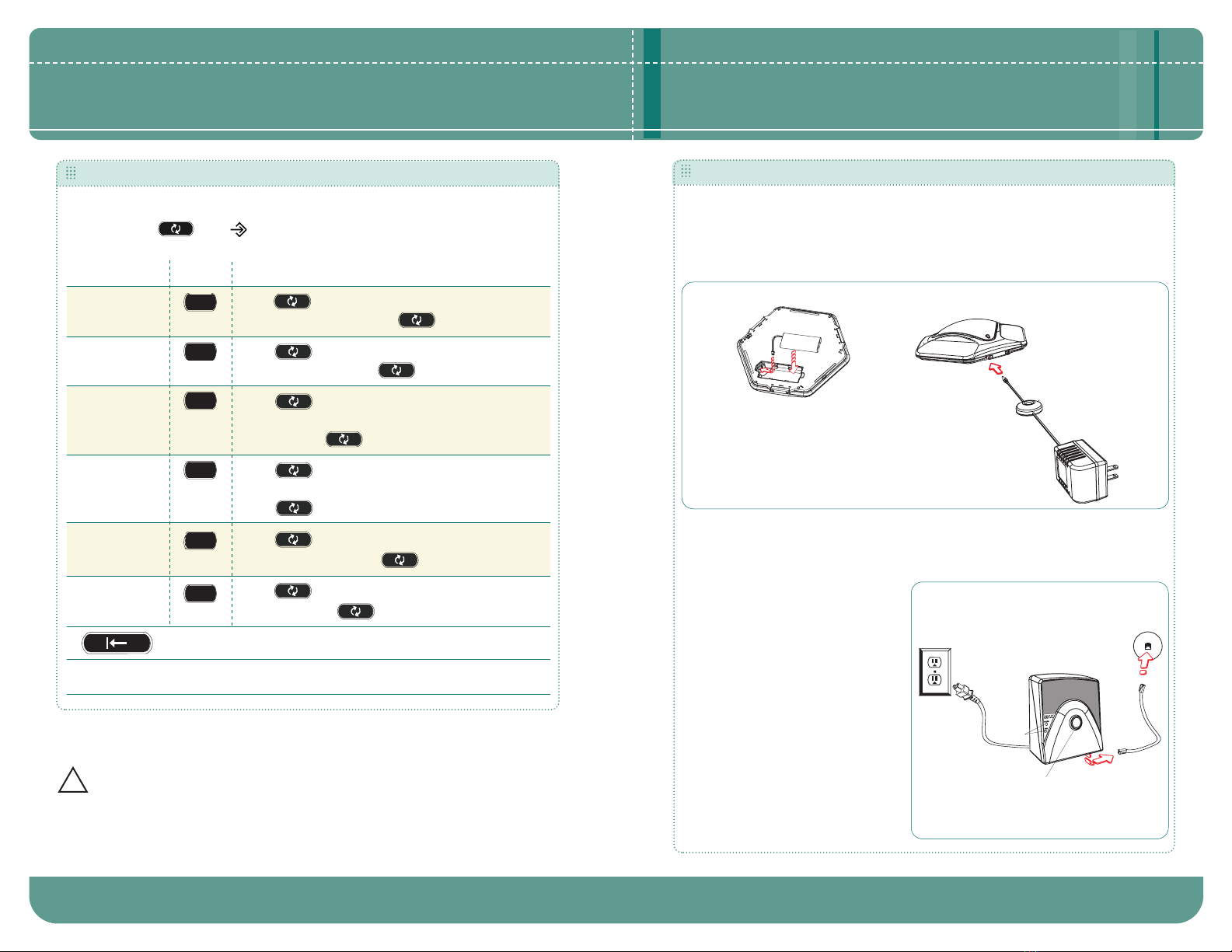

CONFERENCE PHONE SETUP

Getting Started Guide

FFiigguurree11..CCoonnnneeccttiinnggaannddcchhaarrggiinnggtthheebbaatttteerryy

Paging button

In Use and

Power LEDs

FFiigguurree22..CCoonnnneeccttiinnggtthheebbaasseeuunniitt

TTooAAcccceesssstthheePPrrooggrraammmmiinnggMMeennuuss

Press and hold until appears on the LCD screen. Then press the key that

corresponds with the desired menu option and follow the instructions below.

PROGRAMMING OPTIONS

NEC Conference Max Plus

AAuuddiiooCCoonnffeerreenncciinngg

*Press and hold the "1" key to enter a hyphen or the "*" key to enter a space in the

. If a number has alre

been programmed, use CLEAR to delete the old number before entering the new number.

Ringer Melody 1

Dialing Mode

Flash Duration 3

Local Number* 4

Conference* 5

Service* 6

Key ProgrammingMenu Option

1-5 to select a new melody. Press to save selection.

Press . The current melody selection will ﬂash. Press

1 for tone, 2 for pulse. Press to save selection.

Press . The current dialing selection will ﬂash. Press

Press . Enter the phone number that you want the

Conference key to dial. Press to save the number.

select duration. 1 = 600ms, 2 = 300ms, 3 = 150ms, 4 = 100ms,

Press . The current duration will ﬂash. Press 1-5 to

5 = 80ms. Press to save selection.

appear on the LCD screen when the phone is in standby.

Press . Enter the phone number that you want to

Press to save selection.

Press . Enter the phone number that you want the

0key to dial. Press to save the number.

Press CLEAR once to return to the previous menu level or hold to exit

Programming mode without saving changes.

CCAAUUTTIIOONN: Read the Safety Information in the instruction manual.

permission from NEC. NEC reserves specific privileges. Information in this document is subject to change without notice.

NEC Conference MaxPlus is protected by U.S. Patent No. D499,392 Part No. 800-157-201 Rev. 1.0

Printed in China.

NNEECCCCoonnffeerreenncceeMMaaxxPPlluuss

Getting Started Guide

TTooMMaakkeeaaCCaallll

1. Press the OONN//OOFFFFkey to activate

the phone. You will hear a dial tone.

2. Dial the number as you would on a

standard phone. The number is

displayed on the LCD screen.

You can also predial the number while in

Standby mode and press the ON/OFF key to

connect the call.

To add a pause to the number you are

predialing, press and hold the # key.

TTooMMaakkeeaaCCaallllUUssiinnggtthheePPhhoonneebbooookk

1. Press the OONN//OOFFFFkey to turn on the

phone. You will hear a dial tone.

2. Press the PPHHOONNEEBBOOOOKKkey.

3. Press the number (00--99) that

corresponds with the stored phone

number you want to dial.

TTooAAnnsswweerraaCCaallll

•Press the OONN//OOFFFFkey.

The phone will ring (unless ringer is

turned off) and the phone LEDs and

phone icon on the LCD screen will

flash when there is an incoming call.

TTooEEnnddaaCCaallll

• Press the OONN//OOFFFFkey.

TTooSSttoorreeaaNNuummbbeerriinntthheePPhhoonneebbooookk

1. Enter the number while phone is in

standby (inactive) mode.

To add a pause to the phone

number, press and hold the pound (#)

key. To add a dash to the phone num-

ber, press and hold the 1 key. To add a

space to the phone number, press and

hold the star key (*).

2. Press and hold the PPHHOONNEEBBOOOOKKkey

until the Phonebook and Program

icons appear.

3. Assign a Phonebook location (00––99) by

pressing the corresponding number key.

4. Press PPHHOONNEEBBOOOOKKagain to save the

entry. You will hear a confirmation

tone.

5. To exit Phonebook Edit mode before

saving the entry, press CCLLEEAARR.

TTooAAddjjuussttRRiinnggeerrVVoolluummee

• While the phone is ringing, press

VVOOLLUUMMEEUUPPor VVOOLLUUMMEEDDOOWWNN.

• While the phone is inactive, press

VVOOLLUUMMEEUUPPor VVOOLLUUMMEEDDOOWWNN.The

ringer melody will play once at the new

level.

TTooTTuurrnntthheeRRiinnggeerrOOnn//OOffff

• Press and hold the star key (**).

TTooAAcccceessssYYoouurrCCoonnffeerreenncciinnggSSeerrvviiccee

• Press the CCOONNFFEERREENNCCEEkey. This fea-

ture must be programmed before use.

FFiigguurree44..TThheeeellaappsseeddccaallllttiimmee((lleefftt))aanndd

aapppprrooxxiimmaatteerreemmaaiinniinnggttaallkkttiimmee((rriigghhtt))

aappppeeaarrwwhheennaaccaal

llliissiinnpprrooggrreessss..

FFiigguurree33..TThheepphhoonneeiiccoonnaappppeeaarrsswwhheenntthhee

pphhoonneeiissaaccttiivvee..

FFiigguurree55..TThheePPhhoonneebbooookkaannddPPrrooggrraammiiccoonnss..

FFiigguurree66..RRiinnggeerrooffffiiccoonn..

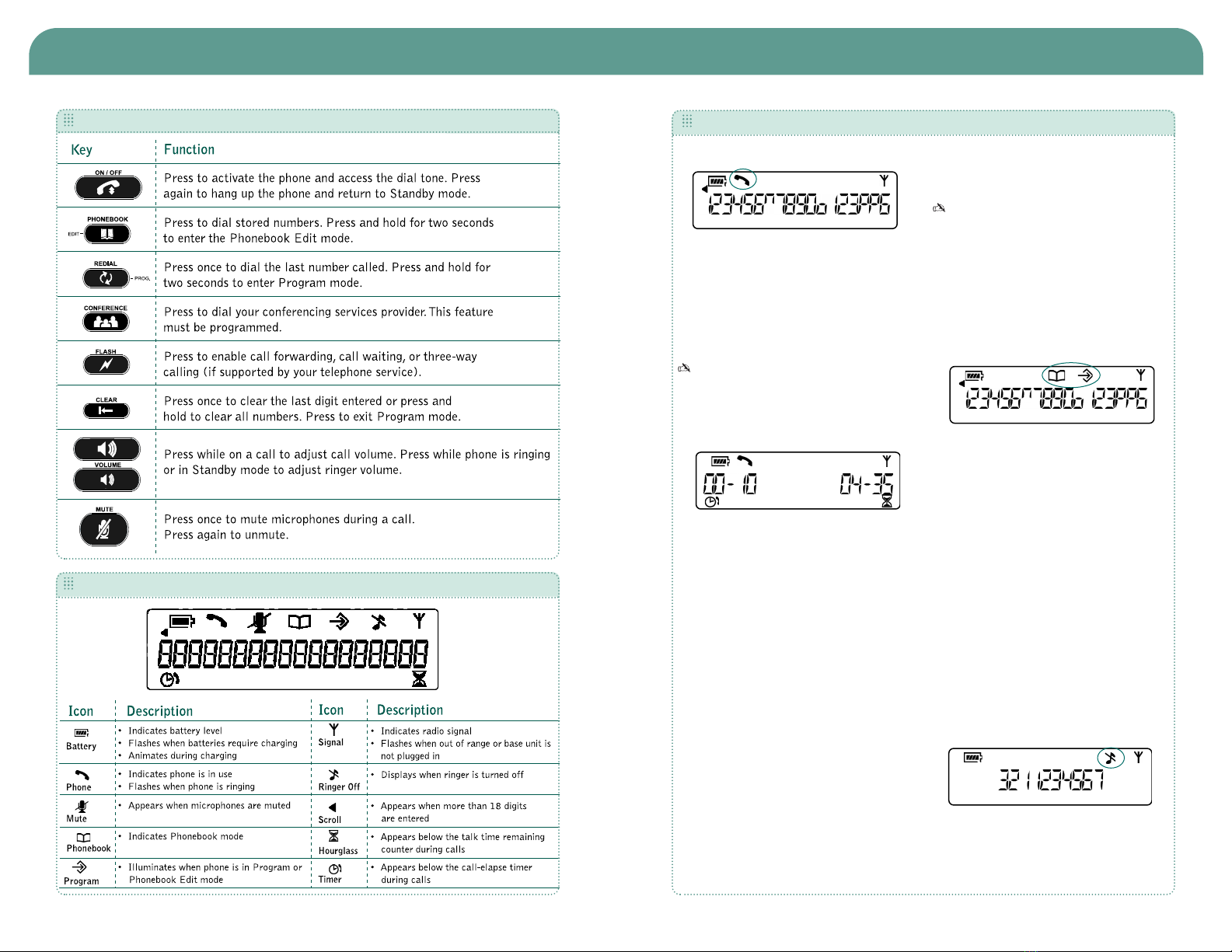

USING THE PHONE

KEYPAD FUNCTIONS

LCD DISPLAY
