Preface

This addendum to the PowerMate®Ve Series Service and Reference Manual (document

number 819-181516-000) provides updated information on the computer’s hardware for

users who need an overview of system design.

This information applies to computers with the following model numbers:



ET-1830-24813E



ET-1830-24813CE



ET-1860-24813E



ET-1860-24813CE.

This addendum also includes updated procedures for setting up and installing the system

and illustrated parts lists. The manual is written for NECCSD-trained customer engineers,

system analysts, service center personnel, and dealers.

The manual is organized as follows:

Section 1 — Technical Information, provides information not available when the

PowerMate Ve ETC Series User’s Guide (819-181780-000) was printed. System

specifications are listed including dimensions, weight, environment, safety compliance,

power consumption, and memory.

Section 2 — Setup and Installation, includes procedures for installing application

software and drivers and performing system backups. This section also provides information

not available when the PowerMate Ve ETC Series User’s Guide was printed.

Section 3 — Illustrated Parts Breakdown, provides an exploded view diagram of the

system. Also included are updated parts lists for field-replaceable parts.

iii

Contents

Preface.........................................................................................................................v

Section 1 Technical Information

System Overview.........................................................................................................1-1

SIMM Upgrade ...........................................................................................................1-2

Performing Memory Upgrades..............................................................................1-2

Locating SIMM Sockets.......................................................................................1-2

Checking System Memory.....................................................................................1-2

Installing SIMMS..................................................................................................1-3

Interrupt Controller......................................................................................................1-4

Integrated Graphics......................................................................................................1-5

Network Interface........................................................................................................1-5

Hard Disk Specifications..............................................................................................1-6

System Specifications...................................................................................................1-7

Section 2 Setup and Installation

Section 3 Illustrated Parts Breakdown

List of Figures

1-1 Network Interface Board ...............................................................................1-5

2-1 Rear Panel I/O Ports ......................................................................................2-1

2-2 Network Interface Boad Connectors..............................................................2-2

3-1 PowerMate Ve ETC Series Illustrated Parts Breakdown ................................3-4

iv Contents

List of Tables

1-1 PowerMate Ve ETC Series System Configurations ........................................1-1

1-2 Recommended Memory Upgrade Path ...........................................................1-3

1-3 Interrupt Level Assignments...........................................................................1-4

1-3 Hard Disk Drive Specifications.......................................................................1-6

1-4 Specifications.................................................................................................1-7

3-1 PowerMate Ve ETC Series Field-Replaceable Parts List ................................3-2

3-2 PowerMate Ve ETC Series Documentation and Packaging ............................3-5

Section 1

Technical Information

This section describes hardware features and components that are specific to the

PowerMate®Ve ETC Series of NEC PowerMate Ve Series computers. For information

that is general to all PowerMate Ve Series computers, see the PowerMate Ve Series Service

and Reference Manual (part number 819-181528-000).

SYSTEM OVERVIEW

PowerMate Ve ETC Series computers are configured with a different system board and

come with a network interface board installed as standard equipment in one of the system

unit expansion slots.

PowerMate Ve ETC Series computers include the configurations identified in Table 1-1.

Table 1-1 PowerMate Ve ETC Series System Configurations

Model Number

Processor

Multimedia System

Memory

Video Memory

Hard Disk

ET-1830-24813E

(PowerMate V133e) 133-MHz

Intel®

Pentium®

No 16 MB 1 MB fast video

dynamic

random-access

memory(video

DRAM)

1.2-GB IDE

(WDAC21200)

ET-1830-24813CE

(PowerMate V133e)

133-MHz

Intel

Pentium

Yes

16 MB

1 MB video

DRAM

1.2-GB IDE

(WDAC21200)

ET-1860-24813E

(PowerMate V133e) 166-MHz

Intel

Pentium

No 16 MB 1 MB video

DRAM 1.2-GB IDE

(WDAC21200)

ET-1860-24813CE

(PowerMate V166e) 133-MHz

Intel

Pentium

Yes 16 MB 1 MB video

DRAM 1.2-GB IDE

(WDAC21200)

Multimedia systems come with audio components integrated on the system board.

Multimedia systems also include an eight-speed CD-ROM reader installed in the system

unit, 8-watt speakers, and a microphone.

1-2 Technical Information

SIMM UPGRADE

PowerMate Ve ETC Series system configurations come with 16 MB of main system

memory. Four sockets on the system board support up to 128 MB of high-speed memory

using the following industry-standard, tin-plated, single in-line memory modules (SIMMs):

NOTE: You may install 60-ns, parity or

nonparity, extended data output (EDO) SIMMs

into the SIMM sockets.



1-MB by 32- or 36-bit (4-MB stick)



2-MB by 32- or 36-bit (8-MB stick)



4-MB by 32- or 36-bit (16-MB stick)



8-MB by 32- or 36-bit (32-MB stick).

CAUTION: To avoid corrosion between

different metals, only use tin-plated SIMM sticks.

The system board can use 64-MB SIMMs (16-MB by 32- or 36-bit), but these SIMMs are

not supported by NECCSD for the PowerMate Ve ETC Series.

Performing Memory Upgrades

Upgrade system memory as follows:



locate memory sockets on system board



check installed system memory



install SIMMs.

Locating SIMM Sockets.

Remove the system unit cover and locate the six SIMM sockets on the system board (see

Section 3 of the PowerMate Ve Series Service and Reference Manual).

If any cables block access to the SIMM sockets, label and disconnect them. If any boards

block access to the sockets, remove them.

Checking System Memory

Use Table 1-2 to check the memory installed in the system and determine the SIMM

configuration needed to increase memory.

Technical Information 1-3

NOTE: SIMM memory must be installed in

pairs of the same memory type.

Table 1-2 Recommended Memory Upgrade Path

Total Bank 0 Bank 1

Memory SIMM 1 SIMM 2 SIMM 3 SIMM 4

16 MB 4 MB 4 MB 4 MB 4 MB

16 MB* 8 MB 8 MB Empty Empty

24 MB 4 MB 4 MB 8 MB 8 MB

24 MB 8 MB 8 MB 4 MB 4 MB

32 MB 8 MB 8 MB 8 MB 8 MB

32 MB 16 MB 16 MB Empty Empty

40 MB 4 MB 4 MB 16 MB 16 MB

40 MB 16 MB 16 MB 4 MB 4 MB

48 MB 8 MB 8 MB 16 MB 16 MB

48 MB 16 MB 16 MB 8 MB 8 MB

64 MB 16 MB 16 MB 16 MB 16 MB

64 MB 32 MB 32 MB Empty Empty

72 MB 32 MB 32 MB 4 MB 4 MB

72 MB 4 MB 4 MB 32 MB 32 MB

80 MB 8 MB 8 MB 32 MB 32 MB

80 MB 32 MB 32 MB 8 MB 8 MB

96 MB 16 MB 16 MB 32 MB 32 MB

96 MB 32 MB 32 MB 16 MB 16 MB

128 MB 32 MB 32 MB 32 MB 32 MB

* = Standard configuration.

Installing SIMMS

After determining the system memory upgrade path, install SIMMs using the installation

procedure provided in Section 3 of the PowerMate Ve Series Service and Reference

Manual.

1-4 Technical Information

INTERRUPT CONTROLLER

The interrupt controller operates as an interrupt manager for the entire AT system

environment. The controller accepts requests from peripherals, issues interrupt requests to

the processor, resolves interrupt priorities, and provides vectors for the processor to

determine which interrupt routine to execute. The interrupt controller has priority

assignment modes that can be reconfigured at any time during system operations.

The interrupt levels are described in Table 1-3. Interrupt-level assignments 0 through 15 are

in order of decreasing priority. See Section 2 of the PowerMate Ve Series Service and

Reference Manual for information on changing the interrupts using Setup.

Table 1-3 Interrupt Level Assignments

Interrupt Assignment

IRQ 0 Counter/Timer

IRQ 1 Keyboard

IRQ 2(9) Cascade (INT output from slave)

IRQ 3 COM2 and COM4

IRQ 4 COM1 and COM3

IRQ 5 Parallel Port 2/Audio (if present)

IRQ 6 Diskette Drive Controller

IRQ 7 Parallel Port 1

IRQ 8 Real-time clock

IRQ 10 Available/Audio (if present)

IRQ 11 Network Interface Board

IRQ 12 PS/2 mouse

IRQ 13 Coprocessor

IRQ 14* Primary IDE

IRQ 15* Secondary IDE

Technical Information 1-5

INTEGRATED GRAPHICS

PowerMate Ve ETC Series computers have an SiS 6205 PCI graphics and video controller

integrated on the system board. State of the art techniques are used for optimizing

performance in computer graphic intensive applications and graphical user interfaces (GUI).

PowerMate Ve ETC Series systems have 1 MB of video DRAM on the system board. For

information about graphics features and video support, see Section 1 of the PowerMate Ve

Series Service and Reference Manual.

NETWORK INTERFACE

The computer comes equipped with a network interface board installed in one of the

expansion slots in the system unit. The three connectors on the board allow connection to

an Ethernet network and communication with other computers. Access to the connectors is

provided at the rear of the system unit. Figure 1-1 shows the location of the network

interface board and the three connectors. For more information, see Section 2 of this

addendum.

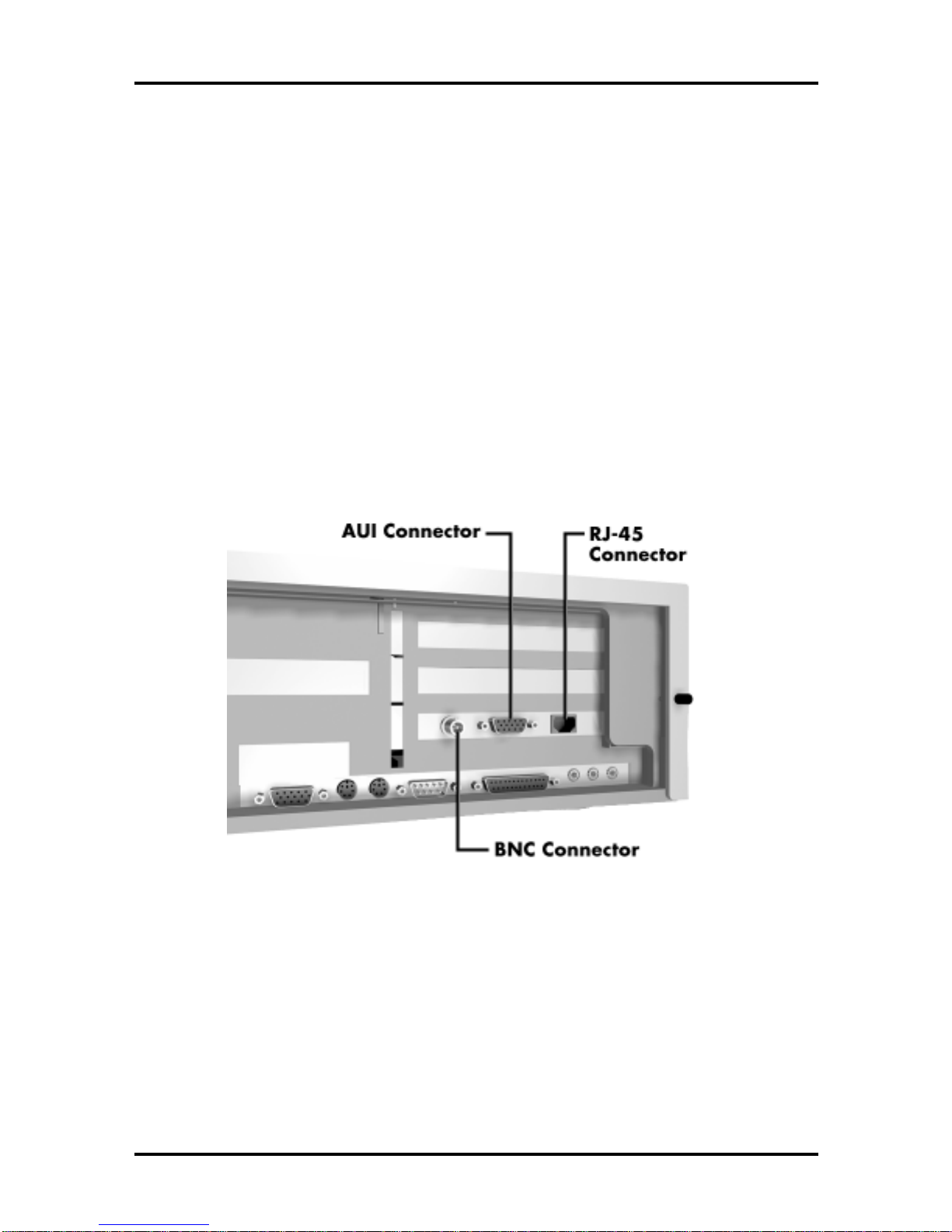

Figure 1-1 Network Interface Board

1-6 Technical Information

HARD DISK SPECIFICATIONS

The PowerMate Ve ETC Series computer contains a 1.2-GB Western Digital IDE hard

disk. The following table provides hard disk specifications.

Table 1-4 Hard Disk Drive Specifications

Features Specification

Physical Configuration

Formatted Capacity 1.278 GB

Actuator Type Rotary voice-coil

Number of Disks 3

Data Heads 6

Servo Type Embedded

Tracks per Inch (tpi) 3,849 tpi

Bytes per Sector 512

Maximum Data

Rate from Media 45.4 MB/second

Dimensions

Hei

Len

Width

1.00 in. (25.4 mm)

5.75 in. (146.0 mm)

4.00 in. (101.6 mm)

Weight 1.3 lb (589.4)

Performance

Track-to-track seek

Avera

e seek

Maximum seek

3.0 ms

14 ms

26 ms

Average Latency 8.3 ms

Rotation Speed 3600 rpm

Data Transfer Rate

(buffer to disk) 45.4 MB/s maximum

Data Transfer Rate

(buffer to host) 16.6 MB/s, Mode 4

Start/Stop Cycles 40,000 minimum

Buffer Size 64 KB

Interface IDE

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali NEC Scrivania

NEC

NEC POWERMATE 5100 - SERVICE Manuale utente

NEC

NEC POWERMATE ES 5250 - S Manuale di istruzioni

NEC

NEC PowerMate ES SlimLine Series Manuale di istruzioni

NEC

NEC PowerMate VT 300i Series Manuale utente

NEC

NEC PowerMate ML5 Istruzioni per l'installazione

NEC

NEC POWERMATE ENTERPRISE - 10-1997 Manuale utente

NEC

NEC POWERMATE PRO2180 - SERVICE 1997 Manuale utente

NEC

NEC POWERMATE 8100 Series Manuale utente

NEC

NEC PowerMate ES SlimLine Series Manuale utente

NEC

NEC I-Select TW100 Manuale utente

NEC

NEC POWERMATE ENTERPRISE - 09-1997 Manuale utente

NEC

NEC DIRECTION SP - SERVICE Manuale utente

NEC

NEC POWERMATE P Manuale utente

NEC

NEC 5508N Manuale utente

NEC

NEC PowerMate eco Manuale utente

NEC

NEC POWERMATE PROFESSIONAL 9000E - SERVICE Manuale utente

NEC

NEC POWERMATE PRO2180 - SERVICE 1996 Manuale utente

NEC

NEC POWERMATE ES 5200 - SERVICE Manuale utente

NEC

NEC POWERMATE 8100 RELEASE NOTES Manuale utente

NEC

NEC PowerMate 2000 Series Manuale utente

NEC

NEC POWERMATE PROFESSIONAL 9000E - SERVICE Manuale utente

NEC

NEC POWERMATE ES Series Come usare

NEC

NEC POWERMATE V486 - SERVICE Manuale utente

NEC

NEC POWERMATE CT 815 - RELEASE NOTES Manuale utente

Manuali Scrivania popolari di altre marche

HP m9060n - Pavilion - Elite Scheda tecnica

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

HP Presario SV7000 - Desktop PC Manuale utente

HP ProDesk 400 G5 Manuale

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente
