NEC Display Solutions of America, Inc.

E321 Installation Guide

32” LCD Display

Rev 1.7

www.necdisplay.com E321 Page 1 of 8

Contents:

Product Description and Notes Page 1

Ventilation Requirements Page 2

Display Dimensions

Front, Top & Right Side Page 3

Rear Page 4

Display Dimensions with Stand Page 5

Optional Wall Mount Dimensions (WMK-3260L) Page 6

Optional Wall Mount Dimensions (WMK-3257) Page 7

Input Panels Page 8

Product Description:

Type: LCD Display Screen Surface: Anti-Reflective

Resolution: 1366 x 768 Dimensions without stand: 30.8”(W) x 20.1”(H) x 3.7”(D)

Aspect Ratio: 16:9 Dimensions with stand: 30.8”(W) x 22.0”(H) x 8.3”(D)

FCC: Class B Weight without stand: 22.5 lbs

Power Consumption: 150W (typ) Weight with stand: 24.9 lbs

BTU’s: 511.82 BTU/hour

NOTES:

•This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

•Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

•This unit is built to sustain Landscape orientation only.

•4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

•Distances are in inches, for millimeters multiply by 25.4.

•Distances may vary ±5%.

NEC Display Solutions of America, Inc.

E321 Installation Guide

32” LCD Display

Rev 1.7

www.necdisplay.com E321 Page 2 of 8

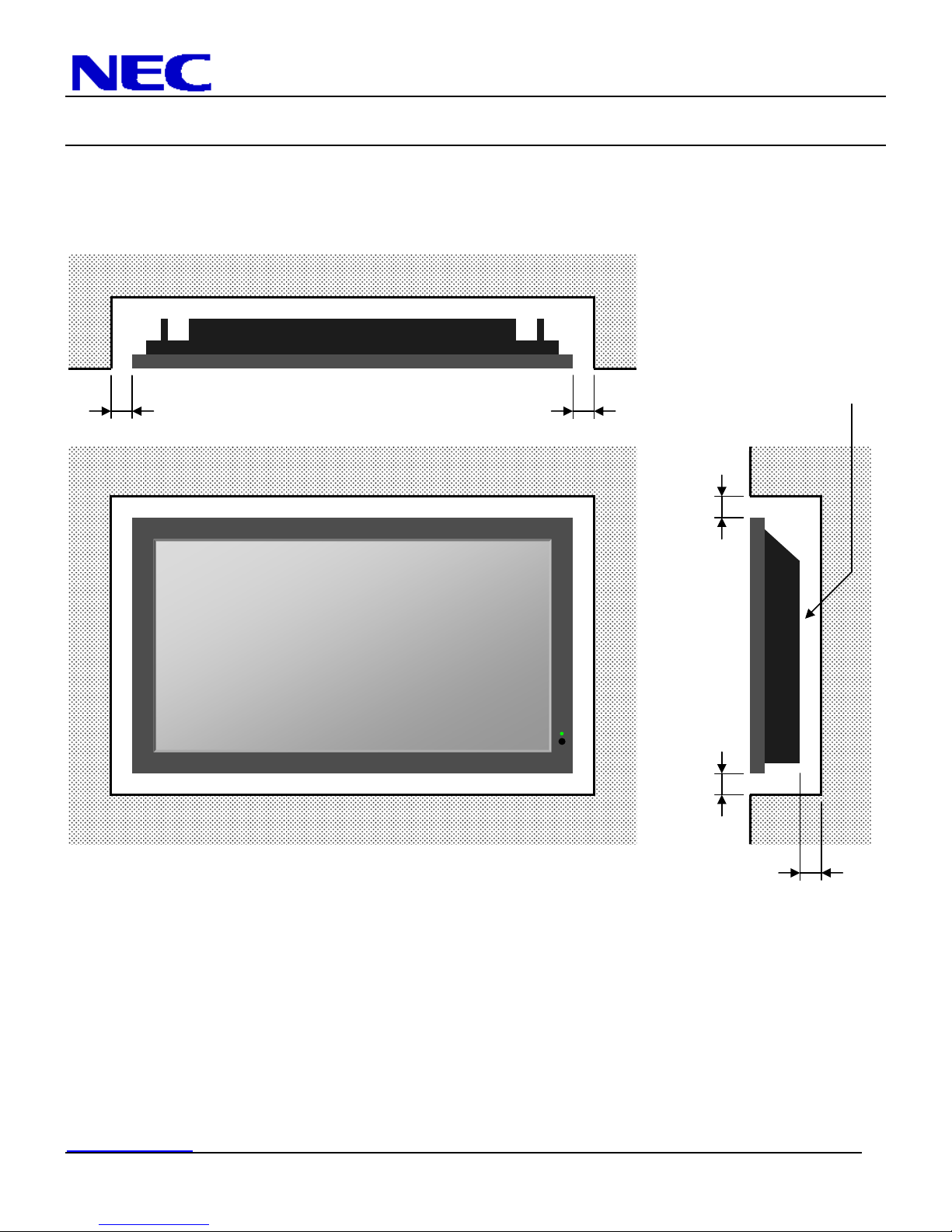

Ventilation Requirements (all models):

Dimensions below are minimum required for proper ventilation.

NOTE:

•The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be

covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and

recommendations.

WALL

60mm

2”

0 to 40 degC

32 to 104 degF

WALL

60mm

2”

60mm

2”

60mm

2”

60mm

2”

NEC Display Solutions of America, Inc.

E321 Installation Guide

32” LCD Display

Rev 1.7

www.necdisplay.com E321 Page 3 of 8

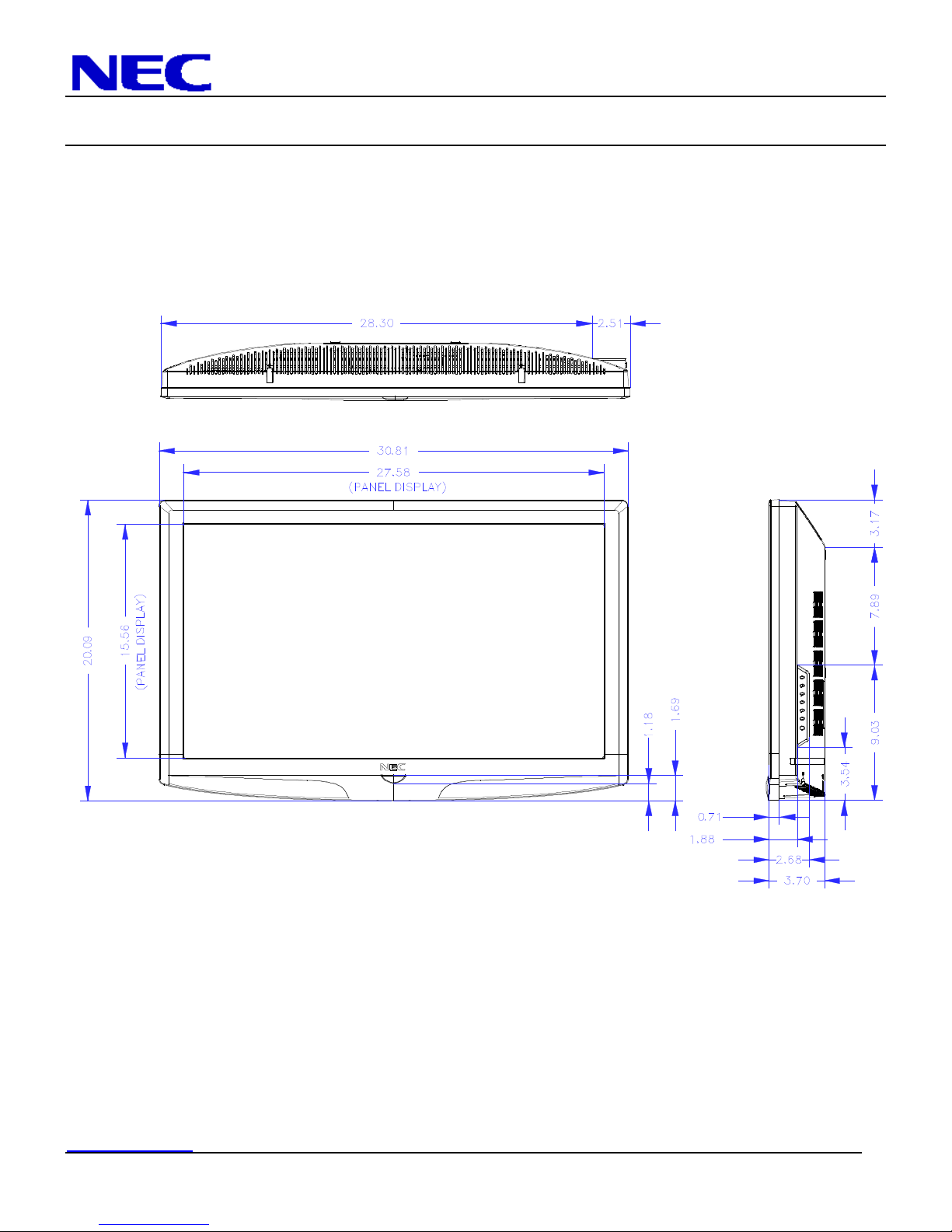

Display dimensions:

NEC Display Solutions of America, Inc.

E321 Installation Guide

32” LCD Display

Rev 1.7

www.necdisplay.com E321 Page 4 of 8

Display dimensions (cont.):

NEC Display Solutions of America, Inc.

E321 Installation Guide

32” LCD Display

Rev 1.7

www.necdisplay.com E321 Page 5 of 8

Dimensions with stand:

NEC Display Solutions of America, Inc.

E321 Installation Guide

32” LCD Display

Rev 1.7

www.necdisplay.com E321 Page 6 of 8

Dimensions with optional Wall Mount Kit (WMK 260-L):

NOTE:

•Some connectivity located on the back control panel is covered when WMK3260-L is in place.

NEC Display Solutions of America, Inc.

E321 Installation Guide

32” LCD Display

Rev 1.7

www.necdisplay.com E321 Page 7 of 8

Dimensions with optional Wall Mount Kit (WMK- 257):

NEC Display Solutions of America, Inc.

E321 Installation Guide

32” LCD Display

Rev 1.7

www.necdisplay.com E321 Page 8 of 8

Input Panels:

Back

Side (Rotated):
