NEC Display Solutions of America, Inc.

E551 Installation Guide

55” LCD Display

Rev 1.4

www.necdisplay.com E421 Page 1 of 6

Contents:

Product Description and Notes Page 1

Ventilation Requirements Page 2

Display Dimensions

Front, Top & Right Side Page 3

Rear Page 4

Display Dimensions with Stand Page 5

Optional Wall Mount Dimensions (WMK-E551) Page 6

Product Description:

Type: LCD Display Screen Surface: Anti-Reflective

Resolution: 1920 x 1080 Dimensions without stand: 51.52”(W) x 32.89”(H) x 4.5”(D)

Aspect Ratio: 16:9 Dimensions with stand: 51.52”(W) x 34.84”(H) x 12.2”(D)

FCC: Class B Weight without stand: 79.1 lbs

Power Consumption: 240W (typ) Weight with stand: 83.5 lbs

BTU’s: 818.92 BTU/hour

NOTES:

•This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

•Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

•This unit is built to sustain Landscape orientation only.

•4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

•Distances are in inches, for millimeters multiply by 25.4.

•Distances may vary ±5%.

NEC Display Solutions of America, Inc.

E551 Installation Guide

55” LCD Display

Rev 1.4

www.necdisplay.com E421 Page 2 of 6

Ventilation Requirements:

Dimensions below are minimum required for proper ventilation.

NOTE:

•The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be

covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and

recommendations.

30cm (12in.)

(4in.)

10cm

(4in.)

10cm

(4in.)

10cm

30cm (12in.)

NEC Display Solutions of America, Inc.

E551 Installation Guide

55” LCD Display

Rev 1.4

www.necdisplay.com E421 Page 3 of 6

Display dimensions:

NEC Display Solutions of America, Inc.

E551 Installation Guide

55” LCD Display

Rev 1.4

www.necdisplay.com E421 Page 4 of 6

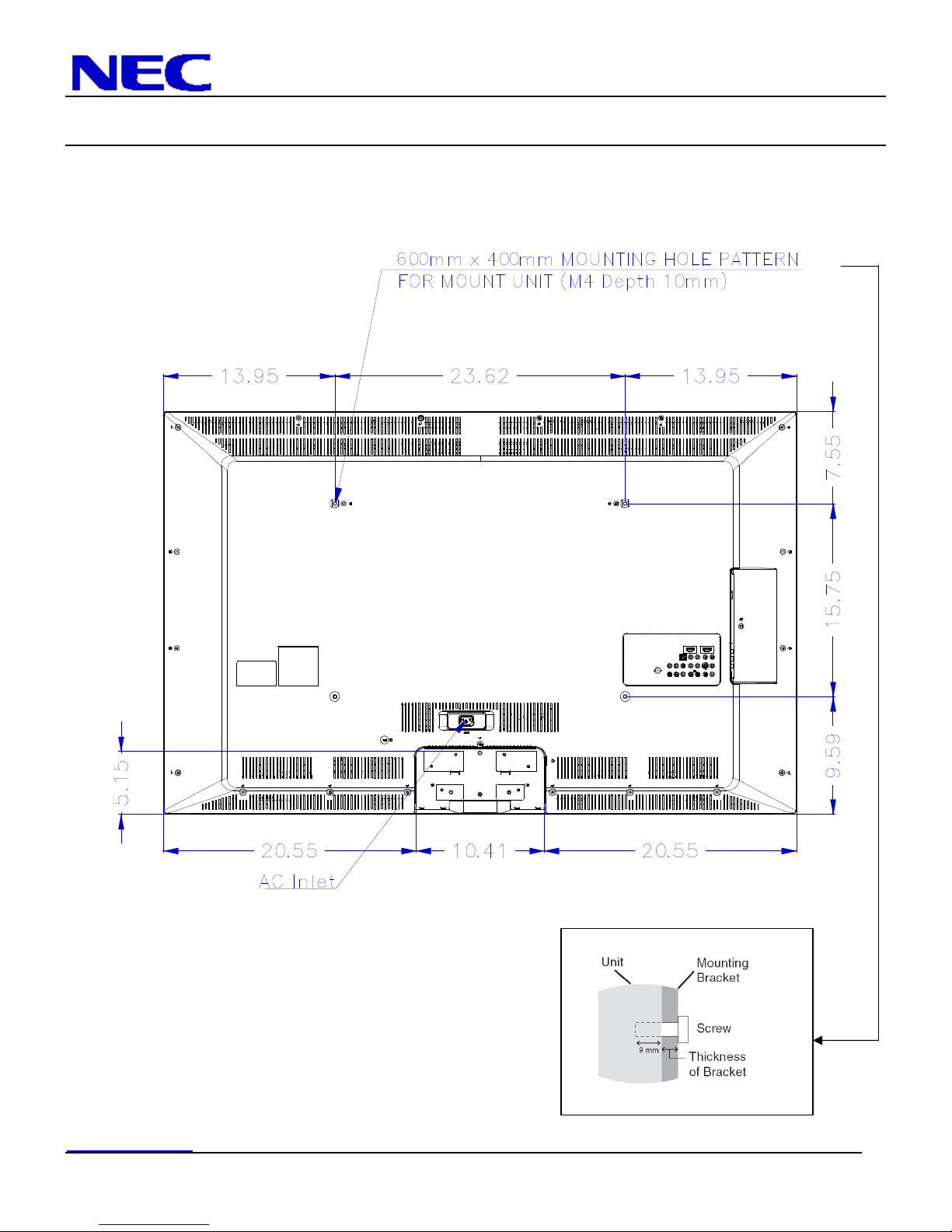

Display dimensions (cont.):

NEC Display Solutions of America, Inc.

E551 Installation Guide

55” LCD Display

Rev 1.4

www.necdisplay.com E421 Page 5 of 6

Dimensions with Stand:

NEC Display Solutions of America, Inc.

E551 Installation Guide

55” LCD Display

Rev 1.4

www.necdisplay.com E421 Page 6 of 6

Dimensions with optional Wall Mount it (WM -E551):
