NEC MultiSync P701 Manuale utente

NEC Display Solutions of America, Inc.

P701 Installation Guide

70” LCD Display

Rev 1.3

www.necdisplay.com P701 Page 1 of 12

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Requirements Page 2

Display Dimensions

Front, Top, Right Side, Left Side Page 3

Rear & Bottom Page 4

Display Dimensions w/Optional Speakers and Stand Page 5

Optional Table Top Stand Dimensions Page 6

Optional Speaker Dimensions Page 7

Dimensions with Optional Peerless Fixed Wall Mount Page 8

Dimensions with Optional Peerless Tilt Wall Mount Page 9

Dimensions with Optional Chief Fixed Wall Mount Page 10

Input Panels Page 11

Control Codes Page 12

Product Description:

Type: LCD Display Screen Surface: Anti-Reflective

Resolution: 1920 x 1080 Dimensions without stand: 66.1” (W) x 39.5” (H) x 7.8” (D)

Aspect Ratio: 16:9 Dimensions with stand: 66.1”(W) x 41.8”(H) x 19.7”(D)

FCC: Class A Weight without stand: 211.6 lbs

Power Consumption: 600 W (typ) Weight with stand: 220.4 lbs

BTU’s: 2047.29 BTU/hour

NOTES:

•This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

•Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

•4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

•Distances are in inches, for millimeters multiply by 25.4.

•Distances may vary ±5%.

Tilt Angle and Rotation:

•Below is the maximum angle the monitor can be tilted. Note that the monitor can only be tilted in the landscape position.

•Monitor

can only be rotated clockwise to achieve portrait orientation

Max 20º Tilt (Landscape Only) Rotated Clockwise Only

NEC Display Solutions of America, Inc.

P701 Installation Guide

70” LCD Display

Rev 1.3

www.necdisplay.com P701 Page 2 of 12

Ventilation Requirements (all models):

Dimensions below are minimum required for proper ventilation.

NOTE:

•The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be

covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and

recommendations.

WALL

100mm

4”

5 to 40 degC

41 to 104 degF

WALL

100mm

4”

100mm

4”

100mm

4”

100mm

4”

NEC Display Solutions of America, Inc.

P701 Installation Guide

70” LCD Display

Rev 1.3

www.necdisplay.com P701 Page 3 of 12

Display dimensions:

NEC Display Solutions of America, Inc.

P701 Installation Guide

70” LCD Display

Rev 1.3

www.necdisplay.com P701 Page 4 of 12

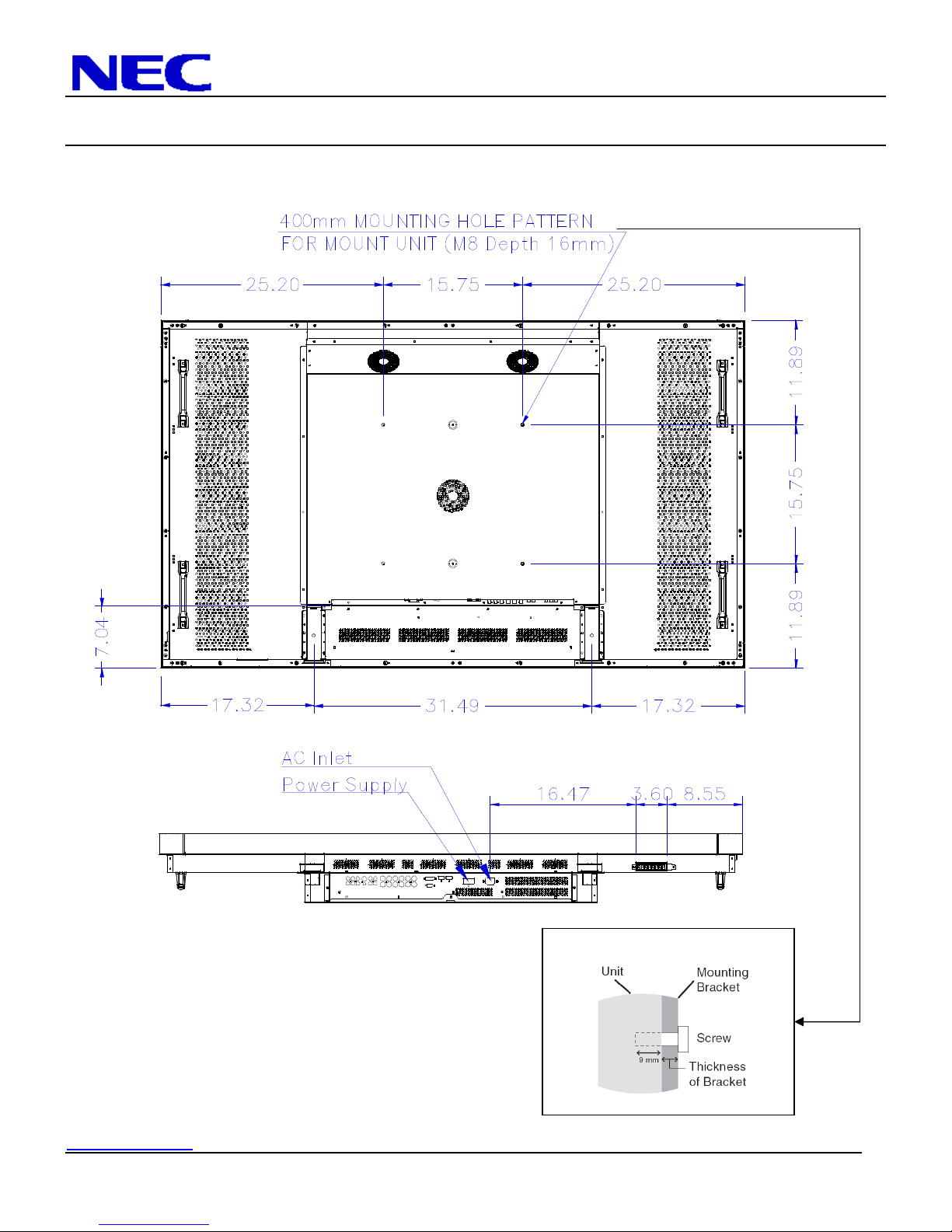

Display dimensions (cont.):

NEC Display Solutions of America, Inc.

P701 Installation Guide

70” LCD Display

Rev 1.3

www.necdisplay.com P701 Page 5 of 12

Dimensions with optional rear mounted spea ers (SP-RM1):

NEC Display Solutions of America, Inc.

P701 Installation Guide

70” LCD Display

Rev 1.3

www.necdisplay.com P701 Page 6 of 12

Table Top Stand Dimensions (ST-701):

NEC Display Solutions of America, Inc.

P701 Installation Guide

70” LCD Display

Rev 1.3

www.necdisplay.com P701 Page 7 of 12

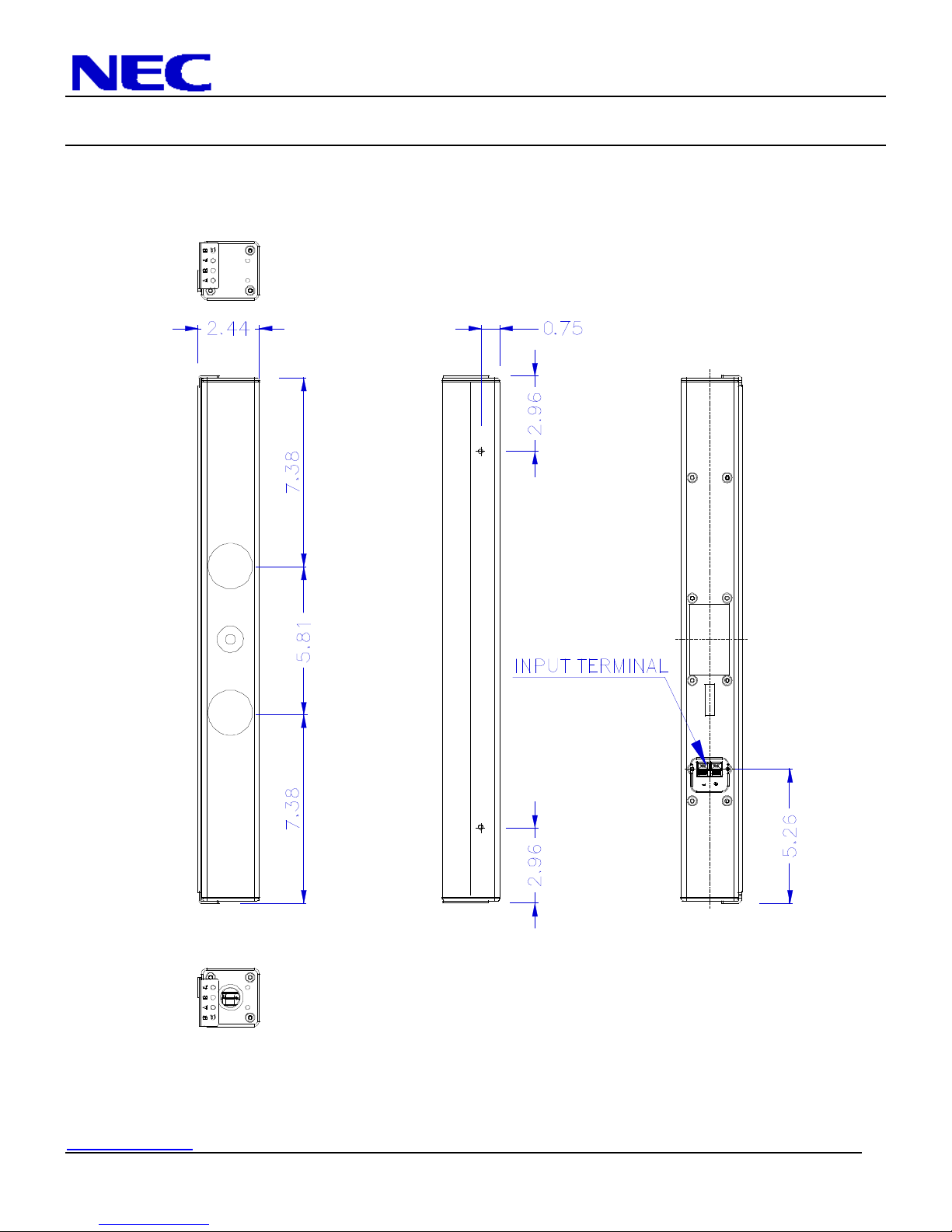

Optional Spea er Dimensions including holder (SP-RM1):

NEC Display Solutions of America, Inc.

P701 Installation Guide

70” LCD Display

Rev 1.3

www.necdisplay.com P701 Page 8 of 12

Dimensions with Peerless Fixed Wall Mount Kit (SF670):

Contact Samantha Kalinowski (708-865-8870 Ext.232)

NEC Display Solutions of America, Inc.

P701 Installation Guide

70” LCD Display

Rev 1.3

www.necdisplay.com P701 Page 9 of 12

Dimensions with Peerless Tilt Wall Mount Kit (ST670):

Contact Samantha Kalinowski (708-865-8870 Ext.232)

15.74

NEC Display Solutions of America, Inc.

P701 Installation Guide

70” LCD Display

Rev 1.3

www.necdisplay.com P701 Page 10 of 12

Dimensions with Chief Fixed Wall Mount Kit (XMSU):

Contact Paul edding (952-380-8247)
