NEC MultiSync X462S PG (Protective Glass Manuale utente

How to fix the protective glass for X401S

PARTS LIST

Location Part No Q'ty

GLS-1 ―1

BRK-1 2

BRK-2 2

CUS-1

CUSHION

CUS-2

CUSHION

CUS-3

CUSHION

X401S HOLDER GLASS A

X401S HOLDER GLASS B

―

DOUBLE SIDE TAPE CUSHION

Spec

PROTECTION GLASS X401S

Description

909.4±1.0mm X 521±0.7mm X 4.0±0.3mm

454.2mm X 8mm X 0.8mm

832.6mm X 8mm X 0.8mm

―

BRACKET LED TAPE CUSHION

―

DOUBLE SIDE TAPE

98mm X 8mm X 0.65mm

DOUBLE SIDE TAPE

Cushion

0.65

DOUBLE SIDE

[CUS-1] BRACKET LED TAPE CUSHION：98 X 8 X 0.65

Cushion

0.8

454.2

[CUS-2] DOUBLE SIDE TAPE CUSHION：454.2 X 8 X 0.8

Cushion

0.8

832.6

[CUS-3] DOUBLE SIDE TAPE CUSHION：832.6 X 8 X 0.8

Cushion

DOUBLE SIDE

Parts_list

How to fix the protective glass for X401S

1. Remove BEZEL and BRACKET PWB IR.

(Amount of the screws that fix BEZEL is 8 pieces. )

Remove the BEZEL

REMOVE BRACKET PWB IR

Remove 8 SCREWS.

ATTENTION

Remove catching of a hook. (4 places )

Page-1

832.6mm

454.2mm

8mm

CUS-3

CUS-2

Don't paste CUS-2

on ACTIVE AREA.

Don't paste CUS-3

on ACTIVE AREA.

CUS-3

CUS-2

Paste CUS-2 and CUS-3

Paste CUS-2 and CUS-3 (DOUBLE SIDE TAPE CUSHION) and peel off separator.

Refer to SPEC of PARTS LIST for the specification of CUS-2 and CUS-3.

ATTENTION

Don'ｔpaste CUS-2 and CUS-3 on PANEL'S ACTIVE AREA.

ATTENTION

Criterion which pastes CUS-2 and CUS-3

is the edge of PANEL BEZEL OPENING.

ATTENTION

Don'ｔuse the knife to cut

CUS-2 and CUS-3.

Use scissors. Don'ｔpaste CUS-2 and CUS-3 on these area.

This note is applied for all corner.

40mm

35mm

Page-2

3. Assemble GLS-1(PROTECTION GLASS X401S).

ATTENTION

Before assembling PROTECTION GLASS to PANEL,

remove dust from PROTECTION GLASS and PANEL-front surface.

Peel off separator of CUS-2 and CUS-3

GLS-1

Assemble GLS-1

1.6mm

ATTENTION

When assembling PROTECTION GLASS,

clearance is needed from panel edge.

PANEL EDGE

Before assembling, check if there's no dust or fingerprint and so on.

If find it, remove by cleaning cloth.

Page-3

4. Assemble BRK-1 and BRK-2 (X401S HOLDER GLASS A/B).

Assemble BRK-1 and BRK-2 BRK-1

BRK-1

BRK-2

ATTENTION

Insert BRK-1 and BKT-2 between

PANEL and BACK COVER.

Page-4

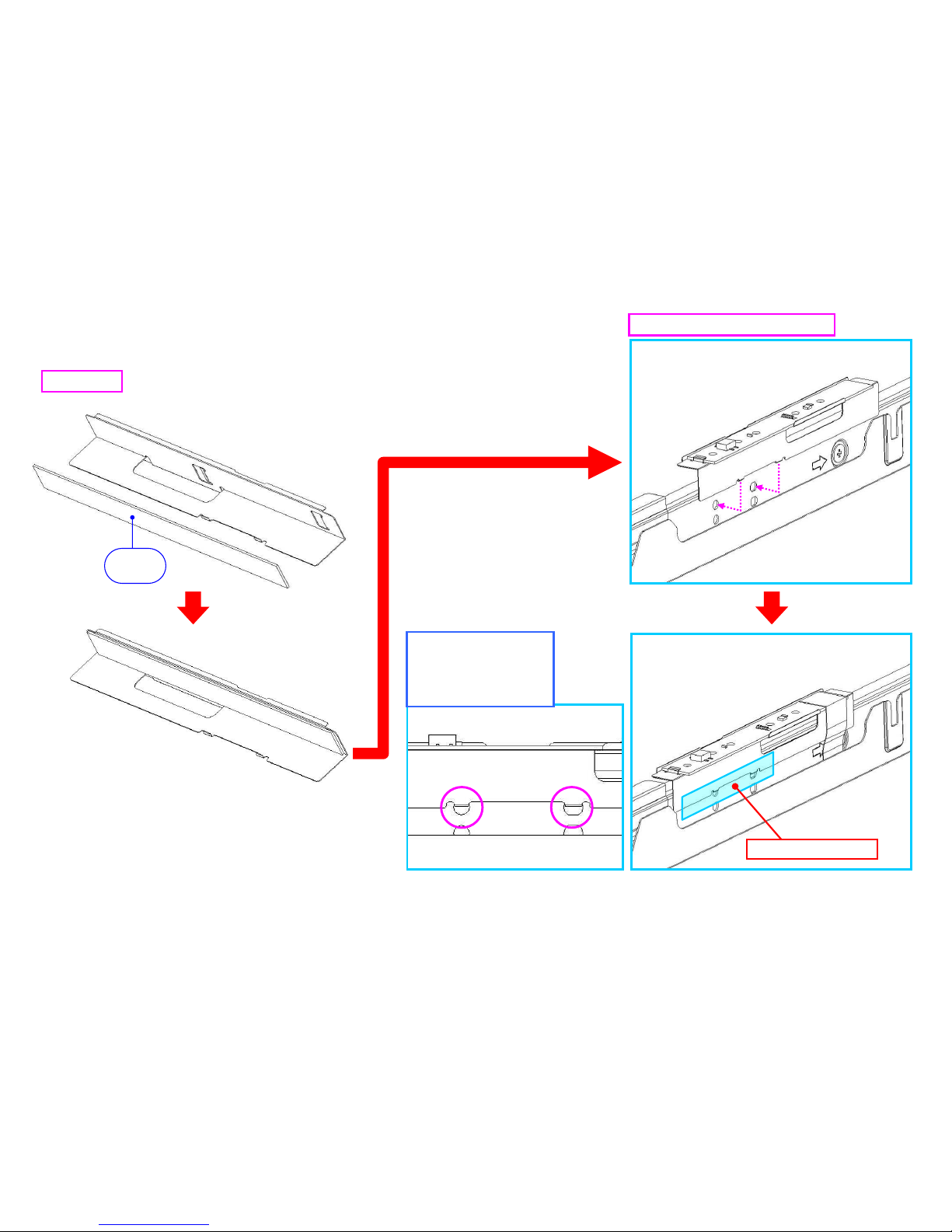

5. Paste CUS-1 (BRACKET LED TAPE CUSHION).

Refer to SPEC of PARTS LIST for the specification of CUS-1.

Assemble BRACKET PWB IR again.

CUS-1

Paste CUS-1

ATTENTION

Insert the positioning of

BRACKET PWB IR in the

hole of a picture.

Paste the tape of 50mm.

Assemble BRACKET PWB IR again.

Page-5

6. Rotate and install HOLE CAP.

Push

Rotate

Insert

Remove

Remove HOLE CAP

Rotate HOLE CAP

Install HOLE CAP

Page-6

7. Assemble BEZEL again.

Assemble BEZEL again.

ATTENTION

Fix screw in a specified hole.

ATTENTION

Fix screw by the specified torque.

T=4±1kgf.cm

Install 8 SCREWS.

FIXING SEQUENCE : 1 → 2

ATTENTION

Check that the hook is catching

firmly. (4 places )

Push

Page-7
