1 © NEC Corporation 2016

X551 UHD IGT with legs base

X651 UHD-2 IGT with legs base

User’s Manual

2 © NEC Corporation 2016

Please be aware. This manual is a supplement to the monitor’s manufacturer instruction.

It can not be treated as a separate document.

Please follow all warnings and precautions pointed in main manual provided with product.

Table of contents

1. Unpacking unit and fitting legs.................................................... 3

2. Connecting cables ................................................................... 12

3. Touch Screen Calibration.......................................................... 12

3 © NEC Corporation 2016

1. Unpacking unit and fitting legs

NOTE :

Due to mass of final product for installation and handling 4 people are

required . Do not start unless you have enough people available , fitting with

less people may result in injuries and damaged product.

Product is provided in two boxes:

4 © NEC Corporation 2016

Unpack monitor from the box and put it flat on the floor with Cardboard still attached

at the front of screen to cover it from scratches.

NOTE :

Do not remove Cardboard from the front of the screen.

5 © NEC Corporation 2016

Unpack legs and top plate from box.

Prepare screws and key from accessory box.

Make sure that anti shake washers are on bolts and M4/M8 screws.

Put in X section of legs

Screw in 8 screws in marked positions for each leg.

6 © NEC Corporation 2016

Note : Leg attach should hold leg base section while it is being mount to the

legs.

THE LEG BASE SHOULD BE SUPPORTED WHILST IT IS BEING ATTACHED TO

THE IDIVIDUAL LEGS USING M8 BOLTS AND ANTI-SHAKE WASHERS

(RACHET PROVIDED, 2X BOLTS 2X WASHERS PER LEG)

Turn over leg base and attach top plate by screws provided in accessory box.

7 © NEC Corporation 2016

Unscrew and remove all the handles , table base will be fitted in their place.

.

Remove all screws marked on above picture.

NOTE: This action causes looseness of back plates. 4 people have to be presented

during placing display on legs base.

8 © NEC Corporation 2016

There is a top and bottom side of legs base.

9 © NEC Corporation 2016

With 4 people holding each corner of display place it on the legs base.

Note : Do not put screen on the side during that action , It may result in touch screen

permanent damage and or matrix malfunction.

Remove styrofoam along with cardboard

Remove foil from the touch screen before you connect cables.

Now you can connect all cables.

The touch screen is HID 'Plug and Play' with no driver required.

10 © NEC Corporation 2016

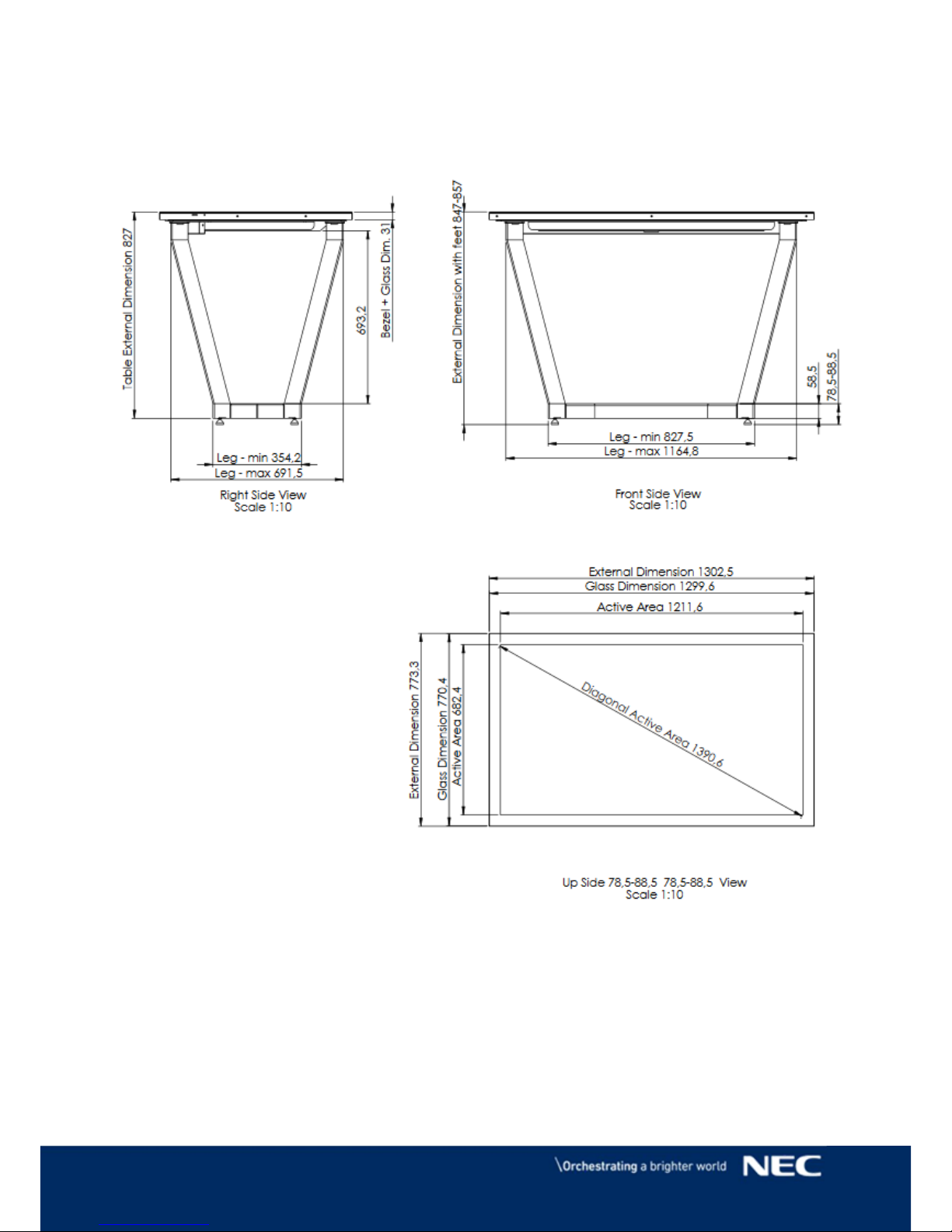

X551 UHD
