NEC NEC MultiSync LCD1850E LCD1850E LCD1850E Manuale utente

LCD1850E OUTLINE

SCALE : 1/5

DIMENSION IN mm.

Fig.-1

180 NOTE :

• CABINET COLOR : MIST WHITE MC-8510

• TILT ANGLE : +30˚ ~ -5˚

• SWIVEL : +170˚ ~ -170˚

• WEIGHT

WITH STAND : APPROX 8.6 kg

WITHOUT STAND : APPROX 6.3 kg

398

361

289.4

234

29.8

74.4

51.7

215

28930

345

CONTROL SWITCH POWER-ON INDICATION

POWER SWITCH

48.7

AC POWER CONNECTOR

RATING LABEL

349

436

D-SUB (DB9-15P)

INPUT CONNECTOR

SECURITY KEY

LOCK HOLE

VACATION

SWITCH

261.5

Up Side : ON

Bottom Side : OFF

LCD1850E LOCATION OF FRONT LOGO

SCALE : 1/2

DIMENSION IN mm.

Fig.-2

• COLOR OF LETTERING : REAL GRAY SILVER EC-0790

3.5

BADGE (LOGO SIZE : 24 x 6 mm)

4.9

4.5

7.5 2.8

7.5 4

RESET BUTTON

POWER-ON

INDICATION

POWER SWITCH

NEXT / INPUT BUTTON

ADJUST BUTTONS

CONTROL BUTTONS

EXIT BUTTON

LCD1850E LOCATION OF REAR LOGO

Fig.-3

SCALE : 1/3

DIMENSION IN mm.

RATING LABEL

SECURITY KEY LOCK HOLE

LOGO SIZE : 80 x 20 mm



AC POWER CONNECTOR

D-SUB (DB9-15P)

INPUT CONNECTOR

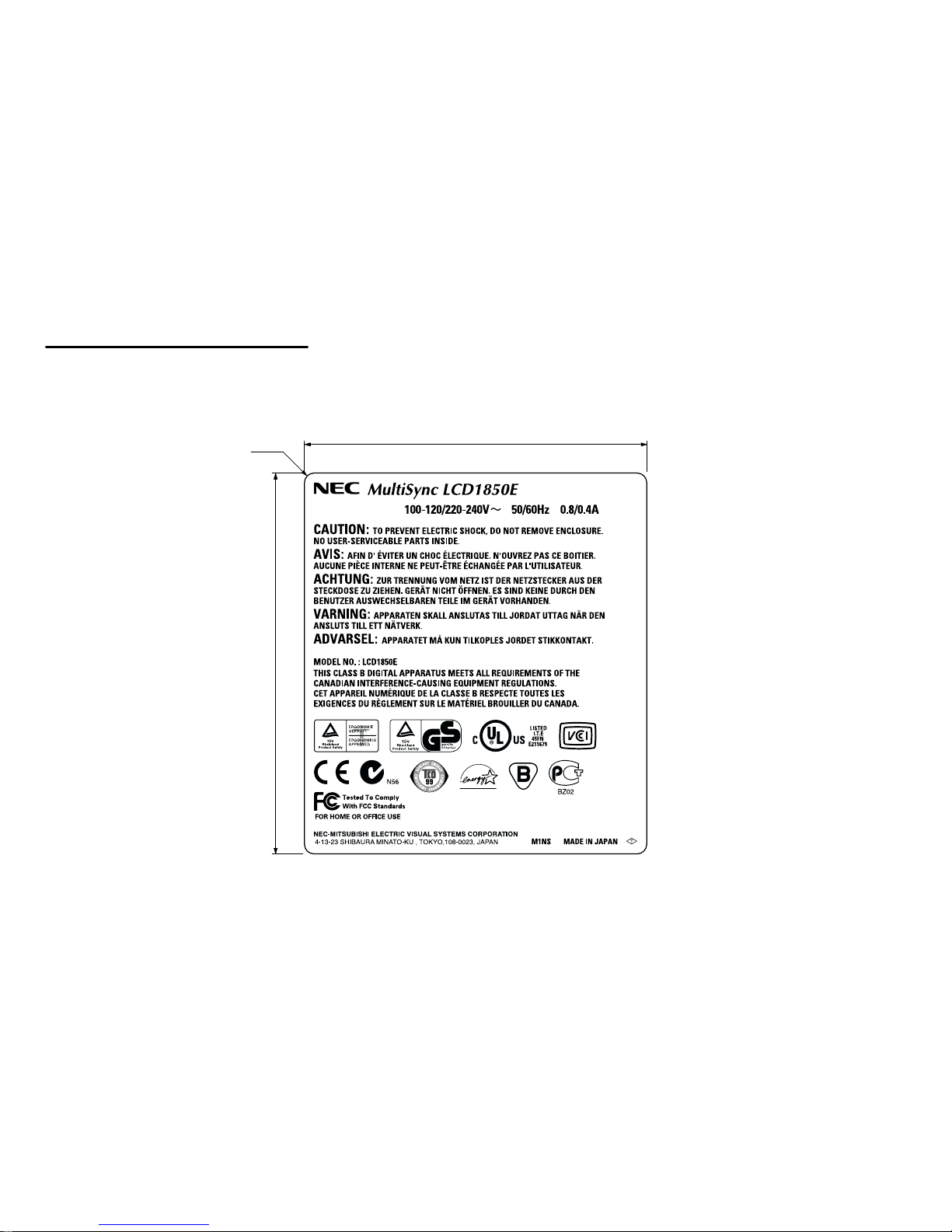

LCD1850E RATING LABEL

SCALE : 1/1

DIMENSION IN mm.

• BACK GROUND COLOR : CABINET COLOR (MIST WHITE)

• LETTERING COLOR : DARK REAL GRAY #8505

Fig.-4

107 ±0.5

119 ±0.5

4-R3

LCD1850E CARTON BOX

• COLOR OF MATERIAL : KRAFT COLOR (BROWN) SCALE : 1/8

DIMENSION IN mm.

Fig.-5

FRONT

310

490

550

OUTER DIMENSION

INNER DIMENSION : 473 (W) x 516 (H) x 294 (D)

302481

151 151532

JOINT FLAP

302481

< FRONT >

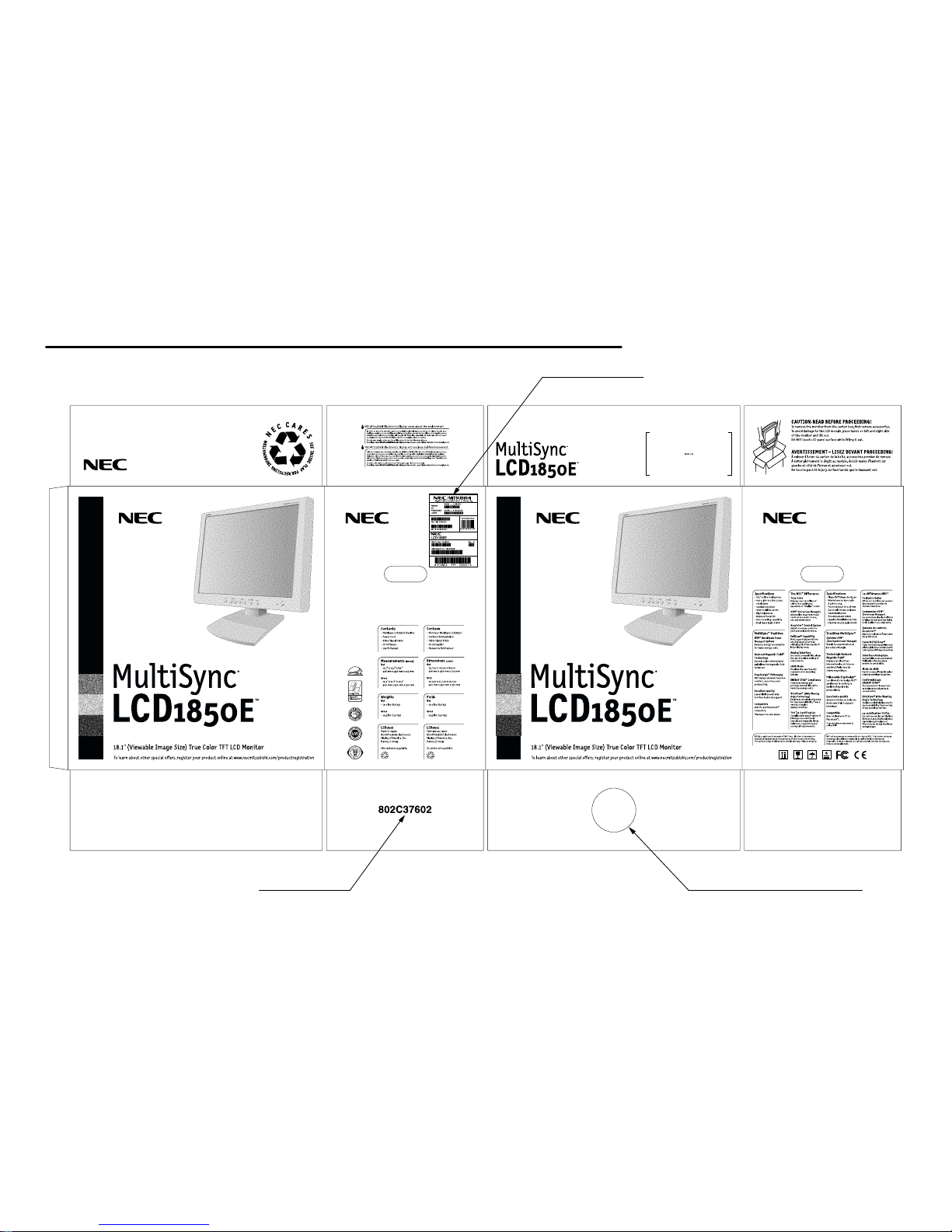

LCD1850E PRINTING SPECIFICATION OF CARTON BOX

• COLOR OF PRINTING : BLACK SCALE : 1/6

DIMENSION IN mm.

Fig.-6

MARK OF BOX CERTIFICATION

< FRONT >

SERVICE CODE

BAR CODE LABEL

Fig.-7

LCD1850E PACKING STYLE

FRONT

CARTON BOX

BOTTOM CUSHION

DISPLAY MONITOR

TOP CUSHION

PACKING BAG

SIGNAL CABLE

FRONT CARTON TAPE

CARTON TAPE

SETUP SHEET

MASKING TAPE

POWER CORD

PACKING SHEET

PACKING SHEET BROCHURE (LiquidView)

FRONT COVER OF

USER'S MANUAL

and CD SOFTWARE.

FRONT COVER OF

BROCHURE.

CD SOFTWARE

USER'S MANUAL

VINYL BAG

BAR CODE LABEL

PACKING SHEET

LCD1850E POWER CORD

1.CABLE SIZE : AWG18X3C

2.JACKET : PVC

3.COLOR : LIGHT GRAY

4.ABILITY

(1) VOLTAGE : AC 125V

(2) AMPERAGE : AC 10A

(3) TEMPERATURE : 60°C

5.REGULATORY APPROVALS : UL, CSA

SCALE : NTS

DIMENSION IN mm.

Fig.-8

About 1800mm

1.JACKET : PVC

2.ABILITY

(1)VOLTAGE : 30V

(2)TEMPERATURE : 80°C

LCD1850E SIGNAL CABLE SCALE : NTS

DIMENSION IN mm.

Fig.-9

Blue Light gray

WIRING LIST

SIGNAL

Red video

11 66 22 77 33 88 44 55 99 1010 1111 1212 1313 1414 1515

D/MP/C

Red ground

Green video

Green ground

Blue video

Blue ground

Ground

Serial data

Horizontal sync.

Vertical sync.

Serial clock

CONSTRUCTION

24.99

33.2

15.12

No.4-40 UNC

SCREW No.4-40 UNC

SCREW

33.2

1800 +100

INSULATOR

CONDUCTOR

AL-FOIL/MYLAR

TINNED COPPER

BRAID SHIELD

JACKET

TINNED COPPER

BRAID SHIELD

AL-FOIL/MYLAR

DRAIN WIRE

LCD1850E USER'S MANUAL

SCALE : NTS

DIMENSION IN mm.

• LANGUAGE : English, French

• MATERIAL : RECYCLE PAPER (WHITE)

• LETTERING COLOR : BLACK

Fig.-10

216
