NEC PlasmaSync 50XM3 Manuale utente

NEC Solutions (America), Inc.

VisualSystems

50XM3/S (Residential Model) Installation Guide

50” Plasma Display v1.0

Contents

Product Description and Notes Page 1

Ventilation Requirements Page 2

www.necvisualsystems.com 50XM3/S Page 1 of 10

Display Dimensions

Front,Top&Bottom Page 3

Rear, Left & Right Side Page 4

Display Dimensions w/Optional Speakers and Stand Page 5

Dimensions w/Optional Flat Wall Mount Page 6

Dimensions w/Optional Tilt Wall Mount Page 7

Dimensions w/Optional Ceiling Mount Page 8

Connections Page 9

Control Codes Page 10

ProductDescription

Type: Plasma Display Screen Surface: Anti-Reflective

Resolution: 1365x768 ColorCorrection: NEC CCF (Capsulated Color Filter, in panel)

Aspect Ratio: 16:9 and AccuCrimson (in front filter)

FCC: ClassB Dimensions: 48.1”(W)x29.0”(H)x3.8”(D)

DVI Input: HDCP capable Weight: 96.6 lbs

Notes

 This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

 Any ceilings or walls must be strong enough to support the display and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

 4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched

horizontally to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

 Distances are in inches, for millimeters multiply by 25.4.

 Distances may vary ±5%.

MaximumTiltAngles

Below is the maximum angle that the display can be tilted

Max Tilt

Landscape 30°

Ventilation Requirements

Dimensions below are minimum required for proper ventilation.

WALL

NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the

opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for

design review and recommendations.

www.necvisualsystems.com 50XM3/S Page 2 of 10

Display dimensions

Power Button

Filter Surface

28.98

48.11

43.54 (Screen Area)

24.49 (Screen Area)

Speaker Terminal

Control Buttons

LED & IR

0.217

IR15.20

0.79

0.79 2.46 1.46

4.92

18.11 5.94

44.33

25.43

AC Inlet

20.55

50.00

www.necvisualsystems.com 50XM3/S Page 3 of 10

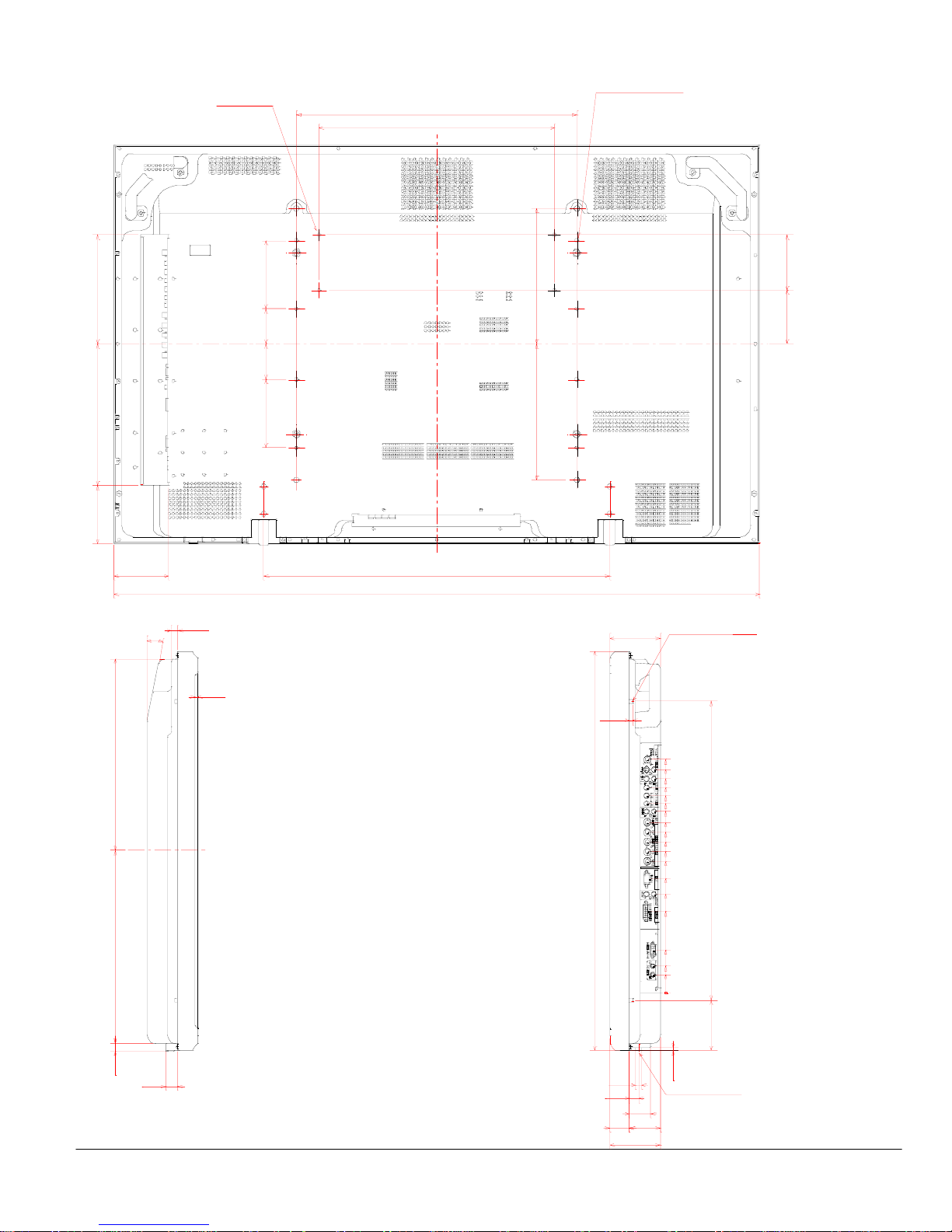

Display dimensions (cont.)

www.necvisualsystems.com 50XM3/S Page 4 of 10

Power Button

12°

20.87

3.78

for PC option

4-M4*10 MAX for mount option

8-M4*14 MAX

for speaker option

4.96 2.56 2.56 4.96

13.8813.960.59

0.91

0.216

48.11

1.50 2.28

1.59

0.66

0.405

0.205

25.75

28.98

21.693.64

0.217

0.469

3.90 4.02

10.28 7.91

17.52

4.08

4.21

1.30

1.93

3.07

5.89

7.15

8.25

9.51

10.22

10.93

11.63

12.34

13.13

13.68

14.27

14.86

15.49

16.16

16.89

9.849.84

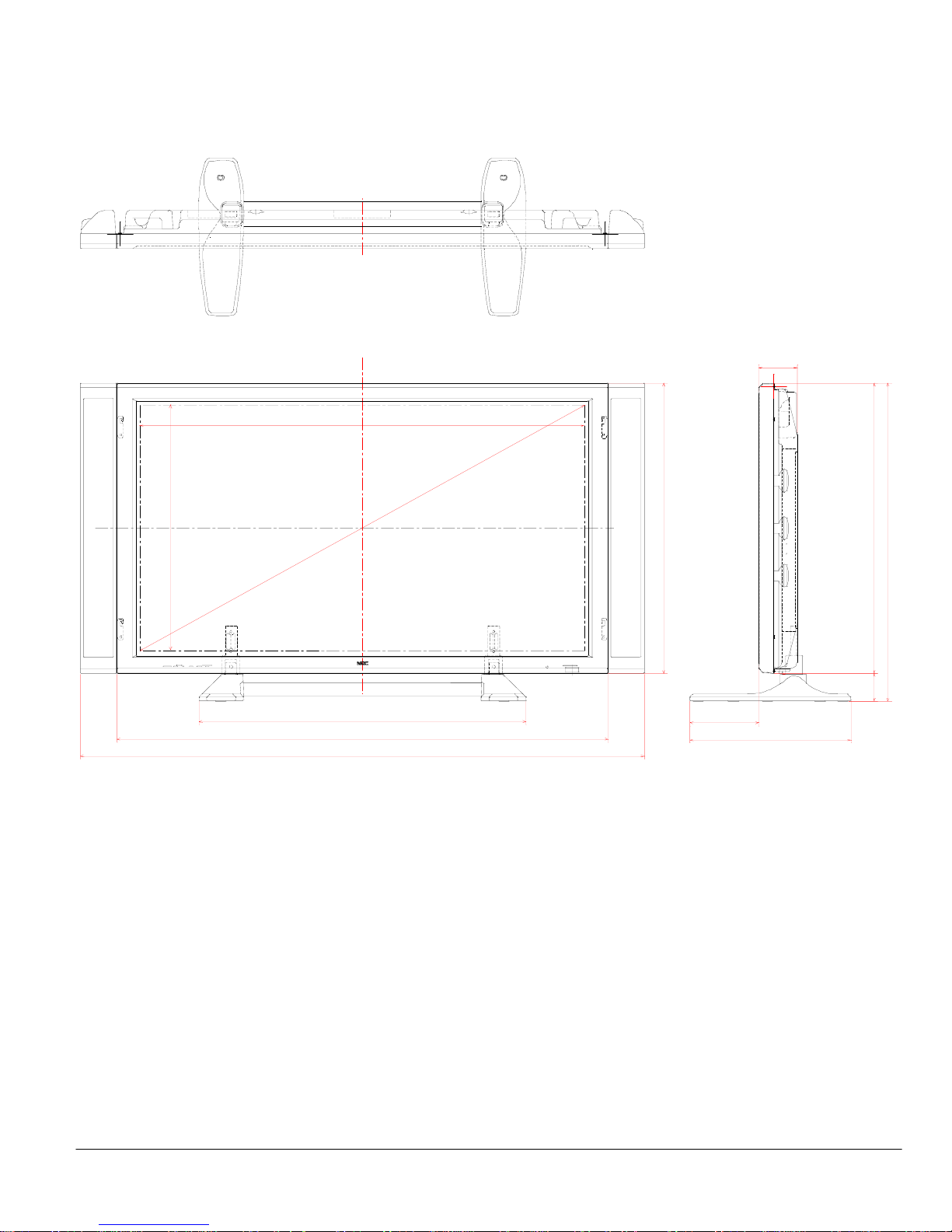

Dimensions with optional speakers and stand

(Screen Area)

28.98

48.11

43.54

24.49

28.98

50.00

3.78

2.80 31.77

32.05

55.24

6.72 15.75

www.necvisualsystems.com 50XM3/S Page 5 of 10

Dimensions with optional Flat Wall Mount Kit (FWMK)

www.necvisualsystems.com 50XM3/S Page 6 of 10

16.0 4.0

4.0

24.012.0 12.1

11.15.912.0

2.5 3.8

Note: The mount holes are 1.14” higher on the 50XM3 than on the 50MP2(PX-50XM2)

due to a higher center of gravity. (mount pattern is the same)

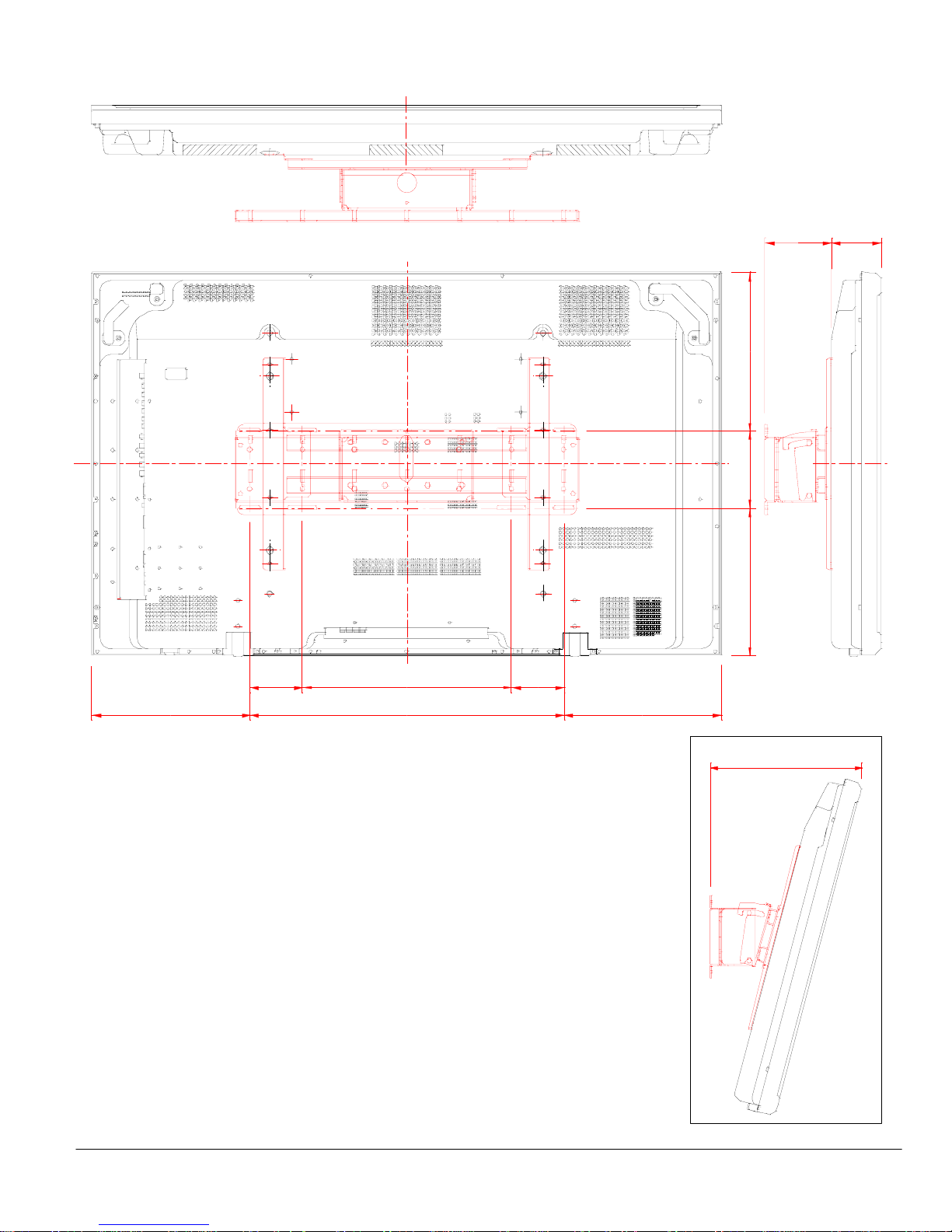

Dimensions with optional Tilt Wall Mount Kit (TWMK)

www.necvisualsystems.com 50XM3/S Page 7 of 10

Note: The mount holes are 1.14” higher on the 50XM3 than on the 50MP2(PX-50XM2)

due to a higher center of gravity. (mount pattern is the same)

16.0

4.0 4.0

24.012.1 12.0

11.15.912.0

5.0 3.8

12.9

Depth at 15° Tilt

Dimensions with optional Ceiling Mount Kit (CMK)

0.23

24.3 23.8

8.0

Tilt Range: 0° - 15°

12.0

Tilt 15°

Tilt 0°

16.016.2 15.9

2.5

1.5

29.015.2

Note: The mount holes are 1.14” higher on the 50XM3 than on the 50MP2(PX-50XM2)

due to a higher center of gravity. (mount pattern is the same)

www.necvisualsystems.com 50XM3/S Page 8 of 10

Connections

DVI Input is HDCP capable

VIDEO

(IN/OUT)

VIDEO 1

VIDEO 3

VIDEO 2

AUDIO 1

YCb/PbCr/Pr

DVD 1/HD 1 AUDIO 2

AUDIO 3

Cr/Pr Y Cb/Pb HD VD

RGB 1

(IN/OUT)

RGB 3

DVI

OUTIN REMOTE

External Control

LOCATED AT

BOTTOM OF DISPLAY

POWER

EXT. SPEAKERS

(MONO) (MONO)

R/ G/ B/

(MONO)

(Digital RGB)

RGB 2/DVD 2/HD 2

www.necvisualsystems.com 50XM3/S Page 9 of 10

Control Codes

Function Code Data

POWER ON 9FH 80H 60H 4EH 00H CDH

OFF 9FH80H 60H 4FH00H CEH

INPUT SWITCH VIDEO1 (BNC) DFH 80H 60H 47H 01H 01H 08H

VIDEO2 (RCA) DFH 80H 60H 47H 01H 02H 09H

VIDEO3 (S-Video) DFH 80H 60H 47H 01H 03H 0AH

DVD1/HD1 (RCA/Component) DFH 80H 60H 47H 01H 05H 0CH

DVD2/HD2 (5BNC/Component) DFH 80H 60H 47H 01H 06H 0DH

RGB1 (15pin HD) DFH 80H 60H 47H 01H 07H 0EH

RGB2 (5BNC/RGB) DFH 80H 60H 47H 01H 08H 0FH

RGB3 (DVI) DFH 80H 60H 47H 01H 0CH 13H

AUDIO MUTE ON 9FH 80H 60H 3EH 00H BDH

OFF 9FH 80H 60H 3FH00H BEH

PICTURE MODE NORMAL DFH 80H 60H 0AH 01H 01H CBH

THEAT.1 DFH 80H 60H 0AH 01H 02H CCH

THEAT.2 DFH 80H 60H 0AH 01H 03H CDH

DEFAULT DFH 80H 60H 0AH 01H 04H CEH

SCREEN MODE: STADIUM DFH 80H 60H 51H 01H 02H 13H

ZOOM DFH 80H 60H 51H 01H 03H 14H

NORMAL DFH 80H 60H 51H 01H 04H 15H

FULL DFH 80H 60H 51H 01H 05H 16H

AUTO PICTURE ON DFH 80H 60H 7FH 03H 03H 09H 00H 4DH

OFF DFH 80H 60H 7FH 03H 03H 09H 01H 4EH

CINEMA MODE ON DFH 80H 60H C1H 01H 01H 82H

OFF DFH 80H 60H C1H 01H 02H 83H

NOTE: Contact your NEC rep for codes not listed.

NOTE: Use a cross/reverse/null modem cable.

Cable Connection

Communication Protocol:

Interface: RS-232C Parity: Odd

Communication: Asynchronous Stop Bit: 1 bit

Baud Rate: 9600 bps Communication Code: Hex

Data Length: 8 bits

PC Control Connector (D-Sub 9P)

12345

67 89

To GND of PC

To RxD of PC

To TxD of PC

To CTS of PC

To RTS of PC

NOTE: Jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

www.necvisualsystems.com 50XM3/S Page 10 of 10
