NEC Display Solutions of America, Inc.

V421 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com V461 Page 1 of 11

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Requirements Page 2

Display Dimensions

Front, Top & Right Side Page 3

Rear & Bottom Page 4

Display Dimensions w/Optional Speakers and Stand Page 5

Table Top Stand Dimensions Page 6

Optional Speaker Dimensions Page 7

Optional Wall Mount Dimensions (WMK-3260L) Page 8

Optional Wall Mount Dimensions (WMK-3257) Page 9

Input Panels Page 10

Control Codes Page 11

Product Description

Type: LCD Display Screen Surface: Anti-Reflective

Resolution: 1920 x 1080 Dimensions without stand: 40.3”(W) x 26.2”(H) x 5.2”(D)

Aspect Ratio: 16:9 Dimensions with stand: 40.3”(W) x 25.6”(H) x 13.0”(D)

FCC: Class B Weight without stand: 45.2 lbs

Power Consumption: 160W (max) Weight with stand: 49.2 lbs

BTU’s: 545.94 BTU/hour

NOTES:

•This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

•Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

•4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

•Distances are in inches, for millimeters multiply by 25.4.

•Distances may vary ±5%.

Tilt Angle and Rotation

Below are the maximum angles that the monitor can be tilted in the landscape position only.

Landscape 20deg

Max. 20 deg

NEC Display Solutions of America, Inc.

V421 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com V461 Page 2 of 11

Ventilation Requirements (all models)

Dimensions below are minimum required for proper ventilation.

NOTE:

•The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be

covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and

recommendations.

NEC Display Solutions of America, Inc.

V421 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com V461 Page 3 of 11

Display dimensions

NEC Display Solutions of America, Inc.

V421 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com V461 Page 4 of 11

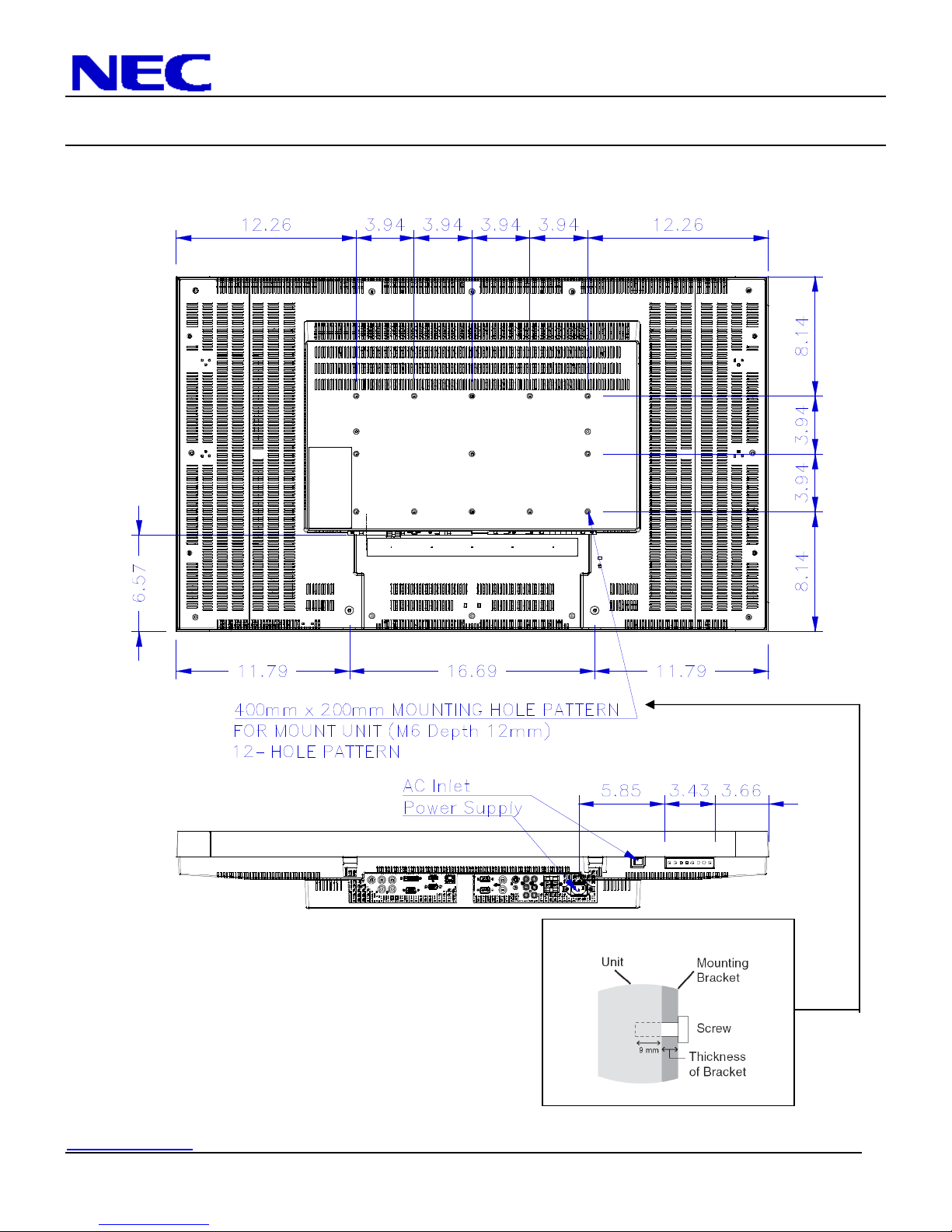

Display dimensions (cont.)

NEC Display Solutions of America, Inc.

V421 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com V461 Page 5 of 11

Dimensions with optional speakers and stand

NEC Display Solutions of America, Inc.

V421 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com V461 Page 6 of 11

Table Top tand Dimensions ( T-4020)

NEC Display Solutions of America, Inc.

V421 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com V461 Page 7 of 11

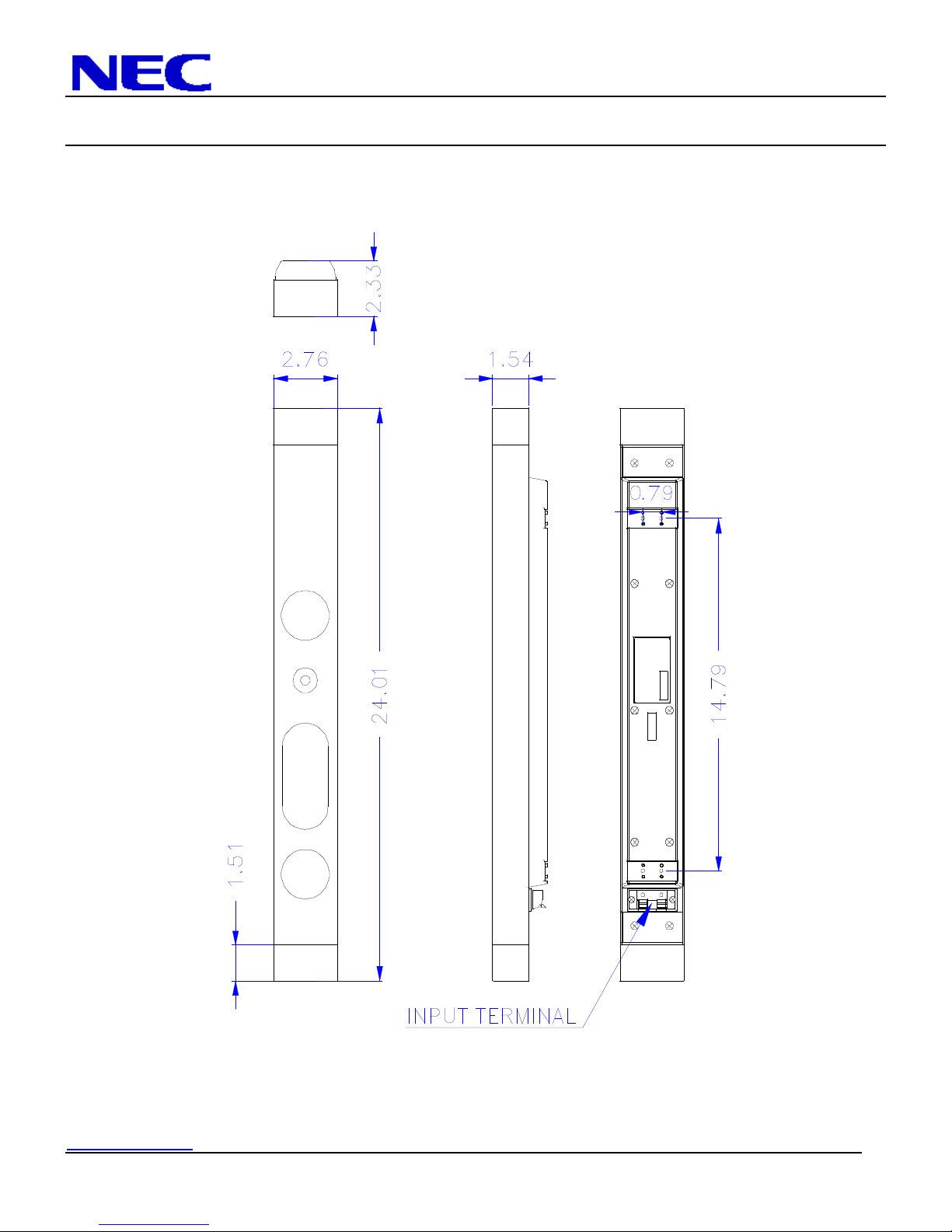

Optional peaker Dimensions ( P-P4046)

NEC Display Solutions of America, Inc.

V421 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com V461 Page 8 of 11

Dimensions with optional Wall Mount Kit (WMK3260-L)

NEC Display Solutions of America, Inc.

V421 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com V461 Page 9 of 11

Dimensions with optional Wall Mount Kit (WMK3257)

NEC Display Solutions of America, Inc.

V421 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com V461 Page 10 of 11

Input Panel

Bottom:

Detail:
