ASSEMBLY INSTRUCTIONS

Made in USA

Mobile Whiteboard

Stand

IWSTAND

Thank you for choosing the IW STAND for your NECInteractive WhiteBoard.

SAFETY INFORMATION

Please read, understand, and follow all safety information contained in these instructions prior to the

use of this Mobile Whiteboard Stand.

Retain these instructions for future reference.

Intended Use:

The IWSTAND was intended for indoor use with the IW77 Interactive Whiteboard only. Use outdoors or on an unstable

or unlevel floor is not recommended and could create a potentially unsafe operating condition.

Use of replacement parts, or installation instructions other than described in this manual has not been evaluated by NEC

and may lead to an unsafe condition.

This stand is not intended for use by unsupervised children.

Explanation of Signal Words and Symbols in Safety Labels and Instructions

WARNING: Indicates a potentially hazardous situation, which if not avoided,

could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation, which if not avoided,

may result in minor or moderate injury.

Risk from muscular strain

To reduce the risk associated with muscle strain and/or pinch:

- Use care when lifting and placing the IW77 Interactive Whiteboard on the Stand.

- This product is intended to be used with the NEC Interactive White Board only.

- Before using, make sure that all the wheels are in the locked position.

- Use care when placing the Whiteboard on the Floor Stand to prevent

pinching of hand or fingers between mating parts.

To reduce the risk associated with impact or falling:

- Always provide proper adult supervision when using this Floor Stand around children.

- Do not allow children to stand or hang on to any part of this product.

IWSTAND Assembly Instructions

WARNING

NEC is a registered trademark of NEC Corporation

The IWSTAND is designed to hold the NEC IW77

Interactive Whiteboard. Before you attach your board to the

stand, please review these important instructions.

IWSTAND Assembly Instructions

Parts List

Item Qty Description Color Dot

11Hanger Bracket

21Right vertical sliding assembly Black

31Left vertical sliding assembly Light Blue

41Frame Extrusion; lower stationary horizontal member Red

51Frame Extrusion; lower moving horizontal member Orange

61Frame Extrusion; top moving horizontal member Dark Blue

72Frame Extrusion; leg Yellow

82Left Support Bracket

92Right Support Bracket

10 2“U” Bracket (bottom mounting bracket from NEC IW77 )

11 4Button Head Socket Screw; M8 x 20 ( 3/4" L)

12 4Philips Head Machine Screw; M6 x 35 ( 1 1/8" L)

13 2 Philips Head Machine Screw; M4 x 10 ( 3/8" L)

14 8Hex Head Cap Screw; M8 x 60 ( 2 3/8" L)

15 8Washer; M8 - 24mm OD ( 1" OD)

16 4Lock Nut; M8 thread

17 4Locking caster; 3/8-16 shank

18 6End Cap; black

19 6Fastener; black

20 2 Bracket, Lower Board

The following instructions will guide you through the steps for assembly.

Estimated assembly time is 15 minutes.

If you require assistance or are missing parts, contact NEC by email at

http://www.necdisplay.com/SupportCenter

Required tools are: Hex key (5mm supplied)

Adjustable or Open end wrench (13 mm not supplied)

Philips Head screwdriver (not supplied)

It is important to layout parts prior to beginning assembly.

IWSTAND Assembly Instructions

Frame Assembly

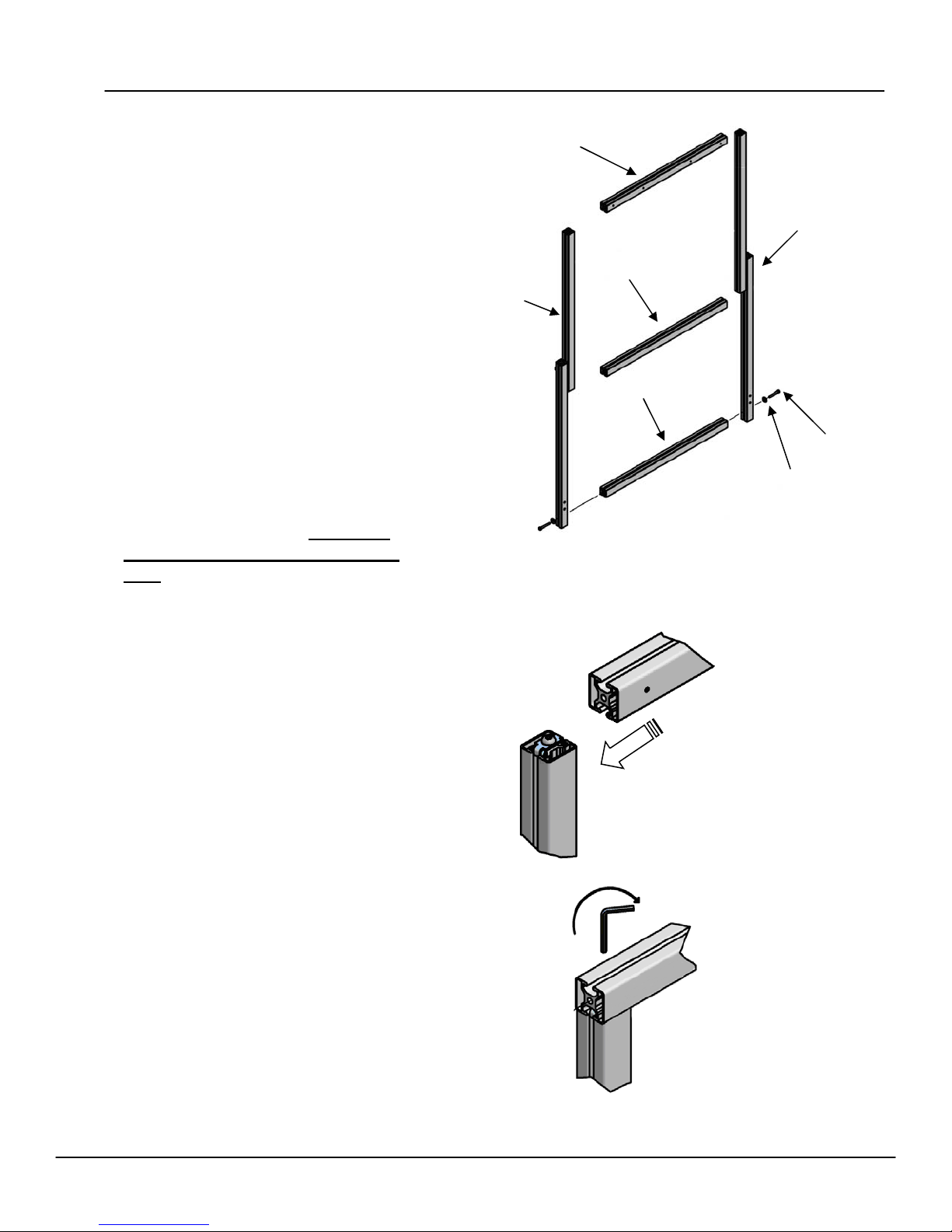

The first step in the assembly process is

to identify and place all the frame mem-

bers on the floor as shown.

Please note that all of the frame mem-

bers have been color coded for easy

identification. See Parts List for color

code and identification numbers. A

Color Dot has been placed on the sur-

face that is considered the front of the

stand or relating to special assembly

procedure in these instructions.

The details pertaining to how the frame

members fit together is illustrated in

Detail A. Always slide the rail slot into

the retaining clip as shown.

Frame member 5 and 6 have access

holes located in the slot. Make sure

that the hole lines up with the screw

head. You will be able to see the screw

head by looking through the access

hole. When the two are aligned, place

hex key (allen wrench) into hole and

tighten screw.

Assemble as shown: first assembling

lower moving frame rail ( 5 - Orange )

and then upper moving frame rail (6 -

Dark Blue ) to sliding frame verticals (2

- Black and 3 - Light Blue). The pull

pins are on the back side. Also, note

that the lower moving frame rail ( 5 )

has two large holes on one side. This

is the backside. The upper rail ( 6 )

has four holes on one side. This is the

front side of the rail. Attach this rail

second, positioned as shown.

Finally attaching the lower horizontal

member ( 4 - Red ) to frame verticals

( 2 and 3 ) with a screw ( 14 ) and

Detail A

Support Bracket Attachment

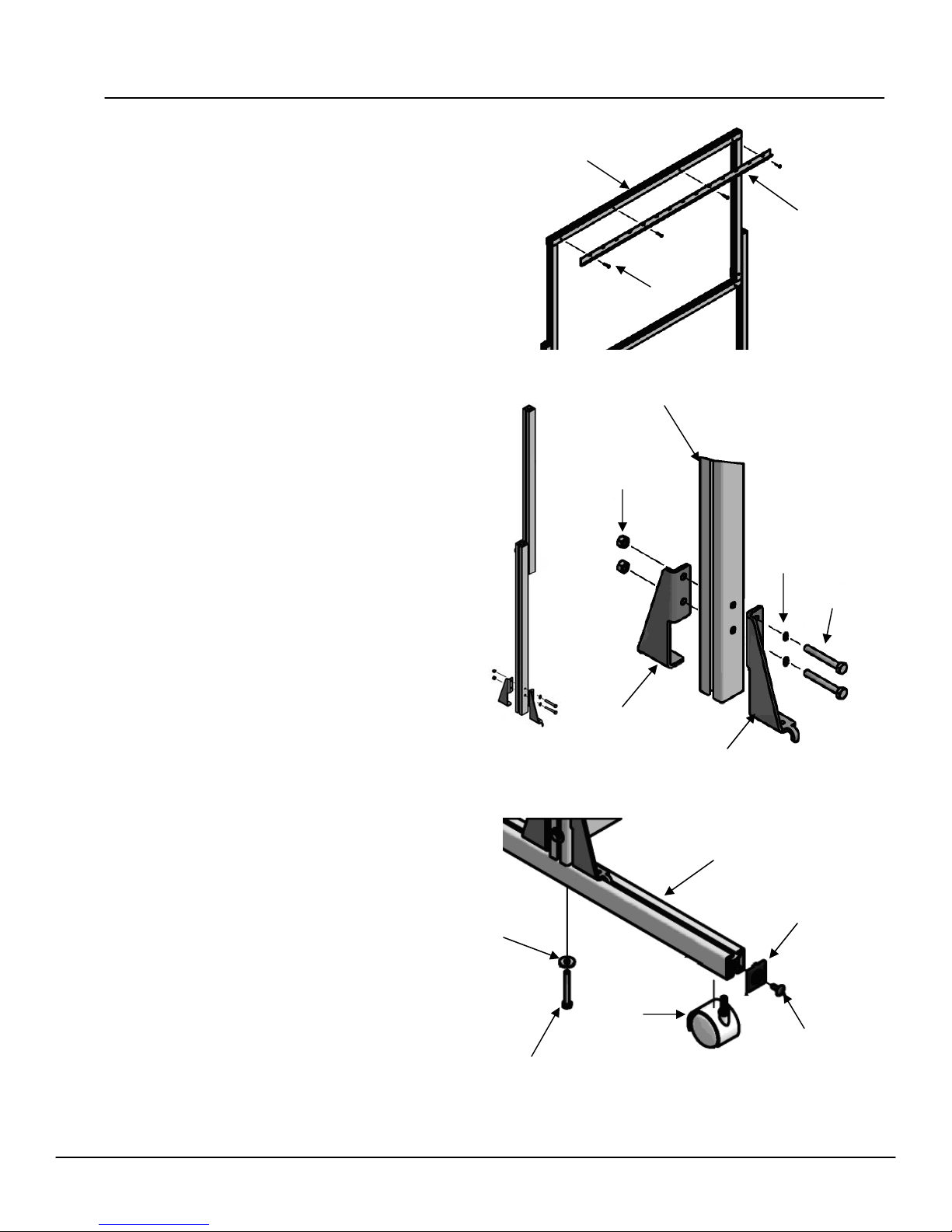

There are two support brackets ( 8, 9 )for

each vertical frame member. Attach brackets

with the flat side facing toward the outside of

the frame as shown.

Insert the hex head screw (14 ) from the front

side of support bracket, through the washer

(15 ) then the extrusion and through the other

support bracket. Place locknut (16)onto

screw. Finger tighten only, do not fully

tighten at this time.

Repeat for other vertical frame member.

IWSTAND Assembly Instructions

Mounting Rail Attachment

Using a Philips screwdriver attach the board

mounting rail (1) as shown to top rail ( 6 ) with

four Philips head machine screws ( 12 ).

Leg Attachment

Screw casters (17 ) into leg extrusion ( 7 -

Yellow). Caster will only screw in from one

side. The affixed Yellow Dots will be on the

outside of the frame. Use pliers or wrench to

tighten.

Take leg extrusion and place into the leg sup-

ports as shown. Center hole of leg extrusion

should line up with center of vertical frame

member.

Attach leg with washer (15 ) and hex head

screw (14 ). After screw is tight, tighten the

two support bracket screws.

Attach end cap (18 )with fastener(19 )to each

end of leg extrusion and top horizontal rail.

2, 3

IWSTAND Assembly Instructions

Whiteboard Attachment

After both legs are attached to frame, place

into the upright position.

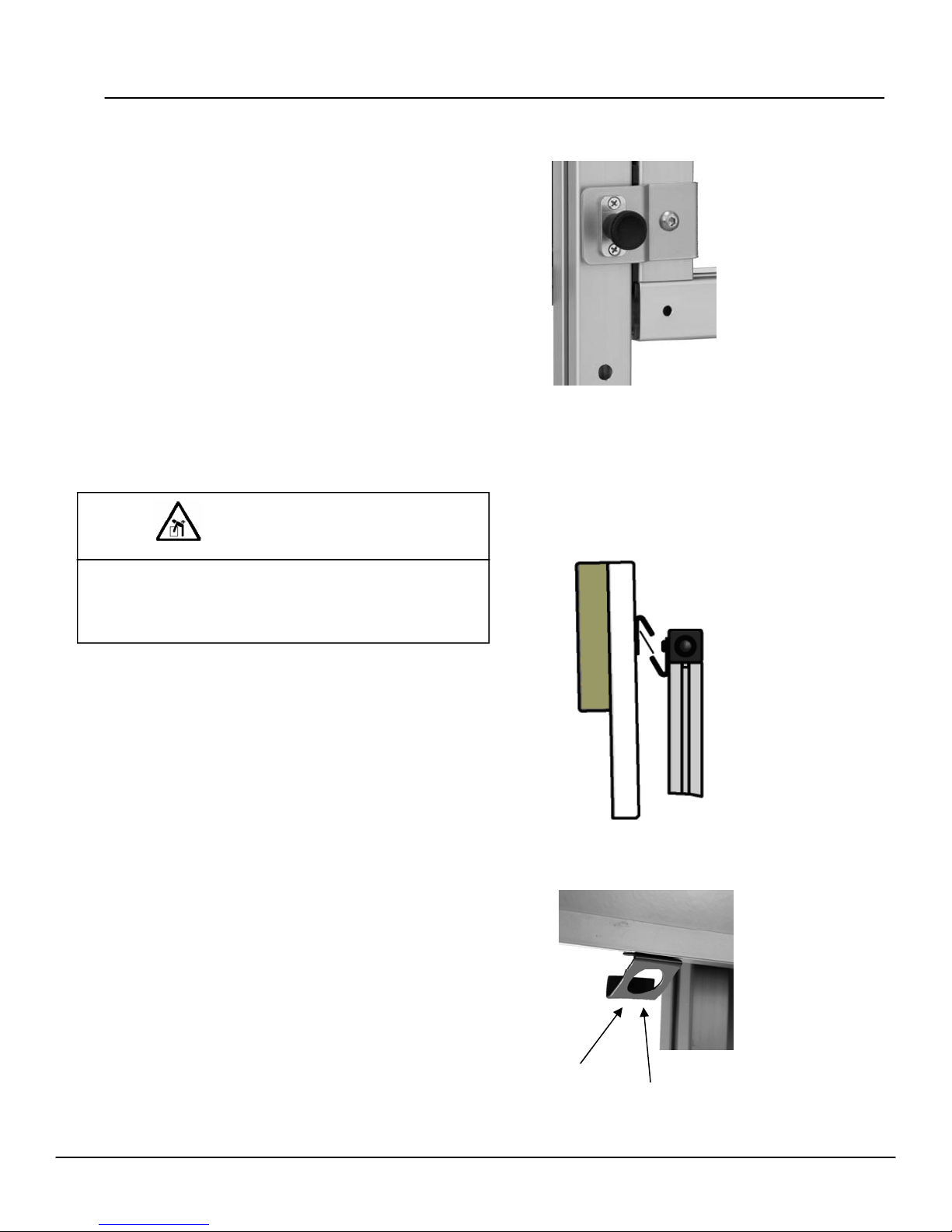

The upper sliding frame has two release pins

( Detail B ) for height adjustment. Two peo-

ple are required to make any height adjust-

ments.

There are three different heights available.

The lowest hole on the frame is to be used

when moving the Whiteboard.

To raise frame, grasp the horizontal rail ( 6 ),

pull out release pin, and lift up to the desired

height. Release pin when you have reached

the desired height. Pin will drop into hole.

Detail B

To reduce the risk associated with muscle strain:

• Always use more than one person when installing

or removing the Whiteboard

WARNING

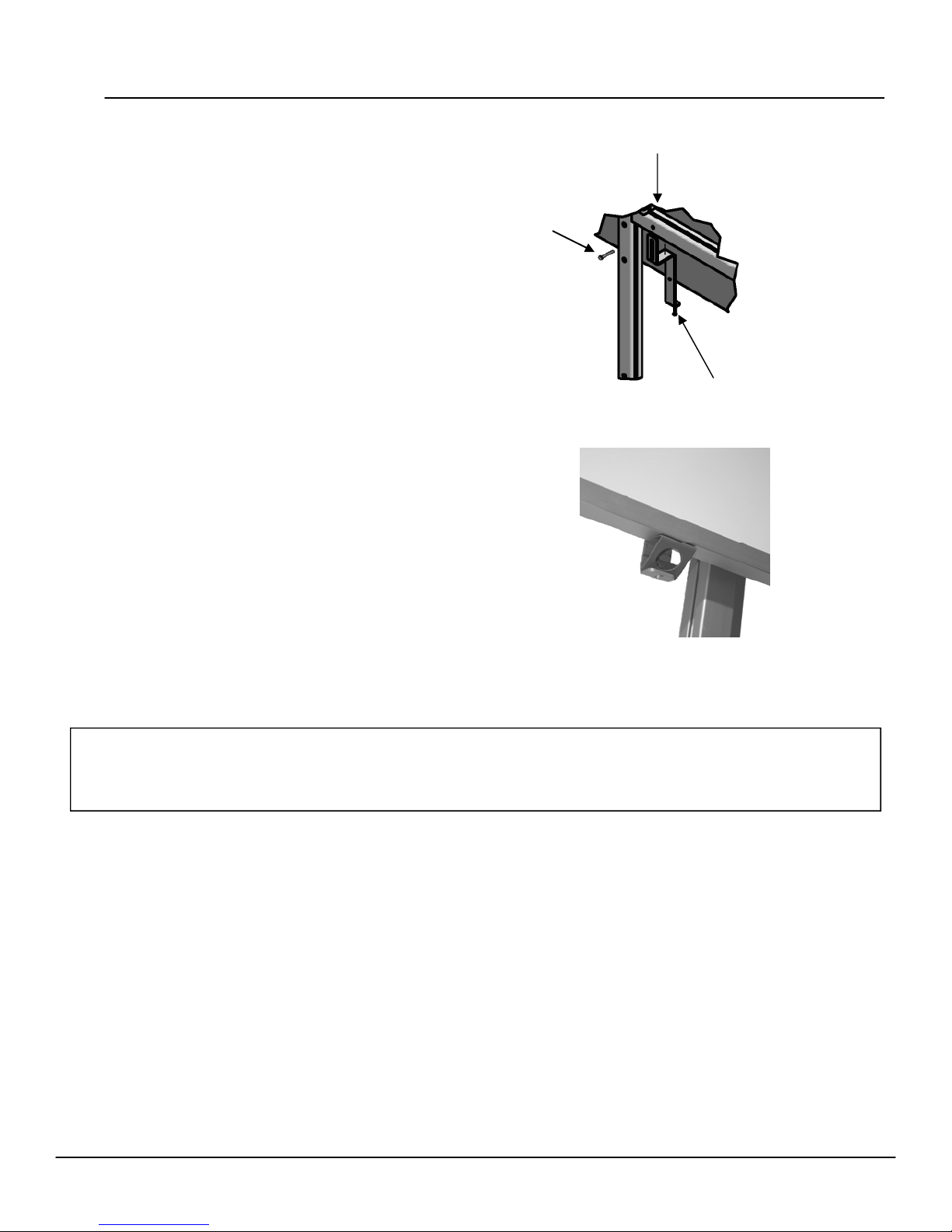

You are now ready to attach the Whiteboard.

With one person holding each side of the

board, carefully lift it into position so that the

bracket lip is above the hanger bracket on the

stand. Now lower onto the stand hanger

bracket. Make sure that the board is securely

in place before releasing

( Detail C ). Detail C

Locate the two “U” shaped brackets (10)

supplied with the NEC Whiteboard. Looking

at the underside of the bottom rail locate the

small Philips head machine screw, remove it

and (13) install bracket to the bottom edge

with the “circle” opening facing the front of

the board. Repeat for the other bracket.

IWSTAND Assembly Instructions

Connections

You are now ready to start using the your Interactive

Whiteboard. Please follow the directions that came with

the IW77 Board for connections and instructions for

usage.

Caution

In the travel position the IWSTAND Stand is quite stable for movement. For safe transport across rough

surfaces or ramps and inclines, the user should request the assistance of a second person.

IW77 Whiteboard Bracket Attachment

For a secure attachment to the IWSTAND, install

mounting bracket (20) to the lower horizontal frame

member (5) as shown.

Using the hex key, loosely attach the bracket (20) to

frame member with a (11) M8x20 screw. Move

bracket up until it touches the “U” bracket just at-

tached to bottom side of board. Attach “U” bracket

to the mounting bracket. Now tighten (11) M8

screw.

Warranty

NEC warrants to the original purchaser that its stands are free from defect in

material and workmanship. While it is expected that you will be extremely

pleased with the quality of your new NEC product, in the unlikely event that

you have a problem caused by defects in materials or workmanship, NEC will

repair or replace the defective stand at its option and expense.

IWSTAND components are covered by a 1-year limited warranty.

This warranty does not cover repairs due to neglect, abuse or misuse of the stand

by purchaser, or when used for rentals.

It is important to note that our warranty is not an unconditional warranty for the

life of the product. Although NEC uses high quality components, materials do

eventually wear out with normal use. Like any other products, NEC stands are

not indestructible. Therefore, our warranty excludes normal wear and tear

(moving parts and wheels), damage caused by accident, abuse, misuse, improper

care, or alteration.

This warranty gives you specific legal rights, and you may also have other

rights that vary from state to state. Some states do not allow limitations on im-

plied warranties and / or do not allow the exclusion of incidental or consequen-

tial damages, so the above limitations and exclusions may not apply to you.

For additional information about NEC products or for additional contact infor-

mation, visit our website at www.necdisplay.com
