NeoMounts FPMA-D700DD6 Manuale utente

INSTRUCTION MANUAL

WWW.NEOMOUNTS.COM

FPMA-D700DD6

Monitor desk stand

Monitor bureausteun

Monitor Tischständer

Support moniteur de bureau

Supporto da scrivania per monitor

Soporte de escritorio para monitor

Suporte de mesa com base para

monitor

Bordstander skærm

Bordstativ til skjerm

Skrivbordsstativ för bildskärm

Näytön pöytäteline

Stojak na biurko

Stolní držák monitoru

Stolový stojan na monitor

Stativ de birou pentru monitor

Max: 1290 mm

323~425 mm

Per 34mm

775~877 mm

Per 34mm

340mm

370mm

Max:180°

360°

Max:180°

100

Install the grommet through the desk and to the rod

Installeer de doorvoer in het bureau en aan de stang

Montieren Sie die Tülle im Schreibtisch und an der

Stange

Installer l’œillet dans le bureau et sur la tige

Installare il gommino nella scrivania e sull’asta

Instale el pasacables en el escritorio y en la varilla

Instalar a argola na secretária e na barra

Zamontuj przelotkę w biurku i na drążku

PARTS

FPMA-D700DD6

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

0-8 kg

(6x)

OPTION

A. (1x) B. (x1)

J. (x1) K. (x1) L. 3/8″

(x1)

C. (x4) D. (x1) E. (x2) F. (x4)

H. (x4) I. (x2)

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

75x75 |

100x100 mm

G. (x2)

Tool

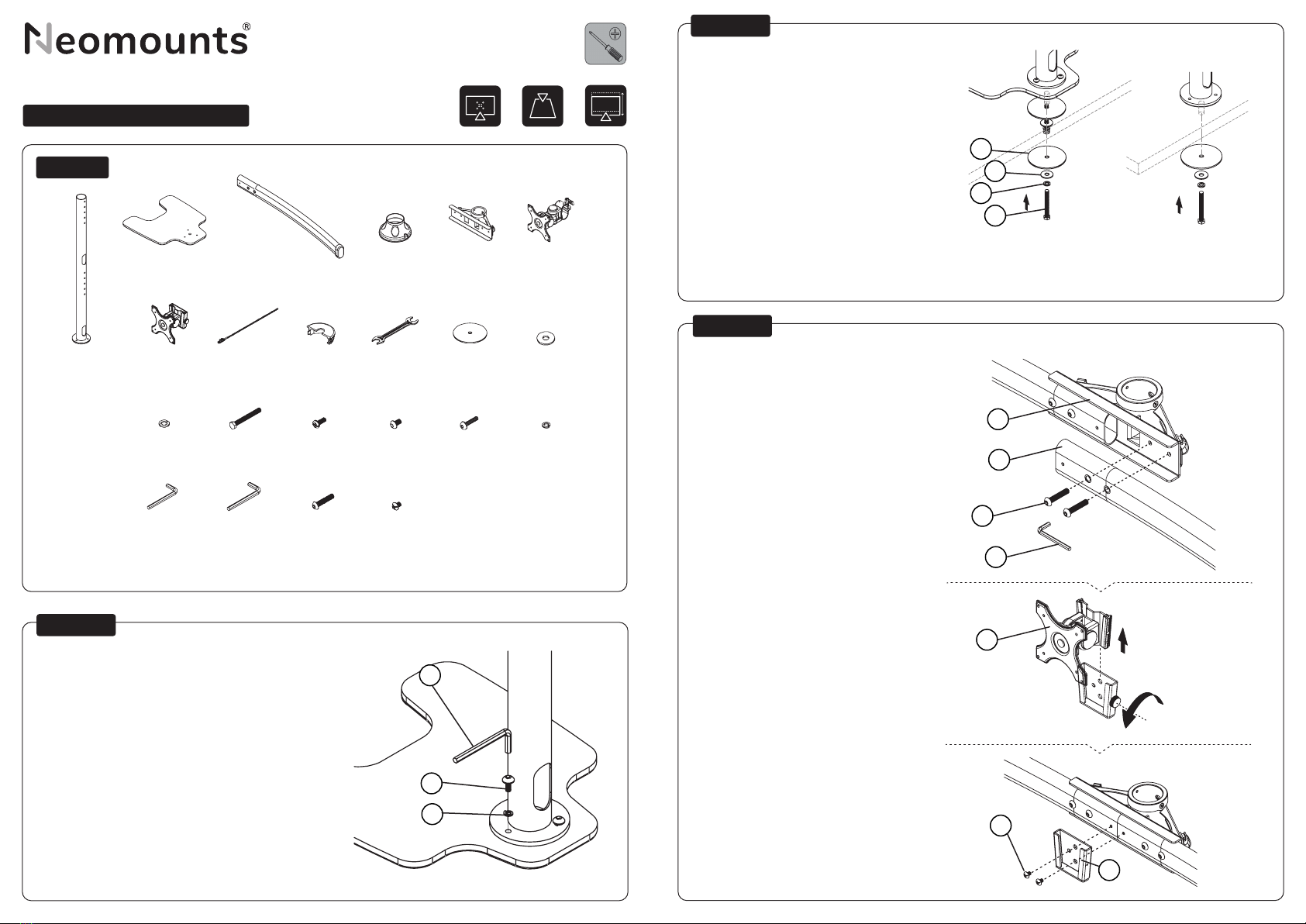

STEP 1

Mount the rod to the base

Bevestig de stang aan de voet

Befestigen Sie die Stange an der Basis

Fixer la tige à la base

Montare l’asta sulla base

Montar la varilla en la base

Montar a vara até à base

Zamontować pręt do podstawy

32-88 cm

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

STEP 2

Loosen

Tighten

OR:

Connect the crossbars with the intermediate piece

Verbind de crossbars met behulp van het tussenstuk

Verbinden Sie die Querstangen mit dem Zwischenstück

Connectez les barres transversales en utilisant la pièce

de connexion

Collegare le barre trasversali con il pezzo intermedio

Conecte las barras transversales usando la pieza de

conexión

Ligue as barras transversais com a peça intermédia

Połącz poprzeczki z elementem pośrednim

M. 3/8″

(x1)

N. 3/8″x3″

(x1)

O. M4x10

(x12)

P. M8x14

(x4)

Q. M6x15

(x3)

S. M5

(x1)

T. M6

(x1)

U. M8x40

(x8)

V. M6x8

(x4)

R. (x3)

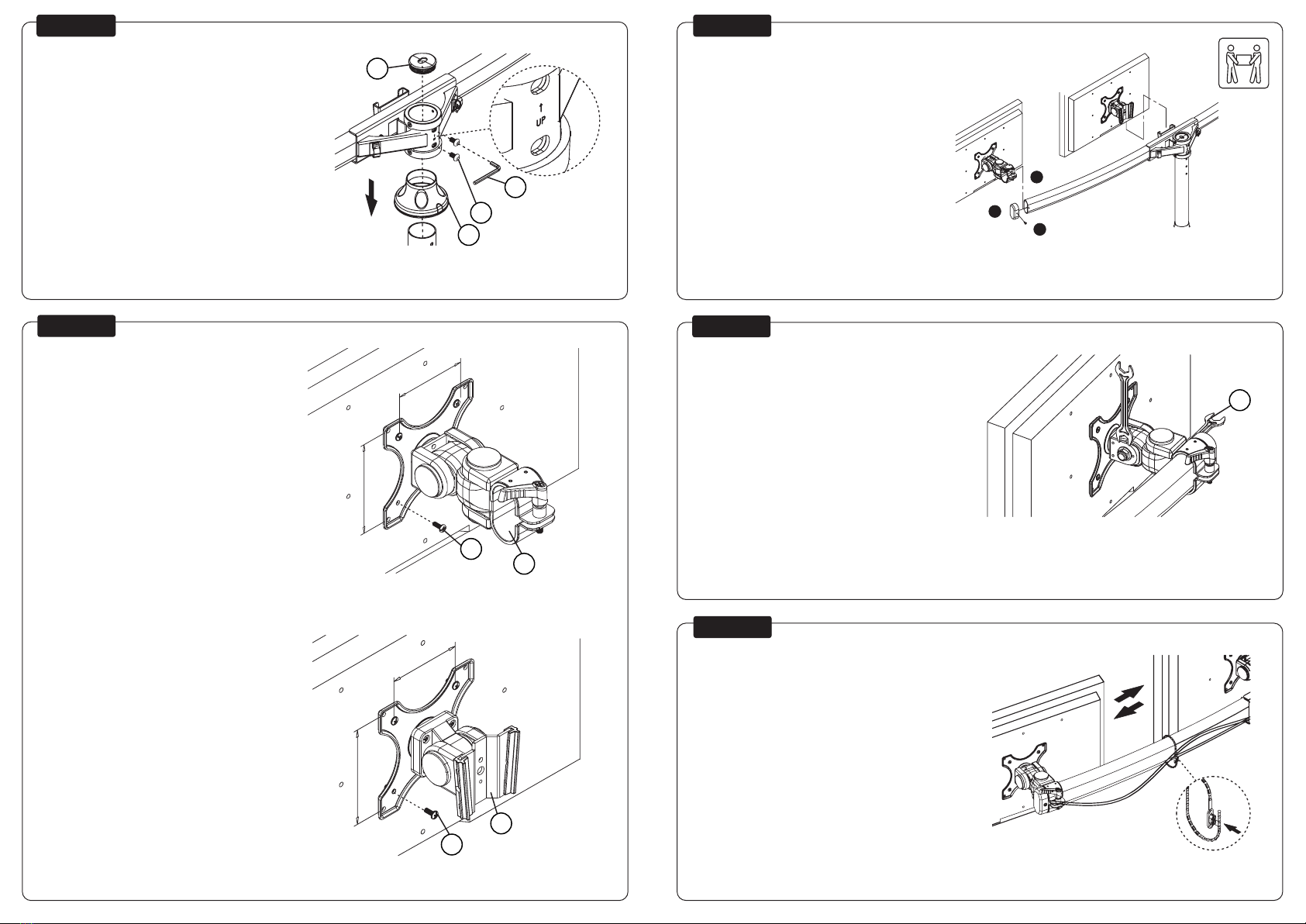

STEP 3

Attach the VESA plates to the monitors

Bevestig de VESA-platen aan de monitoren

Befestigen Sie die VESA-Platten an den Monitoren

Fixez les plaques VESA sur les moniteurs

Fissare le piastre VESA ai monitor

Coloque las placas VESA en los monitores

Fixar as placas VESA nos monitores

Przymocuj płytki VESA do monitorów

100

STEP 4

OR:

Attach the crossbar to the rod and place the decorative

cover

Bevestig de crossbar aan de stang en plaats het deco-

ratieve afdelkapje

Befestigen Sie die Querstange an der Stange und bringen

Sie die Zierabdeckung an

Fixer la barre transversale à la tige et placer le couver-

cle décoratif

Fissare la traversa all’asta e posizionare la copertura

decorativa

Fe el travesaño a la barra y coloque la cubierta de-

corativa

Fixar a barra transversal à haste e colocar a tampa

decorativa

Przymocuj poprzeczkę do pręta i umieść ozdobną

osłonę

STEP 7

Adjust the torque

Stel het koppel in

Einstellen des Drehmoments

Réglage du couple

Regolazione della coppia

Ajuste el tornillo

Ajustar os parafusos

Regulacja momentu obrotowego

STEP 6

Route the cables and adjust the screens to the desired

position

Geleid de kabels en stel de schermen in op de gewenste

positie

Verlegen Sie die Kabel und bringen Sie die Bildschirme

in die gewünschte Position

Acheminer les câbles et régler les écrans dans la position

souhaitée

Posare i cavi e regolare gli schermi nella posizione desi-

derata

Tienda los cables y ajuste las pantallas a la posición

deseada

Encaminhar os cabos e ajustar os ecrãs para a posição

pretendida

Poprowadź kable i ustaw ekrany w żądanej pozycji

Install the monitors

Installeer de monitoren

Installieren Sie die Monitore

Installer les écrans

Installazione dei monitor

Instalar los monitores

Instalar nos monitores

Zainstaluj monitory

STEP 5
