NeoMounts FPMA-D935POLE70 Manuale utente

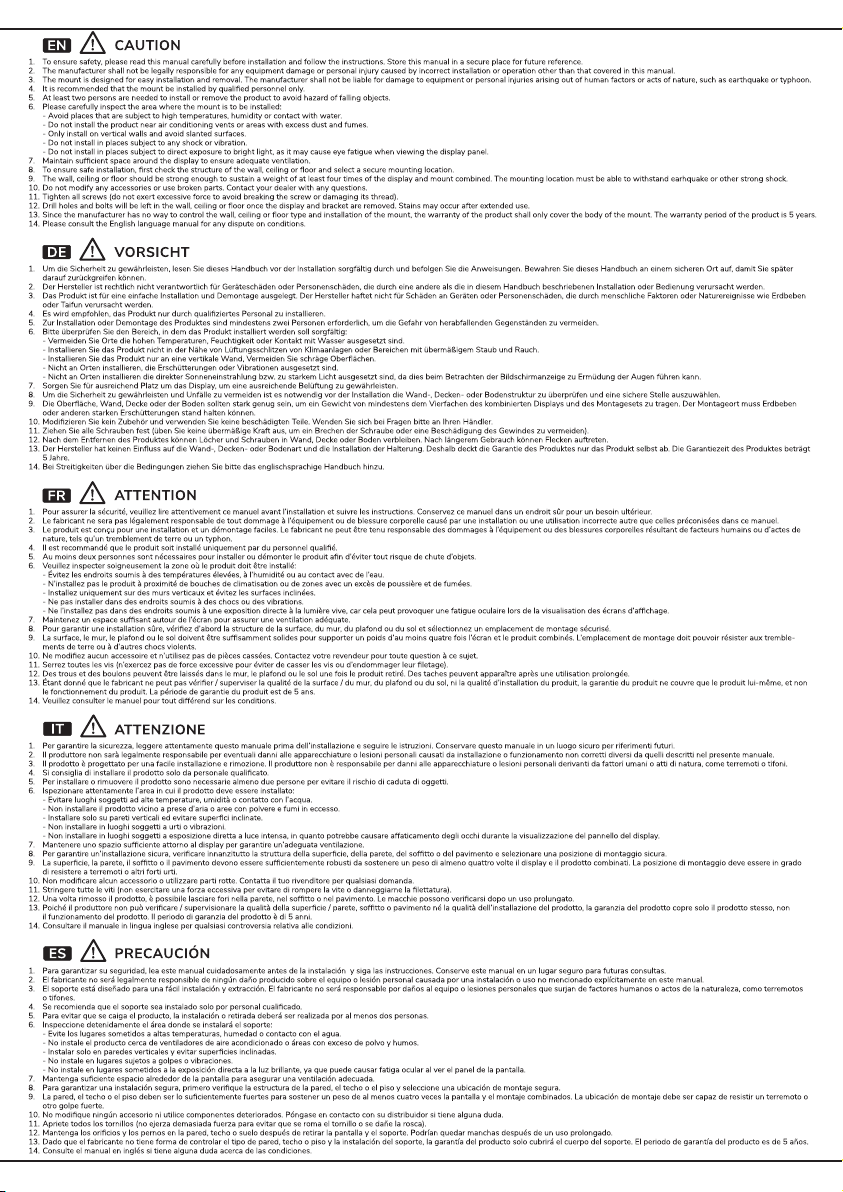

INSTRUCTION MANUAL

WWW.NEOMOUNTS.COM

FPMA-D935POLE70

Monitor desk mount

Monitor bureausteun

Monitor Tischhalterung

Support moniteur de bureau

Supporto da scrivania per monitor

Soporte de escritorio para monitor

Suporte de mesa para monitor

Bordbeslag skærm

Bordstativ til skjerm

Skrivbordsfäste för bildskärm

Näytön pöytäteline

Uchwyt nabiurkowy do monitora

Stolní držák monitoru

Držiak na monitor

Suport de birou pentru monitor

450

320°

260°

180° 220°

30~95

700 mm

Ø35 mm

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

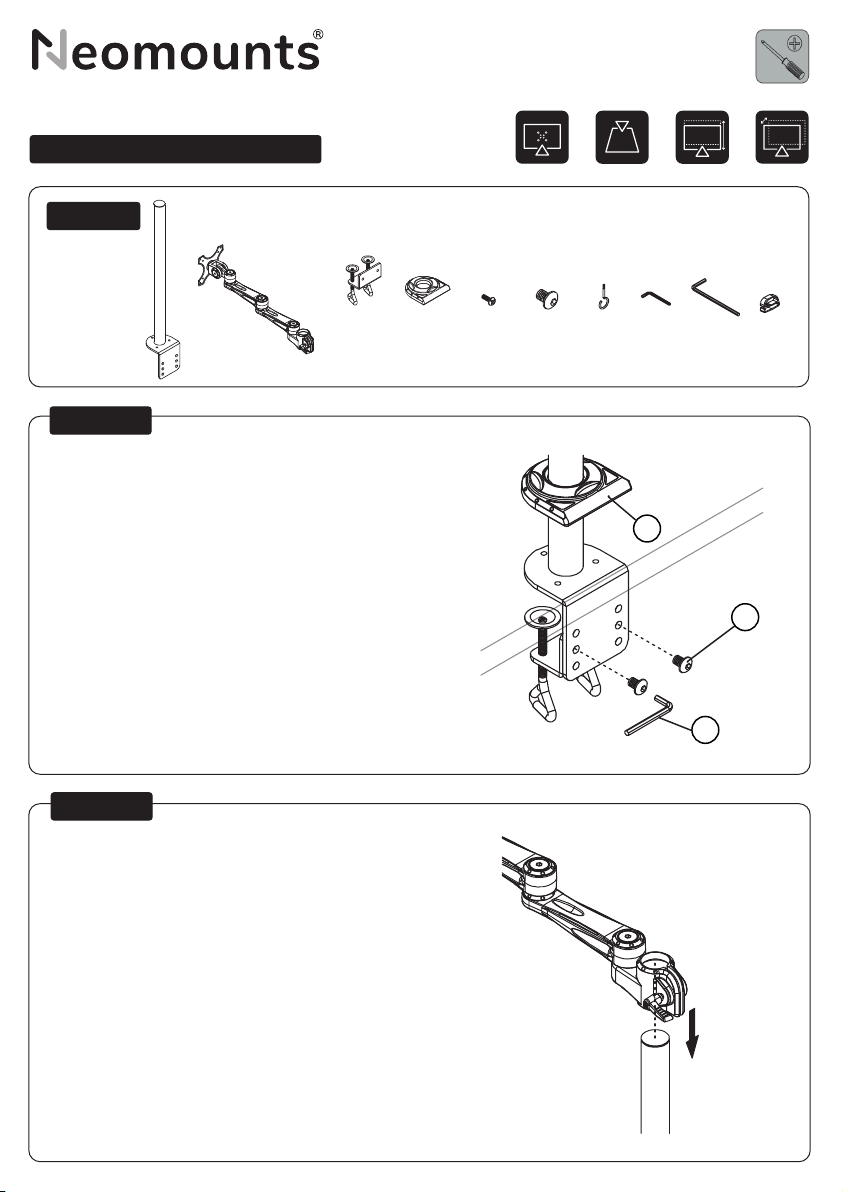

Mount the clamp to the rod and install to the desk

Monteer de klem aan de stang en installeer aan het bureau

Befestigen Sie die Klemme an der Stange und installieren

Sie sie auf dem Schreibtisch

Montez la pince sur la barre et installez-la sur le bureau

Montare il morsetto sulla barra e installarlo sulla scrivania

Monte la abrazadera en la barra e instálela en el escritorio

Montar a braçadeira na barra e instalar na secretária

Zamontuj zacisk na pręcie i zainstaluj na biurku

Attach the arm to the rod, adjust the height and tighten

Bevestig de arm aan de stang, stel de juiste hoogte in

en draai vast

Befestigen Sie den Arm an der Stange, stellen Sie die

Höhe ein und ziehen Sie ihn fest

Attachez le bras à la tige, réglez la hauteur et serrer

Collegare il braccio all’asta, regolare l’altezza e serrare

Fe el brazo a la varilla, ajuste la altura y apriete

Fixar o braço à haste, ajustar a altura e apertar

Przymocuj ramię do drążka, wyreguluj wysokość i dokręć

PARTS

FPMA-D935POLE70

Tool

STEP 1

STEP 2

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

0-10 kg

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

75x75 -

100x100 mm

12-50 cm0-80 cm

A. 1x B. 1x C. 1x D. 1x E. M4x10

F. M8x12

G. 1x H. 1x I. 1x J. 2x

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

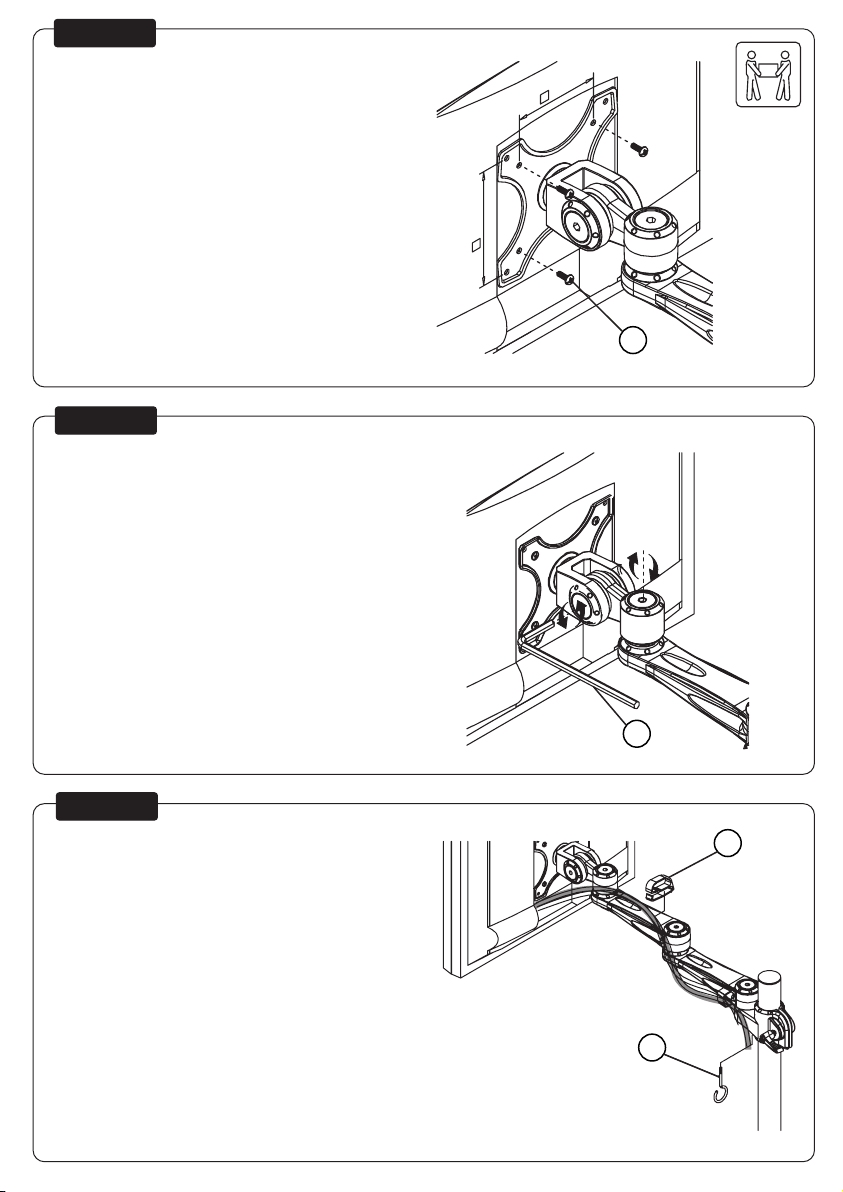

Attach the screen to the bracket and secure it

Bevestig het scherm op de beugel en zet vast

Befestigen Sie den Bildschirm an der Halterung

und sichern Sie ihn

Attachez l’écran au support et xez-le

Fissare lo schermo alla staffa e ssarlo

Coloque la pantalla en el soporte y fela

Fixar o ecrã ao suporte e xá-lo

Przymocuj ekran do uchwytu i zabezpiecz go

Adjust the torques

Stel het koppel in

Einstellen des Drehmoments

Réglagez les couples

Regolazione della coppia

Ajuste el tornillo

Ajustar os parafusos

Regulacja momentu obrotowego

Install the cable clips, route the cables and adjust the mount to

the desired position

Installeer de kabelclips, geleid de kabels en stel de steun in op

de gewenste positie

Bringen Sie die Kabelklemmen an, verlegen Sie die Kabel und

richten Sie die Halterung an der gewünschten Position aus

Installez les clips de câble, acheminez les câbles et réglez le

support dans la position souhaitée

Installare i clip dei cavi, instradare i cavi e regolare il supporto

nella posizione desiderata

Instale las clips para cables, pase los cables y ajuste el soporte

a la posición deseada

Instalar os clipes dos cabos, encaminhar os cabos e ajustar o

suporte para a posição pretendida

Zainstaluj zaciski kablowe, poprowadź kable i wyreguluj moco-

wanie do żądanej pozycji

STEP 3

STEP 4

STEP 5

100

23.11
