NeoMounts NM-M1700BLACK Manuale utente

INSTRUCTION MANUAL

WWW.NEOMOUNTS.COM

NM-M1700BLACK

Floor stand

Vloersteun

Bodenständer

Support au sol

Supporto da pavimento

Soporte de suelo

Suporte de chão

Gulvstander

Gulv stativ

Golvstativ

Lattiateline

Stojak podłogowy

Podlahový stojan

Suport de podea

400mm

75mm

min100-max620mm

2142mm

min1042-max1542mm

302mm

600mm

456mm

850mm

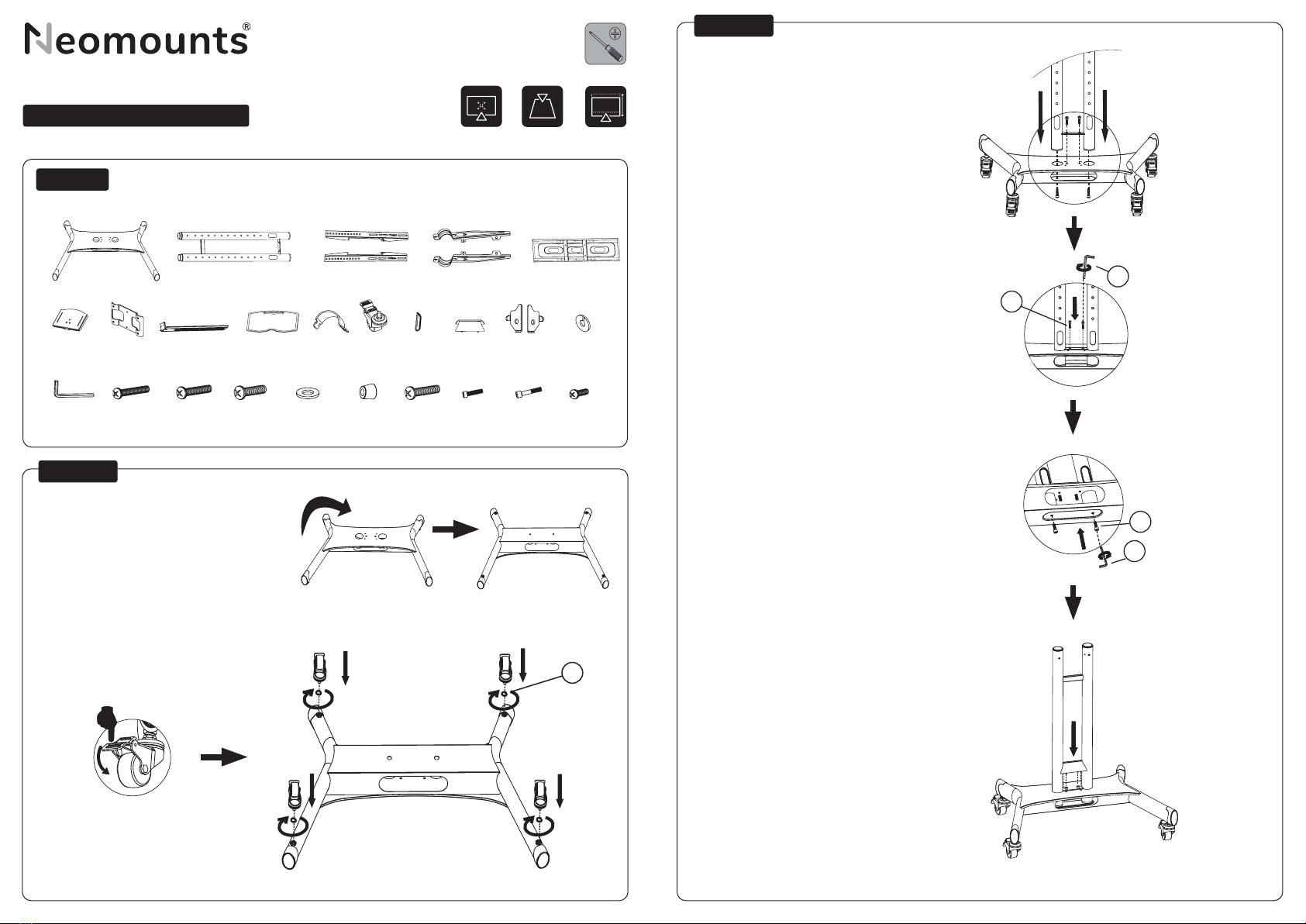

PARTS

NM-M1700BLACK

Tool

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

0-50 kg

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

200x200 -

600x400 mm

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

104,2-154,2 cm

(x1) (x1)(x1)

(x1)

(x1) (x1) (x1) (x1) (x2) (x4) (x4) (x1) D2. (x1) E2. Ø16.5xØ12.5

x2mm (x4)

A2. M8x26mm

(x6)

B2. M8x55mm

(x4)

C2. M5x12mm

(x2)

F2. M6 (x1) M5x25mm

(x4)

B1. M6x25mm

(x4)

C1. M8x25mm

(x4)

D1. Ø16xØ6.2x

1.5mm (x4)

E1. Ø19x

Ø8.5x13mm (x4)

M8x50mm

(x4)

Assemble the base

Monteer de voet

Montieren Sie die Basis

Assemblez la base

Montare la base

Montar la base

Montar a base

Złóż podstawę

STEP 1

STEP 2

Attach the pole to the base

Bevestig de stang aan de voet

Befestigen Sie die Stange an der Basis

Fixez les tubes à la base

Attaccare il palo alla base

Adjunte el poste a la base

Anexe o poste à base

Przymocuj słupek do podstawy

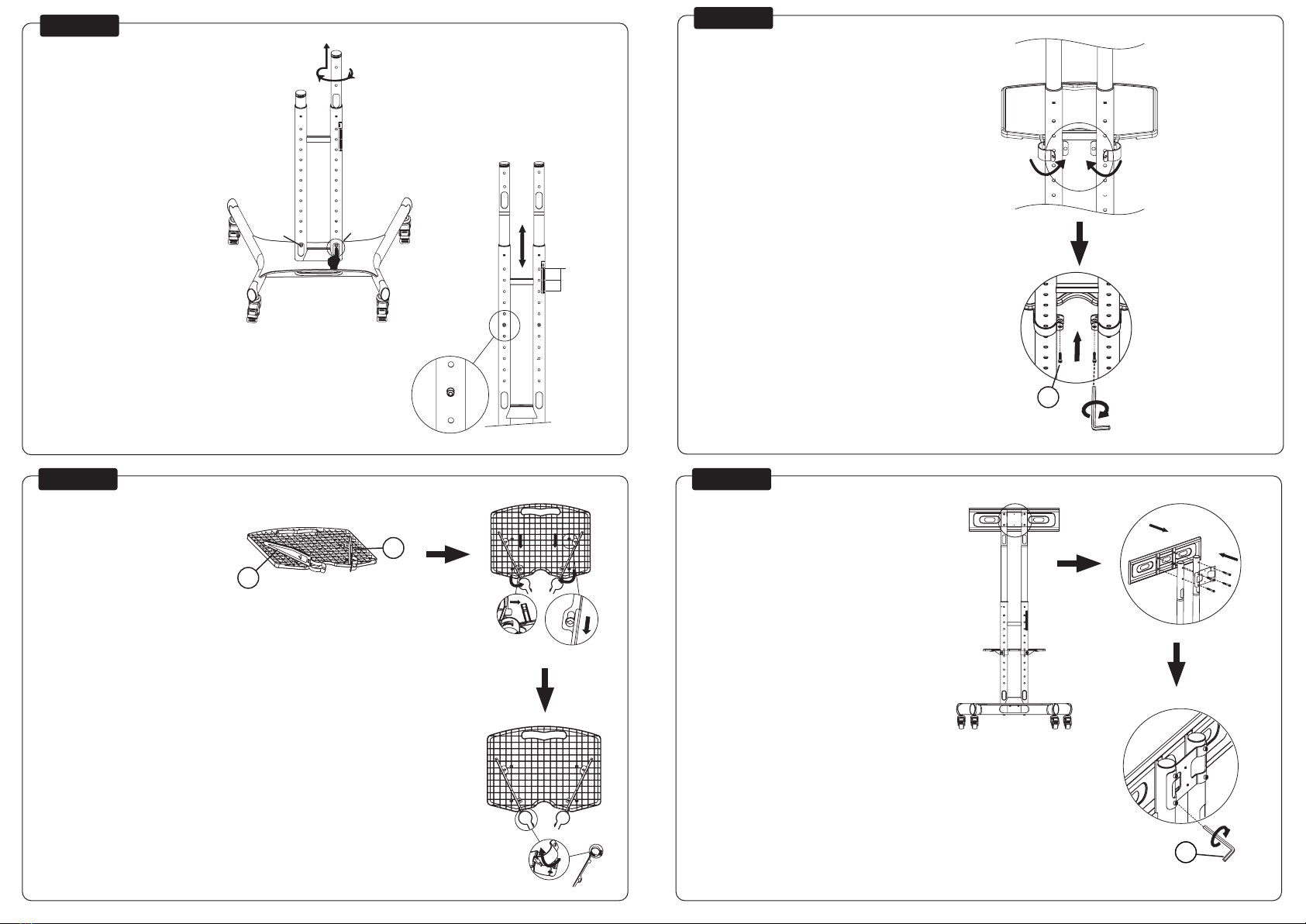

Install the backplate to the oor stand

Installeer de achterplaat op de vloersteun

Montieren Sie die Rückenplatte am Bodenständer

Installer la plaque arrière sur le support de sol

Installare la piastra posteriore sul supporto a pavimento

Instale la placa posterior en el soporte de suelo

Instalar a placa posterior no suporte de chão

Zamontuj płytę tylną do podstawy podłogowej

STEP 6STEP 4

Assemble the shelf

Monteer het plateau

Montieren Sie das Regal

Assemblage de l’étagère

Montare il ripiano

Instale el estante

Instale a prateleira

Zainstaluj półkę

STEP 5

Attach the shelf to the oor stand

Installeer het plateau op de vloersteun

Montieren Sie das Regal am Bodenständer

Installer l’ètagère sur le support de sol

Installare il ripiano sul supporto a pavimento

Instale el estante en el soporte de suelo

Instalar a prateleira no suporte de chão

Przymocuj półkę do stojaka podłogowego

STEP 5

STEP 3

Adjust the height

Stel de hoogte in

Stellen Sie die Höhe ein

Ajustez la hauteur

Regolare l’altezza

Ajuste la altura

Ajustar a altura

Regulacja wysokości

Spring

plunger Push

1500mm

1450mm

1400mm

OPTION

Use spacers if necessary

Gebruik afstandhouders indien nodig

Verwenden Sie Distanzscheiben wenn nötig

Utilisez des entretoises si nécessaire

Utilizzare distanziatori, se necessario

Utilice separadores si es necesario

Utilize separadores se necessário

Użyj dystansów jeśli jest taka potrzeba

M8x25mm(C1)

M8x50mm

M5x25mm(A1)

M6x25mm(B1)

(A1,B1)+D1+E1/

(C1+M8x50)+E1

E1 D1

STEP 7

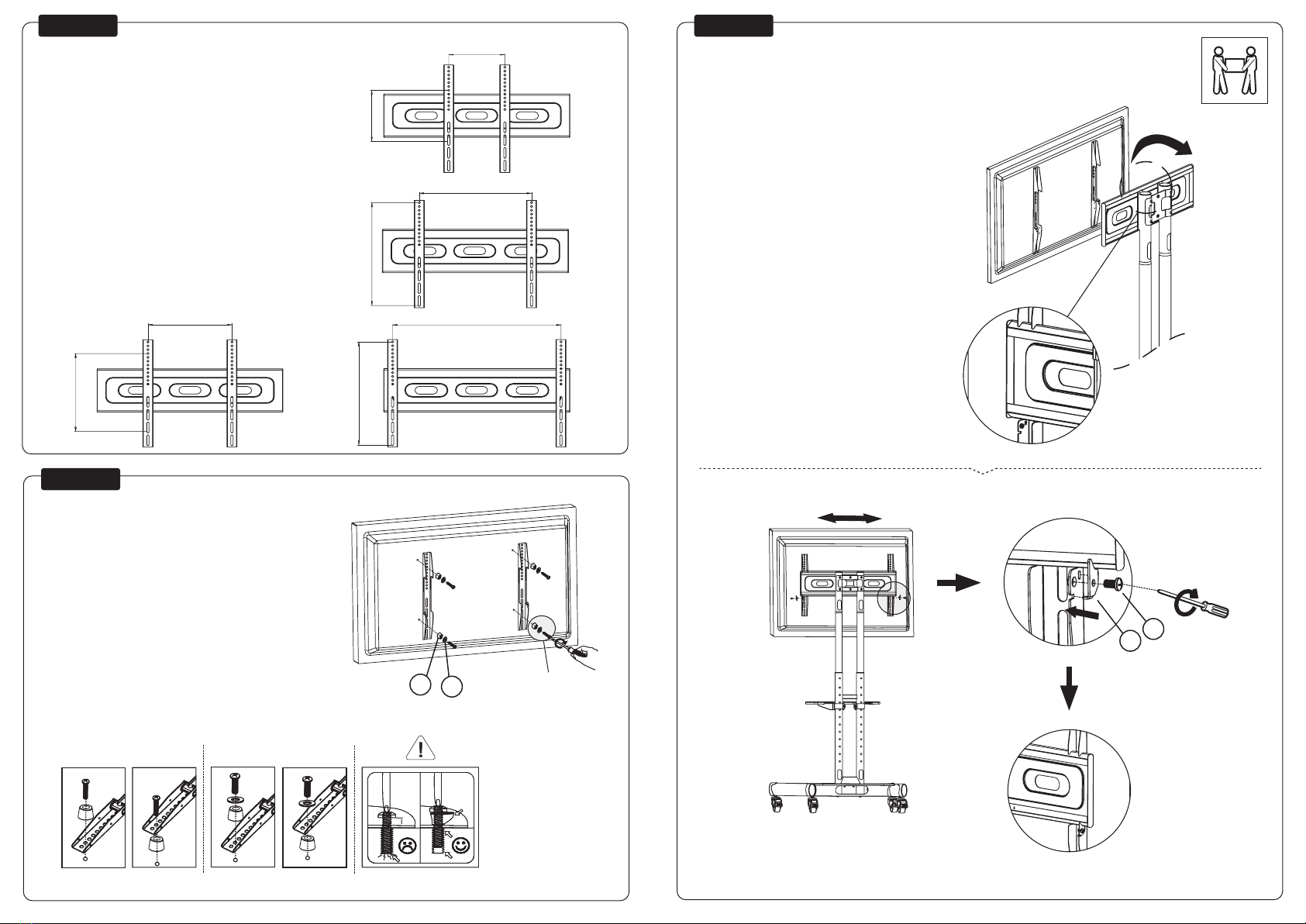

Install the adapter brackets

Bevestig de adaptersteunen

Montieren Sie die Adapterhalterungen

Installation des supports d’adaptation

Installare le staffe adattatore

Instalación de brazos adaptadores

Instalação de braços adaptadores

Zainstaluj wsporniki adaptera

7.87”(200mm)

11.8”(300mm)

15.7”(400mm)

23.6”(600mm)

STEP 8

Attach the screen to the oor stand and secure it

Bevestig het scherm aan de vloerstandaard en zet vast

Befestigen Sie den Bildschirm am Bodenständer und

sichern Sie ihn

Fixez l’écran au support et xez-le

Fissare lo schermo alla piantana e ssarlo

Fe la pantalla al soporte de suelo y asegúrela

Fixe o ecrã ao suporte de chão e prenda-a

Przymocuj ekran do podstawy podłogowej i zabez-

piecz go

STEP 9

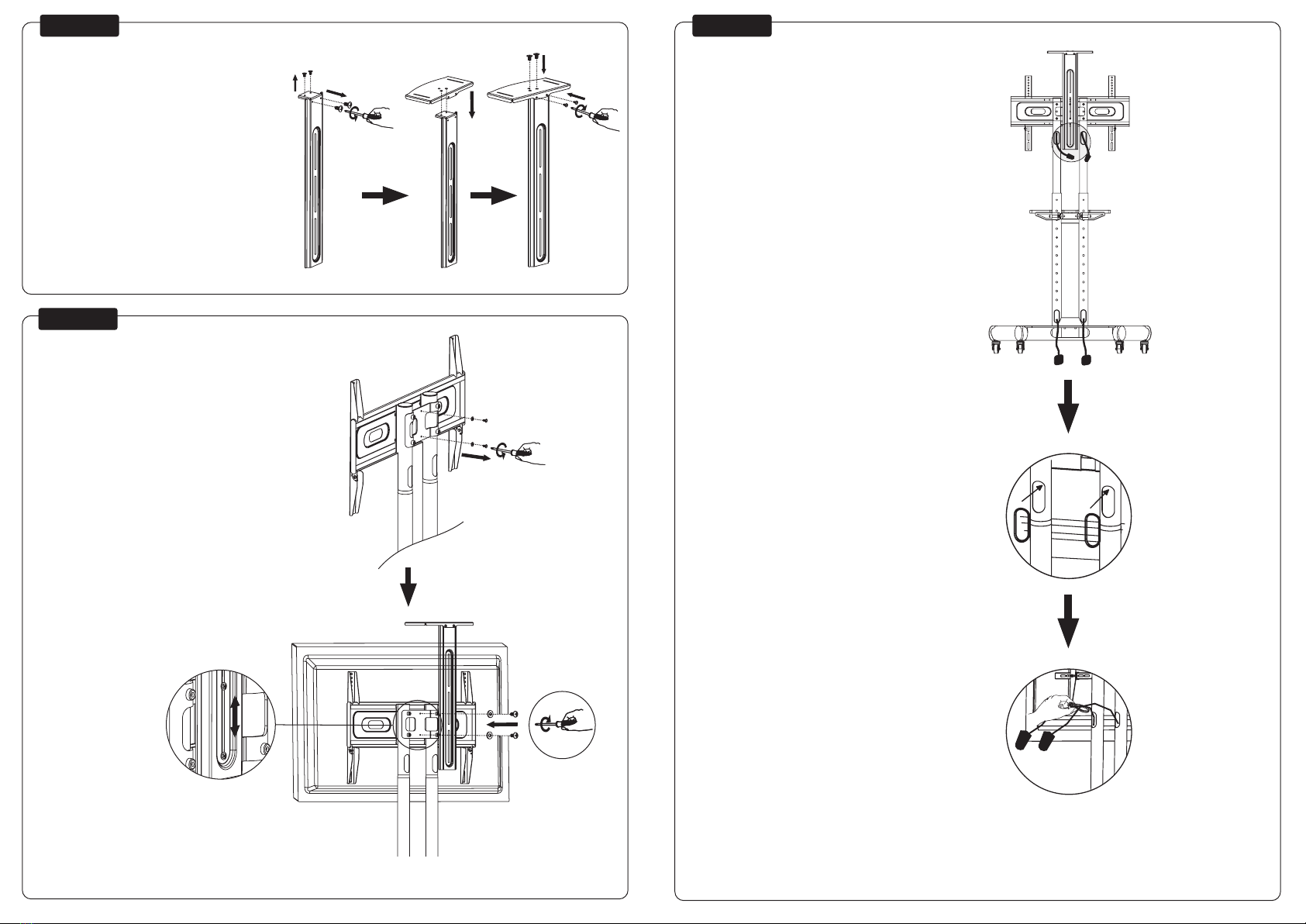

Install the camera shelf

Installeer het camera plateau

Installieren Sie die Kameraablage

Installer l’étagère de la caméra

Installare il ripiano della telecamera

Instale el estante de la cámara

Instalar a prateleira da câmara

Zainstaluj półkę na kamerę

STEP 10

Install the shelf to the top of the mount

Bevestig het plateau aan de bovenzde van de steun

Befestigen der Platte am oberen Ende der Halterung

Installation du plateau en haut du support à la hauteur désirée

Attaccare l’altopiano alla parte superiore del supporto

Instale la meseta en la parte superior del soporte

Instale o platô na parte superior do suporte

Zainstaluj półkę do kamery u góry stojaka

STEP 11

Route the cables through the rod

Geleid de kabels door de stang

Führen Sie die Kabel durch die Stange

Acheminer les câbles à travers la tige

Inserisca i cavi all’interno dell’asta

Pase los cables a través de la varilla

Passe os cabos pela haste

Poprowadź kable przez rurkę

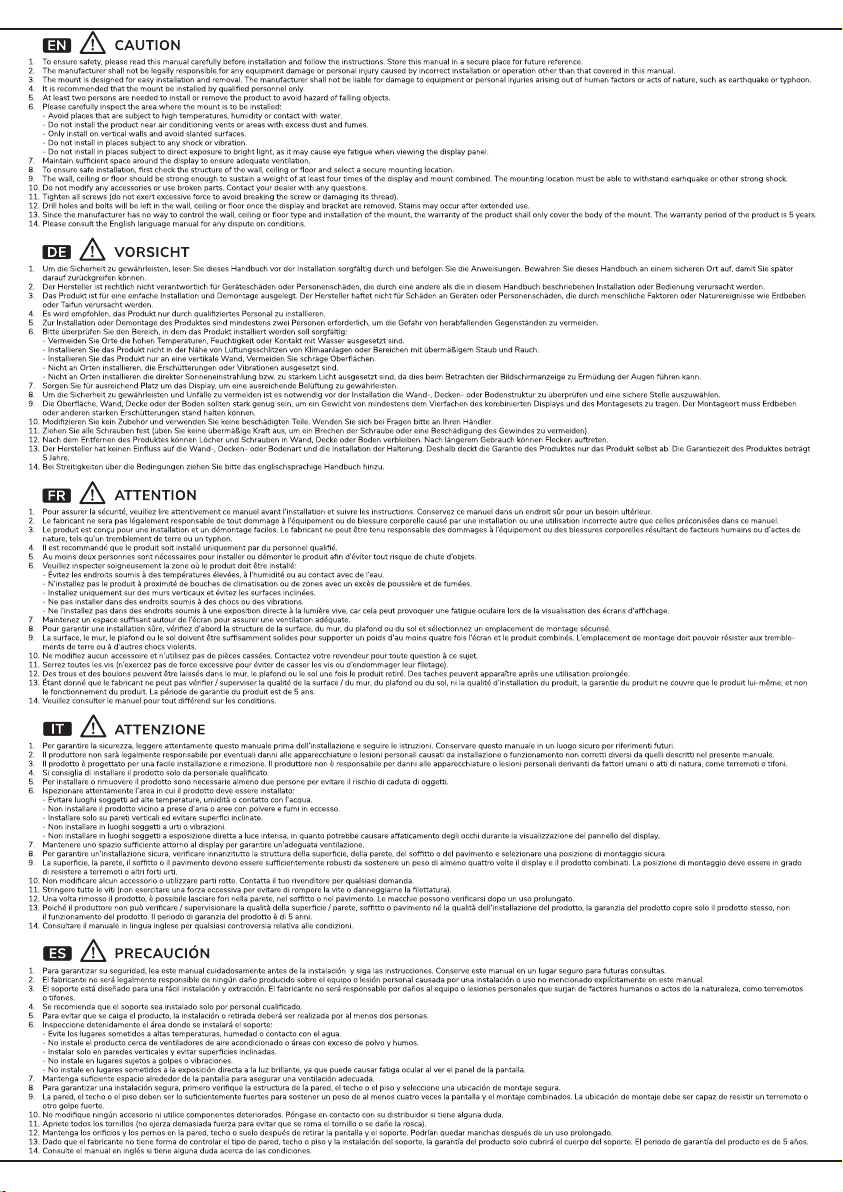

23.10
