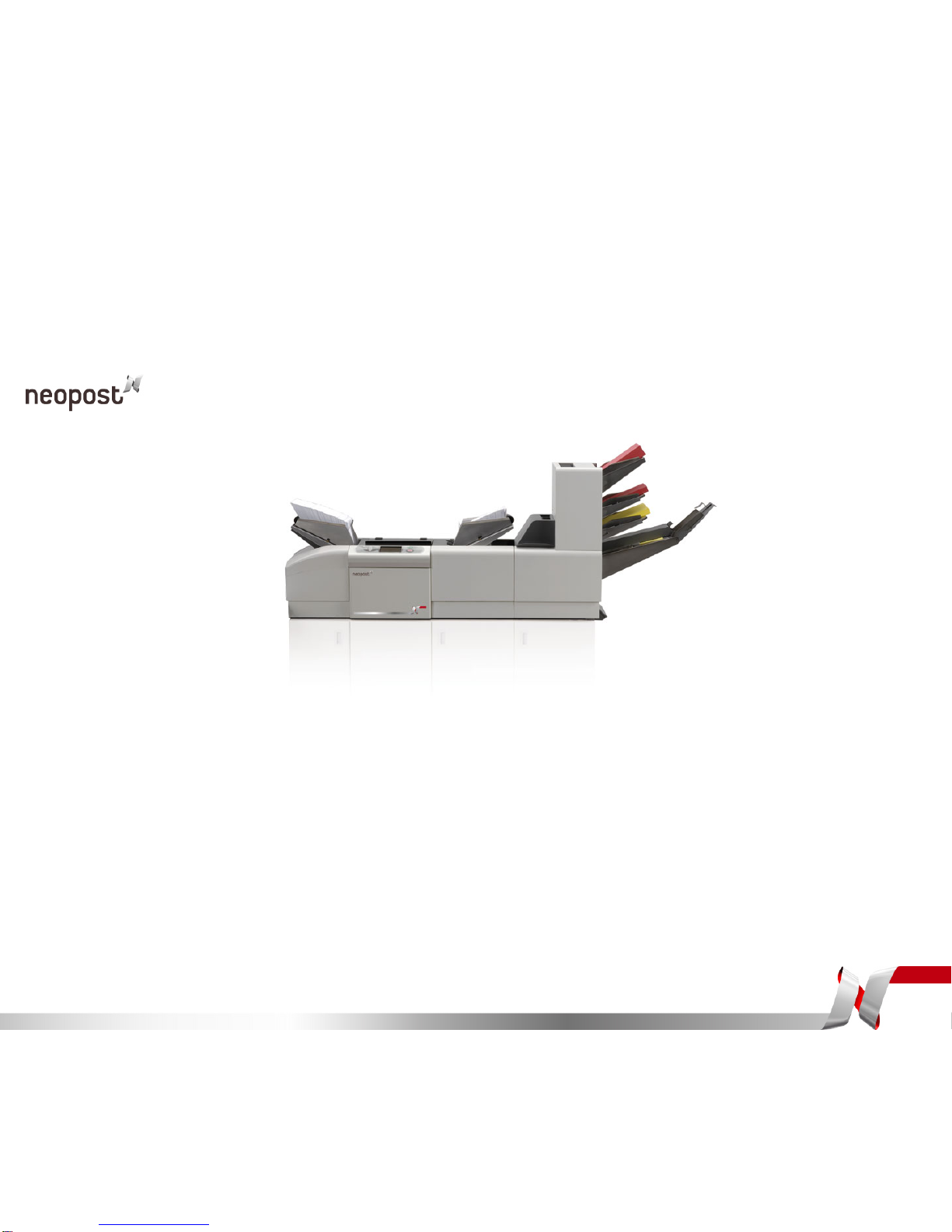

Neopost DS-100 Manuale utente
1
Neopost GOM-DS – April 2009 - confidential
9Base units
9Feeders
9Towers
9Accessories
9Furniture
DS-100 Product guide
2
Neopost GOM-DS – April 2009 - confidential
Which modules?
BASE UNIT
BASE UNIT INSERT/BRE
INSERT/BRE
FEEDER
FEEDER DOUBLE
DOUBLE
INSERT/BRE
INSERT/BRE
FEEDER
FEEDER
ENVELOPE
ENVELOPE
CONVEYOR
CONVEYOR FEEDER
FEEDER
FOLDER
FOLDER 1 OR 3
1 OR 3
STATIONS
STATIONS
TOWER
TOWER
DIVERT
DIVERT
TRAY
TRAY
COLLATOR
COLLATOR
UP TO 4 MODULES + BASE
FRANKER
FRANKER
LINK
LINK
MPPC
MPPC
3
Neopost GOM-DS – April 2009 - confidential
DS-100 Product guide
BASE UNITS
Reference Spec. Description
A1430ZZ 115v 60Hz Envelope inserter base including graphical
user interface, operating system, envelope
feeder and catch tray
E1430ZZ 230v 50Hz Envelope inserter base including graphical
user interface, operating system, envelope
feeder and catch tray
A6-0013-N -NEOPOST Branding (stickers)
A6-0013-H -HASLER Branding (stickers)
A6-0013-S -SATAS Branding (stickers)
A6-0013-P -PFE Branding (stickers)
4
Neopost GOM-DS – April 2009 - confidential
DS-100 Product guide
INSERT/BRE FEEDERS
Reference Spec. Description
A1450AA 115v 60Hz Single feeder including track for transport of
documents from previous stations and thickness
adjustment lever.
E1450AA 230v 50Hz Single feeder including track for transport of
documents from previous stations and thickness
adjustment lever.
A1452AA 115v 60Hz Double feeder. Each feeder is controlled
independently. Capacity and maximum thickness
are different compared to the single one.
E1452AA 230v 50Hz Double feeder. Each feeder is controlled
independently. Capacity and maximum thickness
are different compared to the single one.
A3321A -End-module cover. Required if Insert/BRE
feeder (single or double) is the first feeding
module of the configuration.
Accessories
5
Neopost GOM-DS – April 2009 - confidential
DS-100 Product guide
FEEDER FOLDERS
Reference Spec. Description
A1440ZZ 115v 60Hz Feeder folder (2 plates) including track for
transport of documents from previous stations.
E1440ZZ 230v 50Hz Feeder folder (2 plates) including track for
transport of documents from previous stations.
A3301A -Feeder folder daily mail kit. For manual feeding
of sets up to 3 sheets in C or Z and 5 sheets in V
fold.
A3302A -Feeder folder short form kit. For short
documents feeding down to 89 mm.
A3322A -End-module cover. Required if the feeder folder is
the first feeding module of the configuration.
Accessories
6
Neopost GOM-DS – April 2009 - confidential
DS-100 Product guide
TOWERS
Reference Spec. Description
A1442ZZ 115v 60Hz 1 station tower including hand feed station
and a 3 plates folder.
E1442ZZ 230v 50Hz 1 station tower including hand feed station
and a 3 plates folder.
A1443ZZ 115v 60Hz 3 stations tower including hand feed station
and a 3 plates folder.
E1443ZZ 230v 50Hz 3 stations tower including hand feed station
and a 3 plates folder.
7
Neopost GOM-DS – April 2009 - confidential
DS-100 Product guide
TOWERS OPTIONS
Reference Spec. Description
A3-0377-A
(*) -Collator for towers. This option is mandatory if
any reading head is fitted.
A7119A
(**) -Sheet divert tray used for bad read or over-
sized group. Possible only if collator is fitted.
(*)
(**)
8
Neopost GOM-DS – April 2009 - confidential
DS-100 Product guide
TOWERS OPTIONS (Tray 1 OMR reading) Collator mandatory
Reference Description
A3-0375-OTR OMR Advanced Top Right. Include hardware and
full advanced functions (NTBV or NTL).
A3-0375-OTL OMR Advanced Top Left. Include hardware and
full advanced functions (NTBV or NTL).
A3-0375-OBR OMR Advanced Bottom Right. Include hardware
and full advanced functions (NTBV or NTL).
A3-0375-OBL OMR Advanced Bottom Left. Include hardware
and full advanced functions (NTBV or NTL).
A3-0375-OTRF OMR Flex top Right. Include hardware and an
OMR definition within specs (NTBV or NTL)
A3-0375-OTLF OMR Flex Top Left. Include hardware and an OMR
definition within specs (NTBV or NTL).
A3-0375-OBRF OMR Flex Bottom Right. Include hardware and an
OMR definition within specs (NTBV or NTL).
A3-0375-OBLF OMR Flex Bottom Left. Include hardware and an
OMR definition within specs (NTBV or NTL).
right
left
feeding
1
2
3
Notes: Up to 4 OMR reading heads may be fitted on station 1. Barcode &
2D scanners impossible if any OMR is fitted. OMR impossible if any scanner
is fitted
NEW!
9
Neopost GOM-DS – April 2009 - confidential
DS-100 Product guide
TOWERS OPTIONS (Tray 1 2 tracks OMR reading) Collator mandatory
Reference Spec. Description
A3-0375-TTR Dual track OMR Top Right. Include
hardware and 2 tracks functions.
A3-0375-TTL Dual track OMR Top Left. Include
hardware and 2 tracks functions.
A3-0375-TBR Dual track OMR Bottom Right. Include
hardware and 2 tracks functions.
A3-0375-TBL Dual track Bottom Left. Include hardware
and 2 tracks functions.
right
left
feeding
1
2
3
Notes: Up to 4 OMR reading heads may be fitted on station 1. Barcode &
2D scanners impossible if any OMR is fitted. OMR impossible if any scanner
is fitted
10
Neopost GOM-DS – April 2009 - confidential
DS-100 Product guide
TOWERS OPTIONS (Tray 2 OMR reading) Collator mandatory
Reference Description
A3-0376-OTR OMR Advanced Top Right. Include hardware and
full advanced functions (NTBV or NTL).
A3-0376-OTL OMR Advanced Top Left. Include hardware and full
advanced functions (NTBV or NTL).
A3-0376-OBR OMR Advanced Bottom Right. Include hardware
and full advanced functions (NTBV or NTL).
A3-0376-OBL OMR Advanced Bottom Left. Include hardware and
full advanced functions (NTBV or NTL).
A3-0376-OTRF OMR Flex top Right. Include hardware and an OMR
definition within specs (NTBV or NTL)
A3-0376-OTLF OMR Flex Top Left. Include hardware and an OMR
definition within specs (NTBV or NTL).
A3-0376-OBRF OMR Flex Bottom Right. Include hardware and an
OMR definition within specs (NTBV or NTL).
A3-0376-OBLF OMR Flex Bottom Left. Include hardware and an
OMR definition within specs (NTBV or NTL).
right
left
feeding
1
2
3
Notes: Up to 4 OMR reading heads may be fitted on station 2. Barcode &
2D scanners not available.
