Neoway N3800 series Manuale utente

N3800 Series Router

User Manual

Version 1.0

N3800 Series Router User Manual

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Shenzhen Neoway Technology Co., Ltd.

Trademarks

is the trademark of Neoway Technology Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

This document provides guide for users to use the N3800.

This document is intended for system engineers (SEs), development engineers, and test engineers.

The information in this document is subject to change without notice due to product version update or

other reasons.

Every effort has been made in preparation of this document to ensure accuracy of the contents, but all

statements, information, and recommendations in this document do not constitute a warranty of any kind,

express or implied.

Sales@neoway.com

Support@neoway.com

Website: http://www.neoway.com

N3800 Series Router User Manual

Revision Record

Issue

Date

Changes

V1.0

2017-04

Initial draft

N3800 Series Router User Manual

Contents

1 Connection Debugging .................................................................................................... 1

2 Device Configuration ....................................................................................................... 2

2.1 3G/4G Dialing .................................................................................................................................... 2

2.2 Dynamic DNS .................................................................................................................................... 4

2.3 Port Mapping...................................................................................................................................... 5

2.4 LAN Setting ....................................................................................................................................... 5

2.5 Wireless Setting.................................................................................................................................. 6

2.6 COM Server (DTU / Data Transparent Transmission) ....................................................................... 8

2.7 VPN (PPTP) Setting ........................................................................................................................... 9

2.8 Changing Password ............................................................................................................................ 9

2.9 Resetting to Factory Settings............................................................................................................ 10

2.10 Firmware Upgrade...........................................................................................................................11

3 Technical Support ........................................................................................................... 12

N3800 Series Router User Manual

1 Connection Debugging

1. Connect the router to a computer.

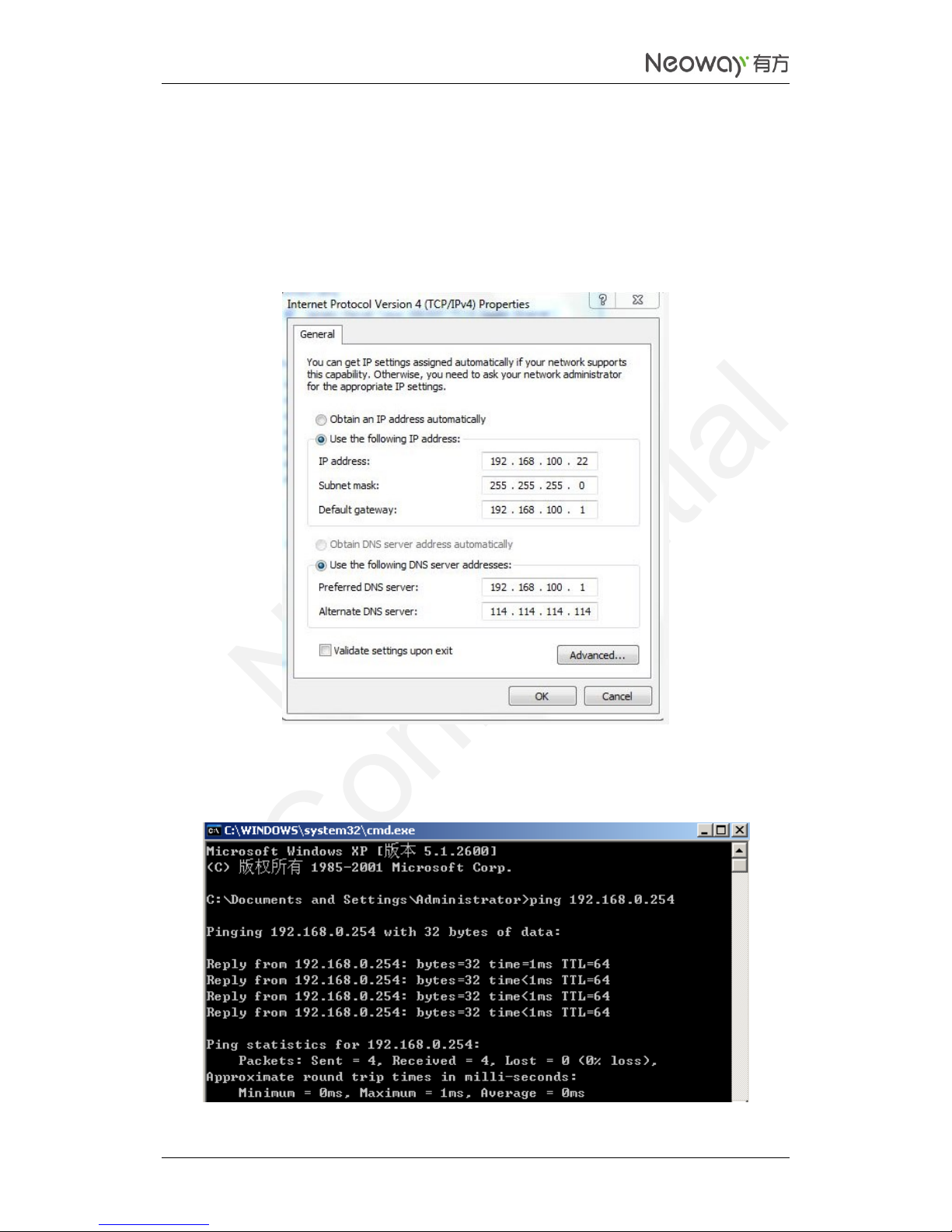

2. Power on the router, and set to "obtains an IP address automatically" on the computer.

Manual configuration is also allowed. Ensure that the computer and the router share the same

network segment before manual configuration.

The default IP address of Router is 192.168.100.22.

3. After obtaining IP, ping the IP address.

If the ping request finds the host, the router and the computer are connected.

N3800 Series Router User Manual

2 Device Configuration

After the ping test, access the router's web-based configuration pages to configure it.

The default setup page of the router is http: //192.168.100.1.

User name: admin

Password: admin

Follow the steps below to set up the router fast.

2.1 3G/4G Dialing

The router selects the operator automatically by default. Users do not have to configure it.

When the router cannot select a correct operator automatically or dial successfully, or the SIM/UIM card

used supports only private networks, configure 3G/4G service manually.

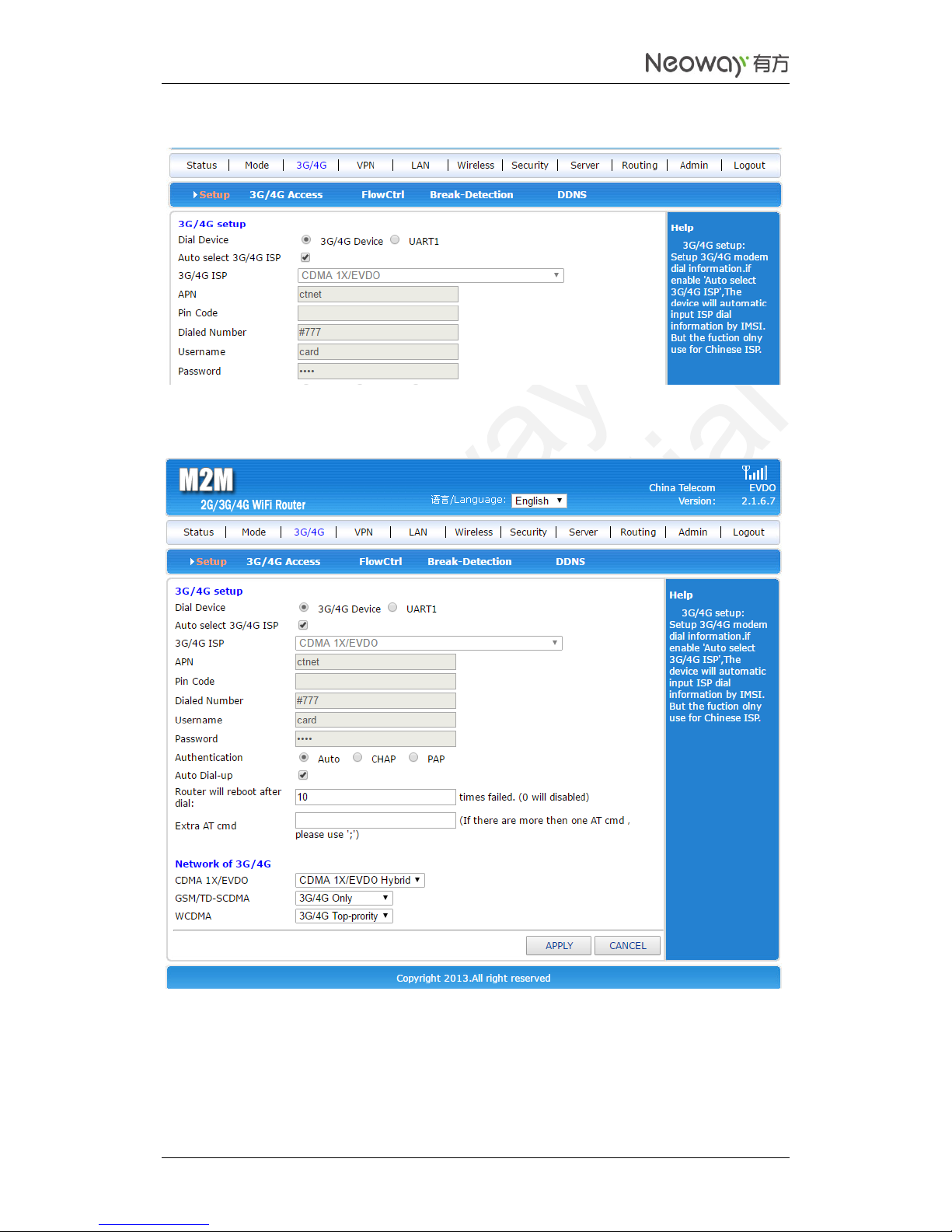

Step 1 Choose 3G/4G from the main menu. Click Setup.

N3800 Series Router User Manual

Step 2 On the tab displayed, deselect Auto select 3G/4G ISP, and select one ISP to fill SIM/UIM card

parameters manually.

Step 3 Set up the rest of dialup information according to the ISP and router model.

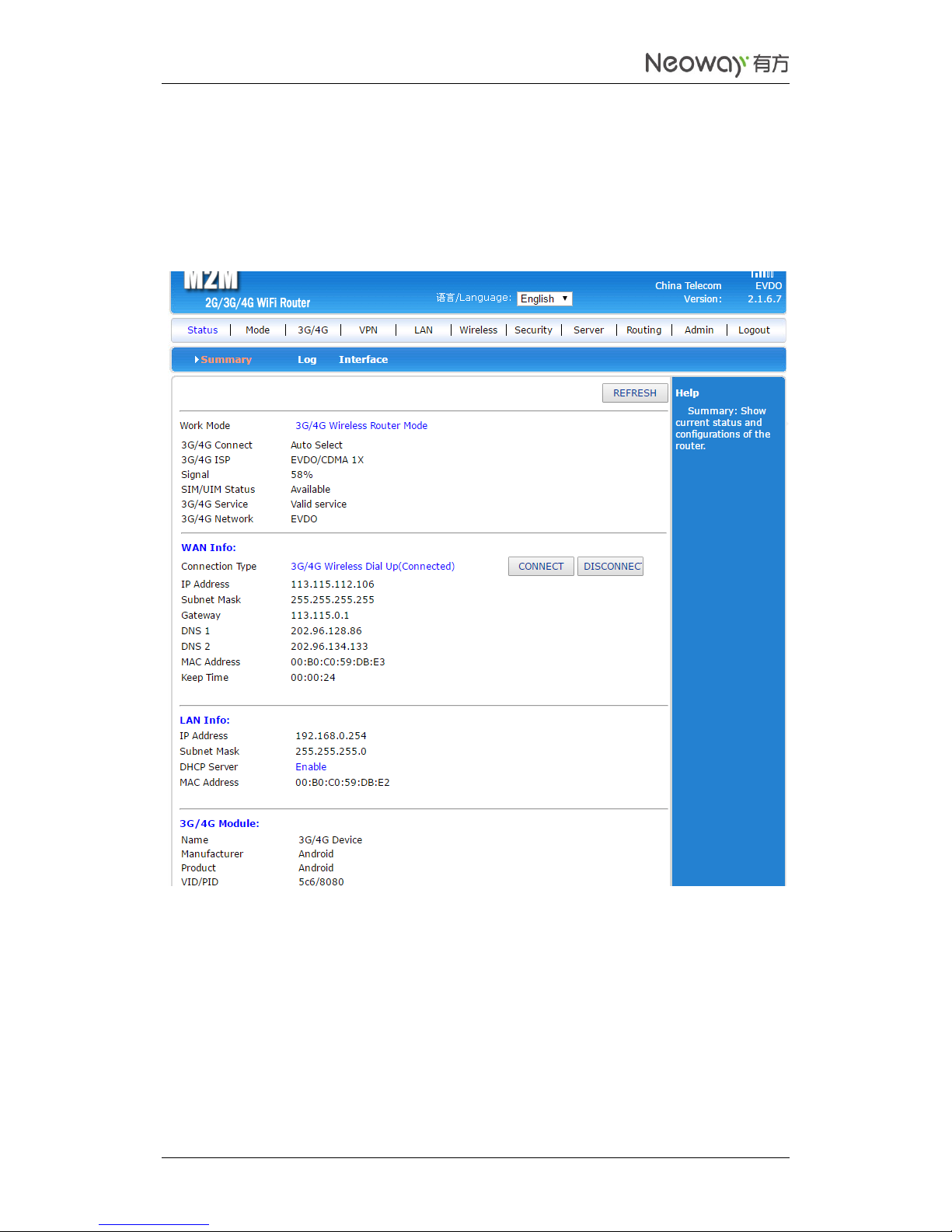

Step 4 Check the IP address information on the status page.

After the router dials up successfully, information in the following figure is displayed.

N3800 Series Router User Manual

The current IP automatically acquired is 183.40.68.30.

2.2 Dynamic DNS

Users can set dynamic DNS as required.

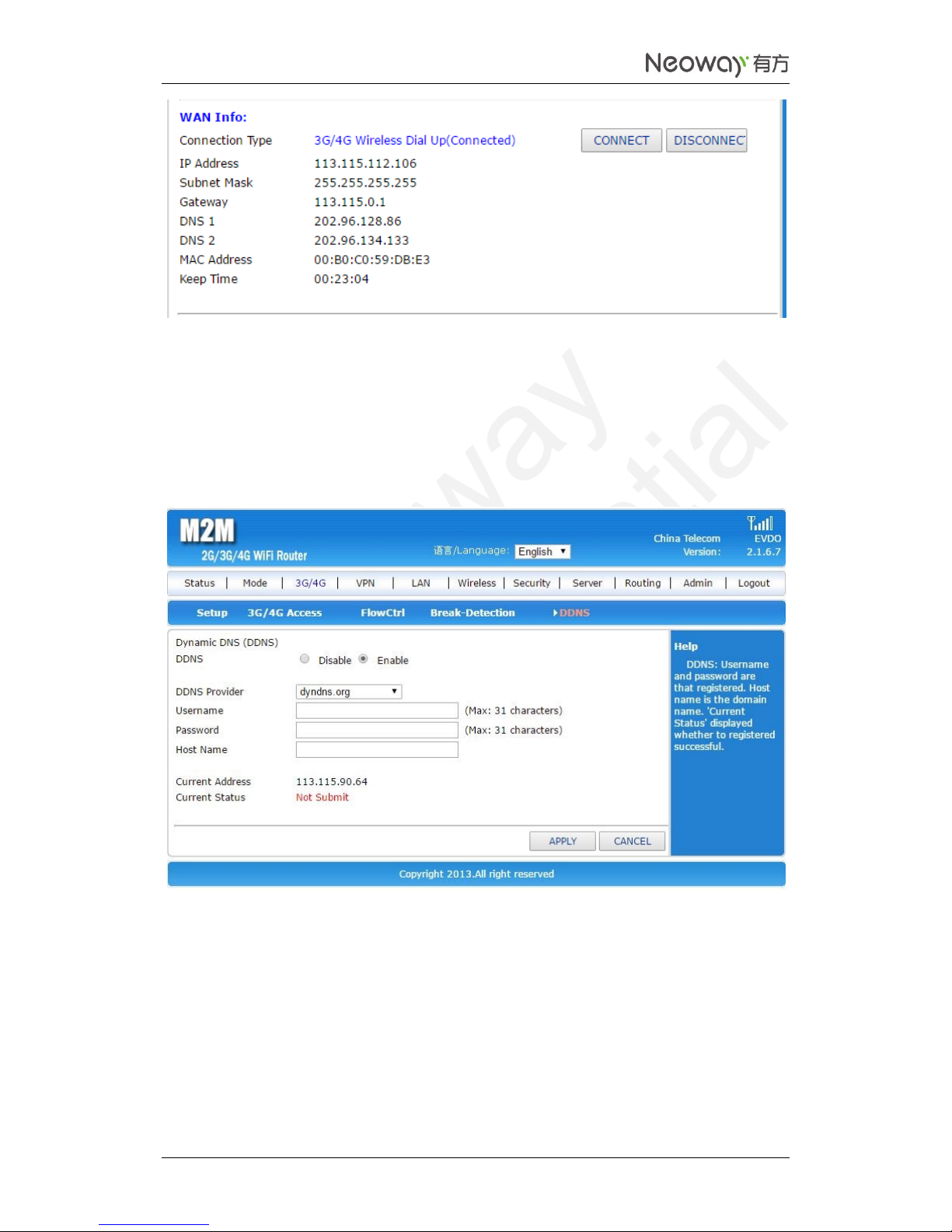

Step 1 Choose 3G/4G from the main menu. Click DDNS.

Step 2 On the tab displayed, click Enable behind DDNS.

Step 3 Fill the DDNS information.

DDNS Provider: Select the service provider's suffix name and provider

Username: Valid domain name

Password: Password used to apply for DNS

Host Name: Host name, which users give to facilitate management during application.

Step 4 Click APPLY.

N3800 Series Router User Manual

2.3 Port Mapping

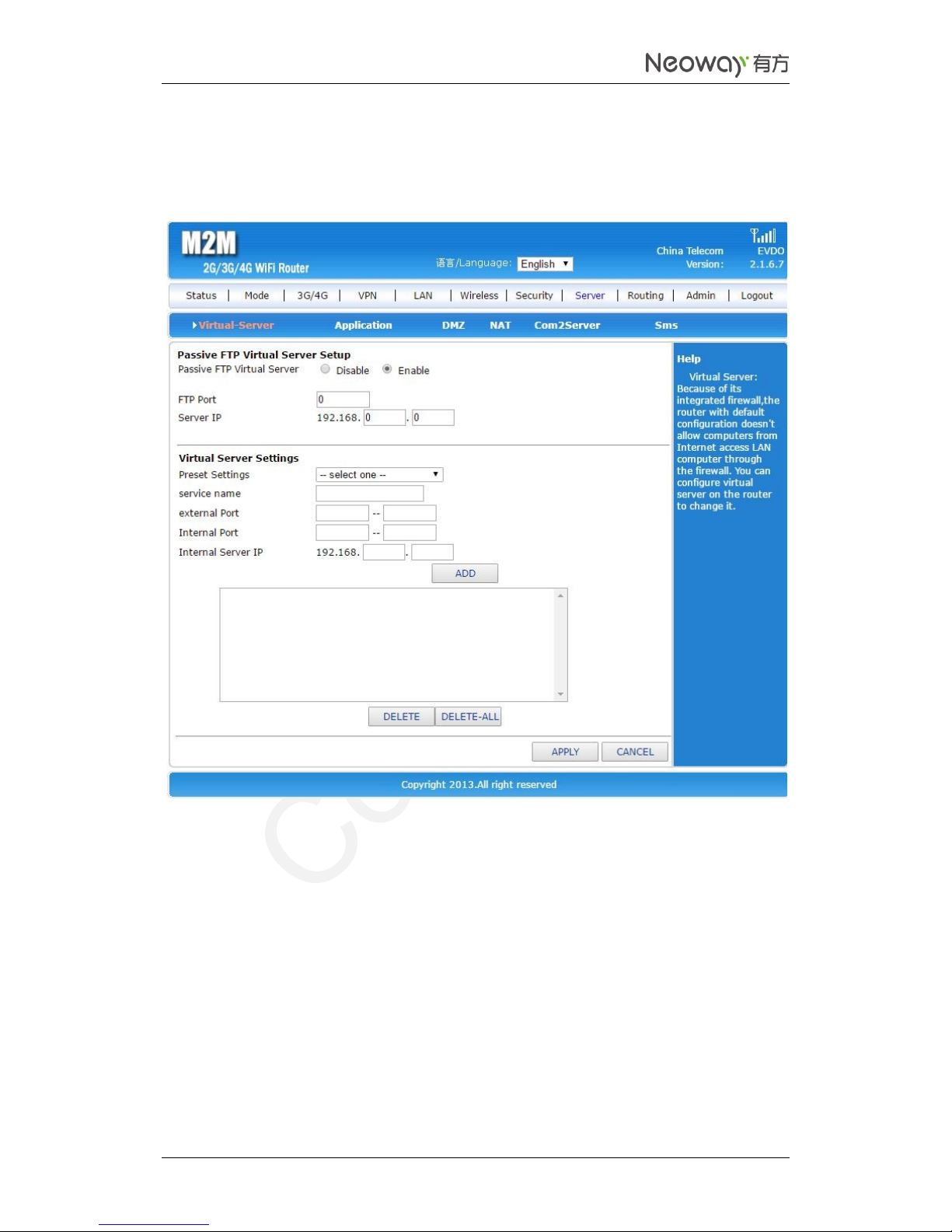

Step 1 Choose Server from the main menu. Click Virtual Server.

Step 2 Click Enable after Passive Virtual Server.

Step 3 Configure the following parameters.

Service Name: Used to identify this port mapping;

External port: Start and end ports used by devices on intranet

Internal port: Start and end ports used by devices on the extranet;

Internal server IP: IP address of the server on the intranet to be mapped.

Step 4 Click ADD to add the new server to the list. Click APPLY

2.4 LAN Setting

Step 1 Choose LAN from the main menu. Click Setup.

Step 2 Configure the following parameters.

N3800 Series Router User Manual

IP Address: the LAN address of the router;

Subnet Mask: the subnet mask of the router;

Start IP Address: Start address assigned by the router to devices.

End IP Address: End address assigned by the router to devices.

Assignable addresses must be on the same network segment as the LAN port IP and the IP address of the

LAN cannot be within the assignable range.

Modify the DHCP server settings to align with the network segment after modifying the LAN IP.

To access the router through a new IP address after changing any parameters on this tab, restore the

computer IP address or restart the computer.

2.5 Wireless Setting

Step 1 Choose Wireless from main menus. Click Basic.

Step 2 On the tab, configure the parameters.

Step 3 Click APPLY.
