Neptronic DTS Manuale utente

DTS Actuator

Specification & Installation instructions

DTS-210803 1

Technical Data

DT060S

DT065S

DT080S

DT160S

DT165S

DT180S

DT260S

DT265S

DT280S

Auxiliary switches

Yes (2)

Feedback

Yes

Power supply

22 to 26 VAC or 28 to 32 VDC

110 to 130 VAC 50/60Hz

220 to 250 VAC 50/60Hz

Power consumption

15VA Peak, 6VA

12VA Peak, 6VA

Control signal

2 wire / 2 position, 4 wire / 3 point floating

3 wire / 2 position, 4 wire / 3 point floating

Torque

50 in.lb. [5,6 Nm] at rated voltage

(Fail-safe 35 in.lb. [3,9 Nm])

35 in.lb. [4 Nm] at rated voltage

Running time through 90º

90 - 110 sec, (Fail-safe 70-80 sec)

90 - 110 sec, (Fail-safe25-50 sec)

Ingress protection

IP22 equivalent to Nema type 2,

IP54 equivalent to Nema type 3R if

water tight inlet bushings (not supplied

NEP617) are installed

IP22 equivalent to Nema type 2

Approvals

Class 2

Fail safe - Enerdrive

Yes

Electrical connection

18 AWG [0.8 mm2] minimum

Inlet bushing

2 inlet bushings: 13/16” [20.6mm]

Angle of rotation

0 to 90 degrees, mechanically adjustable (factory set with 90º stroke)

Direction of rotation

Reversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction)

Ambient temperature

-22ºF to +122ºF [-30ºC to +50ºC]

Storage temperature

-22ºF to +122ºF [-30ºC to +50ºC]

Relative Humidity

5 to 95 % non condensing.

Weight

3 lbs. [1.4 kg]

Warning: Do not press the clutch when actuator is powered

Dimensions

Dimension

Inches

Metric (mm)

1.50

38.1

3.64

92.5

6.60

167.5

model 0XX

3.02

76.8

model 1XX & 2XX

3.81

96.8

Caution

We strongly recommend that all neptronic® products be wired to a separate transformer and that transformer shall service only neptronic® products. This precaution will

prevent interference with, and/or possible damage to incompatible equipment.

When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.

Enerdrive System U.S.A. Patent #5,278,454

Feature:

•Mounts easy on round

& square shaft (with option –8).

•External clutch for manual adjustments.

•Maintenance free.

•Position indicator.

•Fail safe by Enerdrive System1

•Auxiliary switches

(on model 80S).

DT060S

DT065S

DT080S

DT160S

DT165S

DT180S

DT260S

DT265S

DT280S

DT060S/065S/080S

DT160S/165S/180S/DT260S/265S/280S

Specification & Installation instruction

Mechanical installation

1. Manually close the damper blades and positioned the

actuator at 0º or 90º.

2. Slide the actuator onto the shaft.

3. Tighten the nuts on the “U” bolt to the shaft with a 8mm

wrench to a torque of 60 in.lb. [6,7 Nm].

4. Slide the mounting bracket under the actuator. Ensure free

movement of the slot at the base of the actuator. The

bracket pin must be placed in the mid distance of the slot.

5. Fix the bracket to the ductwork with #8 self-tapping screws.

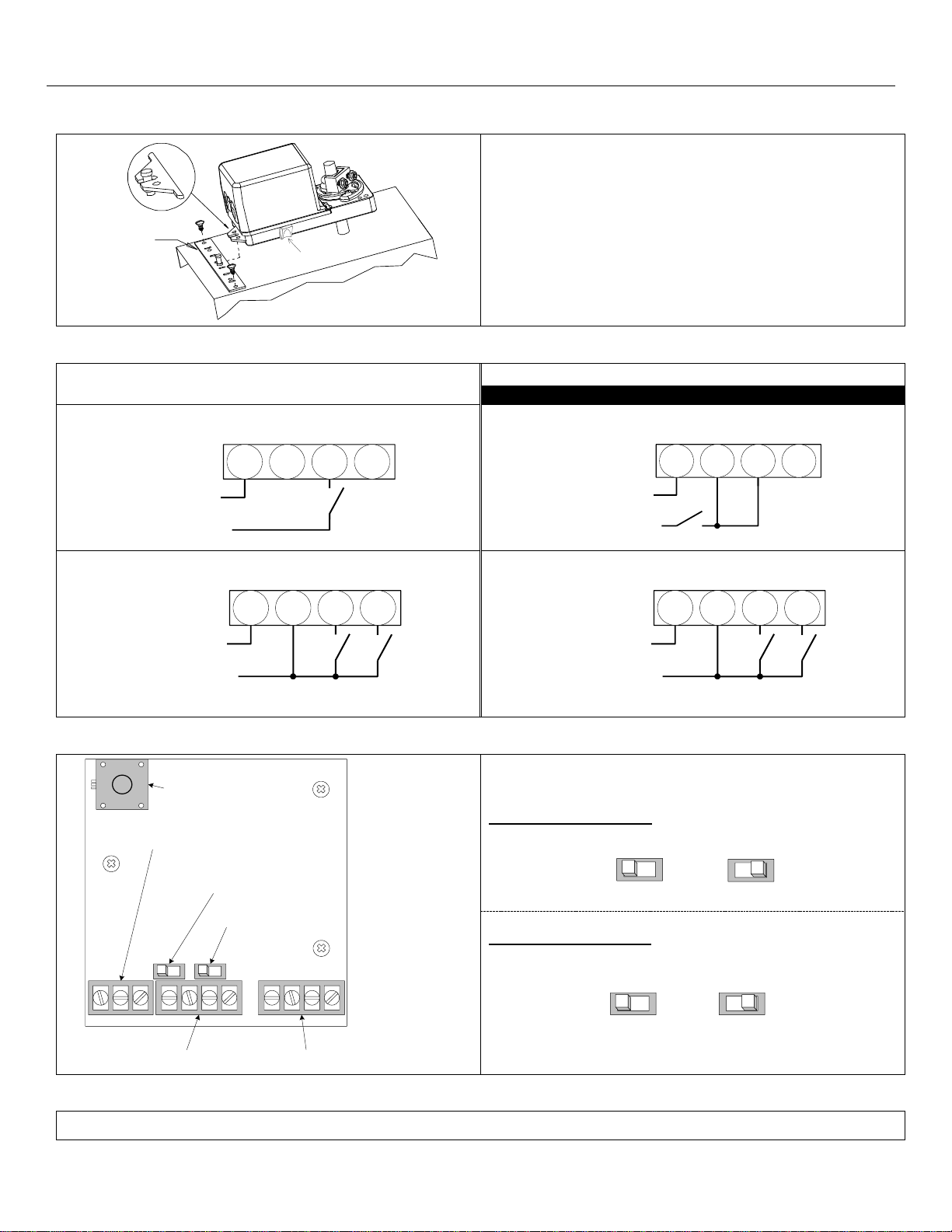

Wiring Diagrams

Models DT060S, 065S & 080S

Models DT160S, 165S, 180S, 260S, 265S & 280S

Caution: Risk of electric shock. Remove power prior to connect.

2 wire / 2 position (ON-OFF)

3 wire / 2 position (ON-OFF)

4 wire / 3 point floating

PC Board

Dip switch settings

Rotation direction (SW1)

Fail safe direction (SW2)

Stroke adjustment

To adjust the stroke, move the adjustment screws at the desired position.

CLUTCH

MOUNTING

BRACKET

COMMON (-)

SUPPLY (+) DRIVE CW

1 2 3 4

TB1

NEUTRAL (-)

LINE (+) DRIVE CW

1 2 3 4

TB2

COMMON (-)

SUPPLY (+) DRIVE

1 2 3 4

DRIVE

CCW

TB1

NEUTRAL (-)

LINE (+) DRIVE

1 2 3 4

DRIVE

CCW

TB2

Potentiometer

Only on model

065S, 165S & 265S

BT060S

1 2 3 4

Feedback or switches terminal

Only on model 065S, 080S,

165S, 180S 265S & 280S

6 7 8

Low voltage terminal

(Only on model

060S, 065S & 080S)

TB3 TB1

SW2

Rotation direction

Fail safe direction

SW1

1 2 3 4

TB2 Line voltage terminal

(Only on model 160S, 165S,

180S, 260S, 265S & 280S)

(0 to 90º) CCW

(90 to 0º)

Fail safe

return at 0º Fail safe

return at 90º
