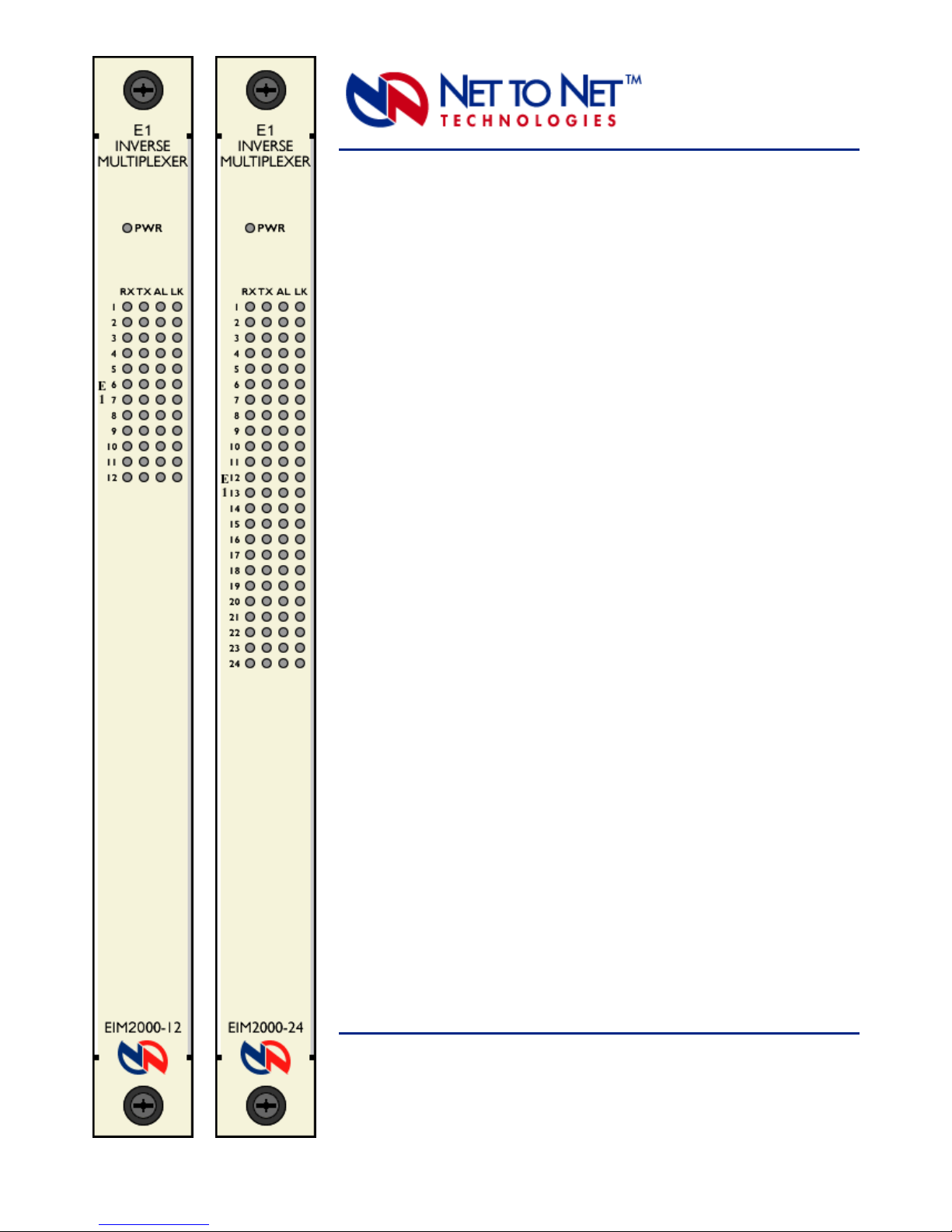

Net to Net Technologies EIM2000 Manuale utente

Interface Module

User Guide

EIM2000-12

12-Port E1 Inverse Multiplexer

and

EIM2000-24

24-Port E1 Inverse Multiplexer

http://www.nettonet.com

contact@nettonet.com

™ The Net to Net Logo is a trademark of Net to Net Technologies, Inc.

Worldwide Headquarters

Net to Net Technologies

112 Corporate Drive

Portsmouth, NH 03801

USA

1 (877) 638-2638

EMEA Headquarters

Net to Net Technologies

Victoria House 19 Park Way

Newbury Berkshire RG14 1EE

44 (0) 1635-570950

210-0000054 rev02EIM2000 User Guide Pa

e 1 of 20

Contents

1.0 INSTALLATION

1.1 Unpack and Inspect the EIM2000

1.2 Verify EIM2000 Switch Settings

1.2.1 Switch 2

1.2.2 Switch 3

1.3 Install the EIM2000 in an IP DSLAM Chassis

1.3.1 Align the EIM2000 with the IP DSLAM Slot Module Guides

1.3.2 Slide the EIM2000 Firmly into the Chassis

1.3.3 Verify that the EIM2000 is Receiving Power

1.3.4 Secure the EIM2000 in the IP DSLAM Chassis

1.4 Connect the E1 Line(s)

1.4.1 Local Connection

1.4.1.1 Select the Appropriate RJ21 Connector(s)

1.4.1.2 Detach the Velcro Strap and Position the E1 Cable RJ21 Connector(s)

1.4.1.3 Secure the Connector(s)

1.4.1.4 RJ21 Port Pinouts

1.4.2 Remote Connection

1.4.2.1 Loop Bonded Connection

1.4.2.2 Single Line E1 Connection

1.4.3 Verify the Connection

1.5 LED Indications

2.0 E1 PARAMETERS

2.1 Parameter Defaults

2.2 Clock Source

2.2.1 Local (default-provider mode)

2.2.2 Loop (default-subscriber mode)

2.3 Frame Type

2.3.1 Cyclic Redundancy Check (default)

2.4 Line Code

2.4.1 High Density Binary 3 (default)

2.4.2 Alternate Mark Inversion

2.5 Speed

3.0 ADDITIONAL INFORMATION

3.1 Configuration and Management

3.2 Data Storage

3.3 European Regulatory Compliance

210-0000054 rev02EIM2000 User Guide Pa

e 2 of 20

1.0 INSTALLATION

1.1 Unpack and Inspect the EIM2000

If there is visible damage, do not attempt to connect the device; contact Customer Support at 1-877-

638-2638 (1-603-427-0600 for international customers) or [email protected].

1.2 Verify EIM2000 Switch Settings

1.2.1 Switch 2

1.2.2 Switch 3

Switch 3 indicates to the IP DSLAM's MUM whether the EIM2000 will be acting as an E1

provider or an E1 subscriber. Default, in the UP position, dictates that the EIM2000 will be

acting as a provider. In most cases, this will be the desired setting. The EIM2000 can,

however, be configured to act as an E1 subscriber, if so desired, by placing Switch 3 in the

DOWN position.

CAUTION Net to Net Technologies strongly recommends the use of proper electrostatic discharge (ESD) precautions when

handling this equipment.

The EIM2000 houses a bank of eight [8] switches at the rear of the

module (opposite the faceplate). Switches are numbered from left to

right, 1 - 8. Switches 1 and 4-8 are not used.

NOTE EIM2000s with printed circuit boards (PCBs) at rev 810-0000AA have eight switch banks. Section 1.2.1 and

1.2.2 below refer to the switch bank labeled "SW 7"; all switches on the other seven switch banks should be in

the default "up" position. PCBs at any rev other than 810-0000AA have only one switch bank.

CAUTION Switch 2 indicates, to the IP DSLAM's MUM, that the module is an E1

inverse multiplexer and MUST be in the DOWN position. The EIM2000

will NOT achieve link if Switch 2 is in the UP position.

Provider Mode Subscriber Mode

NOTE You will NOT be able to set speed or timing configurations on an EIM2000 in subscriber mode. These

settings will be determined via each port's communication with its respective partner E1 provider.

210-0000054 rev02EIM2000 User Guide Pa

e 3 of 20

1.3 Install the EIM2000 in an IP DSLAM Chassis

Net to Net Technologies' IP DSLAM interface modules are hot swappable; installing or removing an

interface module while the chassis is powered up does not affect the operational status of other

interface modules within the chassis. The IPD12000 and IPD12000E are fourteen slot chassis; slots

1-12 are reserved for interface modules (such as the EIM2000) and slots 13-14 are reserved for

MUMs. Interface modules may be placed in any order in slots 1-12. The IPD4000 and IPD4000E are

five slot chassis; slots 1-4 are reserved for interface modules and slot 5 is reserved for a MUM.

1.3.1 Align the EIM2000 with the IP DSLAM Slot Module Guides

Slot 1-12 on the IPD12000(E) or slot 1-4 on the IPD4000(E).

NOTE There must be a Multiplexer Uplink Module (MUM) with an Uplink Interface Module (UIM) installed in your IP

DSLAM chassis in order for interface modules to operate.

210-0000054 rev02EIM2000 User Guide Pa

e 4 of 20

1.3.2 Slide the EIM2000 Firmly into the Chassis

DO NOT USE EXCESS FORCE.

210-0000054 rev02EIM2000 User Guide Pa

e 5 of 20

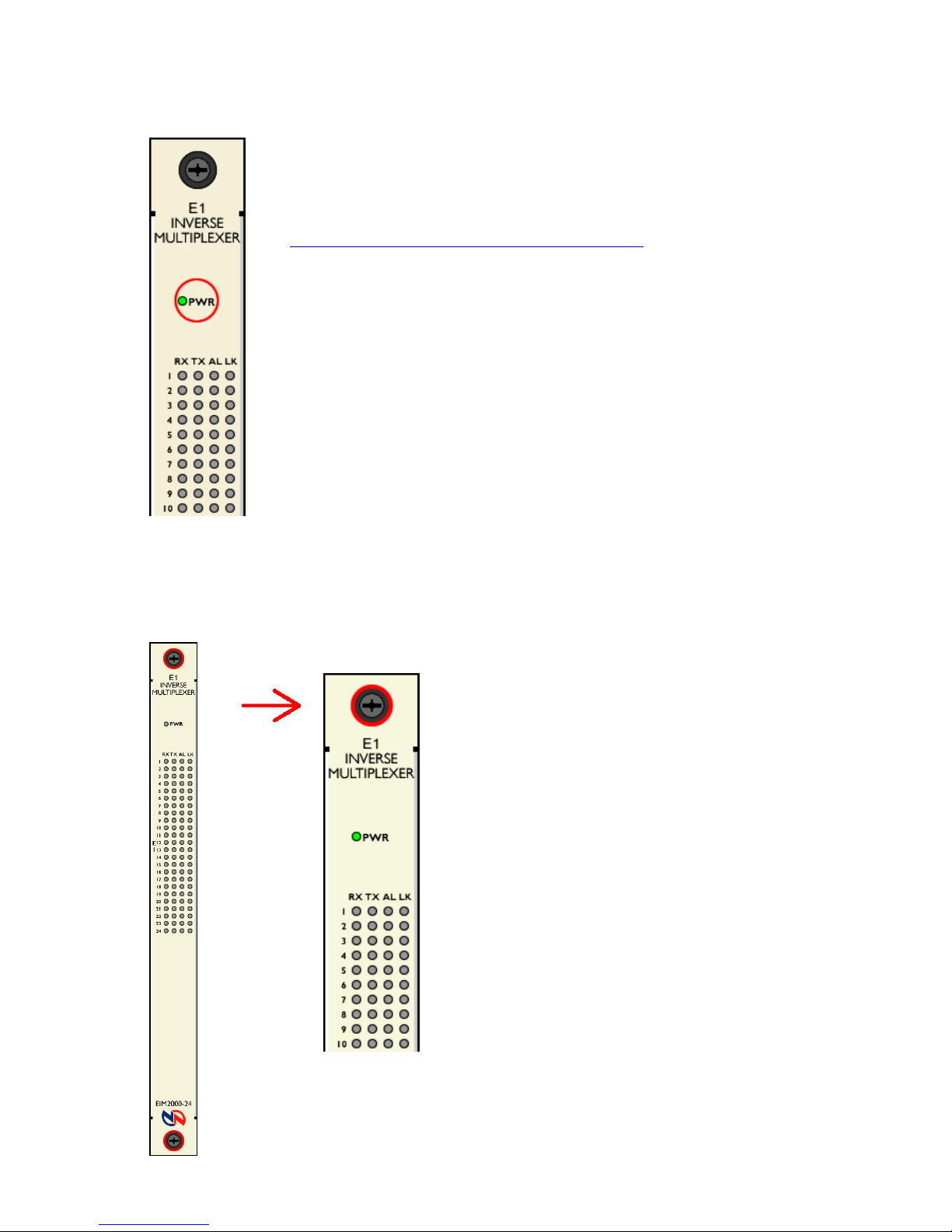

1.3.3 Verify that the EIM2000 is Receiving Power

The PWR (Power) LED on the EIM2000 faceplate will illuminate green.

1.3.4 Secure the EIM2000 in the IP DSLAM Chassis

Tighten the fastening screws on the module faceplate with a Philips or Flathead screwdriver.

If your IP DSLAM is not yet powered up,

refer to the IP DSLAM Installation

Instructions for your model at

http://www.nettonet.com/support/docs/#I .

210-0000054 rev02EIM2000 User Guide Pa

e 6 of 20

1.4 Connect the E1 Line(s)

1.4.1 Local Connection

1.4.1.1 Select the Appropriate RJ21 Connector(s)

E1 cables must be connected according to the IP DSLAM slot in which the EIM2000 was

installed. In previous illustrations the EIM2000 was installed in Slot 3, therefore the E1

cable(s) should be plugged into the third RJ21 connector(s) from the right.

1.4.1.1.1 IPD12000E or IPD4000E

Each interface module slot on the IPD12000E and IPD4000E has two [2]

corresponding RJ21 connectors located on the back of the chassis. The bottom

row of RJ21 connectors (A) on the IPD12000E provides the E1 connection for

EIM2000 ports 1-12 and the top row of RJ21 connectors (B) provides the E1

connection for EIM2000 ports 13-24. On the IPD4000E, the A connectors for each

interface module slot are on the left and the B connectors are on the right.

NOTE The EIM2000-24 utilizes both rows of RJ21 connectors on the IPD12000E and IPD4000E.

The EIM2000-12 utilizes only the A connectors on the IPD12000E (lower row) and

IPD4000E (left-hand side).

210-0000054 rev02EIM2000 User Guide Pa

e 7 of 20

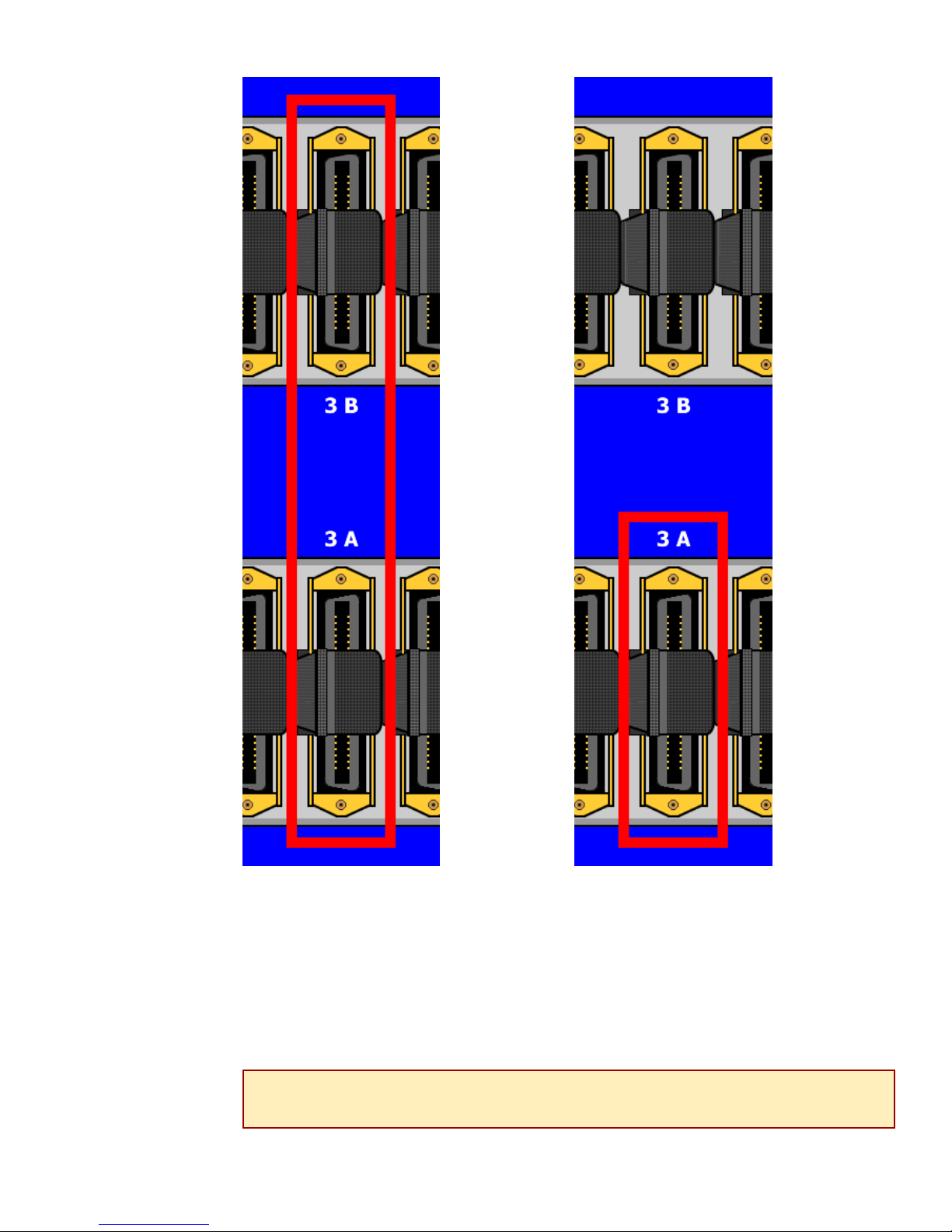

1.4.1.1.2 IPD12000 or IPD4000

Each interface module slot on the IPD12000 and IPD4000 has one corresponding

RJ21 port located on the back of the chassis which will connect EIM2000 E1 ports

1-12.

EIM2000-24

For the

EIM2000-24,

you must

connect an

E1 cable to

both the

A and B

Connectors

in order to

utilize

all 24 E1 ports.

EIM2000-12

For the

EIM2000-12,

connect an E1

cable

to the A

Connector

only; the B

Connector

has no function

for the

EIM2000-12.

IPD12000E IPD12000E

NOTE Although the EIM2000-24 can function in an IPD12000 or IPD4000, you will not be able to

utilize ports 13-24; the IPD12000 and IPD4000 do not have the second row of B

connectors necessary to support additional E1 ports.

210-0000054 rev02EIM2000 User Guide Pa

e 8 of 20

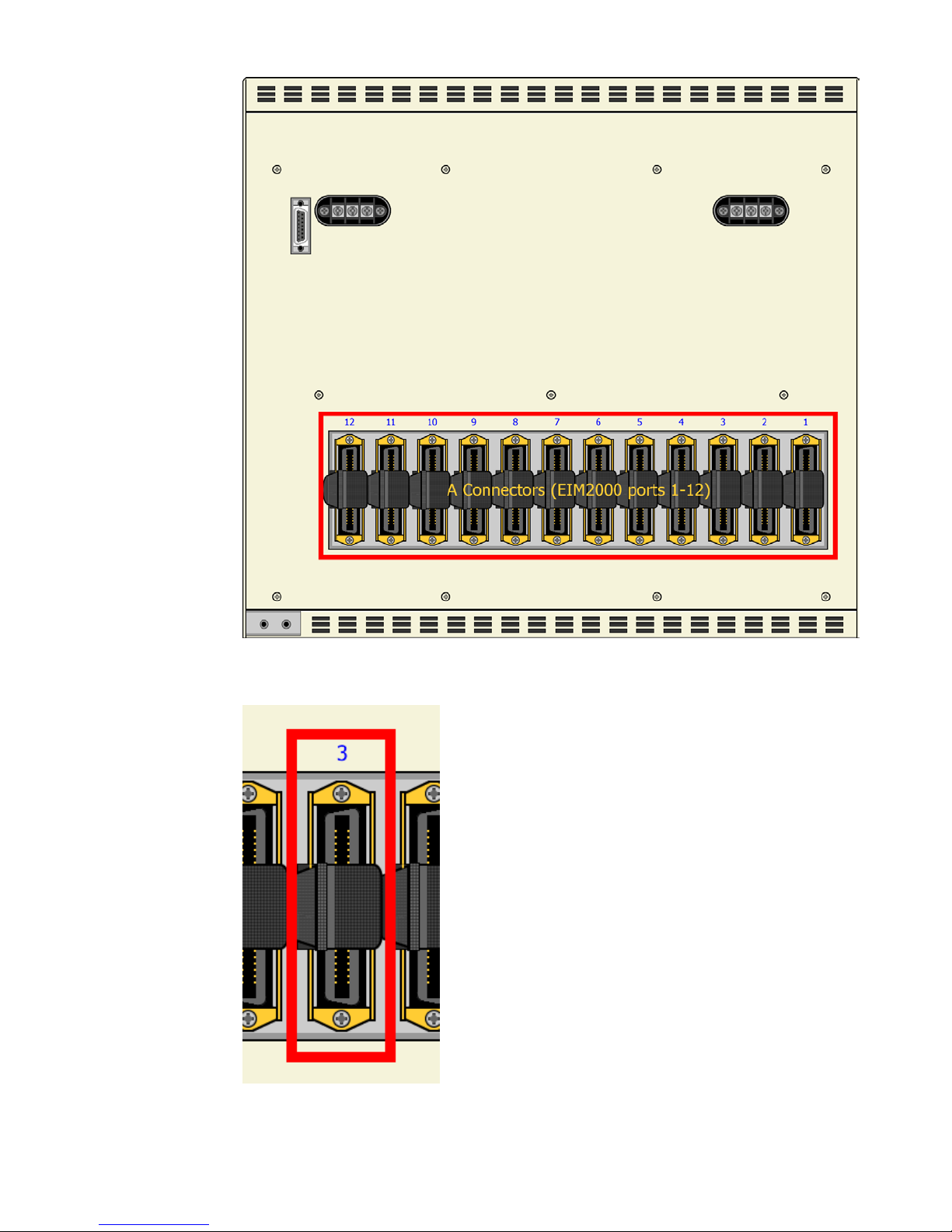

EIM2000-24 and EIM2000-12

There is only one RJ21 port, for each module

slot, to which an E1 connection can be made.

This connection will support E1 ports 1-12

on both the EIM2000-12 and the EIM2000-24;

you will not be able to utilize ports 13-24

on an EIM2000-24 installed in an IPD12000 or

IPD4000.

210-0000054 rev02EIM2000 User Guide Pa

e 9 of 20

1.4.1.2 Detach the Velcro Strap and Position the E1 Cable RJ21 Connector(s)

1.4.1.2.1 IPD12000 and IPD12000E

Detach the Velcro strap and pull it open to the right, leaving it looped under the

connector frame on the right side. Slide the RJ21 connector of your E1 cable

underneath the Velcro and press it firmly into the RJ21 connector on the chassis.

1.4.1.2.2 IPD4000 and IPD4000E

On the IPD4000 and IPD4000E the RJ21 connectors attach horizontally with the

E1 cable trailing off to the left. Detach the Velcro strap and pull it open and

downward, leaving it looped under the bottom edge of the connector frame. Slide

the RJ21 connector of your E1 cable underneath the Velcro, from the left, and

press it firmly into the RJ21 connector on the chassis.

1.4.1.3 Secure the Connector(s)

1.4.1.3.1 IPD12000 and IPD12000E

Screw the top of the T1 cable connector into the jack screw at the top of the RJ21

connector frame on the chassis. If you are using a 120° or 180° cable, both the

top and the bottom of the cable connector should be secured to the RJ21

connector frame on the chassis.

NOTE The RJ21 connector cannot be screwed into the connector frame on the IPD12000. An E1

connection on the IPD12000 can only be secured via the Velcro strap.

210-0000054 rev02EIM2000 User Guide Pa

e 10 of 20
