NetComm NRB-0206-02-01 Manuale utente
Quick Start Guide
Smart Antenna Tool
NRB-0206-02-01
Model: NRB-0206
| NRB-0206-02-01
2
Welcome
This quick start guide is designed to familiarize you with the features and use of
the NetComm Wireless Smart Antenna Tool.
The Smart Antenna Tool is a battery-powered tool which connects to the
alignment port on the back of a NetComm Wireless Outdoor Unit, providing power
and a wireless access point. The installer can then use a portable wireless device,
such as a laptop or tablet, to connect to the Outdoor Unit to read signal strength
data and align it in the optimal position.
| NRB-0206-02-01
3
Smart Antenna Tool

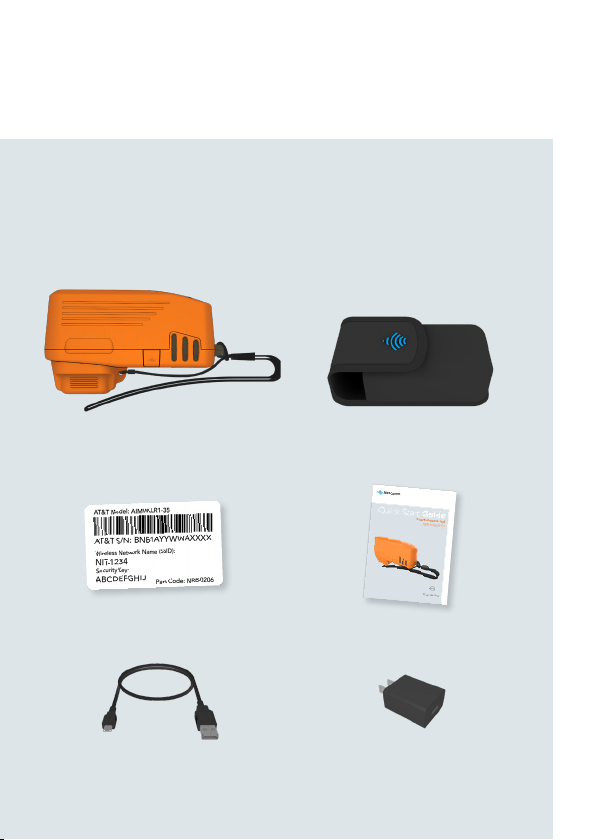

Package contents
The NRB-0206-02-01 package includes:
1 x NRB-0206-02-01 Smart Antenna Tool
1 x Quick Start Guide1 x WiFi security card
1 x Micro USB to Type-A charge cable 1 x AC wall charger (5V/2A)*
1 x Smart Antenna Tool pouch
* Photo for illustration purposes only, actual charger may vary
| NRB-0206-02-01
4
Device overview
ITEM DESCRIPTION
1Connector
protective cap
Protects the connector from dust and moisture when the
Smart Antenna Tool is not in use.
2Power button Push once to power the Smart Antenna Tool on. In
approximately three (3) seconds the LEDs will illuminate.
When turned on and not connected to the Outdoor Unit,
the Smart Antenna Tool displays the remaining battery
charge level. See the LED indicator section for details on
the battery level indication.
Press and hold the Power button for four (4) seconds to
turn off the Smart Antenna Tool. The LEDs will all turn off.
Press and hold the Power button for eight (8) seconds to
reboot the Smart Antenna Tool.
The device will automatically power off after 15 minutes of
inactivity. Also note that once turned off, the unit may not
be powered on again for the next 30 seconds.
3Micro USB
port to charge
the battery
The Micro USB port connects to a USB power source
using the supplied USB cable to charge the internal
battery. Connect the Smart Antenna Tool to a 5V/2A
power source for optimum charging speed.
4Multipurpose
LED indicators
The LED indicators on the Smart Antenna Tool are
multifunctional. They display:
1. Remaining battery level when power is on and the
unit is not in any of the following three modes
2. Compass recalibration required
(Compass Calibration mode)
3. RF signal strength during alignment
(Cell scanning mode)
4. System status when the Outdoor Unit is in
normal operation (Normal operation mode)
See the LED indicator section for more information.
| NRB-0206-02-01
5
Smart Antenna Tool
1
3
2
4
| NRB-0206-02-01
6
Charging the Smart
Antenna Tool
The included USB cable can be used to charge the Smart Antenna Tool. Connect
the USB cable from the Micro USB port on the Smart Antenna Tool to the included
AC wall charger or another 5V/2A power source for optimum charging speed.
The LED indicators on the side of the Smart Antenna Tool light up and may ash
depending on the remaining battery level. See the LED indicator section for details
on reading the battery level.
NOTE: The battery cannot be charged while it is connected to an Outdoor Unit. Do
not power off the Smart Antenna Tool while it is charging.
WARNING: Wait at least 10 seconds after powering off the Smart Antenna Tool
before connecting the USB charge cable. Failure to do so will require you to remove
the charge cable and reboot the tool by holding the power button down for 8
seconds.
| NRB-0206-02-01
7
Smart Antenna Tool
LED Indicators
WARNING: The LED indicators are designed to be bright so that they are visible
outdoors. Do not view the LED indicators from close proximity or for long periods.
The same LED indicators can have different meanings depending on the mode of
operation which the Smart Antenna Tool is currently in.
a) Battery check mode – When the Smart Antenna Tool is powered on and
not connected to an Outdoor Unit or the battery is charging.
95-100% 80-94% 65-79% 50-64%
35-49% 20-34% 0-19%
| NRB-0206-02-01
8
b) Compass Calibration mode - The Smart Antenna Tool contains an
electronic compass which periodically requires calibration in order to
provide the most accurate orientation possible.
Calibrate the device at every start and recalibrate when all three LED
indicators ash both red and green twice a second.
To calibrate the device, rst isolate it from any magnetic eld or metal
structures (for example vehicles, the antenna pole, power lines, etc.) and
then rotate the unit fully through all three axes, see drawings below.
When recalibration is successful, the LEDs will stop ashing.
All LEDs ashing Turn Spin Flip
c) Cell scanning mode - When the Smart Antenna Tool is connected to and
powering an Outdoor Unit (i.e. Power over Ethernet is not provided to the
Outdoor Unit). This mode is used when installing the Outdoor Unit.
Strong signal Medium signal Low signal No cell detected
| NRB-0206-02-01
9
Smart Antenna Tool
LED 1 indicates the Ethernet
connection status of the Outdoor Unit.
LED 1 DESCRIPTION
Link is up
Activity on Ethernet
LED 2 indicates the Cellular
connection status of the Outdoor Unit.
LED 2 STATUS DESCRIPTION
Data APN attached
Data APN attaching
+LTE registered
+LTE registering
LTE not registered
LED 3 indicates the Power status of
the Outdoor Unit.
LED 3 STATUS DESCRIPTION
No power
Power on
d) Normal operation mode – When the Smart Antenna Tool is connected
to an Outdoor Unit and Power over Ethernet is also being supplied to the
Outdoor Unit. This mode is used on an existing installation.
| NRB-0206-02-01
10
Before beginning to align an Outdoor Unit, press the Power button on the bottom
of the Smart Antenna Tool and observe the battery level indicated by the LED
indicators. Ensure that you have an adequate charge level for the installation.
To align an Outdoor Unit:
1. Prepare the Outdoor Unit as per the Installation Guide.

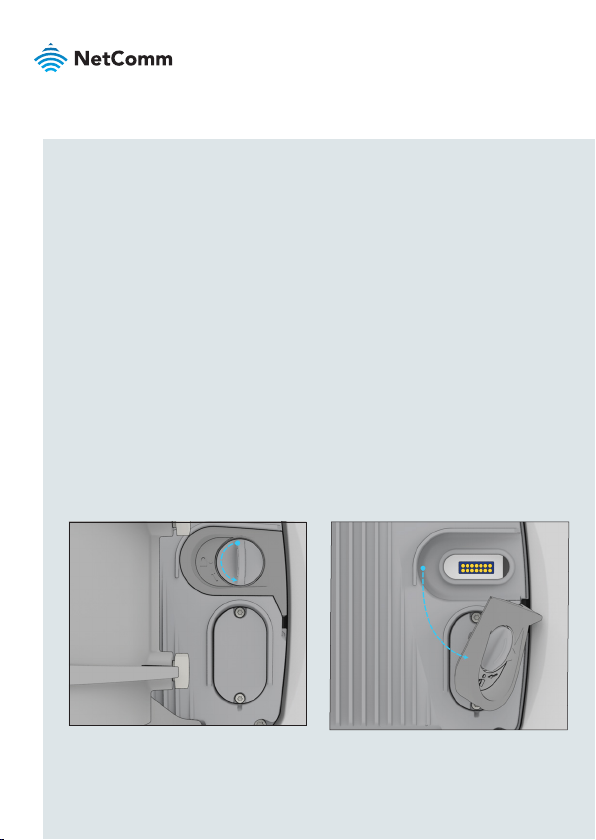

2. On the Outdoor Unit, locate the alignment port and remove the protective
cap from it.
Using the Smart Antenna
Tool to align an Outdoor
Unit
