Modem Conguration Guide

Netcomm NB5580W

Conguring in Layer2 PPPoE for Windows XP and 2000

CONTENTS

1. Network Conﬁguration

2. Restore Router To Factory Defaults

3. Re-conﬁgure In Layer2 PPPoE

4. Optional

PLEASE NOTE: Some screen shots may differ due to different versions

of ﬁrmware used. Please have your router powered on and connected

directly to your PC via Ethernet cable before you begin

1. NETWORK CONFIGURATION

PPPoE connection does not require you to have an IP address or DNS

settings manually encoded on your network card. PPPoE connection uses

authentication to establish the Internet connection and its after doing this

that your router is assigned an IP and DNS settings from TPG.

To begin, your PC needs to receive a private IP address from the router.

Most ADSL routers have DHCP enabled by default that will take care of

this.

To ensure your Network Card is ready for this please follow the following

steps:

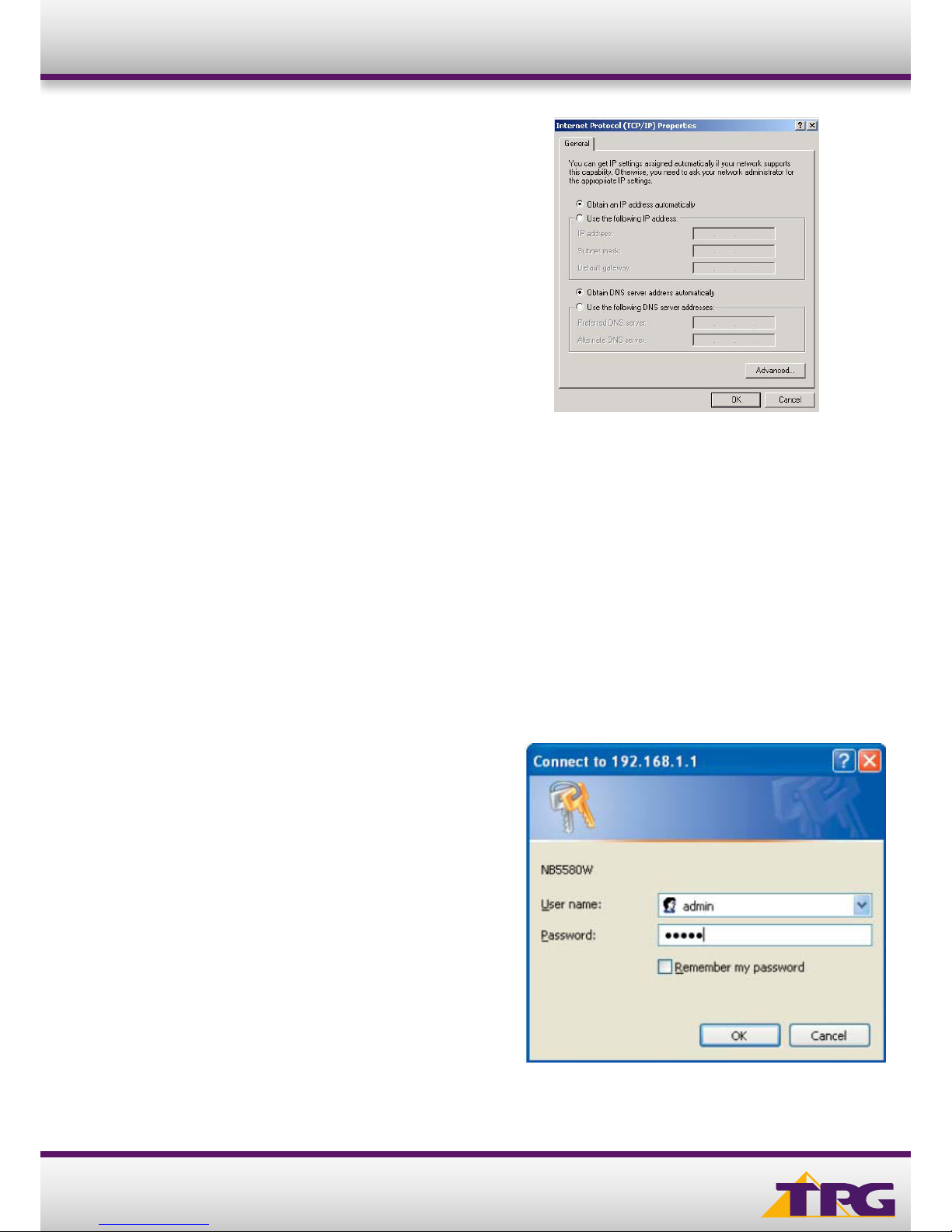

A. Click on Start -> Settings -> Control Panel -> Network Connections

B. Find your Network Card then right click on this and select Properties

C. Double click on Internet Protocol TCP/IP

Netcomm NB5580W

D. Ensure “Obtain an IP address automatically” is selected

E. Ensure “Obtain DNS server address automatically” is selected

F. Click on OK

2. RESTORE ROUTER TO FACTORY DEFAULTS

PLEASE NOTE: By doing this step you will be deleting any

additional customised settings (if applicable) in your router, for

example port forwarding. You can change the conﬁguration of

your router to PPPoE without restoring the router to factory

defaults in which case please skip this step and proceed

from step 3 however if you experience Internet problems after

competing the setup, we recommend you do perform step 2

then proceed from step 3

A. Make sure your router is powered on and connected to your

PC (Network card) via Straight through Ethernet cable

B. Use a paper clip to depress the reset button at the back of

your router for 10 seconds and release. At this point the reset

is in progress. Please do not power off the unit

C. When the indicator lights return steady, the reset is complete.

Your router is now at factory defaults

3. RE-CONFIGURE IN LAYER 2 PPPOE

A. Open your browser and in the address bar type

http://192.168.1.1 and press Enter.

B. When prompted enter admin as the username and password.

If your router is not at factory defaults and you have changed

the login credential, please enter the current username and

password for your router interface. Click on OK

Modem Conguration Guide Netcomm NB5580W

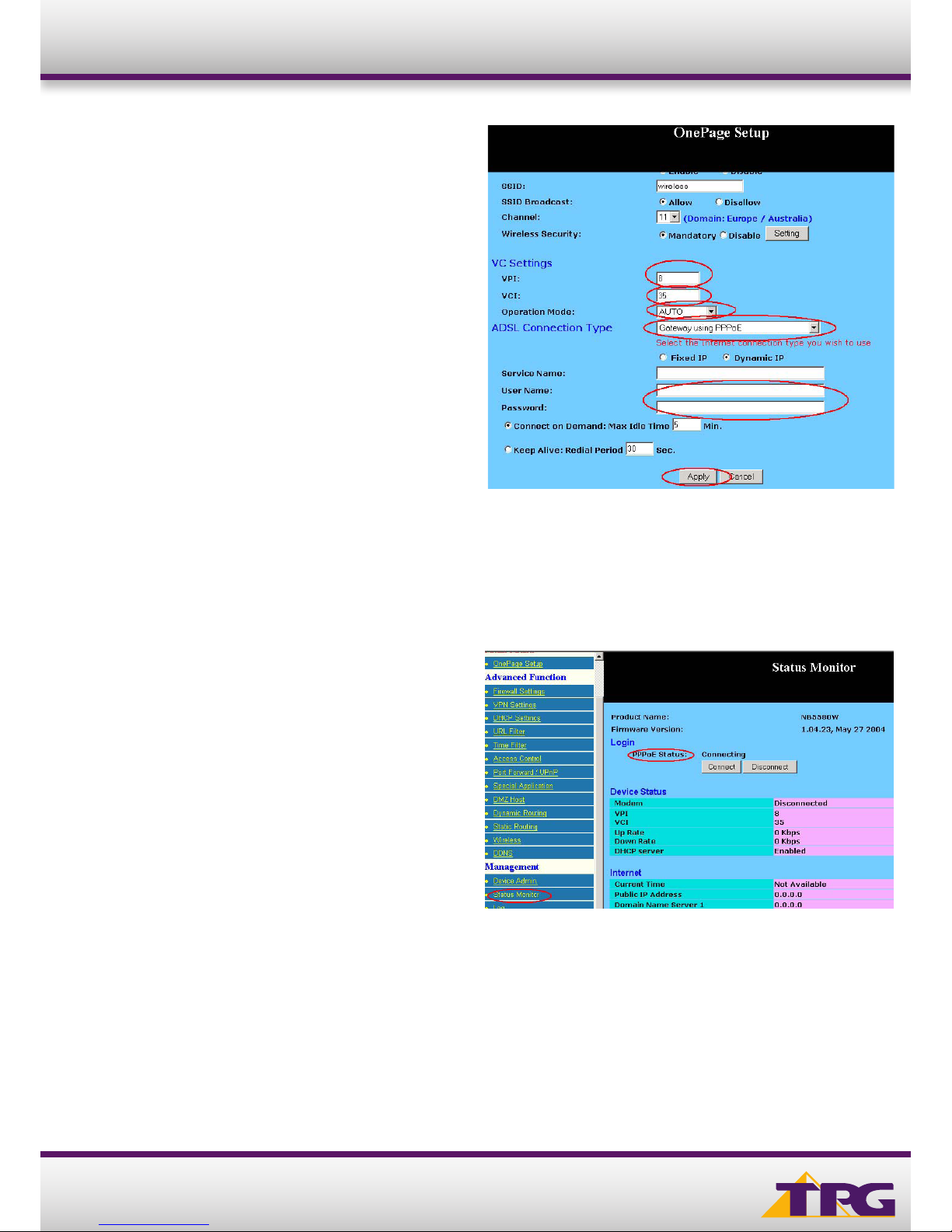

C. In the One Page Conﬁguration please ﬁll in/ select the

following ﬁelds:

• Under the VC Settings heading

• VPI: 8

• VCI: 35 and in the

• Operation Mode drop down box select AUTO

• In the ADSL Connection Type drop down box choose

Gateway using PPPoE

• User Name:

- <TPGusername>@L2TP.tpg.com.au for Fixed IP plans

- <TPGusername>@PPP.tpg.com.au for Dynamic IP

plans (e.g. adsl1234@L2TP.tpg.com.au)

• Password: Your Password by default is the same as your

<TPGusername> however if you have changed your

password since registration time, please use your current

TPG password

D. Click on Apply at the bottom of the page to apply and save

settings

E. To view the connection status, click on Status Monitor in

the left menu under Management

F. Under Login, the PPPoE status should say Connected

G. Your router is now conﬁgured and ready to be used.

To browse websites, please now launch your browser

Modem Conguration Guide Netcomm NB5580W

4. OPTIONAL

You router:

If you had other services setup on your router like wireless and you had restored your router to factory defaults before

conﬁguring in PPPoE, please now reconﬁgure these functions to your current router settings.

Other Additional Services:

If you are reconﬁguring your router from Layer 3 to Layer 2 PPPoE and you also had other services like web server, mail

server, VPN etc that were dependent on your old Layer3 IP address, please ensure that appropriate reconﬁguration is done

to allow normal services to resume.

Modem Conguration Guide Netcomm NB5580W

13 14 23tpg.com.au/support

PLEASE NOTE:

ADSL routers will by default be capable of automatic authentication. This means your router will use your credentials you have

provided to make the Internet connection. Each time your router is powered on, it will initialize this automated authentication

process after which your router will receive a public IP address (ﬁxed or dynamic depending on your plan) and DNS settings

from TPG.
