NetComm NB6PLUS4WN Manuale utente

Quality of Service Setup Guide

(NB6Plus4Wn)

NB6Plus4Wn Quality of Service Setup Guide

The following Quality of Service (QoS) settings offer a basic setup e ample, setting up 3 devices connecting

to an NB6Plus4Wn router, one with the highest priority QoS priority data traffic, one with medium priority

QoS priority data traffic and the other with the lowest priority QoS priority data traffic flow. All other data

packet traffic through the router assumes a default best effort setting.

Quality of Service refers to the reservation of bandwidth resources on the Nb6Plus4Wn router to provide

different priorities to different applications, users, or data flows, or to guarantee a certain level of

performance to a data flow.

In this implementation Quality of Service employs DSCP – Differentiated Services Code Point – a computer

networking architecture that specifies a simple, scalable and coarse-grained mechanism for classifying,

managing network traffic.

This e ample guide sets up QoS with three devices (VoIP ATA, gaming console and laptop) connecting via

ethernet cable and via wireless to the NB6Plus4Wn router. Before Quality of Service can be implemented the

first step involves reserving an IP address for each device linking the MAC address of each device to each IP

address.

QoS Setup Part 1: Reserving an IP address

It is necessary to reserve an IP address for a device that is connecting to the NB6Plus4Wn router so that the

QoS settings can manage each device and set data packet traffic priority by MAC and IP address.

Navigate to http://192.168.1.1 in a web browser.

2. Enter 'admin' (without quotes) for both the username and password and click Ok.

Select Advanced > Local Network > DHCP Server.

4. Press the Reserved IP Address List button.

5. Enter the MAC address of the computer/device you are connecting to the router. The MAC address is

a 12 character set of numbers and letters (A-F), with every 2 characters separated by a colon.

6. Enter the IP address of the computer/device. This is the local address in the range of 192.168.1.

where = 2 to 254.

7. Press the Apply button.

8. Complete steps 4 through 7 for each device connected to the NB6 series router. Each entry will be

listed in the Static IP Lease List as shown below.

Quality of Service QoS) Setup: Part 2 QoS Configuration Settings

9. Select Advanced > Quality of Service

10.

Select “Enabled” checkbo .

11.

Select the Default Differentiated Service Code Point (DSCP as BE (0x00 (Best Effort).

12. Press the Apply button.

High Priority QoS Queue Configuration

13.

Select Advanced > Quality of Service > Queue Configuration.

14.

Press the Add button.

15.

Set the Queue Status to Enabled.

16.

Set the Egress Interface as pppoa_0_100_1 if you are in New Zealand or pppoe_8_35_1 if you are

in Australia.

17.

Set the Queue Priority to 1(Highest).

18.

Press the Apply button.

Medium Priority QoS Queue Configuration

19.

Select Advanced > Quality of Service > Queue Configuration.

20.

Press the Add button.

21.

Set the Queue Status to Enabled.

22.

Set the Egress Interface as pppoa_0_100_1 if you are in New Zealand or pppoe_8_35_1 if you are

in Australia.

23.

Set the Queue Priority to 2.

24.

Press the Apply button.

Low Priority QoS Queue Configuration

25.

Select Advanced > Quality of Service > Queue Configuration.

26.

Press the Add button.

27.

Set the Queue Status to Enabled.

28.

Set the Egress Interface as pppoa_0_100_1 if you are in New Zealand or pppoe_8_35_1 if you are

in Australia.

29.

Set the Queue Priority to 3.

30.

Press the Apply button.

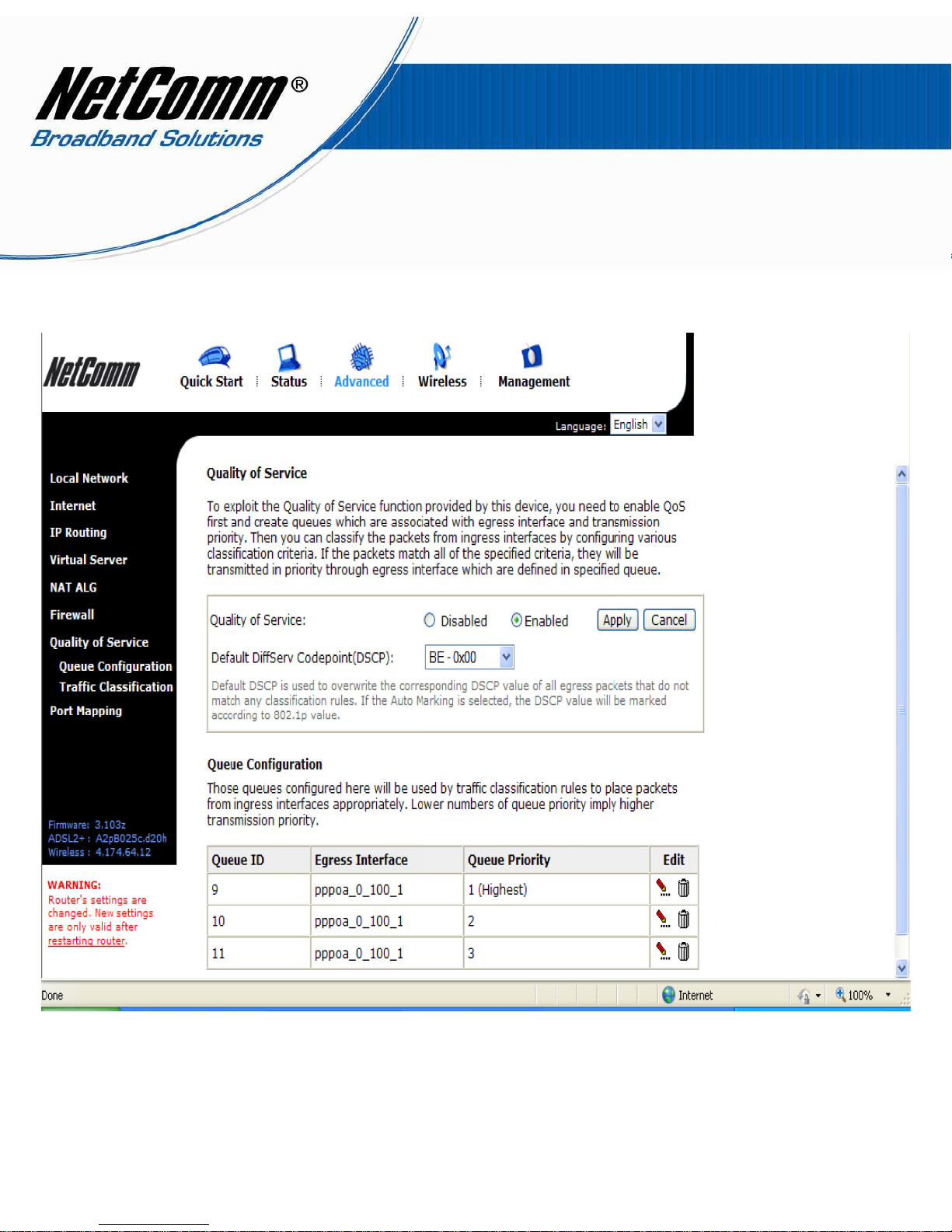

You should now have three fields in the Queue Configuration table under Advanced > Quality of

Service > Queue Configuration similar to the screenshot below.
