NETCOMM GATEWAYTM SERIES

ADSL2+ Wireless N300

Modem Router with VoIP

Connecting Your Device

- With the supplied Ethernet cable, connect your PC to any of the 4 LAN ports

on the back of the NB9WMAXXn

- Connect an ADSL2+ Splitter/Filter to your telephone wall socket

- With the supplied RJ-11 telephone cable, connect the ADSL port on your

NB9WMAXXn to the socket labeled ADSL Modem on your Splitter/Filter

Computer

connected via

Ethernet

Telephone

Socket

Phone

ADSL/Modem

Splitter

- If you wish to use your landline as a backup for VoIP please ensure:

• TheLine port of the NB9WMAXXn is connected to the Phone socket on the

ADSL2+ Splitter/Filter

and

• YourtelephonehandsetisconnectedtooneoftheportsonyourNB9WMAXXn

labeled Phone1 or Phone2

- Connect the supplied power adapter to the wall power outlet and to the

Power socket on the NB9WMAXXn

- Switch on your NB9WMAXXn and wait 1 minute for it to power up.

Computer

connected via

Ethernet

Telephone

Socket

Phone

ADSL/Modem

Splitter

Power Point Power Adapter

Telephone

ConguringYourDevice

- Open a web browser (e.g. Internet Explorer, Firefox, Safari) and type in

http://192.168.1.1 into the address bar and press enter

- When asked for a username and password, enter the default of admin into

bothelds

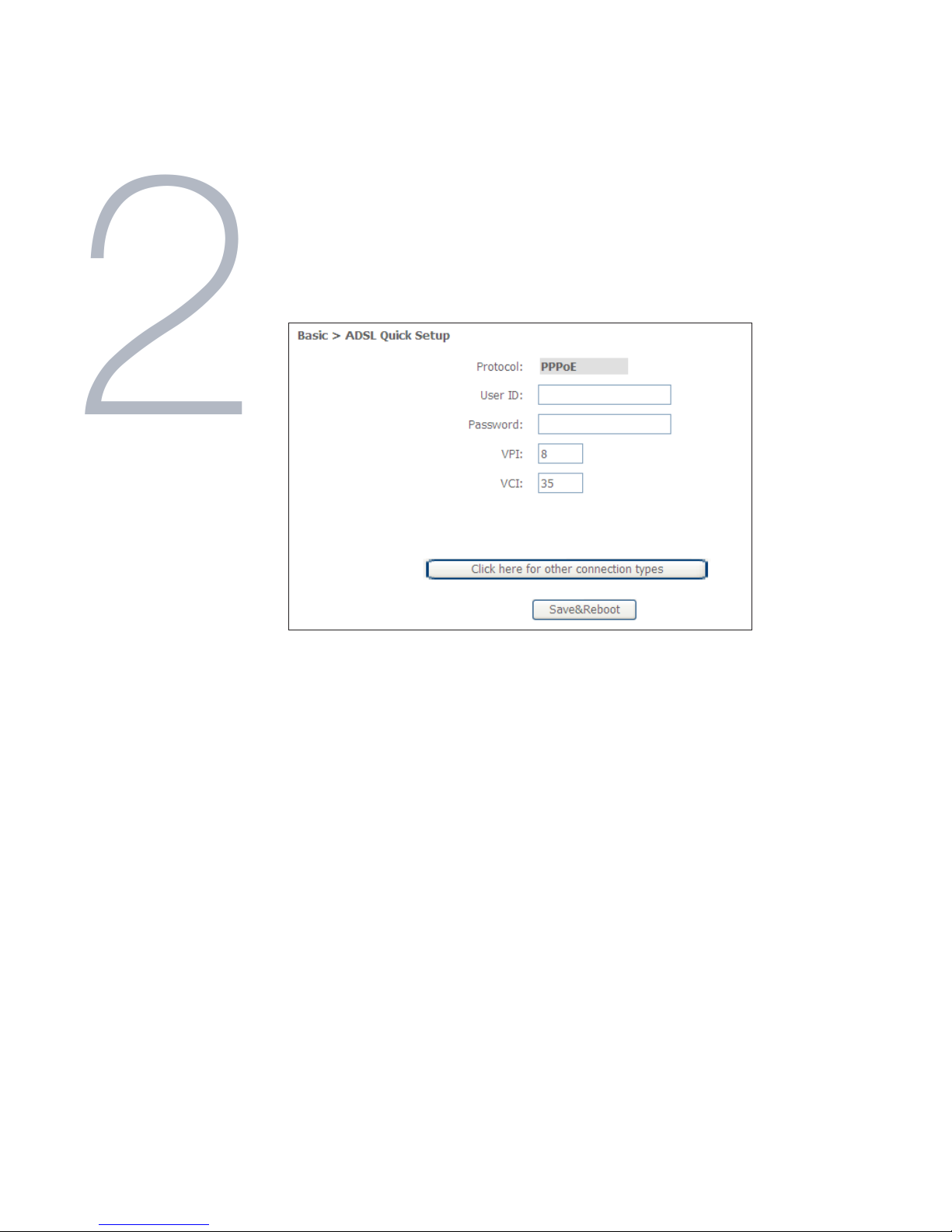

- Select Quick Setup from the left hand menu and follow the instructions to

enter information about your ISP

Establishing Wireless Connection

Youcanconnectmultiplewirelessdevices,includinglaptops,desktopsandPDA’s

to your NB9WMAXXn by following the 2 basic steps

1. Using your wireless device, scan the wireless networks in your area and select the

network called NetComm wireless. Then click connect

2. Enter the following default security key: a1b2c3d4e5

Note To ensure wireless security, we recommend you change the default settings through the User Interface. For more detail, please consult your User

Guide.

1 or 2 Analogue/

Cordless Telephones

Computers connected

via Ethernet

Telephone

Socket

Laptop Computer

connected wirelessly

Phone

ADSL/Modem

Splitter

Using VoIP

1.TocongureVoIPonyourNB9WMAXXn,pleaserefertoyourUserManual.

AsallVoIPServiceProviders(VSP’s)usedifferentsettings,pleaseconsultyour

user manual for details about setting up VoIP.

Congratulations!

Now you have successfully completed the set-up process.

NetComm Velocity Series

Accessories for your product

NP910n Wireless N150, this product is perfect for users wishing to extend their network with the

convenience of a miniature USB Adapter

NP900n Wireless N300, this product is perfect for home users

NP901n Wireless N300, perfect for data intensive applications within a SoHo environment.

The included USB dock gives you the ability to move the USB Adapter so you always

receive the best possible wireless signal

NP902n Wireless N300, perfect for SoHo, business users and gamers. The NP902n features

a cable to allow you to position the adapter, a removable hook to neatly attach to the

rear of your monitor and 2 detachable external antennas ensuring you receive the best

possible wireless signal at all times.

* MaximumwirelesssignalrateandcoveragevaluesarederivedfromIEEEStandard802.11gand802.11nspecications.Actualwirelessspeed

andcoveragearedependentonnetworkandenvironmentalconditionsincludedbutnotlimitedtovolumeofnetworktrafc,buildingmaterials

and construction/layout.

NP900n

NP901n

NP902n

NP910n
