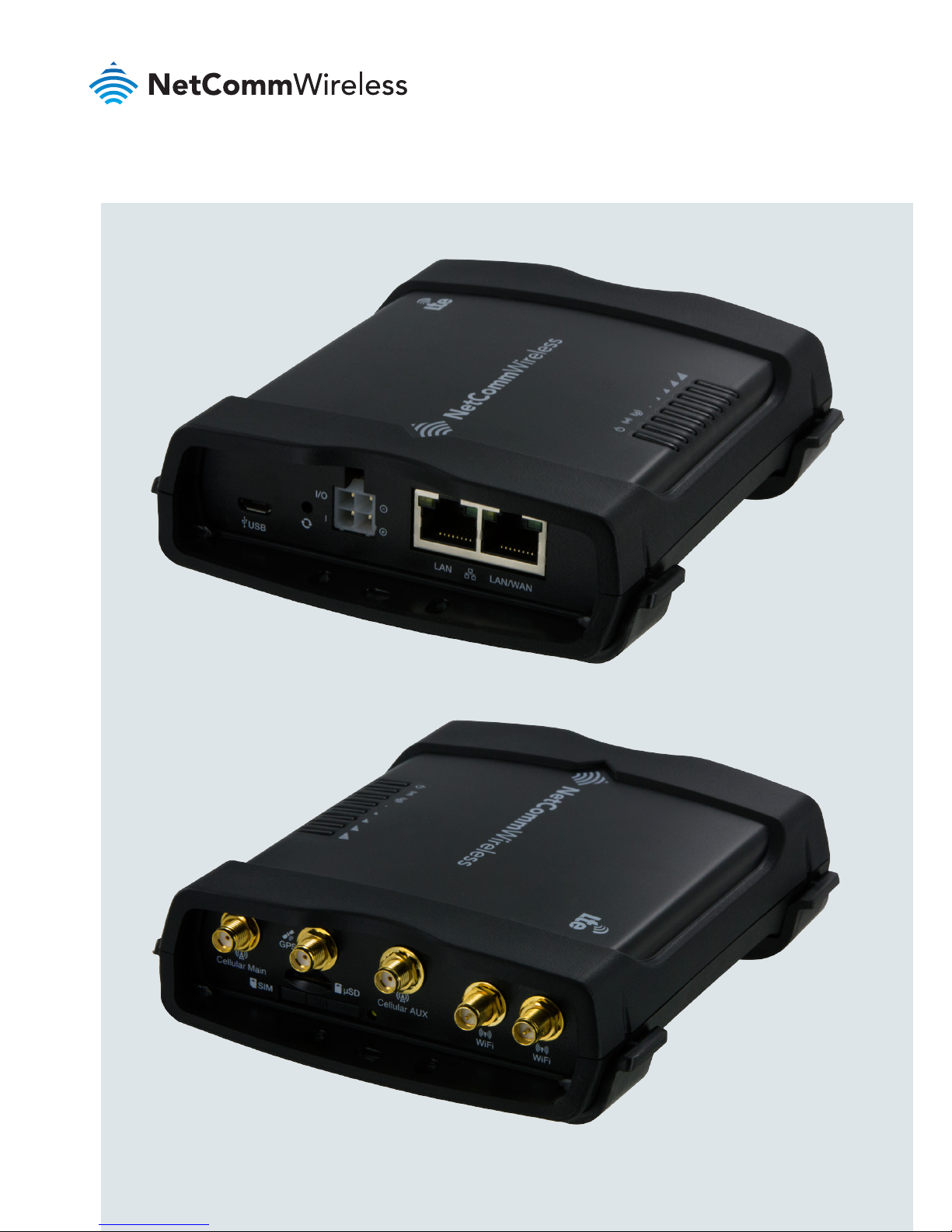

Quick Start Guide

4G WiFi M2M Router

NTC-140W Series

| Wireless M2M

NTC-140W Series - 4G WiFi M2M Router

Quick start guide

This quick start guide is designed to get you up and running quickly with your new

NTC-140W Series router. More advanced set up instructions are provided in the

user guide which can be opened by clicking on the Help tab on the Web-UI, or

can be downloaded from

http://www.netcommwireless.com/product/m2m/ntc-140w

Package contents

All NTC-140W packages include:

1 x NetComm Wireless NTC-140W Series router

2 x Cellular antennas

2 x WiFi antennas

1 x 1.5m Black Ethernet cable

1 x DIN rail mounting bracket

1 x Quick start guide

1 x Power supply cable with tted Molex connector

1 x WiFi security card

| Wireless M2M

I/O

GPS

USB LAN LAN/WAN

WiFi

Cellular Main

SIM

µSD Cellular AUX

WiFi

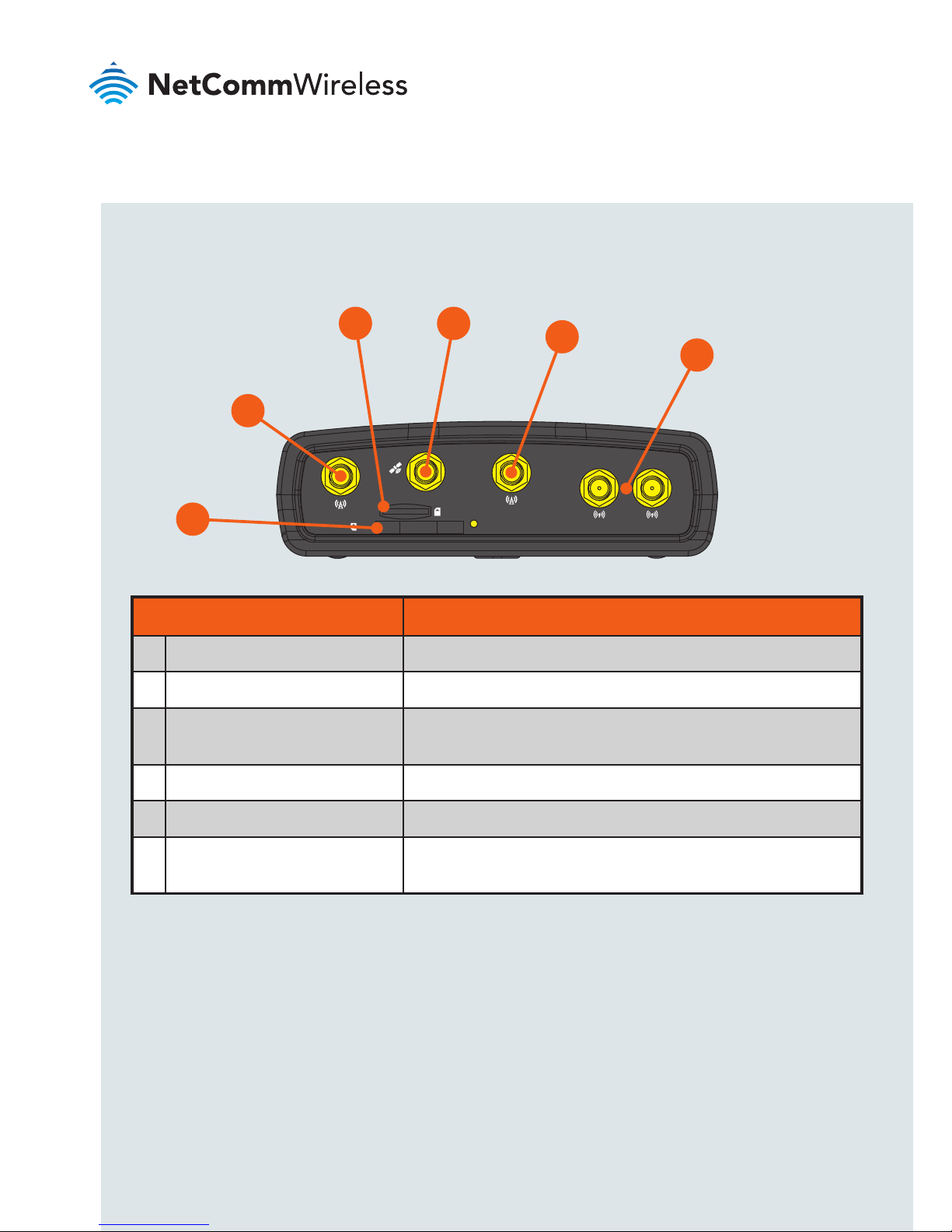

Device overview

ITEM DESCRIPTION

1SIM card slot Insert SIM card here.

2Cellular Main SMA female connector for Cellular antennas.

3MicroSD card slot Insert a MicroSD card here to provide additional storage

(Optional).

4GPS antenna connector SMA female connector for GPS antenna.

5Cellular AUX SMA female connector for Cellular antennas.

6WiFi antenna connectors Reverse polarity SMA female connectors for

WiFi antennas.

| Wireless M2M

NTC-140W Series - 4G WiFi M2M Router

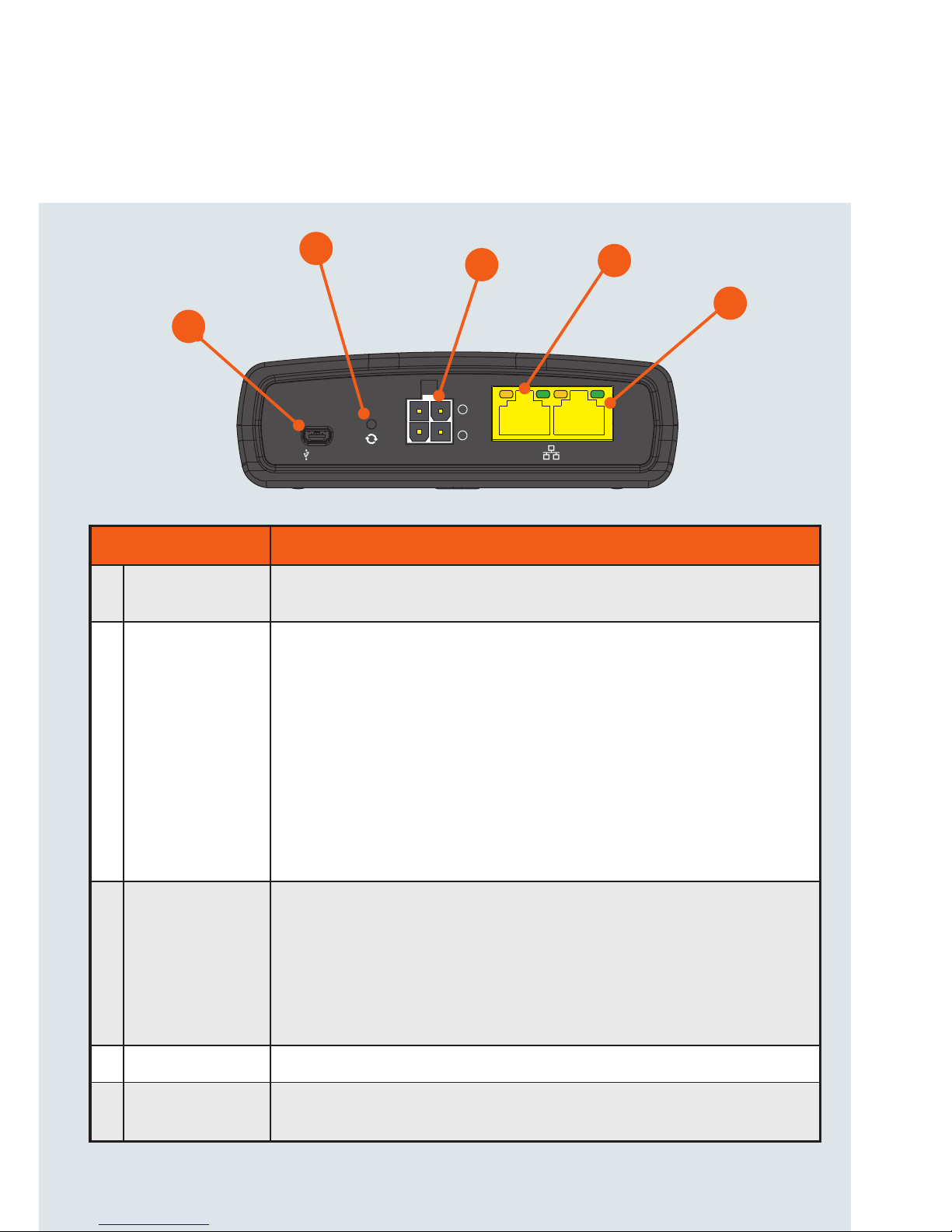

ITEM DESCRIPTION

1Micro USB 2.0

OTG port

Provides connectivity for optional external storage or a USB Ethernet

dongle. Supplies up to 0.5A to connected device.

2Reset button Press and hold for less than 5 seconds to reboot to normal mode.

The LEDs are green and extinguish in sequence to indicate that the

router will reboot normally if the button is released during this period.

Press and hold for 5 to 15 seconds to reboot to recovery mode.

The LEDs are amber and extinguish in sequence to indicate that the

router will reboot to recovery mode if the button is released during

this period.

Press and hold for 15 to 20 seconds to reset the router to factory

default settings. The LEDs are red and extinguish in sequence to

indicate that the router will reset to factory default settings if the

button is released during this period.

3Molex Mini-Fit™

receptacle

Connect the provided power supply here. The Molex receptacle

provides:

• Ground (−)

• Power (+)

• I/O terminal

• (i) ignition input detection terminal.

4LAN port LAN port for wired Ethernet clients.

5LAN/WAN port LAN or WAN port for wired Ethernet clients or to bridge another

network connection.

I/O

GPS

USB LAN LAN/WAN

WiFi

Cellular Main

SIM

µSD Cellular AUX

WiFi

| Wireless M2M

Overview of LED indicators

LED

ICON

NAME

COLOR

STATE DESCRIPTION

Power Off Power off

Double ash Powering up

On Power on

On Power on in recovery mode

Slow ashing Hardware error, such as SIM not inserted.

WiFi Off Radio Off

On WiFi Access Point is enabled

Blinking1Trafc via WiFi

On WiFi Client mode is enabled, WiFi Access

Point mode is disabled

Blinking1Trafc via WiFi in client mode

Network Off Radio Off

On Connected via WWAN

Blinking1Trafc via WWAN

Slow ashing Connecting PDP

On Registered on Network

Slow ashing Registering network

Slow ashing SIM PIN locked

Fast ashing SIM PUK locked

On Can’t connect

Signal

strength

On LTE signal

On WCDMA signal

On GSM signal

1 The term “blinking” means that the LED may pulse, with the intervals that the LED is on and off not being equal.

The term “ashing” means that the LED turns on and off at equal intervals.

| Wireless M2M

NTC-140W Series - 4G WiFi M2M Router

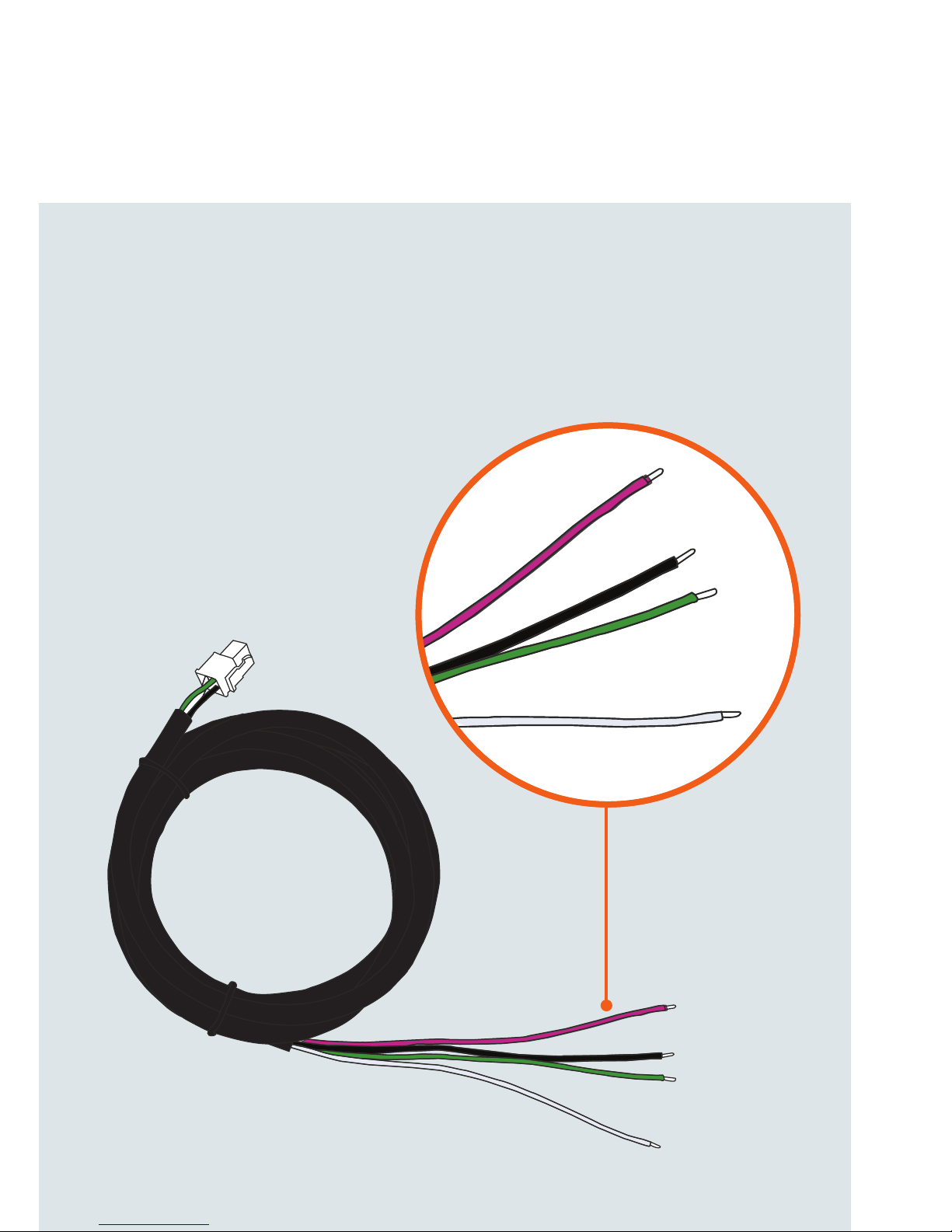

Power supply cable

The included power supply cable has colour-coded breakout wires which can be

terminated to provide power, ignition detection and input/output functionality.

The picture below outlines the polarity and functions of the wires.

Power

(+) Ground

(−)

I/O

Ignition

| Wireless M2M

I/O

GPS

USB LAN LAN/WAN

WiFi

Cellular Main

SIM

µSD Cellular AUX

WiFi

Installing your device

Step 1: Insert the SIM card

Using a paper clip, press the SIM Eject button to eject the SIM card tray. Place the

SIM card in the tray and then insert the loaded tray into the SIM slot with the gold

side facing up, as shown below.

Insert

SIM

Card

Press the SIM

Eject Button

Step 2: Attach the antennas

The NTC-140W Series router is shipped with caps on the Cellular, WiFi and GPS

antenna sockets. To attach the supplied antennas, rst remove the socket caps

from the antenna sockets then screw the antennas onto the sockets by turning

them in a clockwise direction. Please refer to the Device overview section for the

antenna socket layout. If you have purchased a GPS antenna, remove the socket

cap from the GPS antenna socket and attach the antenna to the socket in the

same manner.

I/O

GPS

USB LAN LAN/WAN

WiFi

Cellular Main

SIM

µSD Cellular AUX

WiFi

Remove caps

then screw

antennas on

| Wireless M2M

NTC-140W Series - 4G WiFi M2M Router

Step 3: Connect the power and Ethernet cables

Connect the included power supply cable to the Molex Mini-Fit™ receptacle

and then connect the green and white breakout wires to the ignition and I/O

connections as required. Connect the Power (red) and the Ground (black) wires to

your power source. The power LED on the router lights up when a power source

is connected.

Attach the supplied Black Ethernet cable to the LAN Ethernet port on your router

and the other end to your computer.

| Wireless M2M

Step 4: Access the router’s web interface

In your web browser’s address bar enter http://192.168.1.1/ or http://my.router/.

The login page is displayed.

There are two system management accounts (Root Manager and Admin) with

different management capabilities.

Root Manager account

Grants full privileges such as rmware upgrades, device conguration, backup

and restore, and reset to factory default settings. To access the Root Manager

account, use these login details.

http://192.168.1.1 or http://my.router

Username root

Password admin

Admin account

Allows updates to general settings. To access the Admin account, use these

http://192.168.1.1 or http://my.router

Username admin

Password admin

Enter the username and password for the admin or root manager account and

click Log in. The Status page is displayed.
