NETGEAR XE602 - Powerline Ethernet Adapter Manuale utente
Installation Guide
Powerline Ethernet Adapter
MODEL XE602
XE602 Qcard 5/7/02 10:23 AM Page 1
Technical Support
YOU MUST REGISTER TO OBTAIN TECHNICAL SUPPORT. PLEASE RETAIN
PROOF OF PURCHASE AND THE WARRANTY INFORMATION.
To register your product, get product support or obtain product information and product
documentation, go to http://www.NETGEAR.com/register.
You’ll find technical support information at http://www.NETGEAR.com/ through the
Customer Service area. If you want to contact technical support by telephone, see the support
information card for the correct telephone number for your country.
©2002 by NETGEAR, Inc. All rights reserved.
NETGEAR and Auto Uplink are trademarks or registered trademarks of NETGEAR, Inc. in the United States and/or
other countries.
Other brand and product names are trademarks or registered trademarks of their respective holders.
Information is subject to change without notice.
XE602 Qcard 5/7/02 10:23 AM Page 2
Introduction
Thank you for purchasing the NETGEAR®XE602 Powerline Ethernet Adapter. This
Powerline adapter lets you completely network your home by simply plugging into your
existing electrical wiring, so your network connection is as close as your nearest 110-volt
electrical outlet. Now your high-speed cable/DSL connection can be available in every room.
And you can also extend an existing Ethernet network to PCs in other rooms without any
added wiring.
Robust and rate-adaptive, the XE602 minimizes interference from other household appliances.
Go ahead and use your hair dryer, vacuum cleaner or TV – your network will automatically
find the best data rate so that you can continue surfing, playing games or telecommuting, safely
and reliably.
This installation guide shows you how to connect your Powerline adapter to your PC or
Cable/DSL router. Setup is easy – follow the instructions in this guide and your network will
be up and running quickly.
If you have problems, there is a troubleshooting section on page 14 to help you. You can also
find all the latest information online from www.NETGEAR.com. NETGEAR offers technical
support 24 hours a day and 7 days a week on the Web (www.NETGEAR.com), by e-mail
phone numbers).
1

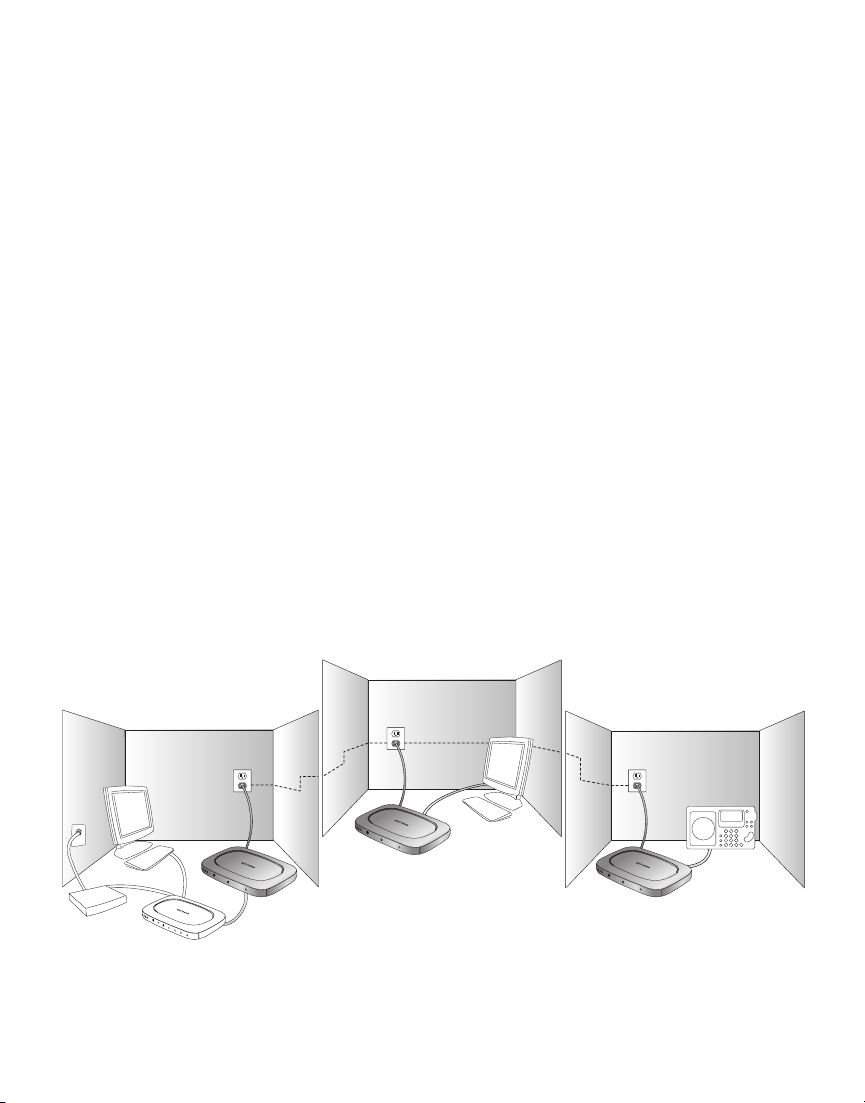

Home Office
Kids' Room
Kitchen
Powerline Adapter XE602
Internet
Radio
Powerline
Adapter
XE602
Powerline Adapter XE602
Router
Cable/DSL
Modem
PC
PC
XE602 Qcard 5/7/02 10:23 AM Page 3
Installation Overview
Estimated setup time is 10 to 20 minutes for each PC.
1. Unpack the box and verify the contents.
2. Connect the Ethernet port to any Ethernet device such as a PC or Cable/DSL router.
3. Connect the power cord.
4. Set the encryption password (optional).
2
XE602 Qcard 5/7/02 10:23 AM Page 4

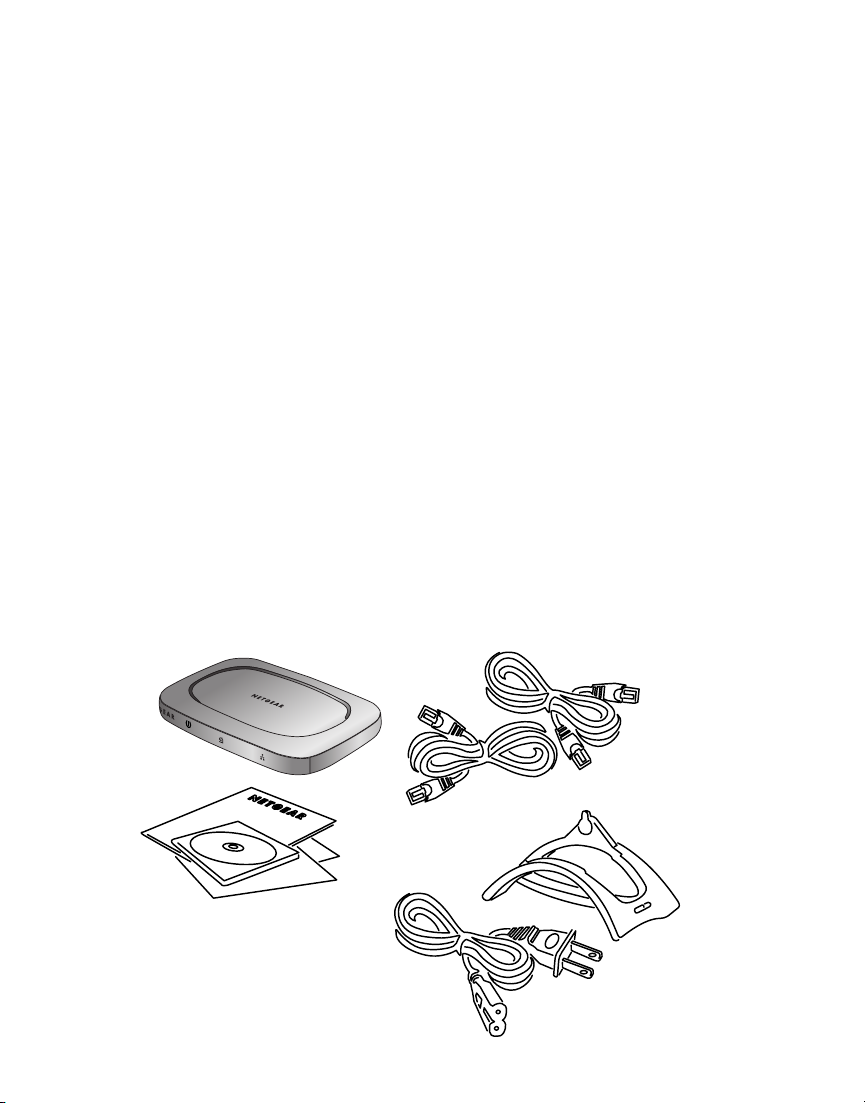

Unpack the Box
When you open the box, verify that you have received everything.
The package includes:
• XE602 Powerline Ethernet Adapter
• Resource CD
• 10-ft Ethernet Patch Cable (BLUE)
• 10-ft Ethernet Crossover Cable (GRAY)
• 6-ft power cord
• Vertical Stand
• Wall-mounting screws
•XE602 Installation Guide (this document)
• Warranty and registration card
• Support information card
If you don’t have everything listed above, see the support information card for contact
information. If the support information card is missing, you can get contact information at
www.NETGEAR.com in the Customer Service area.
3
1
1
Powerline Ethernet Adapter XE602
Resource CD, installation guide,
support information card
& warranty/registration card
Stand
Powerline Ethernet Adapter
XE602
110v cord
Ethernet Cables
XE602 Qcard 5/7/02 10:23 AM Page 5
Prepare to Install the Powerline
Ethernet Adapter
The NETGEAR Powerline Ethernet adapter enables you to set up a home network using your
existing electrical outlets. Computers in different rooms can share the Internet connection as
well as files and printers using the Electrical wiring that’s already in your house. There is no
need for unsightly Ethernet cabling or any rewiring.
You will need one of NETGEAR’s Powerline adapters in each room that you want part of the
home network. The XE602 Powerline Ethernet adapter can easily connect to any device with
a 10BaseT or a 10/100 Mbps Ethernet port.
In order to share your Cable or DSL connection among PCs in different rooms, you will need
the following:
• Cable or DSL Modem
• Cable/DSL Gateway Router (such as the NETGEAR RP614 or XR814)
• A XE602 Powerline Ethernet Adapter connected to the Router (unless you are using the
NETGEAR XR814 Powerline Cable/DSL router)
4
2
2

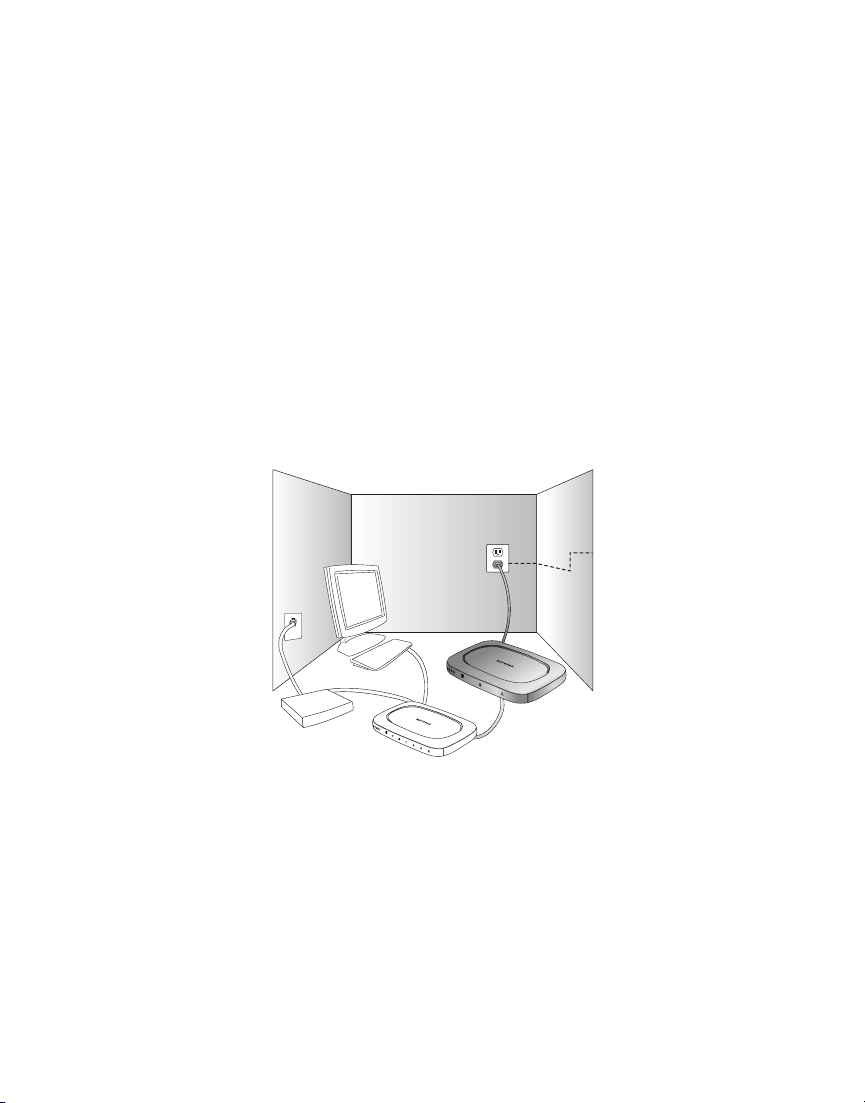

Home Office
Powerline
Adapter
XE602
Router
Cable/DSL
Modem
PC
XE602 Qcard 5/7/02 10:23 AM Page 6
For each Room that you want a PC to connect to the network, you will need:
• A XE602 Powerline Ethernet Adapter, if the PC has an existing Ethernet port or you are
about to install a 10/100 Mbps Ethernet Network Card.
• A XA601 Powerline USB Adapter, if the PC lacks an Ethernet port but supports a USB port.
5

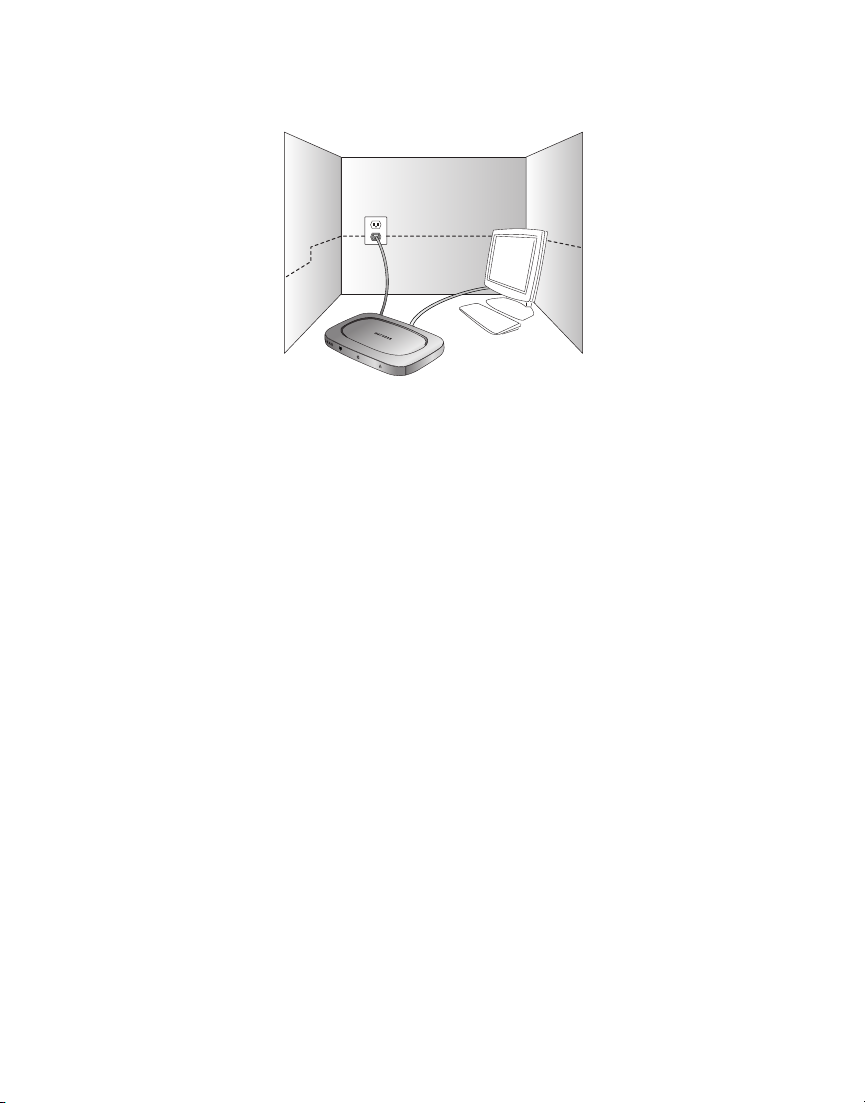

Kids' Room
Powerline Adapter XE602
PC
XE602 Qcard 5/7/02 10:23 AM Page 7
Install the XE602 Ethernet Adapter and
Connect the Other Devices
After unpacking the box, you are ready to install the Powerline adapter.
Decide where you wish to place the Powerline adapter.
• It can be placed horizontally on a desk or tabletop.
• It can be mounted on the wall using the enclosed wall mounting kit.
• It can be placed in the vertical stand, in order to save desk space.
6
3
3

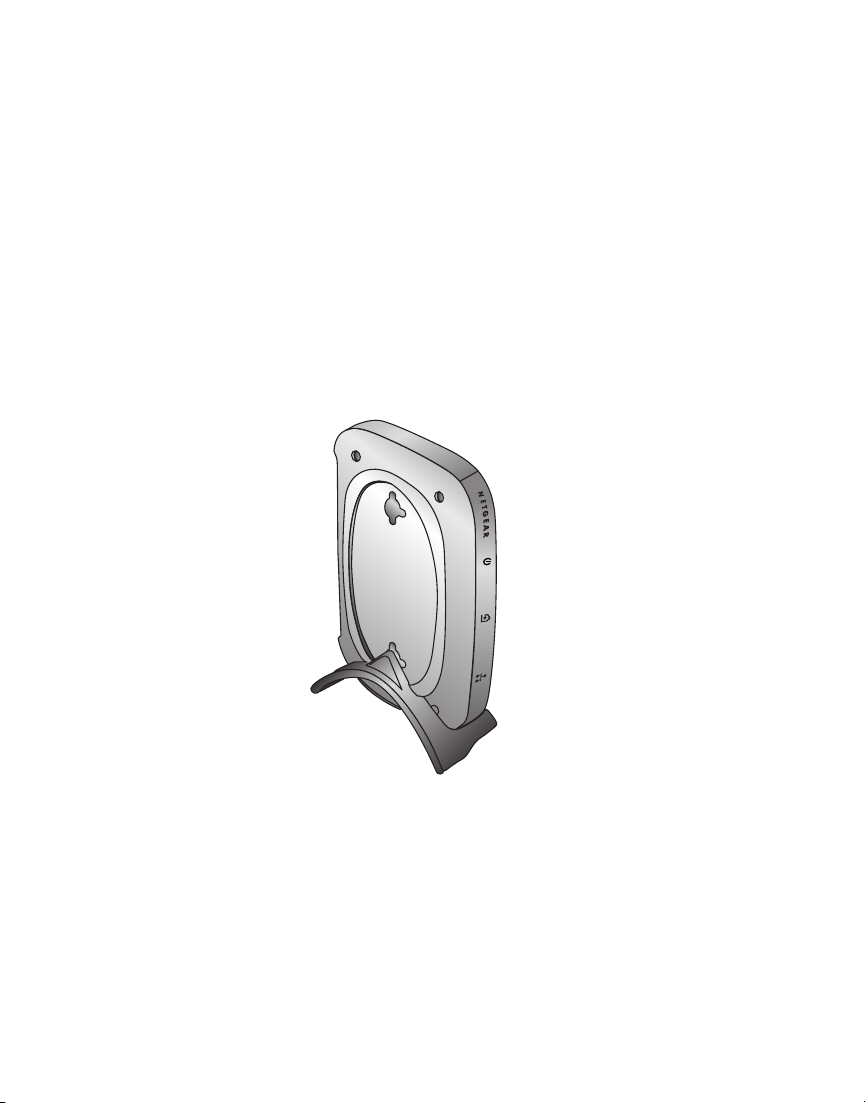

Powerline Adapter XE602
on Vertical Stand
XE602 Qcard 5/7/02 10:23 AM Page 8

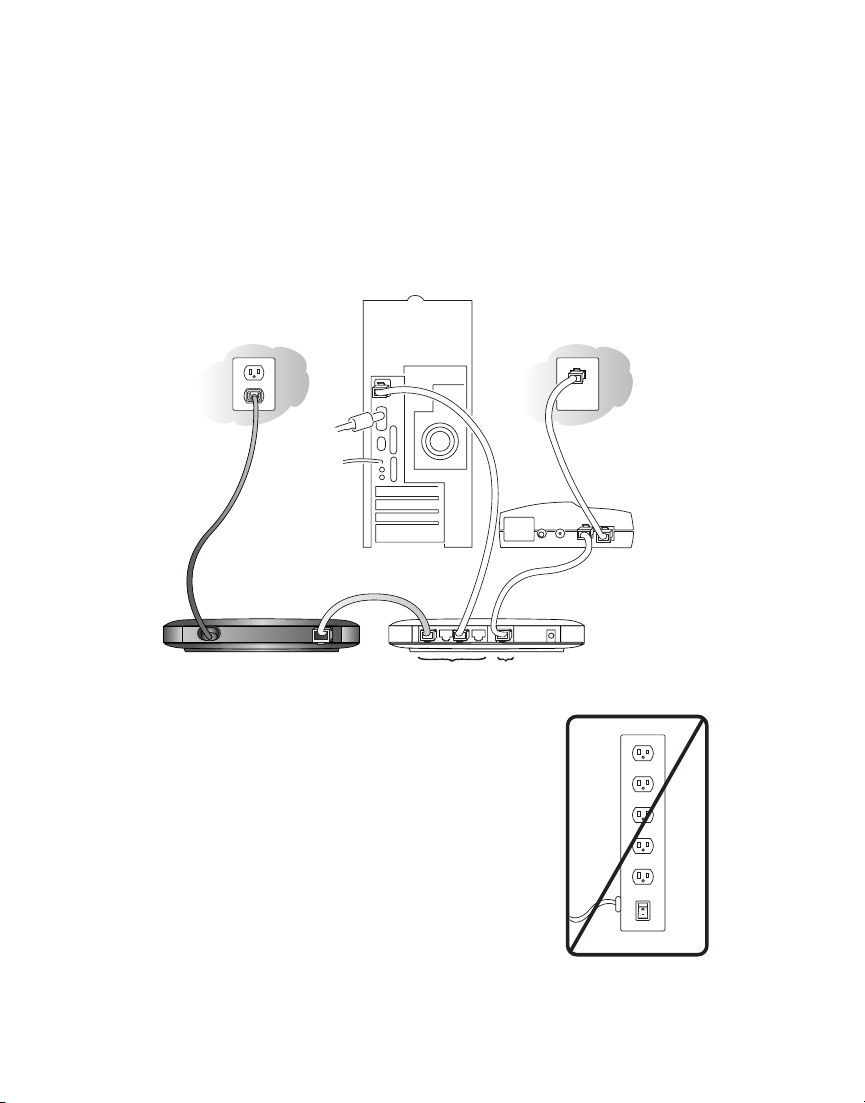

Connecting the Powerline Adapter to a Cable/DSL router
If you have a Cable/DSL router to share your Internet connection, you can extend that
connection to every room in the house using the Powerline adapter. If your Cable/DSL router
supports either automatic or manual (push button) uplink ports, use the standard (BLUE)
Ethernet patch cable. If your router does not support an uplink feature, then use the supplied
(GRAY) Ethernet crossover cable.
Note: for NETGEAR routers RT311 and RT314 please use the (GRAY) Ethernet
crossover cable. For all other NETGEAR routers, use the (BLUE) Ethernet patch cable.
1. Connect the Ethernet Cable to the Ethernet port of
the Powerline Adapter.
2. Connect the other end of the cable to an available
Ethernet LAN port of the Cable/DSL router.
3. Connect the enclosed power cable to the back of the
Powerline adapter.
4. Connect the other end of the power cable (the plug)
directly into the wall receptacle.
Note: Do not connect the plug into a power strip or
surge protectors since these devices may contain
circuit filters, which may degrade the Powerline signal.
7
Router
LAN
Ports WAN
Port
Cable/DSL
Modem
Power Adapter XE602
WARNING!
OFF
ON
XE602 Qcard 5/7/02 10:23 AM Page 9

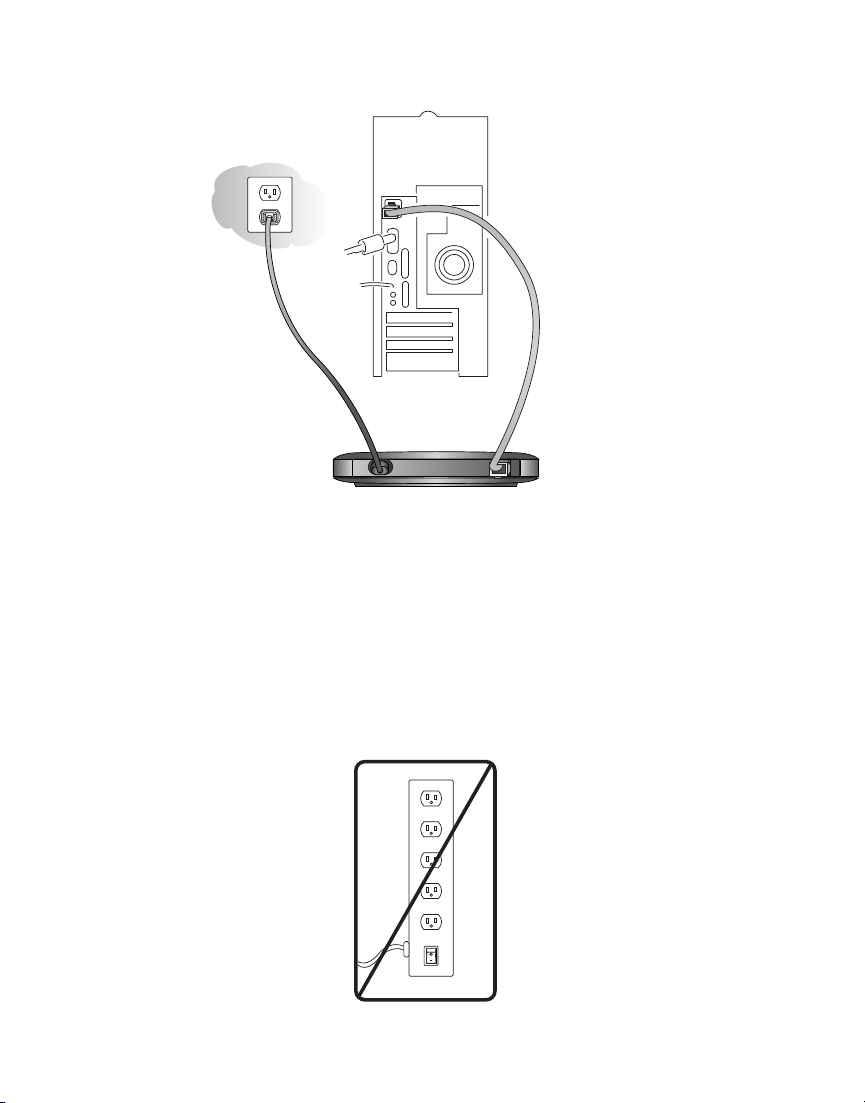

Connecting the Powerline Adapter to a PC
1. Connect the enclosed standard (BLUE) Ethernet Cable to the Ethernet port of the
Powerline Adapter.
2. Connect the other end of the cable to the Ethernet port of the PC.
3. Connect the enclosed power cable to the back of the Powerline adapter.
4. Connect the other end of the power cable (the plug) directly into the wall receptacle.
Note: Do not connect the plug into a power strip or surge protectors since these
devices may contain circuit filters, which may degrade the Powerline signal.
8WARNING!
OFF
ON
Power Adapter XE602
XE602 Qcard 5/7/02 10:23 AM Page 10
