NETGEAR ReadyNASUltra 2 Manuale utente

350 East Plumeria Drive

San Jose, CA 95134

USA

April 2011

202-10846-01

ReadyNAS Ultra, Ultra Plus,

and Pro Series

Hardware Manual

Models:

Ultra 2

Ultra 4

Ultra 6

Ultra 2 Plus

Ultra 4 Plus

Ultra 6 Plus

Pro 2

Pro 4

Pro 6

ReadyNAS Desktop Storage Systems

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language in any form or by any means without the written permission of NETGEAR, Inc.

Technical Support

Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online,

visit us at http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR

Phone (Other Countries): See support information card.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of

NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change

Statement of Conditions

To improve internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes

to the products described in this document without notice. NETGEAR does not assume any liability that may occur

due to the use, or application of, the product(s) or circuit layout(s) described herein.

Table of Contents

Chapter 1 Getting Started

Choosing a Setup Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Chapter 2 ReadyNAS Ultra 2, Ultra 2 Plus, Pro 2

Front and Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Drive Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

System Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Chapter 3 ReadyNAS Ultra 4, Ultra 4 Plus, Pro 4

Front and Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Drive Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

System Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Chapter 4 ReadyNAS Ultra 6, Ultra 6 Plus, Pro 6

Front and Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Drive Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

System Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Chapter 5 Disks and Disk Replacements

Supported Disks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Failed Disk Notification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Adding a Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Replacing a Disk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

ReadyNAS Desktop Storage Systems

Appendix A Defaults and Technical Specifications

ReadyNAS Ultra 2, Ultra 2 Plus, Pro 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .33

ReadyNAS Ultra 4, Ultra 4 Plus, Pro 4. . . . . . . . . . . . . . . . . . . . . . . . . . . .35

ReadyNAS Ultra 6, Ultra 6 Plus, Pro 6. . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Safety Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Electrical Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Electrostatic Discharge (ESD) Precautions . . . . . . . . . . . . . . . . . . . . . .40

Appendix B Compliance Notification

Index

1. Getting Started

Congratulations on your purchase of a NETGEAR ReadyNAS®Ultra, Ultra Plus, or Pro storage

system. This ReadyNAS Ultra, Ultra Plus, and Pro Series Hardware Manual describes the

physical features of these storage systems.

This chapter contains the following sections:

• Choosing a Setup Location

• System Requirements

For detailed information about configuring, managing, and using your ReadyNAS Ultra series or

ReadyNAS Ultra Plus series storage system, see the ReadyNAS for Home Software Manual.

For detailed information about configuring, managing, and using your ReadyNAS Pro series, see

the ReadyNAS for Business Software Manual. Both documents are available at

http://www.readynas.com/documentation.

NETGEAR maintains a community website that supports ReadyNAS products. Visit

http://readynas.com for reviews, tutorials, a comparison chart, software updates, documentation,

an active user forum, and much more.

Getting Started

ReadyNAS Desktop Storage Systems

Choosing a Setup Location

Your ReadyNAS desktop unit is suitable for use in a home or small office environment where

it can be freestanding. The small, compact size makes it suitable for sitting on a desk or on a

closet shelf.

Choose a location for your unit that meets these criteria:

• Cables can be connected easily.

• Water or moisture cannot enter the case.

• Airflow around the unit and through the vents in the side of the case is not restricted.

• The air is as free of dust as possible.

• Temperature operating limits are not likely to be exceeded.

• If you are using an uninterruptable power supply (UPS) for protection, the power cable

can be securely and safely connected to the UPS.

System Requirements

Your ReadyNAS desktop unit requires the following:

• Ethernet connection

• Microsoft Windows 7, Vista, XP, 2000, Mac OS, UNIX, or Linux operating system

• Microsoft Internet Explorer 7.0+, Apple Safari, 2.0+, Mozilla Firefox 2.0+, or Opera

9.5+ browser

• Hard disk drive or drives from the NETGEAR Hardware Compatibility List; see

http://www.readynas.com/?page_id=82.

2. ReadyNAS Ultra 2, Ultra 2 Plus, Pro 2

This chapter provides an overview of the physical features of the ReadyNAS Ultra 2, Ultra 2

Plus, and Pro 2 and includes the following sections:

• Front and Side Panels

• Drive Bay

• Rear Panel

• Status Information

• System Shutdown

• Boot Menu

ReadyNAS Ultra 2, Ultra 2 Plus, Pro 2

ReadyNAS Desktop Storage Systems

Front and Side Panels

This section describes the front and side panels of ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2

units. Your unit’s color might vary from the color shown in this manual.

Figure 1. ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2 front and side panels

1. Exhaust vents

2. Power button and LED

3. Disk activity LED

4. Disk 1 and disk 2 LEDs

5. USB 3.0 port

6. Backup button

7. USB and backup status LED

8. Drive bay door

ReadyNAS Ultra 2, Ultra 2 Plus, Pro 2

ReadyNAS Desktop Storage Systems

Drive Bay

This section describes the drive bay of ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2 units.

Figure 2. ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2 drive bay

1. Drive bay door

2. Disk bays

3. Recessed disk tray locking mechanism

4. Disk release latch

5. Disk tray latch handle

6. Disk tray

ReadyNAS Ultra 2, Ultra 2 Plus, Pro 2

ReadyNAS Desktop Storage Systems

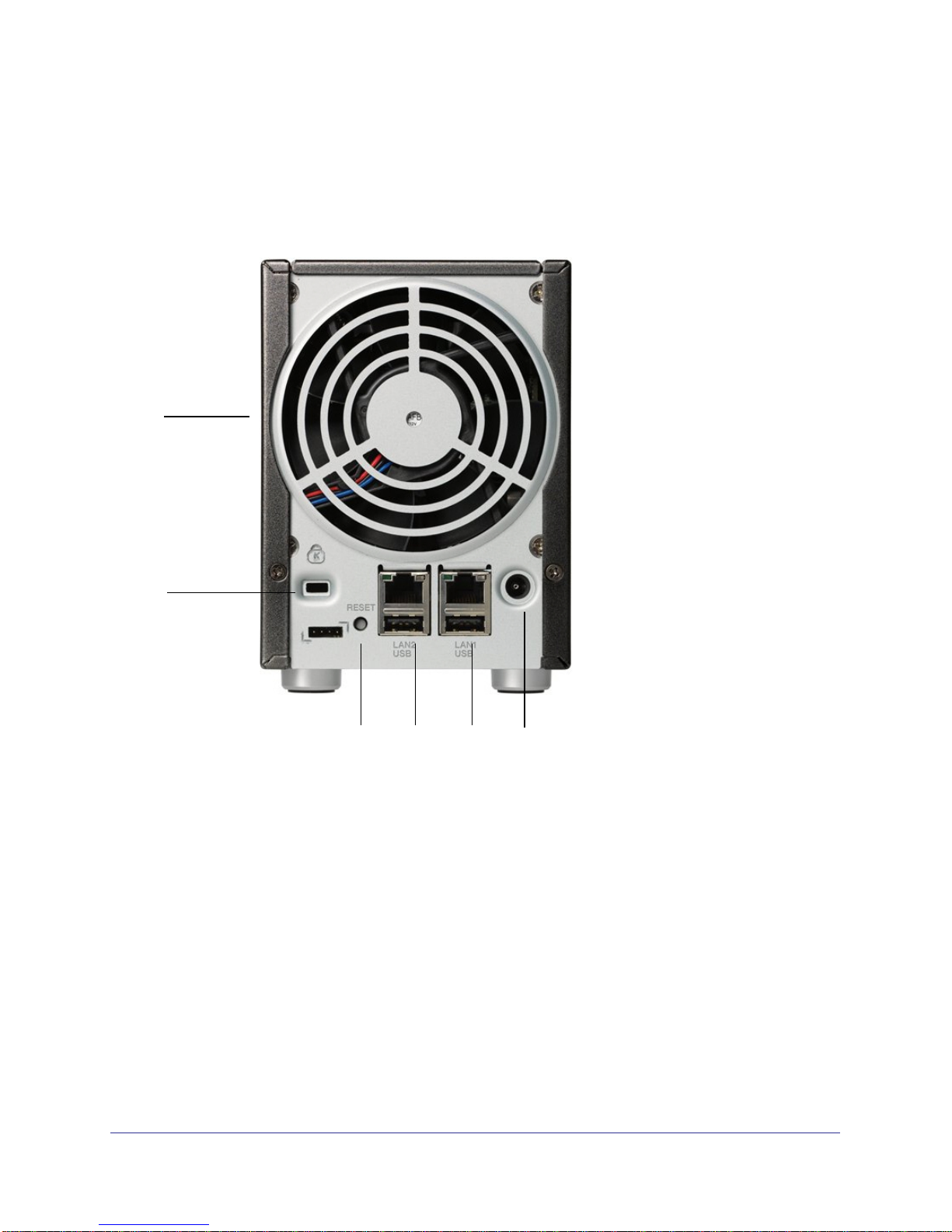

Rear Panel

This section describes the rear panel of ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2 units.

3 4 / 5 6 / 7 8

Figure 3. ReadyNAS Ultra 2, Ultra 2 Plus, and Pro 2 rear panel

1. Exhaust fan

2. Kensington lock

3. Reset button

4. LAN2 gigabit Ethernet port with LED status indicators

5. USB 2.0 port

6. LAN1 gigabit Ethernet port with LED status indicators

7. USB 2.0 port

8. Power cable socket
