Introduction 2-1

Version V2.2, July 2005

Chapter 2

Introduction

This chapter describes the features of the NETGEAR ProSafe Wireless 802.11g Firewall/Print

Server Model FWG114P v2.

Key Features of the FWG114P v2

The ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2, with a 4-port switch,

connects your LAN to the Internet through a broadband modem. With auto fail-over connectivity

through the serial port, the FWG114P v2 provides highly reliable Internet access.

The FWG114P v2 is a complete security solution that protects your network from attacks and

intrusions and enables secure communications using Virtual Private Networks (VPNs). Unlike

simple Internet sharing routers that rely on Network Address Translation (NAT) for security, the

FWG114P v2 uses Stateful Packet Inspection for Denial of Service attack (DoS) attack protection

and intrusion detection. The FWG114P v2 allows Internet access for up to 253 users. It provides

multiple Web content filtering options, plus browsing activity reporting and instant alerts via

e-mail. Parents or network administrators can establish restricted access policies based on

time-of-day, Web site addresses and address keywords, and share high-speed cable/DSL Internet

access for up to 253 personal computers.

With minimum setup, you can install and use the router within minutes. The FWG114P v2

Wireless Firewall/Print Server provides the following features:

• 802.11g and 802.11b standards-based wireless networking.

• Easy, Web-based setup for installation and management.

• Supports two VPN tunnels, Content Filtering, and Site Blocking Security.

• Wireless Multimedia (WMM) support.

• Built-in 4-port 10/100 Mbps Switch and USB 2.0 Printer Port.

• Ethernet and Serial ports for connection to a WAN device, such as a broadband modem.

• Extensive Protocol Support.

• Login capability.

• Front panel LEDs for easy monitoring of status and activity.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2

2-2 Introduction

Version V2.2, July 2005

• Flash memory for firmware upgrade.

• NAT off (classical routing).

Full Routing on Both the Broadband and Serial Ports

You can install, configure, and operate the FWG114P v2 to take full advantage of a variety of

routing options on both the serial and broadband WAN ports, including:

• Internet access via either the serial or broadband port.

• Auto fail-over connectivity through an analog or ISDN modem connected to the serial port.

If the broadband Internet connection fails, after waiting for an amount of time you specify, the

FWG114P v2 can automatically establish a backup ISDN or dial-up Internet connection via

the serial port on the firewall.

• Remote Access Server (RAS) that allows you to log in remotely through the serial port to

access a server on your LAN, other LAN resources, or the Internet, based on a user name and

password you define.

• LAN-to-LAN access between two FWG114P v2 wireless firewall/print servers through the

serial port, with the option of enabling auto-failover Internet access across the serial

LAN-to-LAN connection.

802.11g and 802.11b Wireless Networking

The FWG114P v2 Wireless Firewall/Print Server includes an 802.11g-compliant wireless access

point. The access point provides:

• 802.11b standards-based wireless networking at up to 11 Mbps.

• 802.11g wireless networking at up to 54 Mbps, which conforms to the 802.11g standard.

• WPA and WPA2 enterprise class strong security with RADIUS and certificate authentication

as well as dynamic encryption key generation.

• WPA-PSK and WPA2-PSK pre-shared key authentication without the overhead of RADIUS

servers but with all of the strong security of WPA and WPA2.

• 64-bit and 128-bit WEP encryption security.

• WEP keys can be generated manually or by passphrase.

• Wireless access can be restricted by MAC Address.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2

Introduction 2-3

Version V2.2, July 2005

• Wireless network name broadcast can be turned off so that only devices that have the network

name (SSID) can connect.

Virtual Private Networking

The FWG114P v2 Wireless Firewall/Print Server provides a secure encrypted connection between

your local network and remote networks or clients. Its VPN features include:

• Support for up to 2 simultaneous VPN connections.

• Support for industry standard VPN protocols.

The ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2 supports standard

keying methods (Manual or IKE), standard authentication methods (MD5 and SHA-1), and

standard encryption methods (DES, 3DES). It is compatible with many other VPN products.

• Support for up to 168 bit encryption (3DES) for maximum security.

• Support for VPN Main Mode, Aggressive mode, or Manual Keying.

• Support for Fully Qualified Domain Name (FQDN) configuration when the Dynamic DNS

feature is enabled with one of the supported service providers.

Wireless Multimedia (WMM) Support

WMM is a subset of the 802.11e standard. WMM allows wireless traffic to have a range of

priorities, depending on the kind of data. Time-dependent information such as video or audio will

have a higher priority than normal traffic. For WMM to function correctly, wireless clients must

also support WMM.

A Powerful, True Firewall with Content Filtering

Unlike simple Internet sharing NAT routers, the FWG114P v2 is a true firewall, using stateful

packet inspection to defend against hacker attacks. Its firewall features include:

• DoS protection.

Automatically detects and thwarts DoS attacks, such as Ping of Death, SYN Flood, LAND

Attack, and IP Spoofing.

• Blocks unwanted traffic from the Internet to your LAN.

• Blocks access from your LAN to Internet locations or services that you specify as off-limits.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2

2-4 Introduction

Version V2.2, July 2005

• Logs security incidents.

The FWG114P v2 will log security events, such as blocked incoming traffic, port scans,

attacks, and administrator logins. You can configure the router to e-mail the log to you at

specified intervals. You can also configure the router to send immediate alert messages to your

e-mail address or e-mail pager whenever a significant event occurs.

• With its content filtering feature, the FWG114P v2 prevents objectionable content from

reaching your PCs. The router allows you to control access to Internet content by screening for

keywords within Web addresses. You can configure the router to log and report attempts to

access objectionable Internet sites.

Security

The FWG114P v2 Wireless Firewall/Print Server is equipped with several features designed to

maintain security, as described in this section:

• PCs hidden by NAT.

NAT opens a temporary path to the Internet for requests originating from the local network.

Requests originating from outside the LAN are discarded, preventing users outside the LAN

from finding and directly accessing the PCs on the LAN.

• Port forwarding with NAT.

Although NAT prevents Internet locations from directly accessing the PCs on the LAN, the

router allows you to direct incoming traffic to specific PCs based on the service port number

of the incoming request, or to one designated “DNS” host computer. You can specify

forwarding of single ports or ranges of ports.

Autosensing Ethernet Connections with Auto Uplink

With its internal 8-port 10/100 switch, the FWG114P v2 can connect to either a 10 Mbps standard

Ethernet network or a 100 Mbps Fast Ethernet network. Both the LAN and WAN interfaces are

autosensing and capable of full-duplex or half-duplex operation.

The router incorporates Auto UplinkTM technology. Each Ethernet port will automatically sense

whether the Ethernet cable plugged into the port should have a ‘normal’ connection, such as to a

computer, or an ‘uplink’ connection, such as to a switch or hub. That port will then configure itself

to the correct configuration. This feature also eliminates the need to worry about crossover cables,

as Auto Uplink will accommodate either type of cable to make the right connection.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2

Introduction 2-5

Version V2.2, July 2005

Extensive Protocol Support

The FWG114P v2 Wireless Firewall/Print Server supports the Transmission Control Protocol/

Internet Protocol (TCP/IP) and Routing Information Protocol (RIP).

• The ability to enable or disable IP address sharing by NAT.

The FWG114P v2 allows several networked PCs to share an Internet account using only a

single IP address, which may be statically or dynamically assigned by your Internet service

provider (ISP). This technique, known as NAT, allows the use of an inexpensive single-user

ISP account. This feature can also be turned off completely for using the FWG114P v2 in

settings where you want to manage the IP address scheme of your organization.

• Automatic configuration of attached PCs by DHCP.

The FWG114P v2 Wireless Firewall/Print Server dynamically assigns network configuration

information, including IP, gateway, and domain name server (DNS) addresses, to attached PCs

on the LAN using the Dynamic Host Configuration Protocol (DHCP). This feature greatly

simplifies configuration of PCs on your local network.

• DNS Proxy.

When DHCP is enabled and no DNS addresses are specified, the router provides its own

address as a DNS server to the attached PCs. The router obtains actual DNS addresses from

the ISP during connection setup and forwards DNS requests from the LAN.

• PPP over Ethernet (PPPoE).

PPPoE is a protocol for connecting remote hosts to the Internet over a DSL connection by

simulating a dial-up connection. This feature eliminates the need to run a login program, such

as Entersys or WinPOET on your computer.

• PPTP login support for European ISPs, BigPond login for Telstra cable in Australia.

• Classical IP (RFC 1577).

Some Internet service providers, in Europe for example, use Classical IP in their ADSL

services. In such cases, the wireless access point is able to use the Classical IP address from

the ISP.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2

2-6 Introduction

Version V2.2, July 2005

Easy Installation and Management

You can install, configure, and operate the ProSafe Wireless 802.11g Firewall/Print Server Model

FWG114P v2 within minutes after connecting it to the network. The following features simplify

installation and management tasks:

• Automatic fail-over connectivity through an analog or ISDN modem connected to the serial

port. If the broadband modem Internet connection fails, after waiting for an amount of time

you specify, the FWG114P v2 can automatically establish a backup ISDN or dial-up Internet

connection via the serial port on the wireless access point.

• Browser-based management.

Browser-based configuration allows you to easily configure your router from almost any type

of personal computer, such as Windows, Macintosh, or Linux. A user-friendly Setup Wizard is

provided and online help documentation is built into the browser-based Web Management

Interface.

• Smart Wizard.

The FWG114P v2 Wireless Firewall/Print Server automatically senses the type of Internet

connection, asking you only for the information required for your type of ISP account.

• Diagnostic functions.

The firewall incorporates built-in diagnostic functions, such as Ping, DNS lookup, and remote

reboot.

• Remote management.

The firewall allows you to log in to the Web Management Interface from a remote location on

the Internet. For security, you can limit remote management access to a specified remote IP

address or range of addresses, and you can choose a nonstandard port number.

• Visual monitoring.

The FWG114P v2 Wireless Firewall/Print Server’s front panel LEDs provide an easy way to

monitor its status and activity.

• Regional support, including ISPs like Telstra DSL and BigPond, or Deutsche Telekom.

• Flash memory for firmware upgrades.

NETGEAR Related Products

The following NETGEAR products are related to the ProSafe Wireless 802.11g Firewall/Print

Server Model FWG114P v2:

• ProSafe™ Dual Band Wireless PC Card Model WAG511

• ProSafe™ Dual Band Wireless PCI Adapter Model WAG311

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2

Introduction 2-7

Version V2.2, July 2005

• 54 Mbps Wireless PC Card Model WG511

• 54 Mbps Wireless PCI Card Model WG311

• 54 Mbps Wireless USB 2.0 Adapter Model WG121

• ProSafe™ Indoor 5 dBi Omni-directional Antenna Model ANT24O5

• ProSafe™ Indoor/Outdoor 18 dBi Patch Panel Directional Antenna Model ANT24D18

• ProSafe™ Indoor/Outdoor 9 dBi Omni-directional Antenna Model ANT2409

• Low-loss Antenna Cables

Package Contents

The product package should contain the following items:

• ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2.

•ACpoweradapter.

• Category 5 (Cat 5) Ethernet cable.

• FWG114P Installation Guide (201-10301-01).

•Resource CD for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

(SW-10023-03), including:

— This manual.

— Application Notes and other helpful information.

• Registration and Warranty Card.

If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the

carton, including the original packing materials, in case you need to return the router for repair.

The FWG114P v2 Front Panel

The front panel of the FWG114P v2 contains the status LEDs. Use the LEDs to verify various

operations. Viewed from left to right, Table 2-1 describes the LEDs on the front of the router.

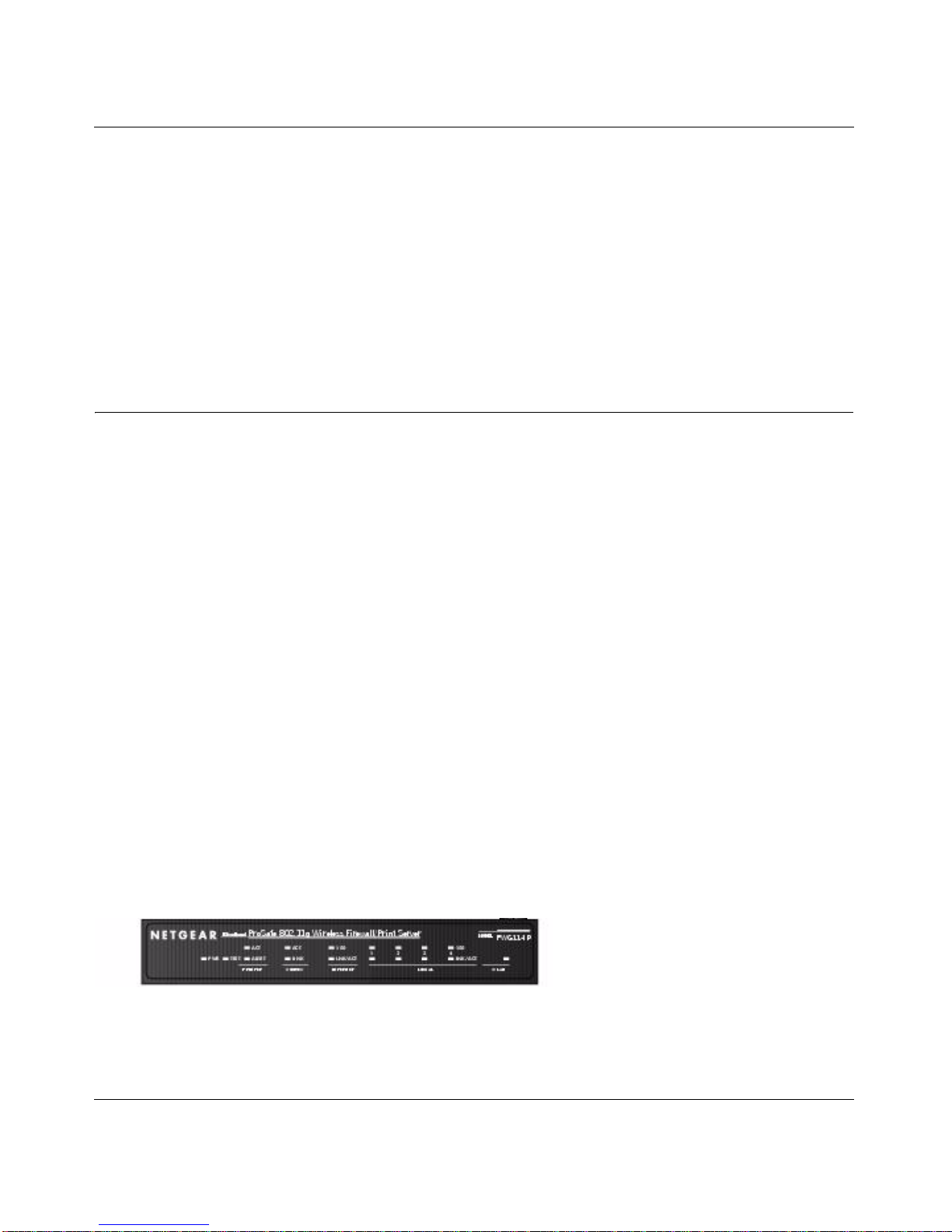

Figure 2-1: FWG114P v2 Front Panel

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2

2-8 Introduction

Version V2.2, July 2005

The FWG114P v2 Rear Panel

The rear panel of the FWG114P v2 Wireless Firewall/Print Server contains the port connections

listed below.

Table 2-1. LED Descriptions

Label Activity Description

POWER On Power is supplied to the firewall.

TEST On

Off The system is initializing.

The system is ready and running.

PRINTER

ACT On

Blinking The printer is connected and powered on.

Data is being transmitted or received by the Printer port.

ALERT On (Amber) The printer has a problem, such as out of paper, out of ink, or a

paper jam.

MODEM

ACT Blinking Data is being transmitted or received by the Modem port.

LINK On (Amber) The port has detected a link with an attached device.

INTERNET Note: The operation of these LEDs depends on how the WAN port is configured.

100 (100 Mbps) On

Off The Internet (WAN) port is operating at 100 Mbps.

The Internet (WAN) port is operating at 10 Mbps.

LINK/ACT

(Link/Activity) On

Blinking The Internet port has detected a link with an attached device.

Data is being transmitted or received by the Internet port.

LOCAL

100 (100 Mbps) On

Off The Local port is operating at 100 Mbps.

The Local port is operating at 10 Mbps.

LINK/ACT

(Link/Activity) On

Blinking The Local port has detected a link with an attached device.

The Local port is transmitting or receiving data.

WLAN On

Blinking The Wireless (WLAN) port is operating.

The Wireless (WLAN) port is transmitting or receiving data.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2

Introduction 2-9

Version V2.2, July 2005

Figure 1-2: FWG114P v2 Rear Panel

Viewed from left to right, the rear panel contains the following features:

• Wireless antenna.

• DB-9 serial port for modem connection.

• USB 2.0 Printer Port.

• Factory Default Reset push button.

• Four Ethernet LAN ports.

• Internet Ethernet WAN port for connecting the router to a broadband modem.

• AC power adapter outlet.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P v2

2-10 Introduction

Version V2.2, July 2005

Altri manuali per FWG114Pv2 - Wireless Firewall With USB Print...

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali NETGEAR Server di stampa

NETGEAR

NETGEAR PS101 Manuale utente

NETGEAR

NETGEAR PS101 Manuale utente

NETGEAR

NETGEAR PS105 Manuale utente

NETGEAR

NETGEAR PS121v2 - USB Mini Print Server Manuale utente

NETGEAR

NETGEAR PS121v2 - USB Mini Print Server Manuale operativo

NETGEAR

NETGEAR PS104 - Hub - EN Manuale di installazione e funzionamento

NETGEAR

NETGEAR PS113 - 10/100 Print Server Manuale utente

NETGEAR

NETGEAR PS121v2 - USB Mini Print Server Manuale utente

NETGEAR

NETGEAR PS104 - Hub - EN Manuale utente

NETGEAR

NETGEAR FWG114Pv2 - Wireless Firewall With USB Print... Manuale utente

NETGEAR

NETGEAR PS121v2 - USB Mini Print Server Manuale utente

NETGEAR

NETGEAR PS111W - Print Server - Parallel Manuale utente

NETGEAR

NETGEAR WGPS606NA Manuale utente

NETGEAR

NETGEAR PS121 - USB Mini Print Server Manuale utente

NETGEAR

NETGEAR WGPS606 Manuale utente

NETGEAR

NETGEAR PS101 Manuale utente

NETGEAR

NETGEAR PS101v1 - Mini Print Server Manuale utente

NETGEAR

NETGEAR PS104 - Hub - EN Manuale di installazione e funzionamento

NETGEAR

NETGEAR WGPS606 Manuale utente

NETGEAR

NETGEAR PS121 - USB Mini Print Server Manuale utente

NETGEAR

NETGEAR PS111W - Print Server - Parallel Manuale utente

NETGEAR

NETGEAR PS111W - Print Server - Parallel Manuale di installazione e funzionamento

NETGEAR

NETGEAR WGPS606 Manuale utente

NETGEAR

NETGEAR PS101NA Manuale utente

Manuali Server di stampa popolari di altre marche

Digitus

Digitus DN-13003-1 Manuale utente

Edimax

Edimax PS-1206PWg Manuale utente

Intellinet

Intellinet 509077 Manuale utente

Atlantis Land

Atlantis Land NETSERVER A02-PSU_GX02 Manuale utente

Buffalo

Buffalo LPV4-U2-300S Manuale utente

Zonet

Zonet ZPS1000 Manuale utente

TRENDnet

TRENDnet TEW-P11G Manuale utente

Axis

Axis 140 BJC Manuale utente

HP Jetdirect 280m - 802.11b Wireless Print... Manuale utente

MicroNet

MicroNet SP766W Manuale utente

Axis

Axis AXIS 1610 Manuale utente

Buffalo

Buffalo LPV4-U2-300S Manuale utente

Axis

Axis 5600+ Manuale utente

LevelOne

LevelOne WPS-9123 Manuale utente

Xerox

Xerox FreeFlow Print Server V9 SP3 Manuale utente

SEH

SEH primos Manuale utente

D-Link

D-Link DP-101P+ Manuale utente

Digisol

Digisol DG-PS1010U Manuale utente
