NETGEAR AirCard 785 Manuale utente

Quick Start

AirCard 785

Mobile Hotspot

Meet Your Hotspot

Before you connect your hotspot,

familiarize yourself with its LCD screen,

icons, buttons, and connectors.

Buttons and Connectors

Status LED

The status LED indicates data connection

status:

• Blue, slow blink. Ready.

• Blue, double blink. Transferring data.

• Amber, slow blink. The hotspot is not

connected to the network. For more

information, see Why can’t my hotspot

connect to the Internet? on page 15.

Micro USB port

Antenna connector

Status LED

Navigation Button

Press the Navigation button to cycle

through the LCD screens.

Power Button

Press and hold the Power button for two

seconds to power the hotspot on, ﬁve

seconds to turn the hotspot o.

LCD Screen

The LCD screen displays icons, data usage,

your WiFi name, and your WiFi password.

Navigation

button Power button

Icon Description

1 bar. The hotspot signal is weak.

5 bars. The hotspot signal is strong.

Available network technology; varies

by service provider coverage.

Blue/white. WiFi ooad is enabled

while the hotspot is connected to

WiFi.

Gray. WiFi ooad is enabled while

the hotspot is not connected to WiFi.

Solid arrows display when the

hotspot is transmitting data.

System alerts require attention.

You received new SMS messages.

The percentage of remaining battery

charge.

The battery charge is less than 5%.

Purple. WiFi is active.

Gray. WiFi is inactive.

The number indicates the number of

devices that are connected.

Set Up Your Hotspot

Before you connect to your hotspot, you

must insert a micro-SIM card, power up the

hotspot, and charge your battery.

Note: To obtain a micro-SIM card, contact

your Internet service provider.

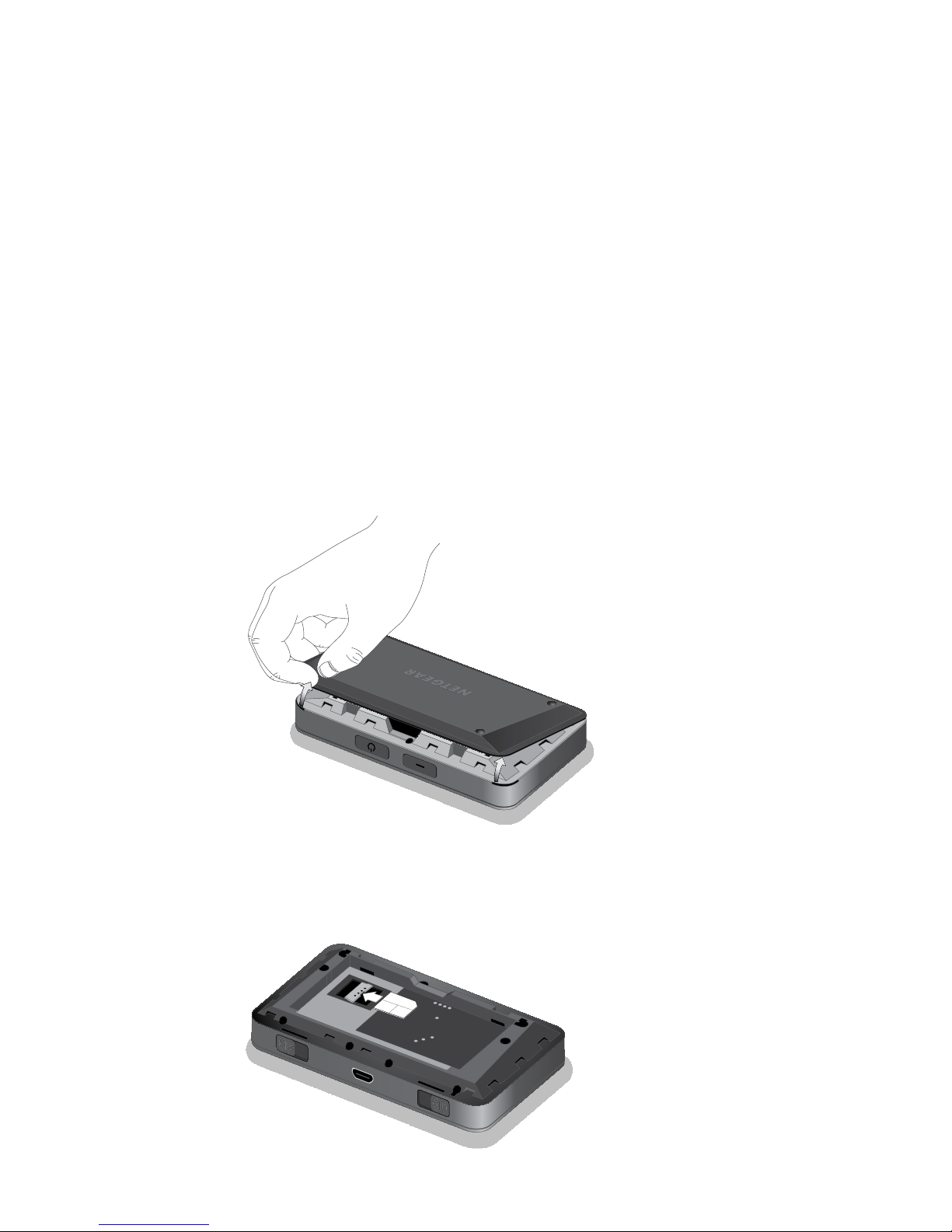

¾To insert the micro-SIM card:

1. Remove the back cover using the

thumb catch on the corner of the

hotspot.

2. Remove the battery.

3. Insert the micro-SIM card.

4. Ensure that the micro-SIM card is

seated securely.

5. Reinstall the battery.

If the battery does not install easily,

check the orientation.

6. Replace the cover.

¾To power on your hotspot:

Press and hold the Power button until

the LCD screen lights.

¾To recharge your battery:

1. Connect the micro-USB cable to your

hotspot.

2. Connect the other end of the cable

to the USB port on your computer or

other device.

Note: Your battery comes partially

charged.

¾To connect to your mobile hotspot:

1. Ensure that WiFi is enabled on your

computer or other device.

2. On your computer or other device,

search for WiFi networks:

• For Windows devices, click the

Internet Access icon.

• For Mac devices, from the WiFi

menu, select the network.

• For tablets, look for a settings

option.

3. Select the WiFi name displayed on your

LCD screen.

4. Enter the WiFi password exactly as it

appears on the LCD screen.

Passwords are case-sensitive.

When a computer or mobile device

connects to the hotspot, a 1 displays

beside the WiFi icon on the LCD screen.

Note: For you to connect to the

mobile broadband network, your SIM

account must be active. If you use a

prepaid or pay-as-you-go micro-SIM,

the account balance must be positive.

5. If desired, launch your web browser

and visit http://netgear.aircard to

personalize your settings.

The hotspot is completely secured

using its default security settings.

Note: If you see a message indicating that

the mobile broadband is disconnected, you

might need to add an APN. For information

about adding APNs, refer to the user

manual.

Hotspot Web Page

On the hotspot web page, you can do the

following:

• Change the WiFi SSID, WiFi password,

admin password, and WiFi encryption

• Set autoconnect options

• View data usage

• Read SMS messages

• View alerts

• View and change other settings

• Check device status

¾To access your hotspot web page:

1. Launch a web browser from a

computer or WiFi device that is

connected to the network.

2. Enter http://netgear.aircard.

3. Enter the administrator login password.

The default password is password.

The hotspot web page displays.

Change Security Settings

The WiFi network name and admin

password provide security. Your mobile

hotspot comes with a randomly generated

and secured WiFi network name (SSID) and

password that you can continue to use as

is. Read this section if you want to change

your security settings.

¾To change the WiFi network name:

1. Launch a web browser from a

computer or WiFi device that is

connected to the hotspot.

2. Enter http://netgear.aircard.

3. Enter the administrator login password.

The default password is password.

The hotspot web page displays.

4. Select WiFi > Options.

5. Enter a new WiFi network name.

6. Click the Submit button.

¾To change the WiFi password:

1. Launch a web browser from a

computer or WiFi device that is

connected to the hotspot.

2. Enter http://netgear.aircard.

The hotspot web page displays.

3. Enter the administrator login password.

The default password is password.

The hotspot web page displays.

4. Select WiFi > Options.

The WiFi options screen displays.

5. Enter a new WiFi password.

If you change your password, be sure

to keep a record of it and store it in a

safe place.

6. Click the Submit button.

Your changes are saved.
