Netis DL4305D Manuale utente
DL4305D
ADSL2+ Modem Plus 300Mbps
Wireless-N Router
Quick Installation Guide
1
1. Hardware Installation
Step1:ConnecttheADSLLine.
Methodone:Plugoneendofthetwisted‐pairADSLcableinto
theADSLLINEportontherearpaneloftherouter,andinsert
theotherendintothewallsocket.Methodtwo:Youcanusea
separatesplitter.Theexternalsplitterhasthreeports:•
Line:Connecttothewalljack•Phone:Connecttothe
phonesets•Modem:ConnecttotheADSLLINEportof
therouter
Step2:ConnecttheEthernetcable.Attachoneendofanetwork
cabletoyourcomputer'sEthernetportoraregularhub/switchport,
andtheotherendtotheLANportontherouter.
Step3:PoweronthecomputersandLANdevices.
Step4:Attachthepoweradapter.Connectthepoweradaptertothe
powerconnectorontherearofthedeviceandplugintheadapterto
2
awalloutletorpowerextension.
Figure1
3
NameStatusIndication
OnPowerisonPWR
OffPowerisoff
FlashTheADSLnegotiationisinprogress
OnTheLINEportislinkedup.
ADSL
OffTheLINEportislinkeddown.
FlashDataisbeingtransferredovertheInternet.
OnAsuccessfulPPPconnectionhasbeenbuilt.
Internet
Off
ThereisnosuccessfulPPPconnectionorthe
RouterworksonBridgemode.
FlashThereiswirelessdatabeingtransmitted.
OnThewirelessfunctionisenabledbutnodatais
beingtransmitted.
WLAN
OffThewirelessfunctionisdisabled.
FlashDataisbeingtransferredoverthe1‐4(LAN)port.
On
Thereisasuccessfulconnectiononthe
corresponding1‐4(LAN)portbutnoactivity.
LAN(1‐4)
Off
Thereisnoconnectiononthecorresponding1‐4
(LAN)portortheconnectionisabnormal.
4
2. Configure PC
ForWindows7orWindowsVistaasbelow.
Step1:Click,thenselecttheOpenNetworkandSharing
Center.
Figure2
Step2:ClicktheChangeadaptersettings.
Figure3
Step3:ClickLocalAreaConnectionwiththerightbuttonofyour
mouse.ThenselectProperties.
5
Figure4

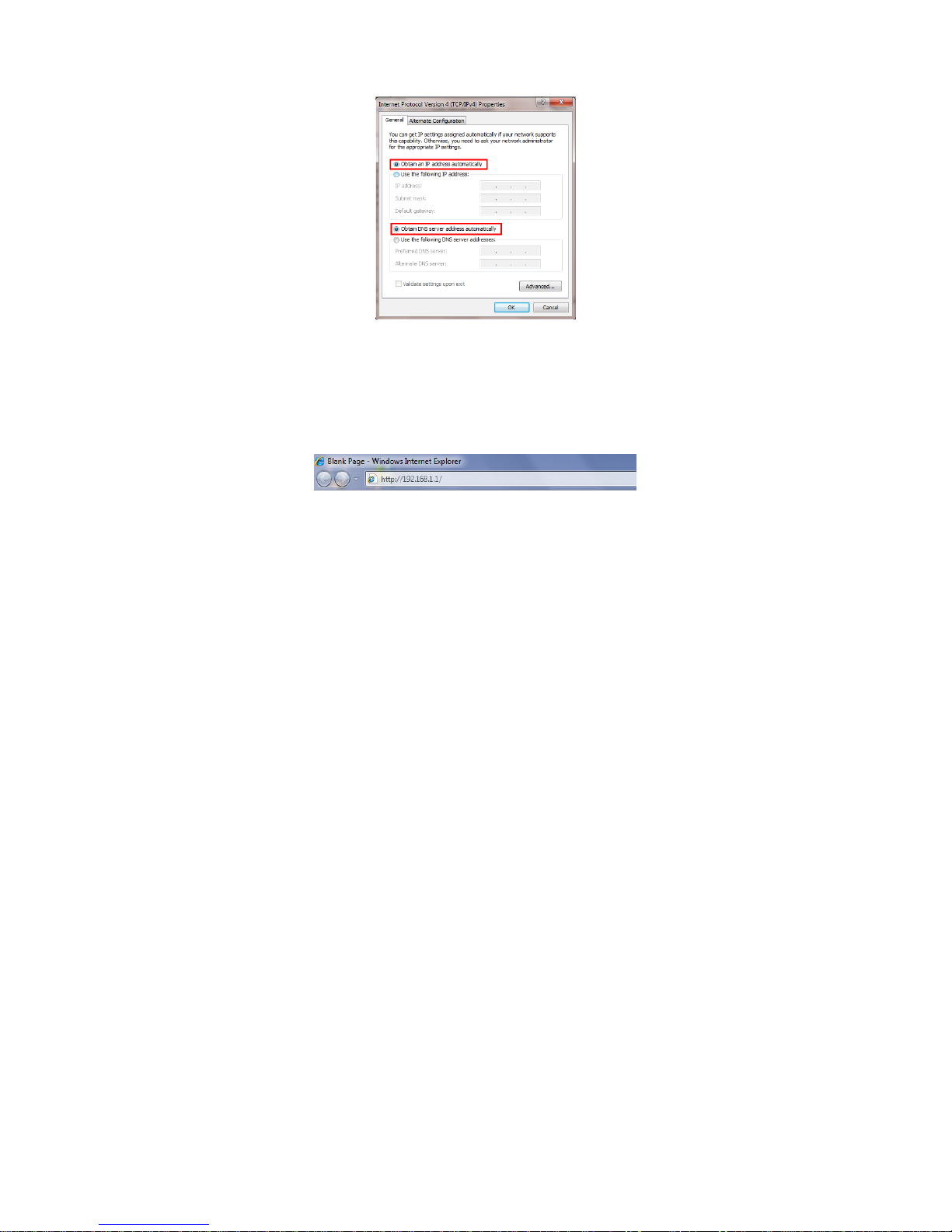

Step4:Doubleclickthe“InternetProtocolVersion4(TCP/IPv4)”.
Figure5
6
Step5:Selectthe“ObtainanIPaddressautomatically”asbelow.
Thenclick“OK”.
Figure6
3. Login
StartyourwebbrowserandtypetheprivateIPaddressofthe
RouterintheURLfield:192.168.1.1.
Figure7
Then,enterthedefaultUserNameadminandthedefault
Passwordadmin
7
Figure8
AndthenclickOKtoaccesstotheWirelessModemManagement
Panelscreen.
4. Modem Management
Thiswebpageprovidesyoutheconvenientandsimplestwayto
configureyourModemtoaccesstheinternet.
Firstly.Clickandgoto“Setup”‐>”WAN”,Pageisshowingbelow:
(wearetakingPPPoEforexample)
Secondly.EntertheVPIandVCIprovidedbyyourISPandselectthe
ChannelmodeasPPPoE
Third:EntertheFixedIPaddresswhichprovidedbyyourISPthen
click“Add”
8
Fourth:Click“Save”bottontomakeiteffetive.
Figure9
5. Wireless Network&Security
To connect to the Wireless AP, we should have the most basic
configuration of the router at first. In this section, you can set the
wireless network parameters required to access the AP of your WLAN
9
interface.
Go to Setup->WLAN->Basic page, you can configure the wireless
parameters.
Here you may enable or disable the wireless function. You can also
change the wireless parameters, such as Band, SSID, Channel Width,
Control Sideband, Channel Number and Radio Power.

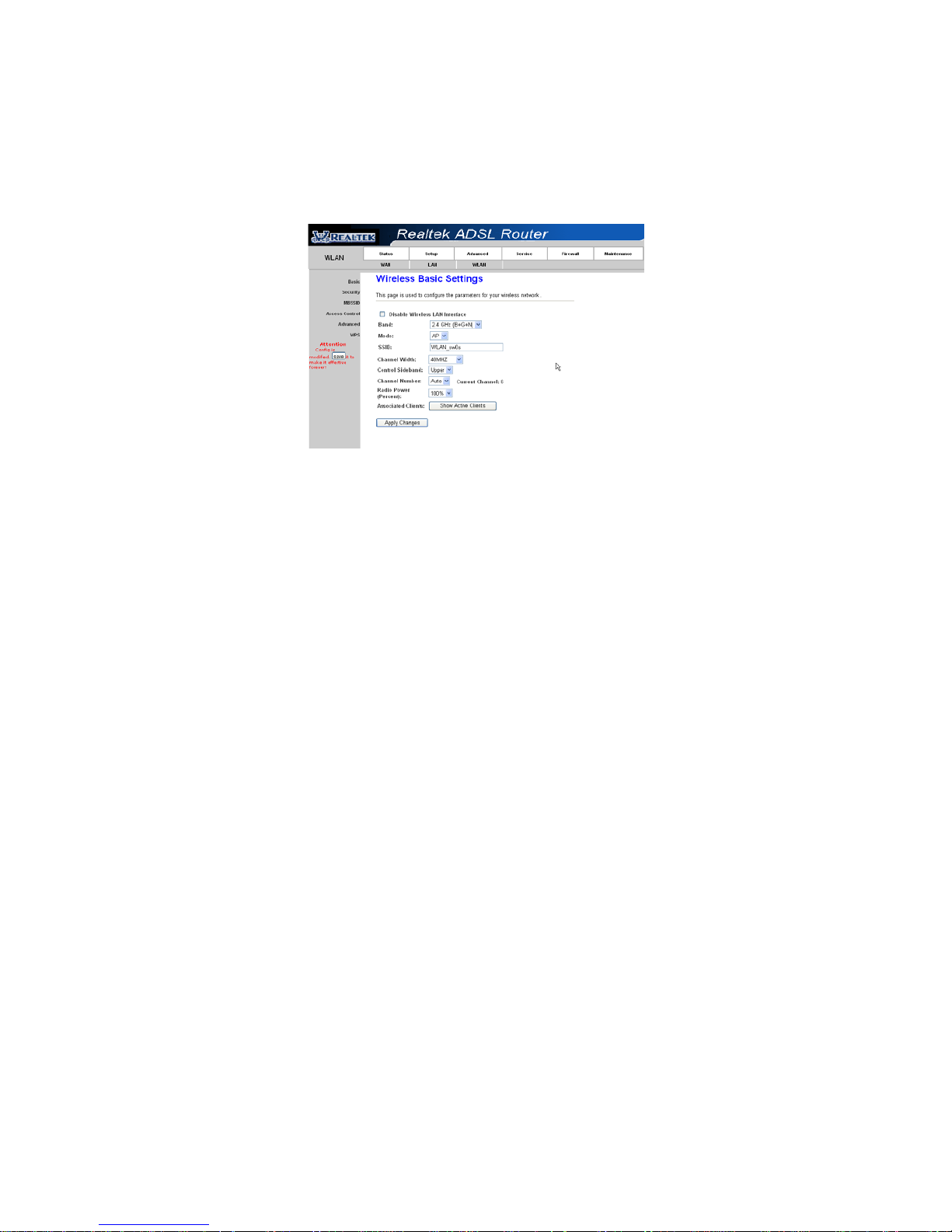

Figure10
Step2:Go to Setup->WLAN->Security page, you can configure the
wireless security parameters.
Here you can choose the encryption method to prevent any
