[Docs] NetPing 8/PWR-220 v4/SMS

NetPing server room environmental monitoring solutions and IP power distribution units.

[ENG] NetPing 8/PWR-220 v4/SMS, User guide

NetPing server room environmental monitoring solutions and IP power distribution units.

[8PWR] Copyright and Disclaimer

The information, contained in this document, can be changed by a manufacturer without a prior notice.Although every effort was made to make

the information in this document accurate and without errors, a manufacturer is not liable for their possible presence and for the consequences

that may result from the errors herein. A manufacturer is not liable if supplied equipment, software and this user guide does not correspond to

expectations of a user and his/her opinion about where and how to use all the above.All copyrights on supplied devices, described in this User

Guide, as well as firmware and software of devices and this User Guide belong to NetPing global Ltd. Сopying, replication and translation of this

user guide to other languagesare not allowed without a prior written permission of a rightholder. Copying, replication, changing, disassembling of

provided software For the part of software that is providedare not allowed without a prior written permission of a rightholder.

in source codes, there is a separate license agreement, which defines an order of its use and modification. Other trademarks used in this

description belong to corresponding rightholders.

Developer and manufacturer:

NetPing east Co Ltd.

NetPing server room environmental monitoring solutions and IP power distribution units.

[8PWR] Introduction

This user guide helps to become familiar with an operation of a device and get an idea about its functionality andNetping 8/PWR-220 v3/SMS

technical specifications as well as prepare a device for an operation.

A User Guide is designed for network administrators and users, who set up or operate a device. To work with a device properly, a user must have

an idea about the principles of building and functioning of local networks as well as possess the next knowledge and skills:

Basic knowledge in the area of local and global networks;

Basicknowledgeintheareaofarchitectureandprinciples of work of TCP/IP networks;

Basic knowledge in the area of architecture and principles of work of Ethernet networks.

NetPing server room environmental monitoring solutions and IP power distribution units.

[8PWR] Device Overview

In this section a purpose of a NetPing 8/PWRv3/SMS device is described as well as its appearance.

Purpose of a Device

A NetPing 8/PWRv3/SMS device is an IP PDU device on 8 independently managed power supply channels, divided into two groups with four

channels. A device's peculiarity is having two independent power supply inputs. Each input allows to provide a power supply to one or both

groups of 4 output channels. Switching channels between power supply inputs can be done by a command from a web-interface of a device, from

an SNMP interface of a device, with the help of SMS-message or automatically when a power supply disappears on a main input.

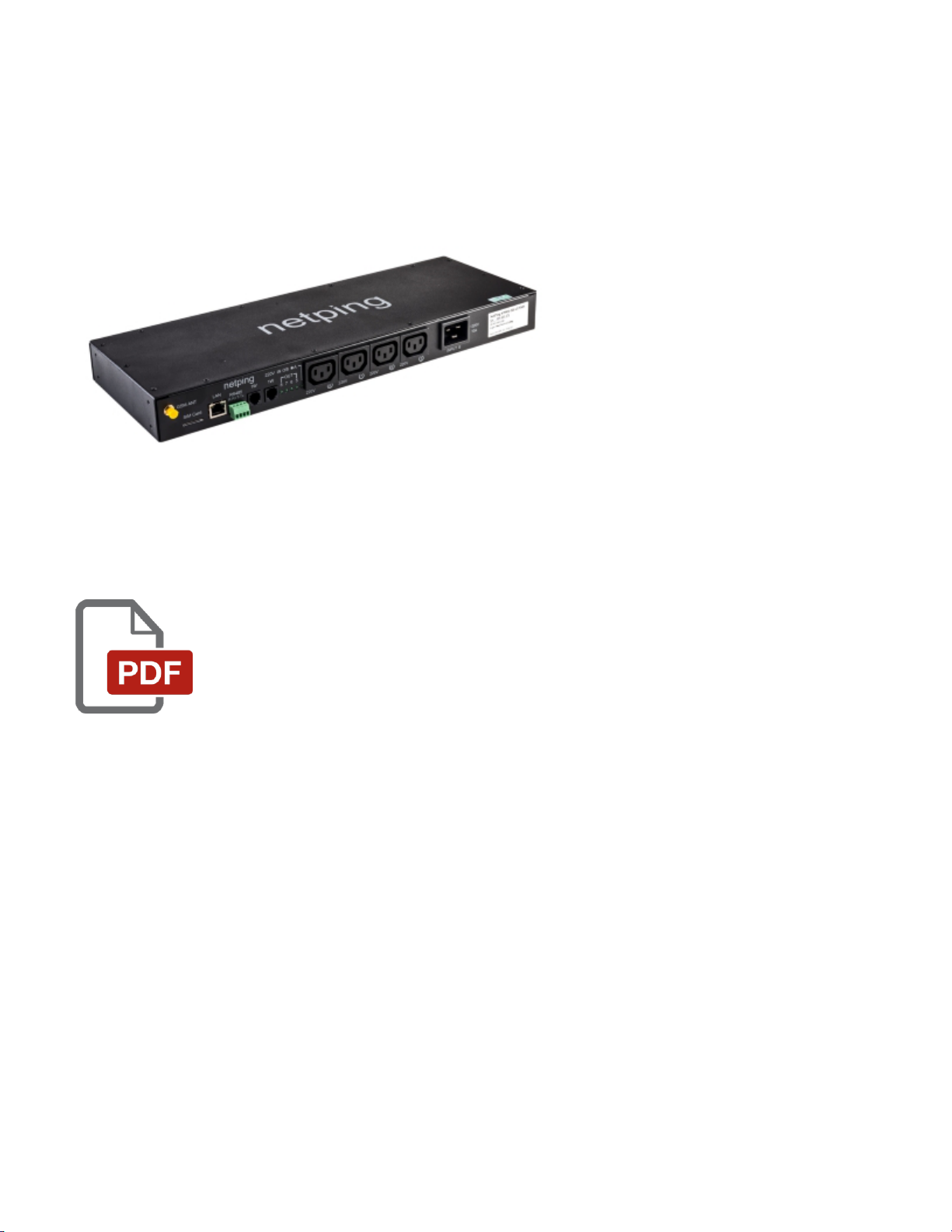

Appearance

A device is designed in standard dimensions for installation in a 19' rack. A height of a device is 1U. Inputs and output power supply channels are

on a front and back panels of a device. Fasteners for mounting in a rack ("ears") can be bolted toNetPing 8/PWRv3/SMS both front and back,

which gives a possibility to mount a device in a rack by any side. An appearance of device is shown on the pictures.

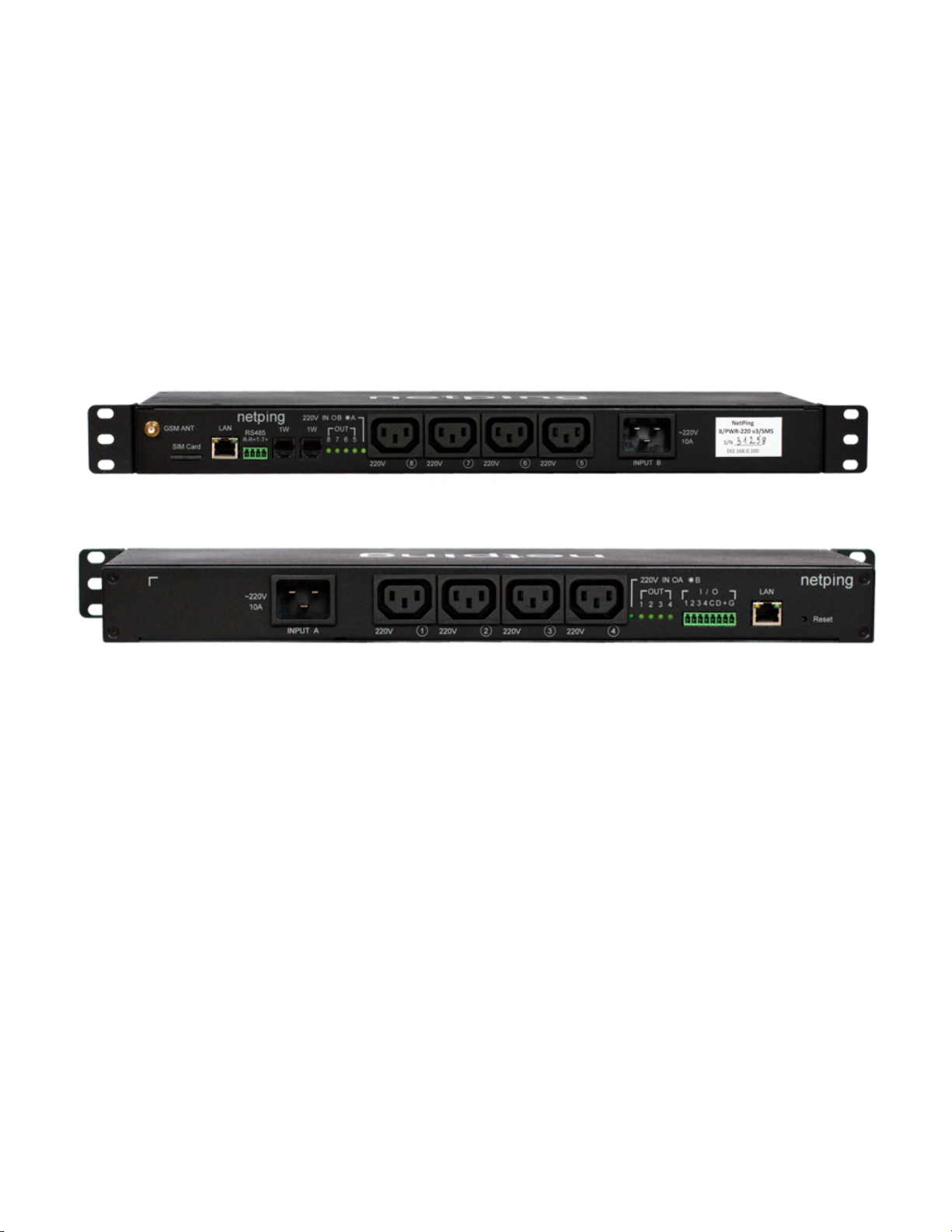

Front panel:

Back panel:

NetPing server room environmental monitoring solutions and IP power distribution units.

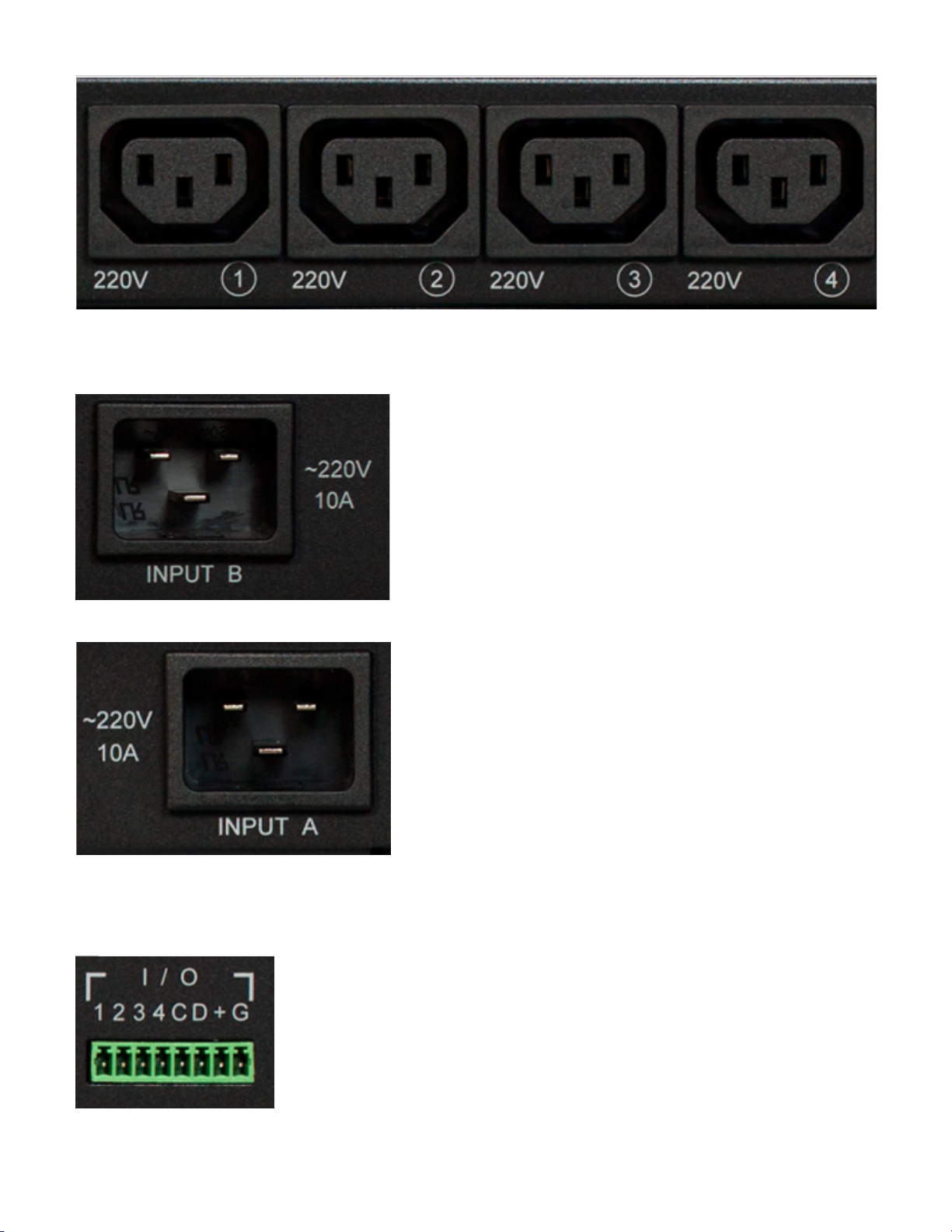

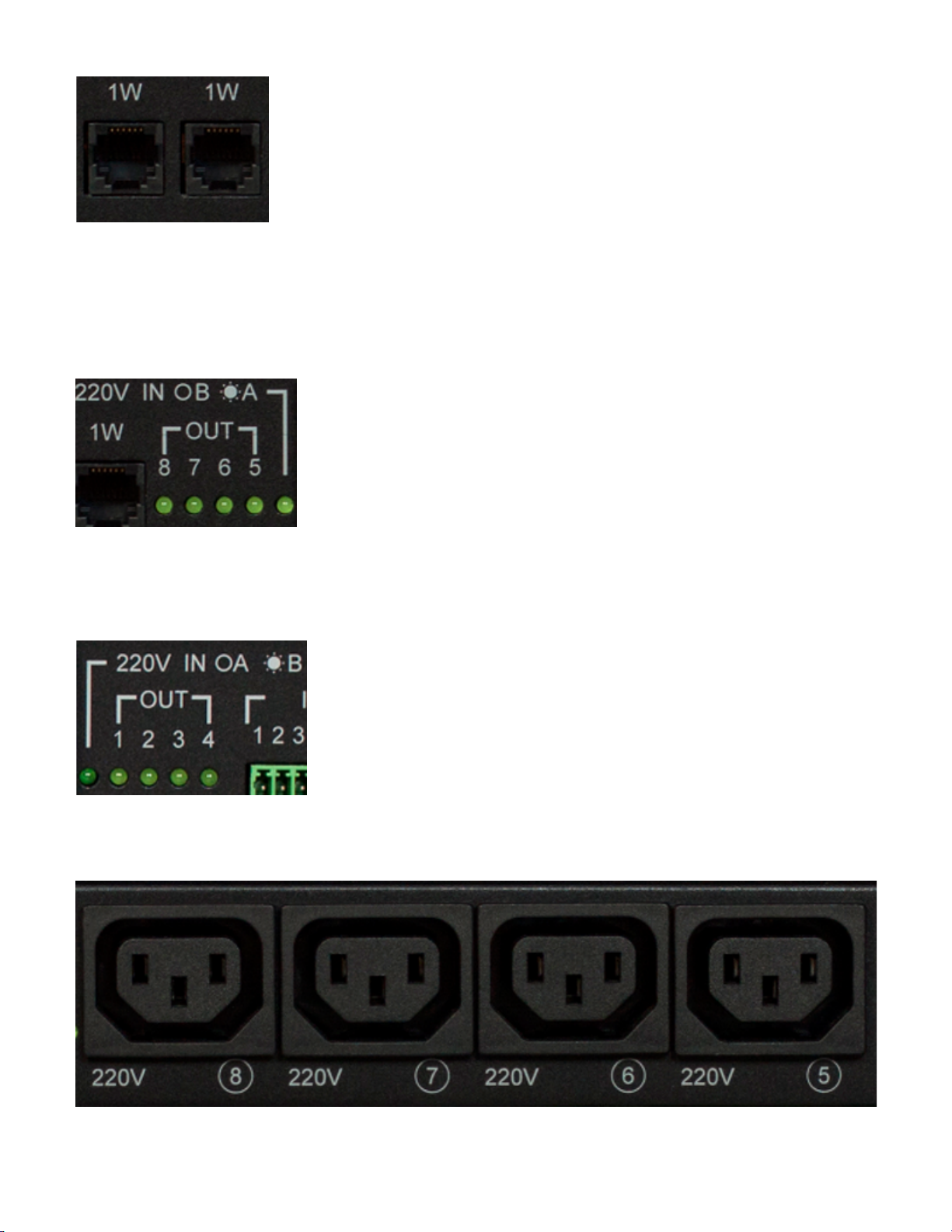

[8PWR] Sockets and Indication Elements

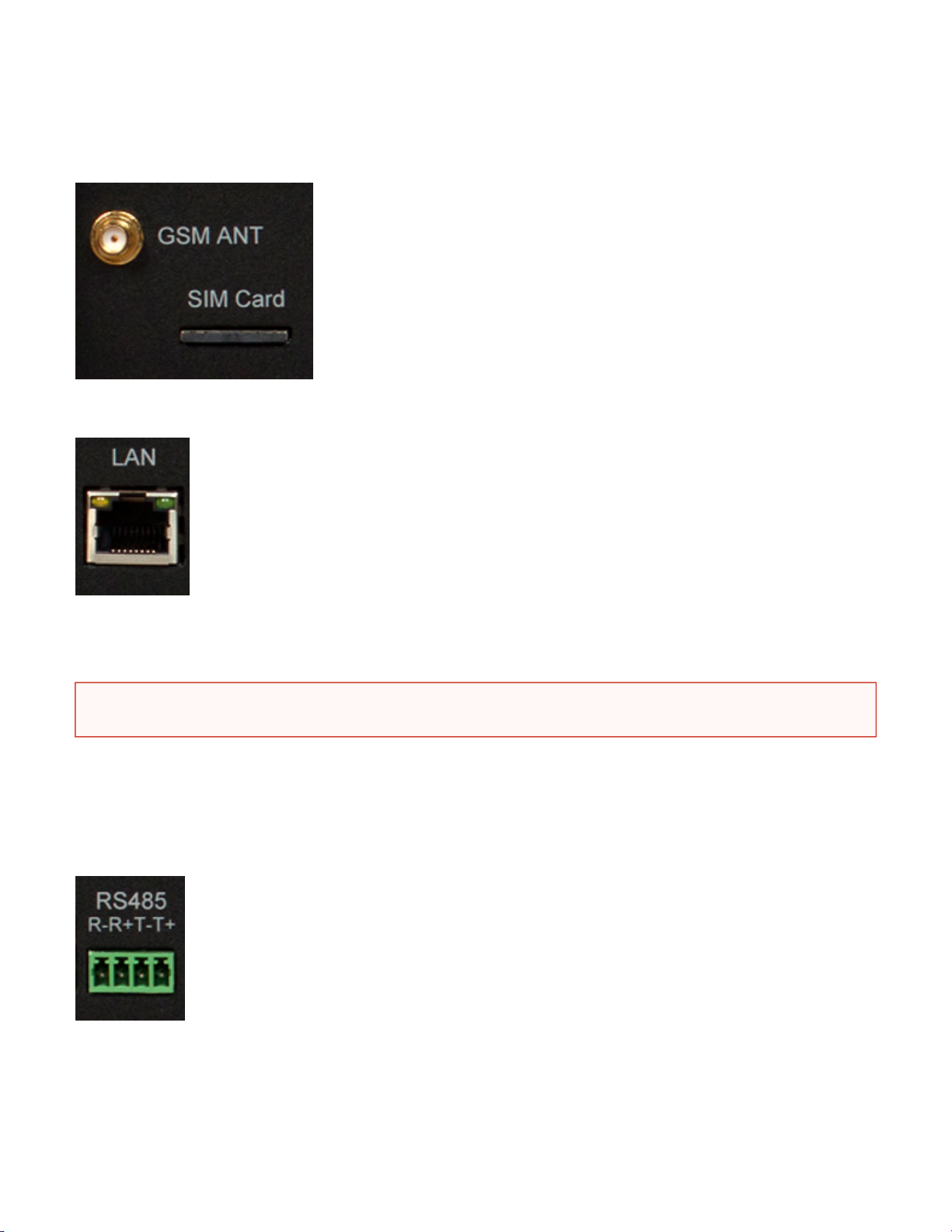

GSM Slots

There are sockets on a front panel on the left to connect an external antenna and a slot to install a SIM card.GSMANT  SIMCard

LAN Sockets

Ethernet 10/100 BASE-T port. A device has two such ports: one on a front panel and another one on a back panel. Together they form a dual port

Ethernet-switch. One port is used for a network connection, another one is used for additional equipment connection (another NetPing device,

administrator's laptop, etc.), which gives an opportunity to avoid installing of an additional switch on a remote site. The ports are equivalent,

anyone can be used for a network connection.

The Ethernet ports have two LEDs. A left one is its glowing means that a device is turned on, its blinking means transferring packages to aCPU,

network. A right one is its lighting means having "link" on this port, its blinking means receiving packages from a network.Link,

RS485 Socket

An RS485 socket is used to connect RS485 devices. An RS485 port can work in one of two modes: either as an RS485– Ethernet interface

converter by a TCP protocol or in an electricity meter CE102 (Energy meter)protocol analysis mode.

1W Sockets

1W sockets are used to plug sensors of a model line V4, which are built on a 1Wire technology.

Important!Connecting both ports to an Ethernet switch with a disabled STP protocol will cause to creation of a loop in an Ethernet

segment.

NetPing server room environmental monitoring solutions and IP power distribution units.

Power Supply Channels Status Indication

On a front panel there are LEDs that indicate a status of the second group of power supply channels. Channels 5 - 8 are included into this group.

A status of each channel is represented by a corresponding LED of an group. A LED is glowing when there is a voltage on an output (a relayOUT

is closed).

220vINOB *A LED shows from what input the second group of channels is fed. A LED glows when a power supply is fed from an input A, which

is located on a back panel of a device.

On a back panel there are LEDs that indicate a status of the first group of power supply channels.Channels 1 - 4 are included into this group. A

status of each channel is represented by a corresponding LED of an group. A LED is glowing when there is a voltage on an output (a relayOUT

is closed).

220vINOA *B LED shows from what input the first group of channels is fed. A LED glows when a power supply is fed from an inputB, which is

located on a front panel of a device.

Power Supply Channels

On a front panel there is the second group of power supply channels, with numbers of channels 5 – 8.

On a back panel there is the first group of power supply channels, with numbers of channels 1 -4.

NetPing server room environmental monitoring solutions and IP power distribution units.

Power Supply Inputs

On a front panel there is a power supply input B.

On a back panel there is a power supply input A.

Sensor Plugin Terminals

On a back panel there is a terminal block for sensors plugin. Assignment of the terminals is from left to right: IO1, IO2, IO3, IO4, SC, SD, +5V,

GND.

Reset Button

Altri manuali per 8/PWR-220 v4/SMS

Indice

Altri manuali NetPing Unità di distribuzione dell'energia

NetPing

NetPing 4/PWR-220 v4/SMS Manuale utente

NetPing

NetPing 2 IP PDU ETH 53R14 Manuale utente

NetPing

NetPing 8/PWR-220 v3/SMS Manuale utente

NetPing

NetPing 8/PWR-220 v4/SMS Manuale utente

NetPing

NetPing NP-SM4 Manuale utente

Manuali Unità di distribuzione dell'energia popolari di altre marche

hager

hager SP 015 Manuale utente

Pakedge

Pakedge PowerPak 9 Manuale utente

Pts

Pts 9042 Series Manuale utente

Shure

Shure WA405 Manuale utente

CORNING

CORNING CCH 4U Manuale utente

Panamax

Panamax M4LT-EX Manuale utente

PANCONNECT

PANCONNECT FLAT 3M Manuale utente

Raytheon

Raytheon 138-118 Manuale utente

D&R ELECTRONICS

D&R ELECTRONICS PDU-6SS Manuale utente

Botex

Botex PSA 322-6 DL Manuale utente

GE QuiXtra 4000 Guida rapida

RDL

RDL EZ Series Manuale utente

StarTech.com

StarTech.com RKPW161915 Manuale del sistema

Vertiv

Vertiv Knürr DI-Strip Rack PDU Manuale utente

ABB

ABB PSBS0065 Manuale

Baumuller

Baumuller BFN 3-1-0007-001 Manuale

Eaton

Eaton StructuredWiringSolutions ESWT41600 Manuale

GE GEK-45404F Manuale utente
