Netvox R313CC Manuale utente

Model：R313CC

Wireless 2-Gang Door/Window Sensor

R313CC

User Manual

This document contains proprietary technical information which is the property of NETVOX

Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in

whole or in part, without written permission of NETVOX Technology. The specifications are subject

to change without prior notice.

Table of Content

1. Introduction.................................................................................................................2

2.Appearance..................................................................................................................3

3. Main Features .............................................................................................................3

4. Set up Instruction........................................................................................................4

5. Data Report.................................................................................................................5

6. Installation ..................................................................................................................9

7. Important Maintenance Instruction ..........................................................................10

1. Introduction

R313CC is connected with two external reed switches which can be used for door and window

switch state detection. The wireless alarm and other functions can be realized through the built-in

wireless module. The device is compatible with LoRaWAN protocol.

LoRa Wireless Technology:

LoRa is a wireless communication technology famous for its long-distance transmission and low

power consumption. Compared with other communication methods, LoRa spread spectrum

modulation technique greatly extend the communication distance. It can be widely used in any use

case that requires long-distance and low-data wireless communications. For example, automatic

meter reading, building automation equipment, wireless security systems, industrial monitoring. It

has features like small size, low power consumption, long transmission distance, strong

anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure

interoperability between devices and gateways from different manufacturers.

2. Appearance

3. Main Features

• Compatible with LoRaWAN protocol

• 2 sections of 3V CR2450 button batteries

• Adopt SX1276 wireless communication module

• Frequency hopping spread spectrum

• Configuration parameters can be configured via a third-party software platform, data can be read

and alerts can be set via SMS text and email (optional)

• Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

• Low power consumption and long battery life

Note:

Battery life is determined by the sensor reporting frequency and other variables, please refer to

http://www.netvox.com.tw/electric/electric_calc.html

On this website, users can find battery lifetime for varied models at different configurations.

Indicator

Function Key

4. Set up Instruction

On/Off

Power on Insert batteries. (users may need a screwdriver to open)

Insert two sections of 3V CR2450 button batteries and close the battery cover.

Turn on Press any function key and the green and red indicator flashes once.

Turn off

(Restore to factory setting)

Press and hold the function key for 5 seconds and the green indicator flashes

20 times.

Power off Remove Batteries.

Note:

1. Remove and insert the battery, the device memorizes previous on/off

state by default.

2. On/off interval is suggested to be about 10 seconds to avoid the interference

of capacitor inductance and other energy storage components.

3. Press any function key and insert batteries at the same time, it will enter

engineer testing mode.

Network Joining

Never joined the network

Turn on the device to search the network.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had joined the network

Turn on the device to search the previous network.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Function Key

Press and hold for 5 seconds

Restore to factory setting / Turn off

The green indicator flashes 20 times: success

The green indicator remains off: fail

Press once The device is in the network: green indicator flashes once and sends a report

The device is not in the network: green indicator remains off

The device will immediately send a version packet and the report data with the status and voltage.

Data will be reported by default setting before any configuration.

Default setting:

Max Interval: 3600s

Min Interval: 3600s (Detect the reed state every Min Interval by default setting)

Battery Change :0x01 (0.1V)

R313CC status:

When the R313CC status changes, it will send a report.

Window / Door sensor open: 1

Window / Door sensor close: 0

The reported data is decoded by the Netvox LoRaWAN Application Command document and

http://loraresolver.netvoxcloud.com:8888/page/index

Sleeping Mode

The device is on and in the

network

Sleeping period: Min Interval.

When the reportchange exceeds setting value or the state changes: send a data

report according to Min Interval.

Low Voltage Warning

Low Voltage 2.4V

5. Data Report

Data report configuration and sending period are as following:

Min Interval

(Unit:second)

Max Interval

(Unit:second) Reportable Change Current Change≥

Reportable Change Current Change＜

Reportable Change

Any number

between 1~65535 Any number

between 1~65535 Can not be 0. Report

per Min Interval Report

per Max Interval

Example of ConfigureCmd

FPort：0x07

Bytes 1 1 Var (Fix =9 Bytes)

CmdID DeviceType NetvoxPayLoadData

CmdID– 1 byte

DeviceType– 1 byte – Device Type of Device

NetvoxPayLoadData– var bytes (Max=9bytes)

Description Device Cmd

Device

Type NetvoxPayLoadData

Config

ReportReq

R313CC

0x01

0x6C

MinTime

(2bytes

Unit: s)

MaxTime

(2bytes

Unit: s)

Battery

Change

(1byte Unit: 0.1v)

Reserved

(4Bytes, Fixed

0x00)

Config

ReportRsp 0x81 Status

(0x00_success)

Reserved

(8Bytes, Fixed 0x00)

ReadConfig

ReportReq 0x02 Reserved

(9Bytes, Fixed 0x00)

ReadConfig

ReportRsp 0x82

MinTime

(2bytes

Unit: s)

MaxTime

(2bytes

Unit: s)

Battery

Change

(1byte Unit: 0.1v)

Reserved

(4Bytes, Fixed

0x00)

(1) Command Configuration:

MinTime = 1min、MaxTime = 1min、BatteryChange = 0.1v

Downlink：016C003C003C0100000000 003C(Hex) = 60(Dec)

Response：

816C000000000000000000 (Configuration success)

816C010000000000000000 (Configuration failure)

(2) Read Configuration:

Downlink：026C000000000000000000

Response：826C003C003C0100000000（Current configuration）

Example for MinTime/MaxTime logic

Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change

i.e.BatteryVoltageChange=0.1V

MaxTime MaxTime

Sleeping(MinTime) Sleeping(MinTime)

Note:

MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration

regardless BtteryVoltageChange value.

Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change

i.e. BatteryVoltageChange= 0.1V.

MaxTime

Sleeping(MinTime) sleeping sleeping sleeping

0H 15th M 30th M 45th M 1H

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

REPORT 2.8V

Wake up and collects data

REPORTS 2.8V

Wakes up and collects data

REPORTS 2.8V

Wakes up and collects data

REPORTS 2.8V

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

REPORT 2.8V

Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change

i.e. BatteryVoltageChange= 0.1V.

MaxTime

sleeping sleeping

0H 15th M 30th M 45th M 1H 1H 10th M 1H 25th M

Notes:

(1) The device only wakes up and performs data sampling according to MinTime Interval.

When it is sleeping, it does not collect data.

(2) The data collected is compared with the last data reported. If the data change value is greater

than the ReportableChange value, the device reports according to MinTime interval.

If the data variation is not greater than the last data reported, the device reports according to

MaxTime interval.

(3) We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is

too low, the device wakes up frequently and the battery will be drained soon.

(4) Whenever the device sends a report, no matter resulting from data variation, button pushed

or MaxTime interval, another cycle of MinTime/MaxTime calculation is started.

Wakes up and collects

data

2.7V |2.7-2.8|=0.1

REPORTS 2.7V Wakes up and

collects data 2.7V

Does not report

Users push the button,

REPORTS 2.7V.

Recalculate MaxTime.

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

REPORT 2.8V

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

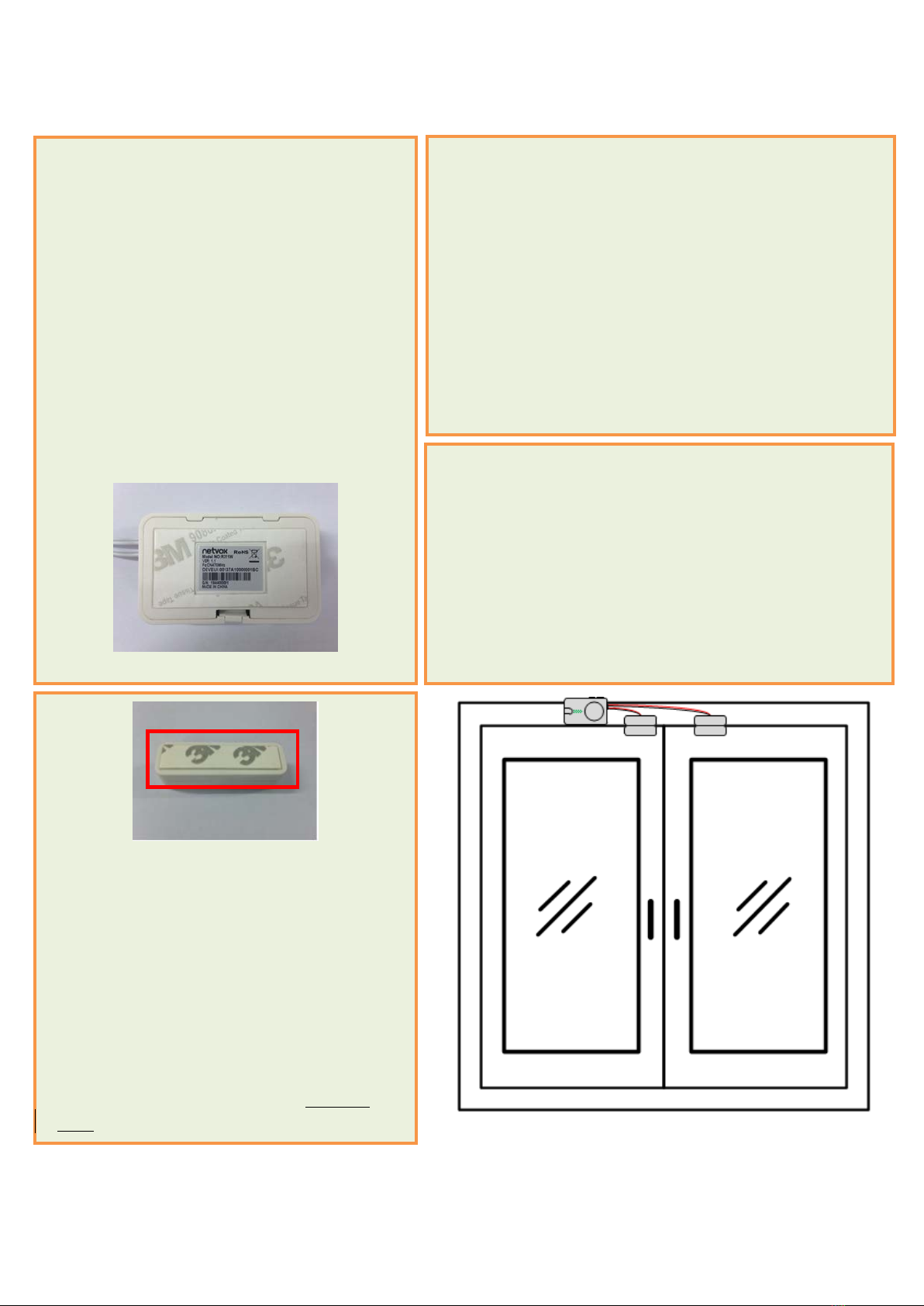

6. Installation

1. Tear off the 3M sticker on the back of the

R313CC, and stick the body to a smooth wall.

(Please do not stick it on a rough wall to avoid

the device from falling off after a long time of

use).

Note:

Please wipe the wall clean before installation

to avoid dust on the wall which may affect

the installation of the device.

Do not install the device in a metal shielded

box or in an environment with other

electrical equipment around it to avoid

affecting the wireless transmission of the

device.

2. Tear off the 3M sticker at the bottom of the

reed switch and the magnet (as the red frame

in the figure above).

Then, stick the reed switch and the magnet to

the door or window in parallel (as the figure on

the right).

Note:

The installation distance between the reed

switch and the magnet should be less than

2cm.

3. When the door or window is opened, the reed switch is

separated from the magnet, and the device reports the data

immediately.

4. If it detects that the battery voltage exceeds the

variation during Min Time, the data will be reported

immediately.

5. Whether the state of the reed switch status changes, the

data will be reported regularly when the Max Time.

Note:

When the reed switch is closed, the status is “0”.

When the reed switch is opened, the status is “1”.

R313CC is suitable below scenarios:

Door, window

Drawer

Archives

Closet

Refrigerators and freezers

Cargo ship hatch

The place needs to detect the opening and closing status.

Installation Diagram of R313CC
