USER MANUAL

DA-HDSDI

Multi Rate HD-SDI Distribution Amplifier

Network Electronics ASA

Thorøya

N-3204 Sandefjord, Norway

Phone: +47 33 48 99 99

Fax: +47 33 48 99 98

e-mail: [email protected]

www.network-electronics.com

E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice.

DA-HDSDI Rev. 4

DATE: 05 October 2007

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98

E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice.

Revision history

The latest version is always available in pdf-format on our web-site:

http://www.network-electronics.com/

Current revision of this document is the uppermost in the table below.

Revision Replaces Date Change Description

4 3 2007-10-05 Added Materials Declaration and EFUP

3 2 11.10.05 Specification update

2 1 14.06.04 Update of chapter 4.

1 0 25.04.03 Corrected printing errors

0 B 23.04.03 First release

B A 07.04.03 Preliminary version 2

A 19.02.03 Preliminary version

DA-HDSDI Rev. 4

DATE: 05 October 2007

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98

E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice.

Index

1. General......................................................................................................................................................4

2. Specifications............................................................................................................................................5

3. Format Configuration .............................................................................................................................6

3.1 Configuration Examples ......................................................................................................................7

4. Connector module....................................................................................................................................8

4.1 Mounting the connector module. .........................................................................................................8

5. Module status ...........................................................................................................................................9

5.1 GPI ALARM – Module Status Outputs ................................................................................................9

5.2 Front Panel - Status Monitoring .......................................................................................................10

Declaration of conformity with CE..........................................................................................................11

General environmental requirements for Network flashlink®equipment...........................................11

Product Warranty .....................................................................................................................................12

Materials declaration and recycling information ...................................................................................13

Materials declaration ................................................................................................................................13

Environmentally-friendly use period.......................................................................................................13

Recycling information ...............................................................................................................................14

DA-HDSDI Rev. 4

DATE: 05 October 2007

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98

1. General

The flashlink ® DA-HDSDI is a multi bit-rate distribution amplifier module providing high performance

media distribution for various signal formats from 19.4Mbps up to 1485Mbps. The unit can be configured

to do cable equalising and reclocking of SMPTE 292M and SMPTE 259M signal formats.

The input typically provides an automatic cable equaliser for up to 100 metres of cable (Belden 1694A at

1485Mbps) with 6 re-clocked outputs. The DA-HDSDI will detect HD and SD rates and automatically

switch to correct output slew-rate. The re-clocker supports the bit-rates; 143, 177, 270, 360, 540 and

1485Mbps. For other rates, the re-clocker automatically switches to bypass mode, and the DA-HDSDI

will work as a non-reclocking distribution amplifier with cable equaliser. The DA-HDSDI also has a

special DVB-ASI mode, enabling all possible rates including empty transport streams with only K28.5

padding packets. 3 of the outputs are non-inverting and suitable for DVB-ASI.

The DA-HDSDI is designed for all distribution purposes in studio, duplication and Broadcast

applications.

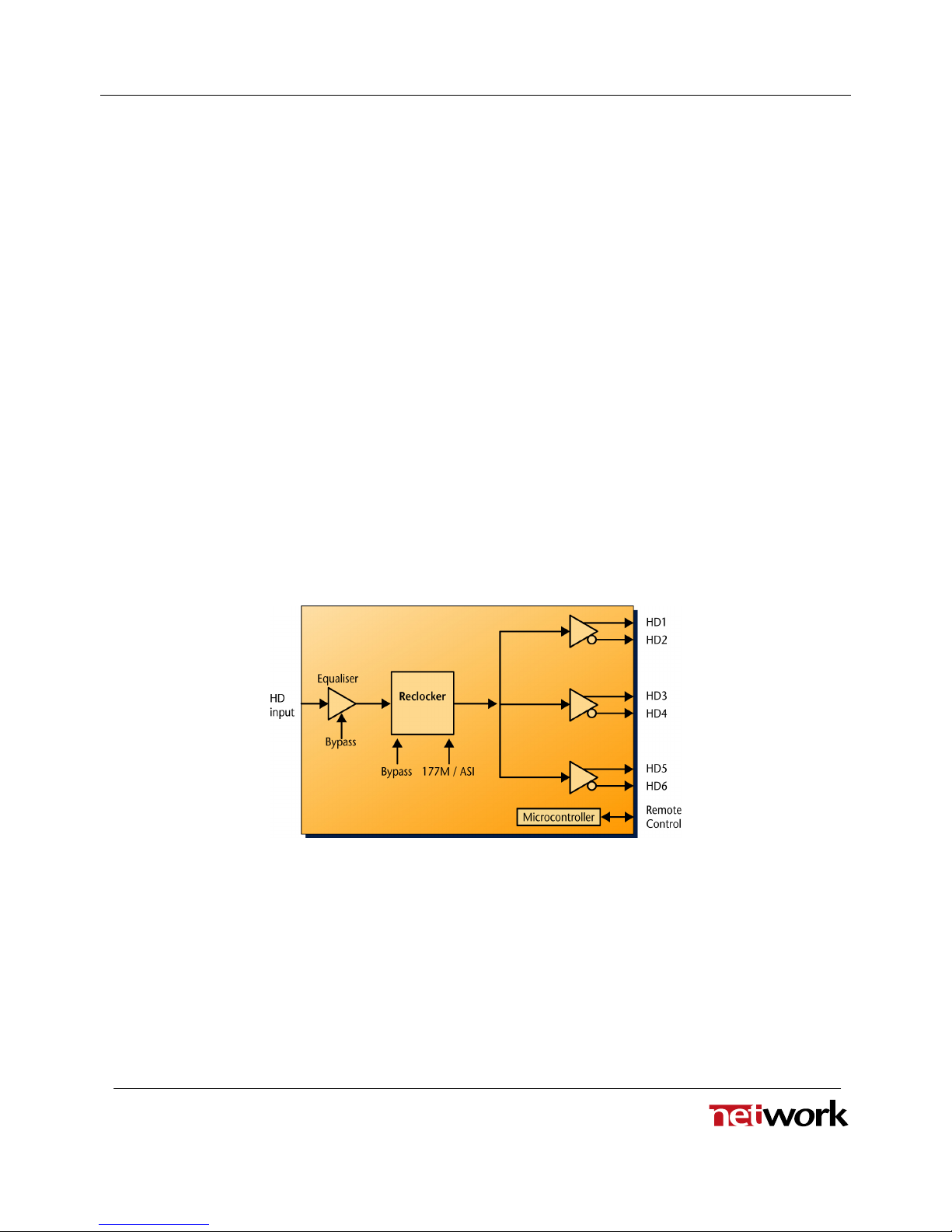

Figure 1 – DA-HDSDI Multi Bit-Rate Distribution Amplifier

E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice.

DA-HDSDI Rev. 4

DATE: 05 October 2007

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98

E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice.

2. Specifications

Electrical Input

Data rate NRZ: 19.4 to 1485 Mbps

Equalisation: Automatic

Cable equaliser and reclocker can be bypassed to

support bitrates down to 1Mbps.

Impedance: 75 ohm

Return loss: >15dB @ 1485MHz

Signal level: nom. 800mV

Apx. 200mV min. when equaliser switched to Bypass

Connector: BNC

Electrical Output

Number of outputs: 6

Connector: BNC

Impedance: 75 ohm

Return loss: >15dB, acc. to ITU-R BT.1120-3

Jitter: max 0.2UI

Peak to peak signal level: 0.8V ±0.1V

Signal polarity 3 non inverting,

3 inverting

Features

Re-clocking: Automatic SD / HD detection

Automatic output slew rate adjustment according to

SMPTE-259M / SMPTE 292M

Selectable loop bandwidth

Low: HD = 1.5MHz, SD = 500kHz

High: HD = 3MHz, SD = 1MHz

Supported clock rates: 143, 177, 270, 360, 540 and 1485Mbps

Input equalizer: Eq. bypass for non-video formats or low bit rates

Electrical

Power: +5V DC / 3W Max.

Control: Control system for access to setup and module status

with BITE (Built-In Test Equipment) for use with GYDA

Control System

Supported standards

SMPTE: SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M,

SMPTE310M

DVB-ASI: EN50083-9

AES: AES-3id (with EQ and RCL switched off)

DA-HDSDI Rev. 4

DATE: 05 October 2007

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98

3. Format Configuration

The DA-HDSDI supports a number of different formats. The correct configuration can either be set with

a DIP switch or with the GYDA Control System. The layout of DA-HDSDI is shown in the drawing

below with the DIP switch to the upper left position.

Figure 2 – DA-HDSDI board layout.

DIP switch configuration must be set according to the table below:

Switch # Label Function DIP=OFF Function DIP=ON Comment

1 ARB Output muted when

reclocker not in lock

Automatic Reclocker Bypass.

Output never muted

Output mute

2 EQM Equaliser forced not to

mute

Automatic muting of equaliser

when signal strength is to low

Input mute

3 RCL Reclocker Bypass Reclocker ON Reclocker mode

4 EQ Cable equaliser Bypass Cable equaliser ON Equaliser mode

5 ASI SDI 177Mbps Reclocker

support

DVB-ASI Reclocker support ASI mode

6 SLL Slew-rate override. Always

high rate selected

Slew-rate limitation

automatically adjusted. SMPTE

292M and 259M

Slew-rate select

7 BWL Reclocker loop-bandwidth

high

Reclocker loop-bandwidth low Loop bandwidth

select

8 OVR GYDA control

Config. with GYDA

Override GYDA control

Config. with DIP switch

Select GYDA

config. mode

All DIP switches are off when pointing towards the release handle.

When the default setting is selected, all clock rates for HD-SDI, SDI and DVB-ASI are automatically

configured by the module itself.

E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice.

DA-HDSDI Rev. 4

DATE: 05 October 2007

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98

3.1 Configuration Examples

Typical configurations for DA-HDSDI:

Figure 3 – Default; HD-SDI, SDI and DVB-ASI

Figure 4 – Transparent Mode with equalisation and no reclocking

Figure 5 – AES3id compatible and Transparent Mode without equalisation and reclocking

E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice.

DA-HDSDI Rev. 4

DATE: 05 October 2007

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98

4. Connector module

The DA-HDSDI has a dedicated connector module: DA-SDI-C1. This module is mounted at the rear of

the sub-rack. The module is shown in figure 6.

Figure 6 - Overview of the DA-SDI-C1 connector module

The electrical input signal is connected to the IN BNC and the electrical outputs are connected to the O1

to O6 BNC. Please note that O2, O4 and O6 has an inverted signal, so formats like DVB-ASI can not use

be used on these outputs.

Unused outputs should be terminated with 75 ohm.

4.1 Mounting the connector module.

The details of how the connector module is mounted, is found in the user manual for the sub-rack frame

FR-2RU-10-2.

This manual is also available from our web site: http://www.network-electronics.com/

E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice.

DA-HDSDI Rev. 4

DATE: 05 October 2007

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98

5. Module status

The status of the module can be monitored in three ways.

1. GYDA System Controller (optional).

2. GPI at the rear of the sub-rack.

3. LED’s at the front of the sub-rack.

Of these three, the GPI and the LED’s are mounted on the module itself, whereas the GYDA System

Controller is a separate module giving detailed information on the card status. The functions of the GPI

and the LED’s are described in sections 5.1 and 5.2. The GYDA controller is described in a separate user

manual.

5.1 GPI ALARM – Module Status Outputs

These outputs can be used for wiring up alarms for third party control systems. The GPI outputs are open

collector outputs, sinking to ground when an alarm is triggered. The GPI connector is shown in figure 7.

Electrical Maximums for GPI outputs

Max current: 100mA

Max voltage: 30V

DA-HDSDI module GPI pinning:

Signal Name Pin # Mode

Status General error status for the module. Pin 1 Open Collector

Rate Rate HD Pin 2 Open Collector

LOS Los Of Signal Pin 3 Open Collector

LOCK Reclocker in Lock Pin 4 Open Collector

Ground 0 volt pin Pin 8 0V.

Figure 7 - GPI Outlet

E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice.

DA-HDSDI Rev. 4

DATE: 05 October 2007

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 – Fax: +47 33 48 99 98

5.2 Front Panel - Status Monitoring

The status of the module can be easily monitored visually by the LED’s at the front of the module. The

LED’s are visible through the front panel as shown in figure 8 below.

(Text not printed on the front panel).

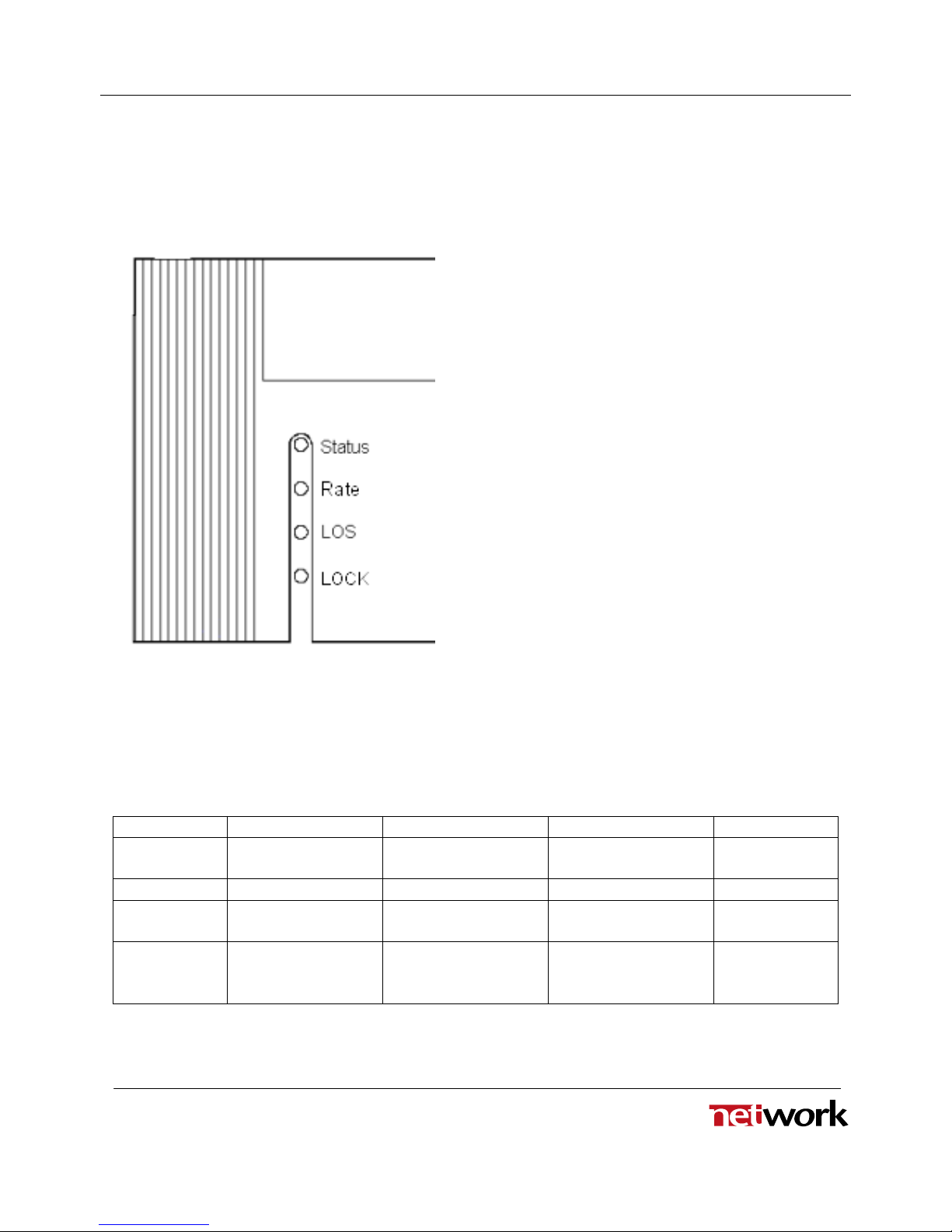

Figure 8 - Front panel indicator overview for DA-HDSDI

The DA-HDSDI has 4 LED’s each showing a status corresponding to the GPI pinning. The position of

the different LED’s is shown in figure 8.

Diode \ state Red LED Yellow LED Green LED No light

Status Module is faulty

Module is OK

Module power is OK

Module has no

power

Rate Rate not detected SD rate found HD rate found

LOS Loss of signal

No input signal.

LOS detection de-

activated (EQM=off)

Input signal present

LOCK Re-clocker is out of

lock

Re-clocker switched

off

Re-clocker is in lock

on a supported signal

format

E-mail: support@network-electronics.com – Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice.

Indice

Altri manuali Network Electronics Amplificatore

Network Electronics

Network Electronics V0106Q Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
