Gigabit Ethernet Media

Converter

Rev. 6

Flashlink User Manual

ETH1000MC

ETH1000MC Rev. 6

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 - Fax: +47 33 48 99 98

E-mail: [email protected] - Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice. 2

1 Revision history

The latest version is always available in pdf-format on our web-site:

http://www.network-electronics.com/

Revision Date Description

6 2007-10-26 New front page and removed old logo.

5 2007-10-05 Added Materials Declaration and EFUP

4 2006-02-22 Reduced maximum optical input power to -6dBm

3 2005-10-25 Added specification for jumbo frames

2 2005-02-21 Completed list of laser options

1 2004-08-10

First version

0 2004-01-30

Initial version

ETH1000MC Rev. 6

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 - Fax: +47 33 48 99 98

E-mail: [email protected] - Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice. 3

2 Index

1Revision history 2

2Index 3

3Versions 4

4Overview 4

5Specifications 5

6Laser options 6

7Connector module 7

8Status indicators 8

8.1 Front Panel LEDs 8

8.3 Dip switches 9

9Laser safety precautions 10

10 Declaration of conformity with CE 11

11 General environmental requirements for Network flashlink®equipment 11

12 Product Warranty 12

13 Materials declaration and recycling information 13

14 Materials declaration 13

15 Environmentally-friendly use period 13

16 Recycling information 14

ETH1000MC Rev. 6

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 - Fax: +47 33 48 99 98

3 Versions

There is only one version of the ETH-1000MC.

4 Overview

The flashlink ® ETH1000MC is a 1000Base-T to fibre converter module in the Network flashlink family.

The module converts a standard 1000 Mbit/s Ethernet signal on copper to fibre suitable for long haul

applications. The module has one electrical Ethernet port, and one fibre transceiver port (receiver fibre

connector and transmit fibre connector). The speed on the electrical connector is dependent of the DIP

switch setting. Speed will upon link connection automatically be set the highest possible. User can

independently enable or disable 10Mbit, 100Mbit or 1000Mbit. The fibre link can be used in one or two

fibre installations, or occupy two wavelengths in a WDM, CWDM or DWDM installation.

E-mail: [email protected] - Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice. 4

ETH1000MC Rev. 6

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 - Fax: +47 33 48 99 98

E-mail: [email protected] - Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice. 5

5 Specifications

Optical input:

Sensitivity: Better than –25dBm

Optical wavelength: 1200nm – 1610nm

Transmission circuit fibre: Single mode 9/125um compatible

Return loss: >40dB with single mode fibre

Detector damage threshold: >+1dBm

Max input power: -6 dBm

Connector: SC/UPC

Optical output:

Transmission circuit fibre: Single Mode

Light source: F-P/DFB Laser

Optical wavelength: See Laser Options below

Ethernet:

10BaseT/100BaseTx/1000BaseT on RJ-45 connectors, compliant with IEEE 802.3, IEEE 802.3u and

IEEE 802.3z, speed auto sensing and auto MDI/MDI-X. ETH1000MC supports jumbo frames up to

16000 bytes.

Electrical

Power: +5V DC/2W

Control: Control system for access to setup and module status with BITE

(Built-In Test Equipment)

ETH1000MC Rev. 6

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 - Fax: +47 33 48 99 98

E-mail: [email protected] - Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice. 6

6 Laser options

The ETH1000MC card is available in these versions:

Part number Wavelength Laser type Output power Receiver sensitivity

ETH1000MC-13T, -7.5dBm 1310 ±40 nm Fabry-Perot -7.5 dBm Better than –25 dBm

ETH1000MC-C1270, 0dBm 1270 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1290, 0dBm 1290 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1310, 0dBm 1310 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1330, 0dBm 1330 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1350, 0dBm 1350 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1370, 0dBm 1370 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1390, 0dBm 1390 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1470, 0dBm 1470 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1490, 0dBm 1490 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1510, 0dBm 1510 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1530, 0dBm 1530 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1550, 0dBm 1550 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1570, 0dBm 1570 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1590, 0dBm 1590 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC-C1610, 0dBm 1610 ±6 nm DFB 0 dBm Better than –25 dBm

ETH1000MC Rev. 6

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 - Fax: +47 33 48 99 98

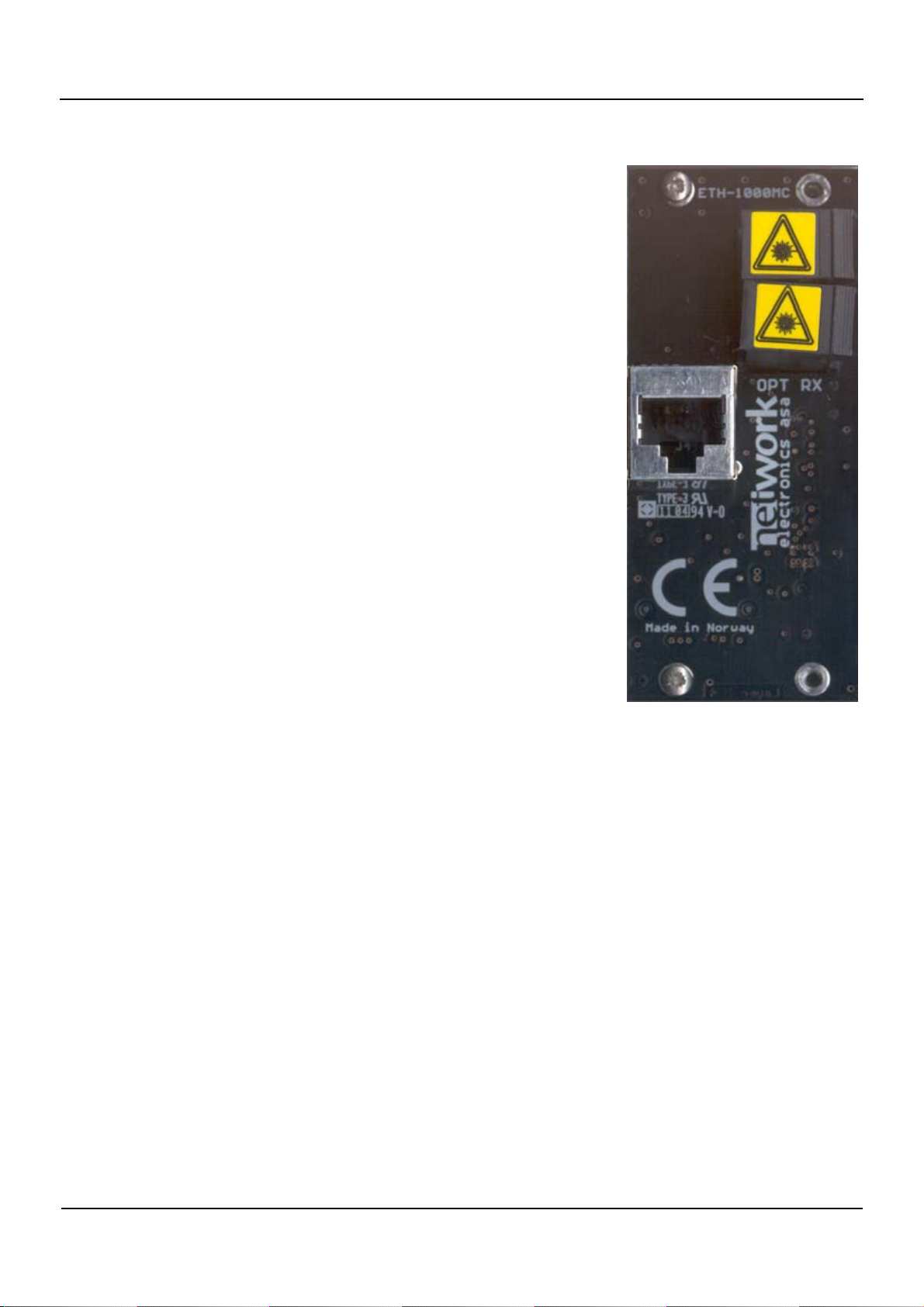

7 Connector module

The ETH1000MC has a dedicated connector module:

ETH1000MC-C1. This module is mounted at the rear of the sub-

rack

7.1 Mounting the connector module

The details of how the connector module is mounted, is found in the

user manual for the sub-rack frame FR-2RU-10-2.

This manual is also available from our web site:

http://www.network-electronics.com/

E-mail: [email protected] - Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice. 7

ETH1000MC Rev. 6

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 - Fax: +47 33 48 99 98

8 Status indicators

8.1 Front Panel LEDs

The status of the module can be easily monitored visually by

the LED’s at the front of the module

LED Description Green light Yellow light Red light No light

STAT Module

status Module self-test is

OK and power is

present.

•Module initialising

(takes approx. 2 sec).

•The laser is turned off.

•Module is faulty (fuse

blown, laser failure,

laser APC out of lock,

etc). The card needs

factory repairment.

Module has no

power.

LOS Loss of

optical

signal

Optical input signal

present. Note: This is

an optical

measurement, a green

light does not imply

that there exists a

valid Ethernet signal

on the optical input.

•No optical input

signal.

•Check fibre

connection.

•Check card in

opposite end.

LINK Ethernet link Ethernet link to

opposite end

established at

1000Mbit

Ethernet link to

opposite end

established at

10 or 100Mbit

Ethernet link to

opposite end

not established.

ACT Ethernet

activity Flashes when

Ethernet packets are

sent over the fibre

link. When the

Ethernet activity is

high, this will be on

continuously.

The fibre link is

idle, no packets

are sent on the

link.

E-mail: [email protected] - Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice. 8

ETH1000MC Rev. 6

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 - Fax: +47 33 48 99 98

8.3 Dip switches

The tables below explains the functionality of the dipswitches shown in the below figure.

Dip sw # 1

Dip sw # 8

Dip switch # Description

1 Enable 10Mbit

2 Enable 100Mbit

3 Enable 1000Mbit (GbE)

4 Reserved

5 Reserved

6 Reserved

7 Reserved

8 Gyda override/DIP

When DIP switch 1,2 and 3 are all on or all off, highest speed possible will be used when link

connection.

Switch 1 disables 10Mbit connection when DIP is closest to board edge. Switch 2 enables/disables

100Mbit and switch 3 enables/disables 1000Mbit.

Dip 4, 5, 6 and 7 are reserved.

Dip 8 sets if Gyda is able to configure or not. When Gyda override is set, the actual setting can be read by

using the info command (se Gyda user manual for details).

E-mail: [email protected] - Web: http://www.network-electronics.com/

Technical specifications are subject to be changed without notice. 9

ETH1000MC Rev. 6

Network Electronics ASA, P.O.Box 1020, N-3204 Sandefjord, Norway. Tel.: +47 33 48 99 99 - Fax: +47 33 48 99 98

9 Laser safety precautions

Guidelines to limit hazards from laser exposure:

Note: All the available EO (including ETH1000MC) units in the flashlink®range include a laser.

Therefore this note on laser safety should be read thoroughly.

The lasers emit light at wavelengths around 1310 nm or 1550 nm. This means that the human eye cannot

see the beam, and the blink reflex cannot protect the eye. (The human eye can see light between 400 nm

to 700 nm).

A laser beam can be harmful to the human eye (depending on laser power and exposure time). Therefore:

!! BE CAREFUL WHEN CONNECTING / DISCONNECTING FIBRE PIGTAILS (ENDS).

NEVER LOOK DIRECTLY INTO THE PIGTAIL OF THE LASER/FIBRE.

NEVER USE MICROSCOPES, MAGNIFYING GLASSES OR EYE LOUPES TO LOOK INTO A

FIBRE END.

USE LASER SAFETY GOGGLES BLOCKING LIGHT AT 1310 nm AND AT 1550 nm

Instruments exist to verify light output power: Power meters, IR-cards etc.

flashlink®features:

All the laser module cards in the flashlink®product range, are Class 1 laser products according to

IEC 825-1 1993, and class I according to 21 CFR 1040.10 when used in normal operation.

More details can be found in the user manual for the FR-2RU-10-2 frame.

Maximum output power*: 5 mW.

Operating wavelengths: > 1270 nm.

*Max power is for safety analysis only and does not represent device performance.
