HANDLING INSTRUCTION

opticalCON QUAD Maintenance

www.neutrik.com

BDA 522

QUAD

CAUTION: Laser radiation, do not look directly into beam of light!

Inspection & Dry cleaning (using FOCD-DC125)

Disconnect both cable ends for safety reasons.

Invisible laser radiation may be emitted from

disconnected fibers or connectors. Do not stare into

beams or view directly with optical instruments.

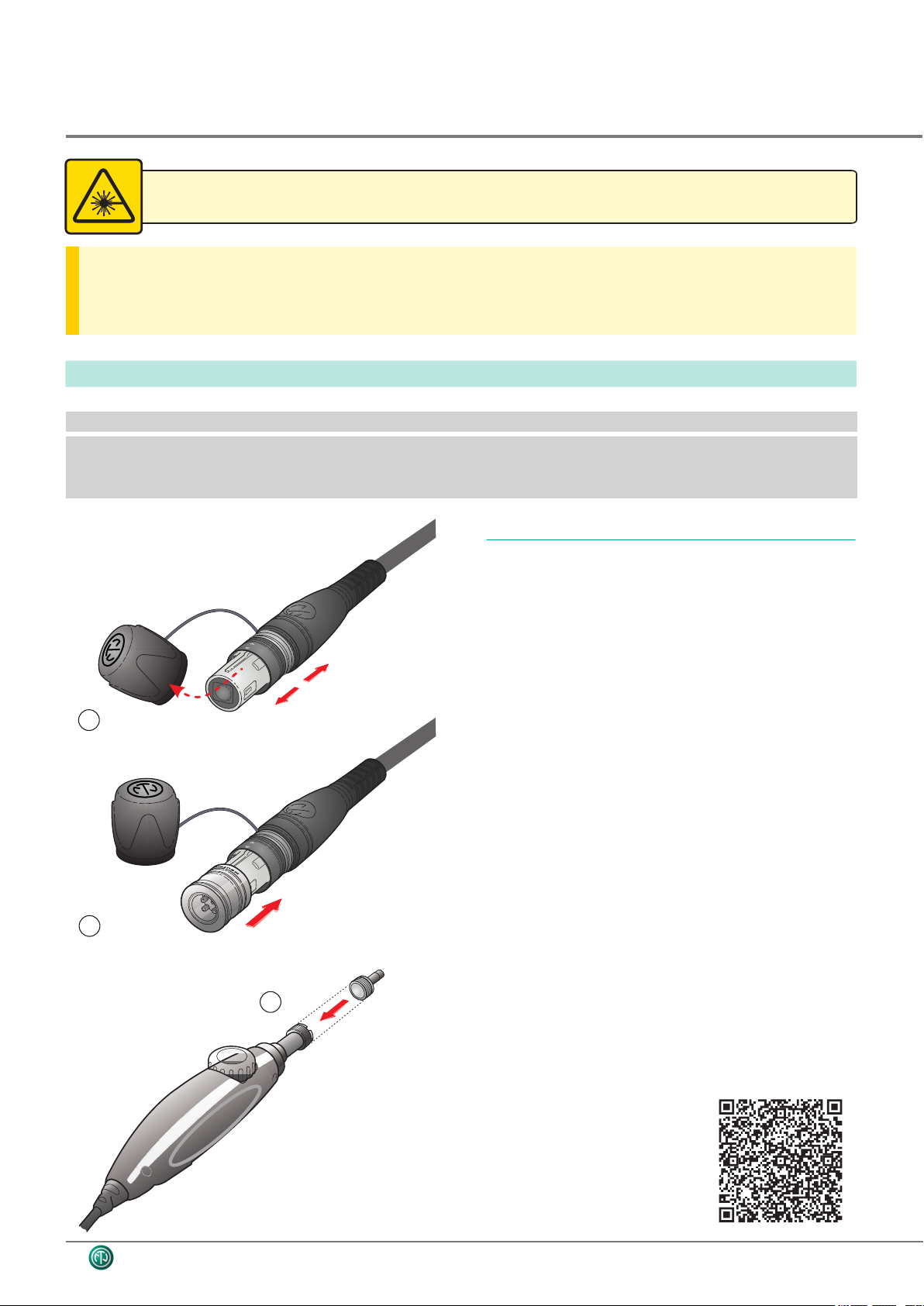

Remove dust cap from the connector (A) and mount

NEUTRIK FOCD-STQ inspection tool on it until it is

locked (B).

Prepare the optical fiber video probe with the

correlate tip (C).

Under the following QR-code you can find a list with

appropriate video probs and tips.

The sealing shutter mechanism of the opticalCON avoids contamination of the LC ferrule locked inside.

The dust-proof design reduces maintenance intervals to a minimum; if nevertheless necessary,

follows the maintenance procedure below to avoid damages on the due to inpropes cleaning.

I HANDLING INSTRUCTION

opticalCON QUAD

1.1

1.2

1.3

optical fiber Microscope

Service tool (FOCD-STQ)

BDA 522

A. Connector Cleaning / Inspection

Intervall: every 500 matings recommended

Tools: Ÿ NEUTRIK QUAD service Tool (FOCD-STQ)

Ÿ Dry Cleaner 1.25 mm (FOCD-DC125)

Ÿ optical fiber video probe

opticalCON

LC tip

opticalCON

During inspection procedure, make sure

that each ferrule is completely free of dust.

As a reference the ferrule has to look as

illustrated on Picture B.

BDA 522

Dry Cleaner 1.25 mm

(FOCD-DC125)

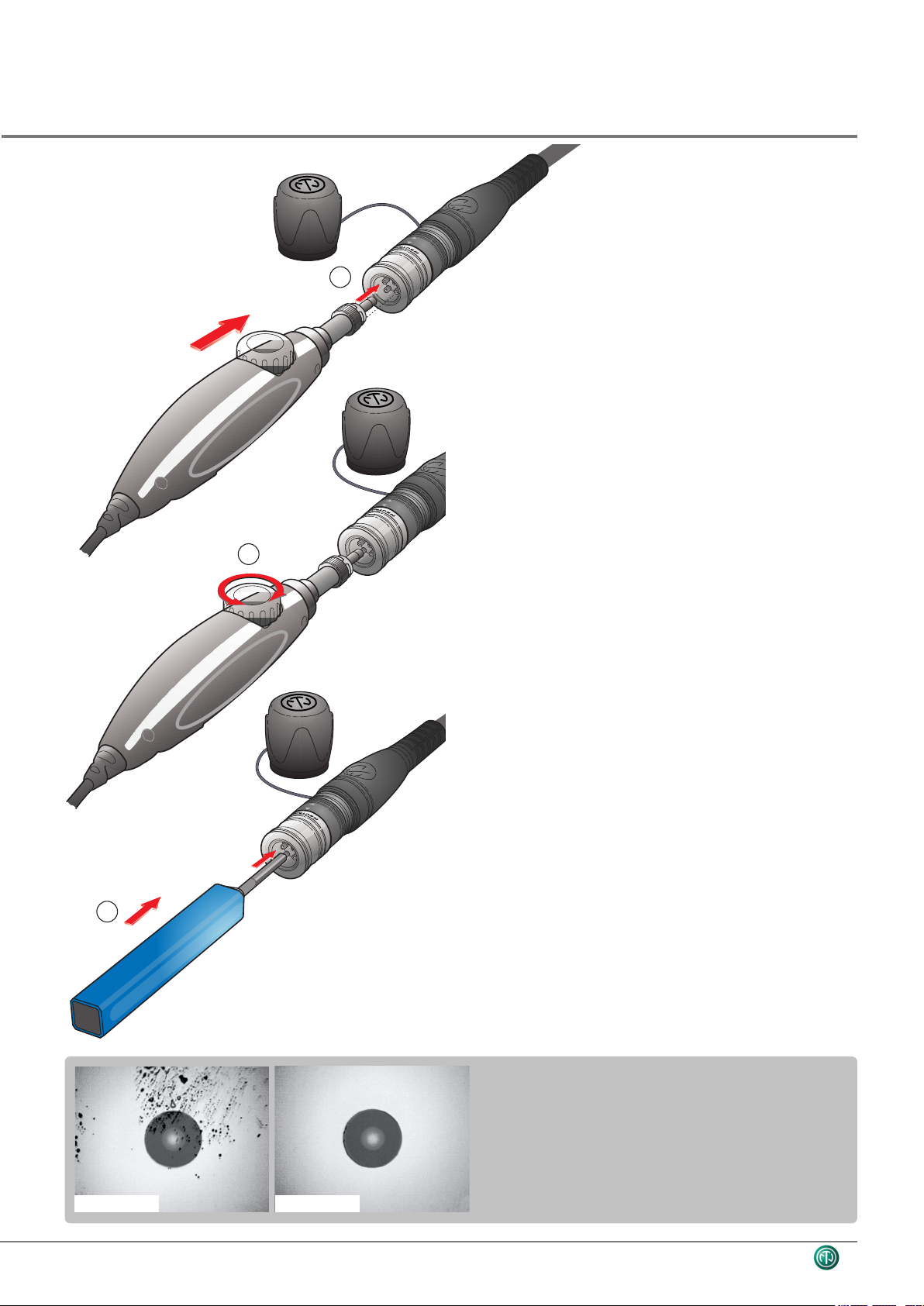

Insert the video probe tool into our NEUTRIK FOCD-

STQ service tool (D).

To inspect the LC ferrule surface focus the video

probe by rotating the focus wheel (E).

Clean the LC surface with the Dry Cleaner 1.25 mm

over the NEUTRIK QUAD service tool.

Push back and forth the dry cleaner to start the

cleaning procedure (F). An endless lint free tape

removes dust particle on the ferrule surface of the LC

connector.

Check the condition of the LC ferrule surface again

and if necessary repeat step 7.

1.4

1.5

1.6

1.7

1.8

Picture A: Picture B:

I HANDLING INSTRUCTION

opticalCON QUAD

opticalCON

After the cleaning procedure unlock the NEUTRIK

inspection tool (G).

Wet cleaning using lint-free wipes

Press forward the twist prevention and untight the

connector bushing and remove carefully the insert of

the connector housing.

Inspect the LC connectors with a video probe tool.

Fold a lint free wipe into a square with one drop of

cleaning fluid. Be sure that a portion of the wipe

remains dry.

Wipe slightly the ferrule tip in the cleaning fluid

moistened portion of the wipe. Immediately repeat

this wiping action on the dry section of the wipe to

remove any residual alcohol.

Dispose the wipe. NEVER REUSE A WIPE.

Inspect the connector again with a video probe tool.

Repeat the process if necessary.

After the cleaning procedure slide the connector

insert back into the connector housing. Align the key

on the insert to the cutout of the metal housing.

Screw both connector parts togehter.

1.9

2.1

2.2

2.3

2.4

2.5

2.6

2.7

2.8

2.9

I HANDLING INSTRUCTION

opticalCON QUAD

4BDA 522

cleaning fluid

FOCD-CFFOCD-DW

- 5 -

www.neutrik.com

NEUTRIK AG LI T: +423 / 237 24 24 F: +423 / 232 53 93

NEUTRIK USA Inc. USA T: +1 704 / 972 3050 F: +1 704 / 438 9202

( )

NEUTRIK UK Ltd. UK T: +44 1983 / 811 441 F: +44 1983 / 811 439

NEUTRIK Vertriebs GmbH DE / NL / AT/DK T: +49 8131 / 280 890 F: +49 8131 / 280 830

NEUTRIK France FR T: +33 1 / 4131 6750 F: +33 1 / 4131 0511

NEUTRIK Tokyo Ltd. JP T: +81 3 / 3663 4733 F: +81 3 / 3663 4796

NEUTRIK Hong Kong Ltd. HK T: +852 / 2687 6055 F: +852 / 2687 6052

NEUTRIK India Pvt. Ltd. IND T: +91 / 982 05 43 424 F: +91 / 22 26163 540

Draft. Nr.: BDA 522 V2 Update: 2020-09-07

I HANDLING INSTRUCTION

opticalCON QUAD

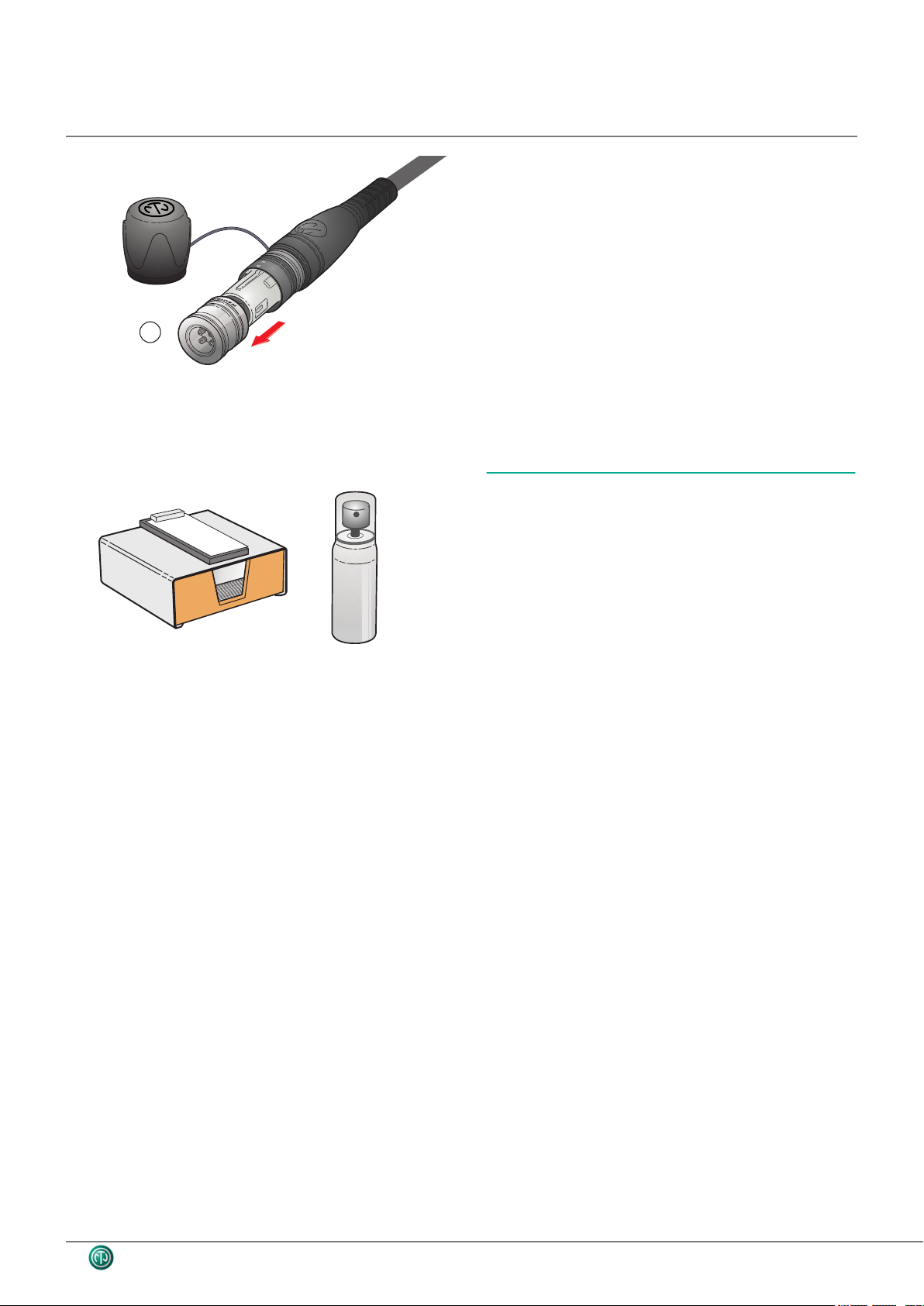

B. Chassis Cleaning

Dry cleaning using FOCD-DC125

Remove Dust cap. Insert the stick of the cleaning

device.

Make sure that the insertion position is on the

bottom of the LC connector hole in order to hit the

sealing shutter release bar.

Push the outer shell to start cleaning the LC

connector end face.

A “pop” sound indicates end of cleaning process.

Remove the cleaning device and put dust cap over

the stick.

Wet cleaning using lint-free wipes

Inspect the LC connectors with a video probe

tool.

Fold a lint free wipe into a square with one drop of

cleaning fluid. Be sure that a portion of the wipe

remains dry.

Wipe slightly the ferrule tip in the cleaning fluid

moistened portion of the wipe. Immediately repeat

this wiping action on the dry section of the wipe to

remove any residual alcohol.

Dispose the wipe. NEVER REUSE A WIPE.

Inspect the connector again with a video probe tool.

Repeat the process if necessary.

1.1

1.2

1.3

1.4

2.1

2.2

2.3

2.4

2.5

2.6

Dry Cleaner

(FOCD-DC125)

Tools: Ÿ Dry Cleaner 1.25 mm (FOCD-DC125)

Ÿ 99% isopropyl alcohol (IPA) or

cleaning fluid (FOCD-CF)

Ÿ Lint free wipes (FOCD-DW)

Ÿ Video probe (CAS-FOCD)

1.1

1.2

QUAD

Find more details of opticalCON

on www.neutrik.com.

cleaning fluid

FOCD-CFFOCD-DW

® ®

Draft. Nr.: BDA 522

www.neutrik.com
