New Air AF-310 Manuale utente

AF-310

Evaporative Cooling Fan

With Remote Control

*Pleaseread and savetheseinstructions.

General Safety Information

Read and save these instructions for future reference.

1. Carefullyread these instructions before attempting toassemble,install,operate,ormaintain

this unit.

2. Protect yourself and othersby observing all safetyprecautions.

3. Failure tocomplywiththese instructions couldresultinpersonalinjury and/or property

damage.

4. Thisproductisfor householduse onlyand isnotintended tobe used incommercialor

industrialenvironments.

Features:

lWorks as anaircooler, aircleaner, andhumidifier

lBoastsgerm-free water pumpcirclesystem

lClothcurtainmaterialsproduce moisturized, coolair

lVariableairspeeds forcustom-controlled comfort

l60-degree horizontalairflowwithautomaticoscillation for greaterairdistribution

lWide-range timer (0.5to7.5hours)

lFull-function remotecontrol

lIncludes LEDindicator lightsand lowwateralert

lIonizer eliminates airborne pollutants

Safety Instructions

1. Make surethe powersource conforms totheelectricalrequirementsofthisunit

(AC120V/60Hz).

2. Donotoperatethisappliance ifithas adamaged cord or plug.If the power cordor plug is

damaged,it mustbereplaced by the manufactureroran authorized servicefacilityinorder to

reduce the risk offire.

3. When notinuse,disconnectthe plug from thepoweroutlet.Whendisconnecting theplug

from the outlet, grasp the plug and notthemainpowercord.Be sure todrainthewater out

of thetank when not inusefor aprolongedperiod oftime.

4. Donot disassembleor alter the unit.

5. Donotuse the unitinareas withextremelyhigh or lowtemperatures (exceeding 50 or

below0),or whereit maybe exposedtodirect sunlight.

6. Topreventwater fromsplashing out ofthetank,use carewhen movingthe unit if it isfull.

7. Donot operatethe unit nearflammableliquids or inpotentiallydangerous locations.

8. Donot putheavyobjectson the unit as thismay causedamages or unit malfunction.

9. Thisapplianceisnotintended for usebypersons (including children) withreduced physical,

sensory ormentalcapabilities,orlack ofexperience andknowledge,unless they havebeen

given supervision or instruction concerning itsuse byaperson responsiblefor theirsafety.

10. Children shouldbe supervised toensurethey do notplay withthe appliance.

11. Before filling the unitwithwater,make sure the unitisswitched offand unpluggedfromthe

poweroutlet. Also make sure thewater levelisbelowthe MAX line indicator.

12. Switchtheunit off andunplug it before cleaning it or performing any maintenance.

13. Because thisappliance addsmoisture tothe air,toavoidexcessivehumidity,do notuse itfor

an extended period oftime insmall, enclosed areas.

14. Change the water frequentlyinorder tokeep it clean.

15. Thisunit mustbe operatedinan upright position and on aflat, levelsurface.

16. Donot operatethe unit inwet ordamp locations.

17. Donot install the unit inasmall, confined space such asacloset orcabinet.

18. DISPOSAL: Donotdispose ofthisproductas unsorted municipalwaste.It

may be necessary tohaveit collected separatelyforspecialtreatment.

Please Note:

1. Thisunit shouldnot be repaired or servicedby anyone exceptaspecialized technician.

2. Iftheunit tipsover,immediatelypull theplug fromthepower outlet,and thentaketheunit

toan authorized service agency or specialized technician forrepairs.

3. Toreduce therisk offire orelectricshock,donotusethisfanwithany SolidStatespeed

controldevice.

ListofParts

Figure1

Using the Remote Control:

Use the remotecontrol

within19 feet(6 meters) fromtheunit.

If the remotecontroldoes notwork from

ashortdistance away, try replacing

the batteries.Donot allowchildren to

play withtheremotecontrol.

Figure 2

BeforeOperating theUnit

1. Pull outthe water tankand fill itwithwater beforeoperating thefan(see Figure 3).Donot

pour water above40 intothe watertank.

2. For enhanced cooling,ice can be added tothe ice boxlocated withinthe base ofthe

watertank (seeFigure 4).

Figure 3Figure 4

Please Note:

1. Donotplace the ice boxintothewater tank when thewatertankisfull.Doing so

can cause water tooverflowof theunit.

2. Freeze the icebox each timebeforeplacing it inthewater tank.

3. The ice boxispermanentlysealed.Donotopen theice box or try toputthe cooling

geldirectlyintothe watertank.Thiscancause damage tothe water pump.

4. The gel withinthe ice boxisnon-toxic.

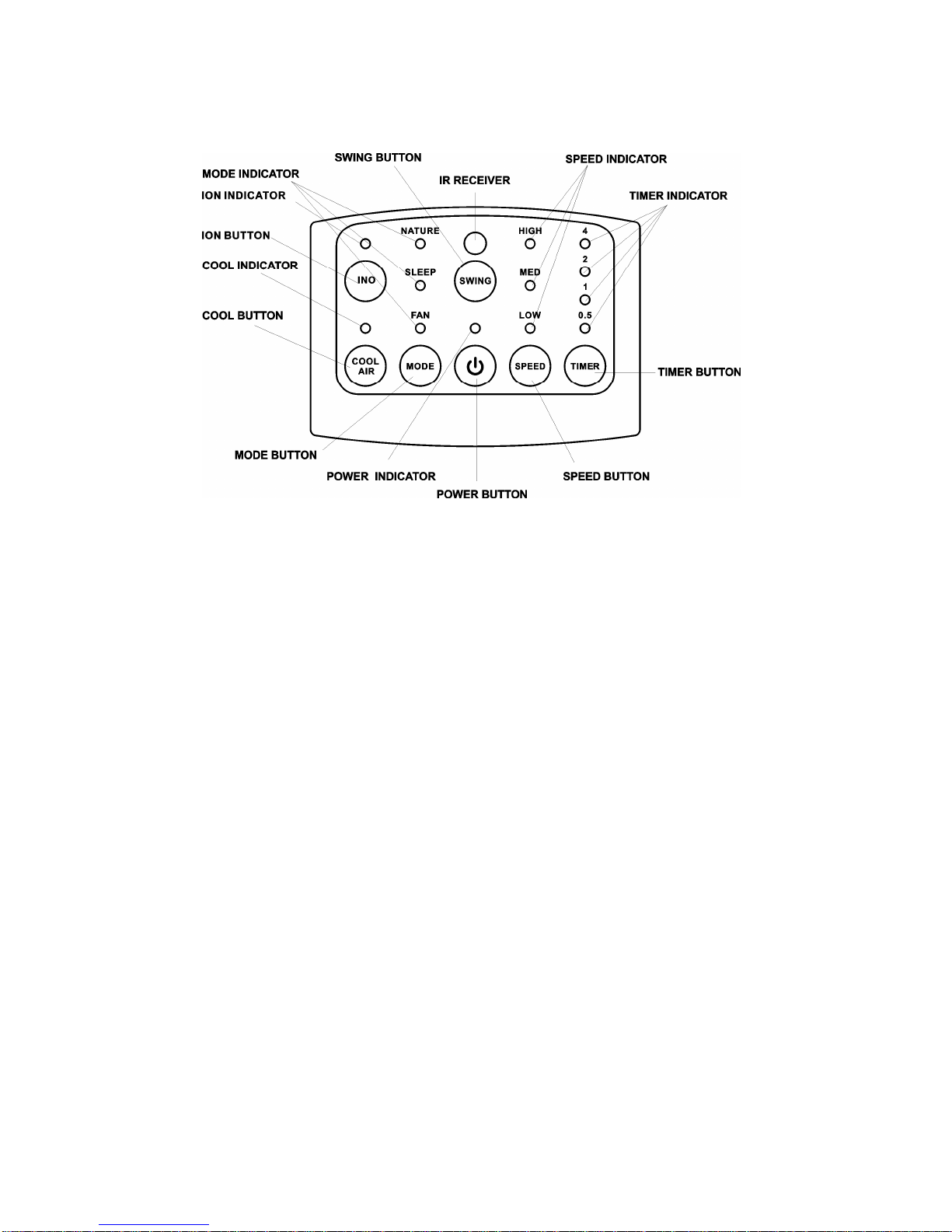

Operating Instructions

Figure5

POWERButton:

1. Connecttheplug intothe power outlet.Abeeping sound will beheard oncetheplug is

plugged in.

Press the

POWER

button. The

FAN

indicatorand

HIGH

speed indicator will turn on and beep.

The unit will operate on the strongest air setting in normalmode.

3. Press the POWER button againtoshutoff theunit.

MODEButton:

1. Press the

MODE

button. At this time, the

NATURE

indicatorwill turnon. Press the

POWER

button 2timesto set the unitto

SLEEP

mode. Toreturnto normal”mode, press the

POWER

button 3 times.

For HIGHSpeed + SLEEPMode:

1. Onthe HIGH speed mode,press the SLEEP mode button.

2. Press the SLEEP buttonwhenthe SPEED mode istoset SLEEP modewith HIGH wind

speed.Atthistime,boththe HIGH and SLEEP indicators will turnon.Thewindspeed will

then automaticallychange as follows:

•First 0.5Hour: The unitwill alternateon HIGH and MED wind speedevery 10 seconds.

•Second 0.5Hour:The unit will switch tothe MED windspeed setting.

•After 1Hour Until Shut-Off:The unitwill switch tothe LOW wind speed setting.

For MEDSpeed + SLEEPMode:

1. Press the SLEEP buttonwhen the SPEED mode issetto MED.Thiswill program the

unit toworkin SLEEP mode with MED windspeed. Atthistime,boththe MED and SLEEP

indicators will turn on.The wind speed will automaticallychange as follows:

•First0.5Hour:The unit will alternateon MED and LOW wind speeds every 10

seconds.

•After 0.5HourUntil Shut-Off:The unit will operateon LOW wind speed.

LOWSpeed + SLEEPMode:

1. Press the SLEEP button when the SPEED mode issetto LOW.Thiswill program the

unittoworkin SLEEP mode with LOW wind speed.Atthistime,boththe LOW and

SLEEPindicators will turnon.The unitwill operateon LOW wind speed every 10

seconds and stop 5secondswhilealternating every 15 seconds until the powerturnsoff.

Please Note: Toavoidovercooling,do notadjustthedirection ofthe air directlyonto

peopleor objects.

HIGHSpeed+ NATUREMode:

1. Press the NATURE button whenthe SPEED mode issetto HIGH.Thiswill program the

unittowork in NATURE mode with HIGH wind speed.Atthistime,boththe HIGH and

NATURE indicators will turnon.The wind speed will automaticallychange according to

thisschedule:

HIGH speed 5sec. àLOW speed 5sec. àMED speed 5sec. àstop 5sec. àMED

speed 10 sec. àHIGH speed 10 sec. àMED speed 5sec. àLOW speed 5sec. à

stop 5sec. àMED speed 5sec. àHIGH speed 5sec. àLOW speed 5sec. àstop

5sec.

The unitwill operateinthiscycleuntil the poweristurnedoff.

MEDSpeed + NATUREMode:

1. Press the NATURE button when the SPEED mode issetto MED wind speed.Thiswill

program the unittowork in NATURE modewith MED wind speed.Atthistime,boththe MED

and NATURE indicators will turn on.The windspeedwill automaticallychangeaccording to

thisschedule:

MED speed 5sec. àLOW speed 5sec. àMED speed 5sec. àLOW 5sec. àstop

sec. àMED speed 10 sec. àLOW speed 10 sec. àMED speed 5sec. àLOW 5sec.

àstop 5sec. àMED speed 5sec. àLOW speed 5sec. àstop5sec.

The unitwill operateinthiscycleuntil the poweristurnedoff.

LOWSpeed + NATUREMode:

1. Press the NATURE button whenthe SPEED mode issetto LOW windspeed.Thiswill

programtheunittoworkin NATURE mode with LOW windspeed.Atthistime,boththe

LOW and NATURE indicatorswill turnon.Thewind speedwill automaticallychange

according tothisschedule:

MED speed 5sec. àLOW speed 15 sec. àMED speed 5sec. àLOW 15 sec. à

stop 5sec. àMED speed 5sec. àLOW speed 10sec. àMED speed 5sec. àLOW

10 sec. àstop 5sec. àMED speed 5sec. àLOW speed 20 sec. àstop5sec.

The unitwill operateinthiscycleuntil the poweristurnedoff.

SPEEDButton

1. When the POWER button ispressed,the HIGH

speed indicator

will turn on and the unitwill

operateon thestrongestwind setting.

2. Press the SPEED buttononce again.Atthistime,the MED

speedindicator

will turn on

and the unit will operateon the medium wind setting.

3. Press the SPEED button once more.The LOW

speedindicator

will turnonand the unit

will operateonthe lowestwind setting.

SWING Button

1. Press the SWING button.Atthistime,theindicators will turn onand the louvers will

swing (covers 60 degrees horizontally).

2. Press the SWING buttonagaintostop the unitatisdesired position.Theindicator will

turn offatthistime.

TIMERButton

1. Press the TIMER button tosetthe timer.Every press will add another30 minutes ofoperating

time withamaximumofup to7.5hours.The programmed timewill be indicated on the

display.

2. Tostopthetimer,pressthe TIMER button16 times (onemorepressafterreaching 7.5hours).

The TIMER indicator will turnoff.

COOLButton

1. Press the COOL button.If the tankisfilled toasufficientlevel,the COOL indicator will

turn onand thepump will begintowork.

2. After about3minutes,the unitwill provide cool, humidified air.

3. Press the COOL button againtoshutoffthepump.The COOL indicator will turnoff,and

the unitwill produce fresh,dry air.

Please Note:

1. Ifthe COOL buttonispressed whenthere isinsufficientwaterinthetank,analarm will

sound after 90seconds.The COOL indicator will continue toflash for 10 seconds.

After 10seconds, thealarm will stop and the COOL indicator will also turn off.

2. The unitcan also be used withoutwater.Inthiscase,it will operateas anormalelectric

fan.Ifthisisdesired, makesure the COOL button isin OFF mode.

IONButton

Press the ION button.The ION indicator will turnon and theionizer will starttowork.Astream

of ions will be produced withthe coolair.

AirDirection Lever

Adjustthe direction ofthe inside wind bar by turning thelever.You will also be abletoadjustthe

airtoflowverticallyinan up-down”direction.

Technical Specifications

Rated

Voltage Rated

Frequency Rated

Power

Water

Consumption

Water

Tank

Capacity

Dimensions

(mm) N.W.

120V~ 60Hz 80W 0.2-0.25L/h 4L 308X292X906

5.1kg

Cleaning andMaintenance

lIMPORTANT: Disconnectthe plug fromthe poweroutletbeforecleaning ormaintaining this

appliance.

lClean the outside housing withamoist,damp cloth.

lFrom time totime,depending on the natureofyour water supply,youmay need toclean the

inside of the water tankby following these steps:

1. Fillthe water tank with1cup(8 oz.)of undiluted whitevinegar;

2. Let thesolution sit for20 minutes.

3. Withthe vinegar inthe watertank,clean allor interior surfaces withasoft clothoruse a

brush toremovebuild-up.

4. Rinse the water tank thoroughlywithclean watertoremoveany residualbuild-upor

solution.

Cleaning the Filter (refer tothe figure below,then followthesteps)

Tokeep your evaporativefan working efficiently, clean thefilter systemonce every twoweeks.

1. Removethe back cover and dustfilter fromtheunit.

2. Removethe cooling pad from theunit;

3. Rinse the filternet andcooling pad withwater,and then dry themindirect sunlight.

4. Replace the filter andcoolingpad.

Troubleshooting

Problem PossibleReasons Solutions

The unit

produces

no air.

lThere isno power.

lSome partsaredamaged. lConnectthe mainlead,and then pressthe

POWER button.

lTake theunittoanauthorized service

agency or technician for repairs.

The unit

cannotbe

turned off.

lThe POWER buttonwas

not pressed

lSome partsmay be

damaged.

lPress the POWER button toturn the unit

off.

lTake theunittoanauthorized service

agency or technician for repairs.

The unit

makes alot

of noise.

lForeign objectsare

stuck inside theunit

lThe motorisdefective.

lThe airwheel isloose.

lTake offthe side cover board,then

net.

Removeany foreign objects.

lTake theunittoanauthorized service

agency or technician for repairs.

The fan

doesn’t

humidify.

lThere isinsufficientwater.

lThe pump isout oforder.

lThe waterpipe has come

off.

lAdd watertothe tank.

lTake theunittoanauthorized service

agency or technician for repairs.

There isno

swing.lThe swingmotoris

defective.lTake theunittoanauthorized service

agency or technician for repairs.

Altri manuali per AF-310

Indice

Altri manuali New Air Hardware per computer

New Air

New Air AF-310 Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
