READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Safety Information & Warnings ...................................................... 4

Heater Installation .......................................................................... 6

Operation ........................................................................................ 8

Cleaning & Storage.......................................................................... 8

Specifications .................................................................................. 9

Troubleshooting............................................................................ 10

Limited Manufacturer’s Warranty ................................................ 11

PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER

Note: There may be a trace of smoke or odor when this unit is first operated.

Don’t be alarmed. This indicates that a drop of oil fell on the heating coil

during the manufacturing process. It will quickly evaporate and should not re-

occur.

Make sure that the room in which the appliance is located is well ventilated

during its operation. It is normal for the appliance to emit small cracking

sounds when you turn it on for the first time. Do not be alarmed.

SAVE THESE INSTRUCTIONS

WARNING –RISK OF FIRE

DO NOT USE AS A RESIDENTIAL

OR HOUSEHOLD HEATER

CAUTION:This appliance is not intended for use by persons (including children)

with reduced physical, sensory, or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

http://www.NewAir.com

SAFETY INFORMATION & WARNINGS

When using any electrical appliance, basic safety precautions must

be followed in order to reduce the risk of fire, electrical shock

and/or injury to persons or property. Be sure to read all

instructions before using this appliance and observe the following

safety tips:

This heater is hot when in use. To avoid burns, do not let bare skin touch the

hot surface. Always use the handle when moving this heater. The trim

around the air outlet grille becomes hot during heater operation. Keep

combustible materials such as furniture, pillows, bedding, papers, clothes,

and curtains at least 3 feet (0.9 m) from the front of the heater.

Extreme caution is necessary when any heater is used by or near children or

invalids, and whenever the heater is left operating and unattended.

Do not install less than 6 feet (1.9 m) from the floor.

Do not operate the heater if the supplied wire is damaged, the heater

malfunctions, or the heater has been dropped or damaged in any manner.

Return heater to authorized service facility for examination, electrical or

mechanical adjustment, or repair.

Do not use the heater outdoors.

This heater is not intended for use in bathrooms, laundry areas and similar

humid indoor locations. Never put a heater where it may fall into a bathtub

or other water container.

Connect to properly grounded outlets only. Check heater voltage and

amperage on the back of the heater to make sure it agrees with the electric

service supplied.

Do not insert or allow foreign objects to enter any ventilation or exhaust

opening as this may cause an electric shock or fire, or damage to the heater.

To prevent a possible fire, do not block air intakes or exhaust in any manner.

Do not use on soft surfaces, like a bed, where openings may become

blocked.

All electrical heaters have hot, arcing, or sparking parts inside. Do not use in

areas where gasoline, paint, or flammable liquids are used or stored or

where the unit will be exposed to flammable vapors.

A Name You can Trust

SAFETY INFORMATION & WARNINGS

Do not modify the heater. Use it only as described in this

manual. Any other use not recommended by the manufacturer

may cause fire, electric shock, or injury to persons.

This heater includes a visual alarm (red light) to warn that

parts of the heater are overheating. If the red light turns on, immediately

turn heater off and inspect for any objects on or adjacent to the heater that

may cause high temperatures. DO NOT OPERATE WHEN RED LIGHT IS ON.

Always use a certified electrician should new circuits or outlets be required.

Disconnect all power supply before performing any cleaning, maintenance,

or relocation of the unit.

When transporting or storing the unit, keep in a dry place, free from

excessive vibration, and store so as to avoid damage.

Make sure that no pieces of polystyrene or other packaging material have

been left between one element of the appliance and another. It may be

necessary to clean the appliance with a vacuum cleaner.

Do not run in locations when the heater will be left unattended for long

periods of time.

Do not use attachments or filters. They are not recommended.

Use this heater only as described in this manual. Any other use not

recommended by the manufacturer may cause fire, electric shock or injury

to persons.

SAVE THESE INSTRUCTIONS

http://www.NewAir.com

HEATER INSTALLATION

!NOTE:To prevent personal injury always use a licensed electrician to install

new outlets or circuits.

HEATER LOCATION AND CLEARANCES

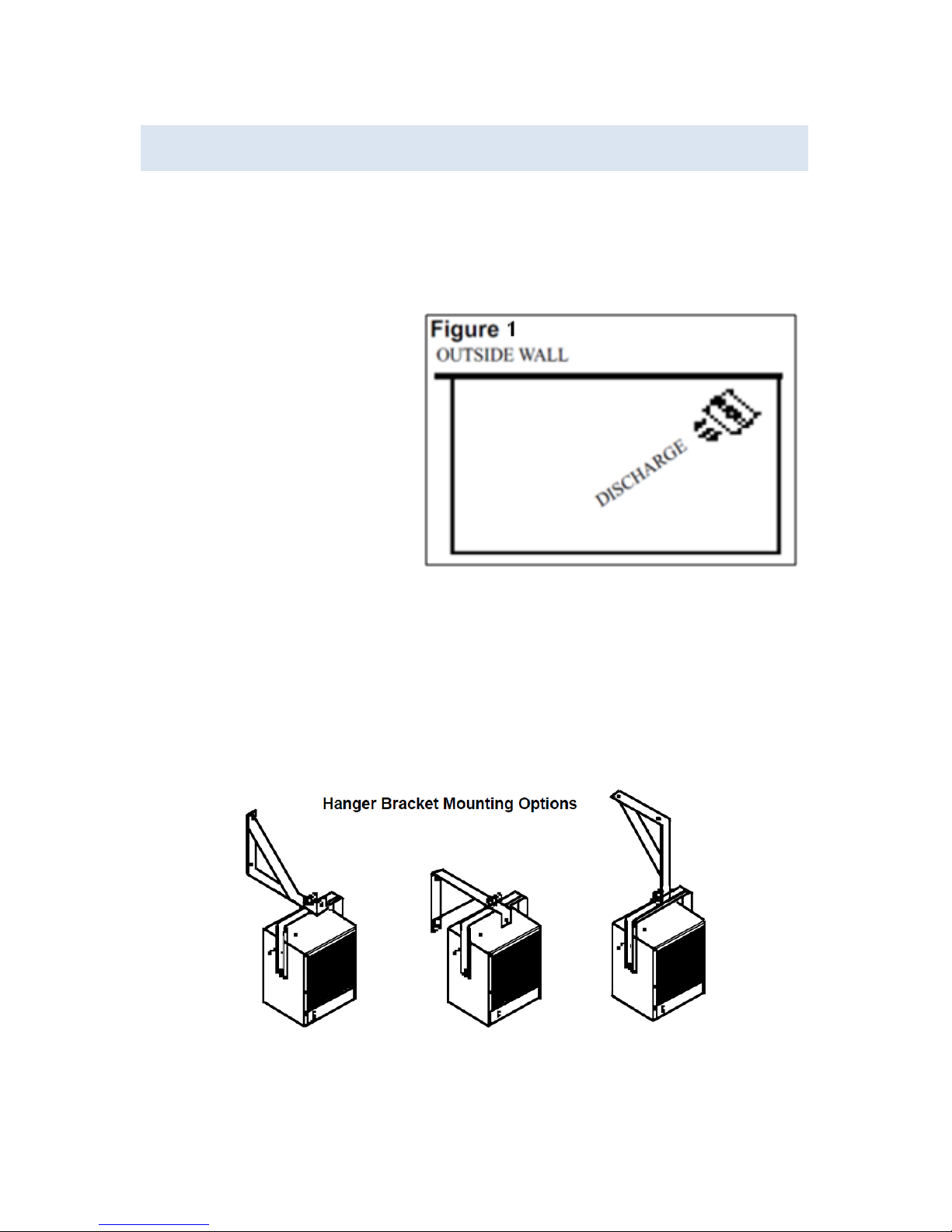

The heater must be installed in

a fixed location. The discharge

air should wipe the walls

without blowing directly on

them (Figure 1).

Ensure that air discharge is

parallel to or away from walls.

INSTALLATION OF WALL/CEILING HANGER BRACKET

The hanger bracket allows the unit to be rotated approximately 45 degrees in

each direction from center, when attached to a wall and tilted in a 45 degree

range while suspended from a wall or ceiling.

NOTE:The hardware for mounting the hanger bracket to the wall or ceiling is

not included.

!CAUTION: When turning and/or tilting the heater do not block the exhaust

opening.

A Name You can Trust

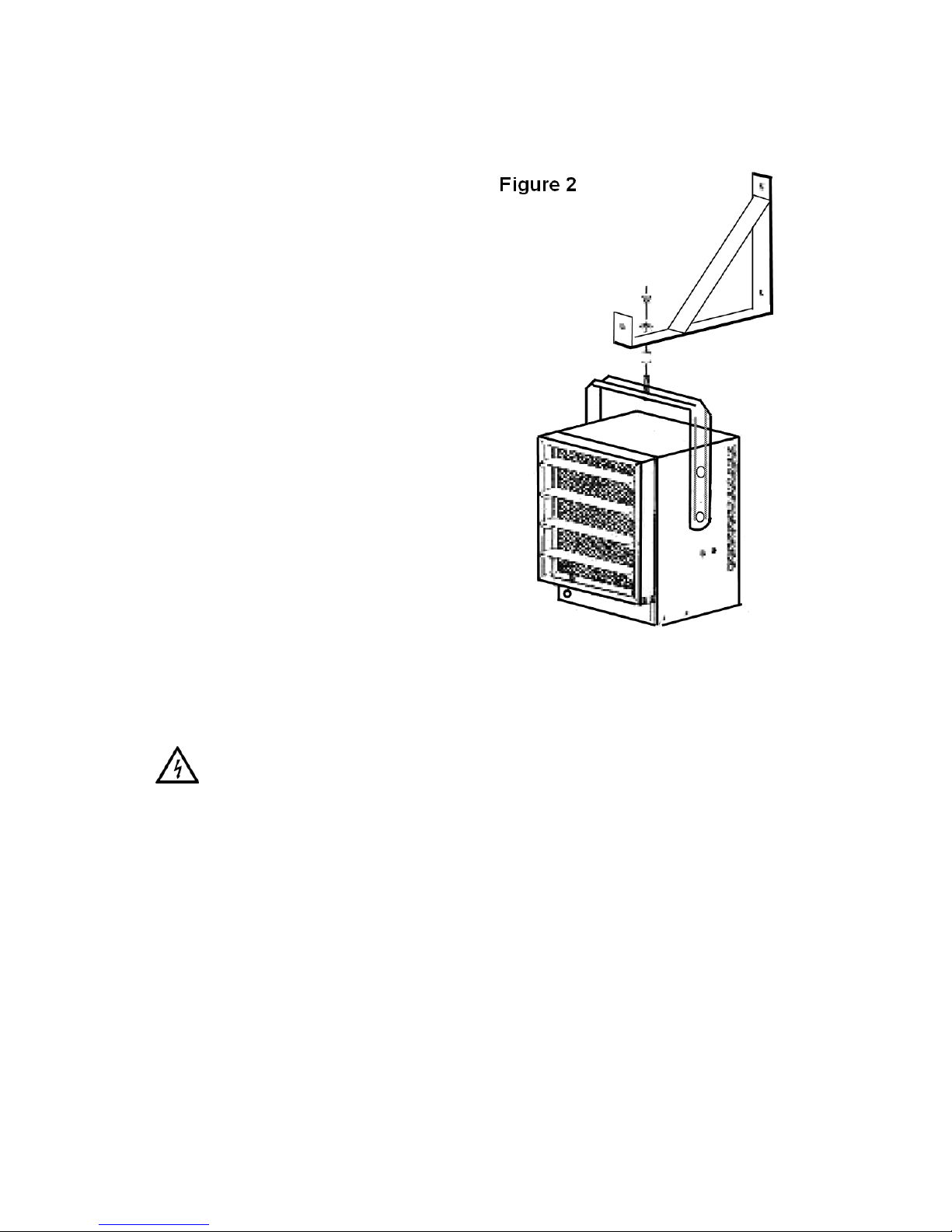

The following steps are shown in Figure 2:

1. Locate a stud or other suitable

support and install hanger

bracket on wall or ceiling. Select a

location where the control knob

on the back of the heater is easily

reachable.

2. Insert carriage bolt into square

opening of heater handle.

3. Slide spacer over the carriage bolt

shaft and insert the hanger

bracket opening and hold them in

position.

4. Slide lock washer and thread nut

onto carriage bolt. Turn and

tighten with wrench.

Do not install less than 6 feet (1.9 m)

from the floor.

ELECTRICAL CONNECTION

WARNING: Consult local electrical codes in addition to the following

requirements:

1. Turn off main power supply at the electrical panel.

2. Route supply wires from circuit breaker to an approved junction box,

located near compact unit heater. These supply wires must be two

conductor non-metallic sheath cable with ground wire. Each heater should

be on an individual, properly fused circuit.

3. Route supply wires from junction box to G73. These supply wires must be

two conductor metallic sheath (BX) cable with ground wire. Alternatively,

appropriate conduit can be used.

4. Remove junction box cover of G73 and remove one knockout hole. Insert

approved bushing into hole and feed wire cable through. Tighten bushing

around cable.

http://www.NewAir.com

5. Make electrical connection to G73 according to relevant wire diagram.

Make connections using approved wire nut connectors and secure the

grounding wire to the ground screw on the heater chassis.

6. Replace junction box cover of G73.

OPERATION

SETTING THE THERMOSTAT

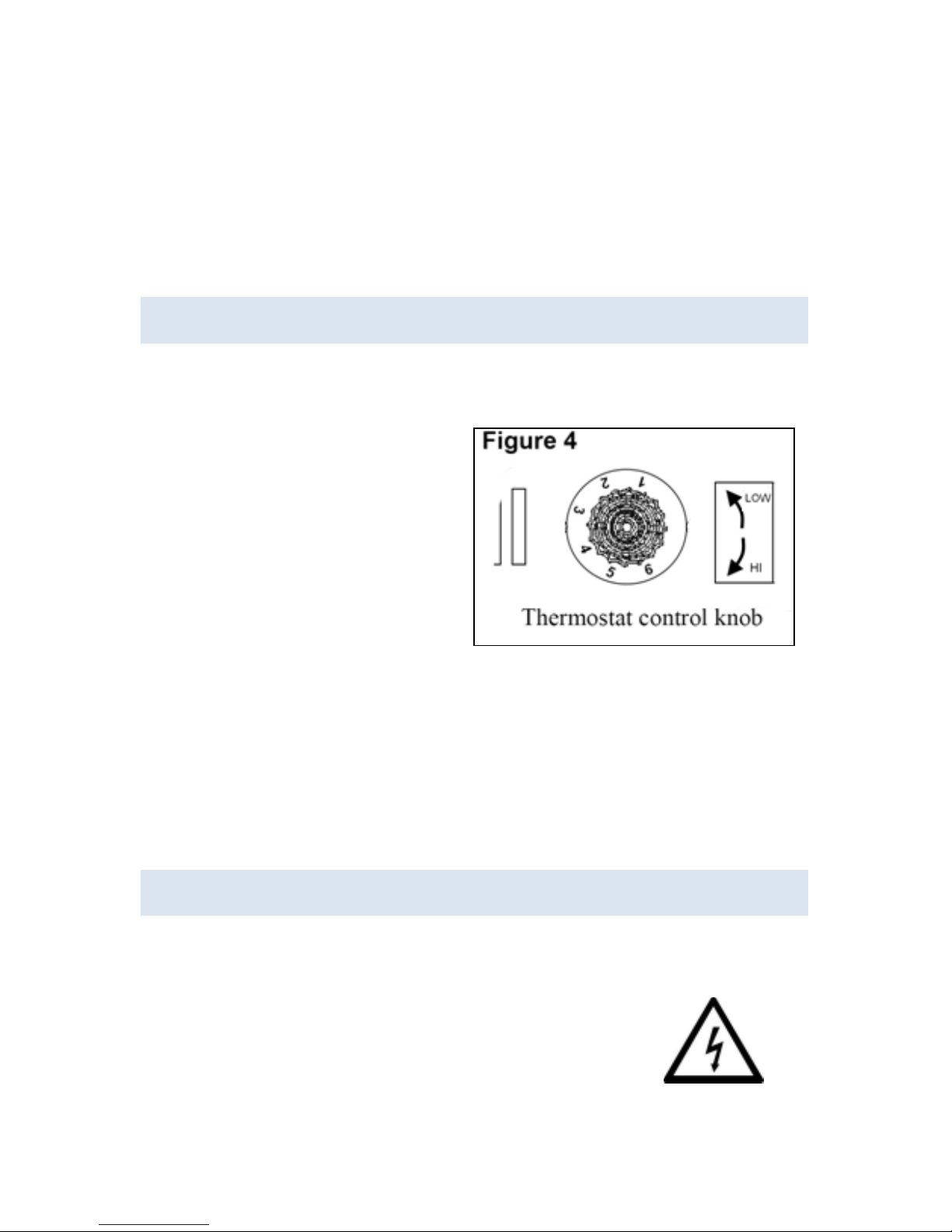

1. Before connecting or

disconnecting plug, turn knob

fully counterclockwise (Figure 4).

2. Heater is equipped with a

thermostat. To adjust

temperature to your individual

requirements, turn thermostat

control knob clockwise all the

way to turn heater on.

3. When room reaches desired temperature, turn thermostat knob

counterclockwise until you hear a “click”. Leave in this position to maintain

room temperature at this setting.

4. For additional heat, turn clockwise until you hear “click” again and heater

will turn on.

5. To turn heater to the lowest setting, turn the thermostat knob

counterclockwise all the way.

CLEANING & STORAGE

REGULAR CLEANING:

Before any cleaning:

Make sure the heater is turned off.

Disconnect power supply at source.

A Name You can Trust

CAUTION:Allow at least 30 minutes for the heater to cool before attempting

any maintenance or cleaning.

1. Do not spray cleaning liquid or other chemicals onto the unit.

2. Interior dust can often be removed by using a vacuum cleaner with a

crevice tool attachment.

3. To clean housing, use a clean, soft and lightly damp cloth to gently wipe all

the dirt from the surface of the unit. Be sure not to wet the heating

element and the switches. Allow the unit to dry completely before using it.

Caution: Do not allow water to run into the interior of the heater as this could

create a fire or electric shock hazard, damaging the unit.

STORAGE

1. Perform the cleaning procedures described above.

2. Wipe all parts dry.

3. Pack the heater in a plastic bag and store it in a cool, dry place.

SPECIFICATIONS

MODEL NO.

G73

VOLTAGE:

240 volts

POWER CONSUMPTION:

5000W

http://www.NewAir.com

TROUBLESHOOTING

Problem

Possible Causes

Solution

Unit is not heating.

Overheat protection has

temporarily deactivated

the heater.

Turn the heater off; disconnect

the power and allow it to cool.

Inspect and remove any objects

on or adjacent to the heater.

Wait 30 minutes before restoring

power.

Room temperature has

been warmed up to

thermostat setting.

To increase the room

temperature, adjust thermostat

control knob to a higher setting

by turning clockwise.

Heater is not wired

correctly.

Follow the included hardwiring

directions. Contacting a licensed

electrician is recommended.

Breaker/Fuse has been

tripped.

Check your electrical box to

confirm the breaker has not

been blow. This may occur if the

receptacle is shared between

other high consumption

appliances.

The heater is

producing a burning

smell.

A drop of oil fell on the

heating coil during the

manufacturing process. It

will quickly evaporate and

should not occur again.

Ensure room in which heater is

situated is well ventilated.

Check and ensure there are

no combustible materials

within 0.9 meters (3 ft.)

surrounding the heater.

Remove any combustible items

from the heater.

Ensure a minimum

clearance of 5.5 inches (14

cm) from both sides and

rear of heater to adjacent

walls.

Reposition the heater so there is

enough space around the heater

to the adjacent walls.

Please do not attempt to open or repair the heater yourself.

Doing so could cause damage or personal injury.

Altri manuali per G73

Indice

Altri manuali New Air Stufa

New Air

New Air AH-400 Manuale utente

New Air

New Air NGH500GA00 Manuale utente

New Air

New Air AH-600 Manuale utente

New Air

New Air AH-450B Manuale utente

New Air

New Air NOH32WBK00 Manuale utente

New Air

New Air AH-470 Manuale utente

New Air

New Air AH-450B Manuale utente

New Air

New Air G73 Manuale utente

New Air

New Air NIH040WH00 Manuale utente

New Air

New Air AH-320E Manuale utente

New Air

New Air QuietHeat15S Manuale utente

New Air

New Air NGH1K6WH00 Manuale utente

New Air

New Air AH-600 Manuale utente

New Air

New Air Quietheat15 Manuale utente

New Air

New Air AH-470 Manuale utente

New Air

New Air AH-400 Manuale utente

New Air

New Air QuietHeat15B Manuale utente

New Air

New Air AH-410 Manuale utente

New Air

New Air NIH110WH00 Manuale utente

New Air

New Air G56 Manuale utente

New Air

New Air G56 Manuale utente

New Air

New Air AH-400 Manuale utente

New Air

New Air NOH17GBK00 Manuale utente

New Air

New Air AH-480 Manuale utente

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
