New Eagle VeeCAN320 Data Logger

User Manual

Last Updated: 9/14/2016

Contents

1. Overview.............................................................................................................................................................3

2. Kit Contents ........................................................................................................................................................3

3. Setup...................................................................................................................................................................4

3.1 Connector Pins –Primary Connector .........................................................................................................5

3.2 Harness .......................................................................................................................................................5

4. Data Logging .......................................................................................................................................................6

4.1 Log Files ......................................................................................................................................................7

4.2 File Layout...................................................................................................................................................7

1. Overview

Congratulations on your purchase of the New Eagle VeeCAN320 Data Logger. The logger was designed to be the

most capable and lowest cost CAN data logger solution available. The logger is capable of logging at rates as low

as 1ms, supports both 11bit and 29bit messages, and can be configured to meet the needs of your environment.

Continue reading to learn about all of its capabilities.

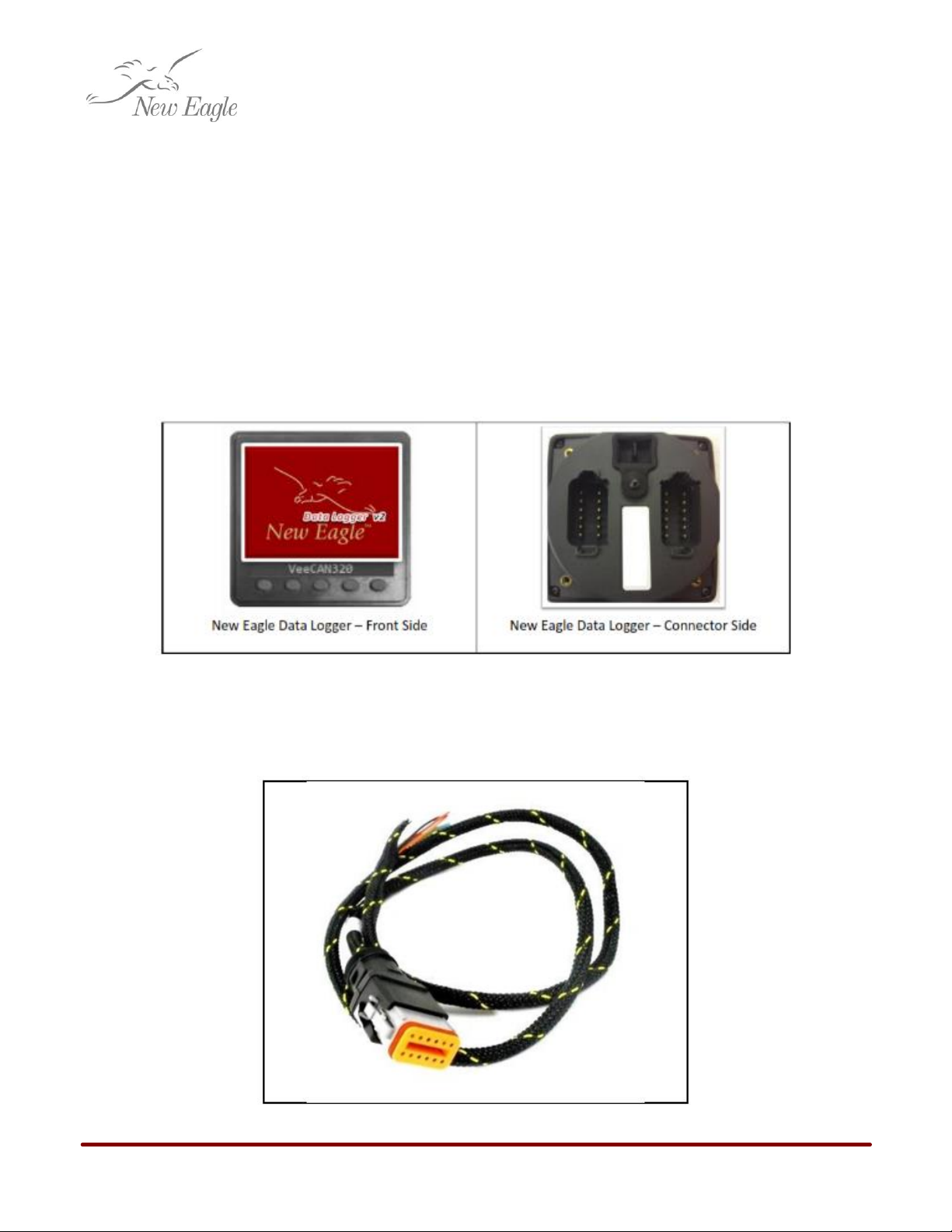

2. Kit Contents

The kit includes:

1. The New Eagle Data Logger (Display with software programmed)

2. The New Eagle Data Logger harness (Sold separately)

3. Setup

The logger is ready to use out of the box and is configured for two CAN bus, baud rate of 250K on CAN1, baud

rate of 500K on CAN2. To start logging follow these simple steps:

1. Connect the logger*¹ with the harness (sold separately).

2. The other side of the harness is flying leads, the user needs to make a connector based on the pin

definition below.

3. Apply power to the CAN bus and the logger

4. The logger will display data logging screen.

5. After plugging in the USB Drive*², CAN logging is started automatically.

The user can also plug in the USB stick first, then when the logger is powered on, the logging

session will be started automatically.

6. Press the ‘Stop Logging’ button to stop the logging session, and prepare the USB stick for

removal. It is important to stop the logging using this button, otherwise a key cycle will be

required to initiate another logging session.

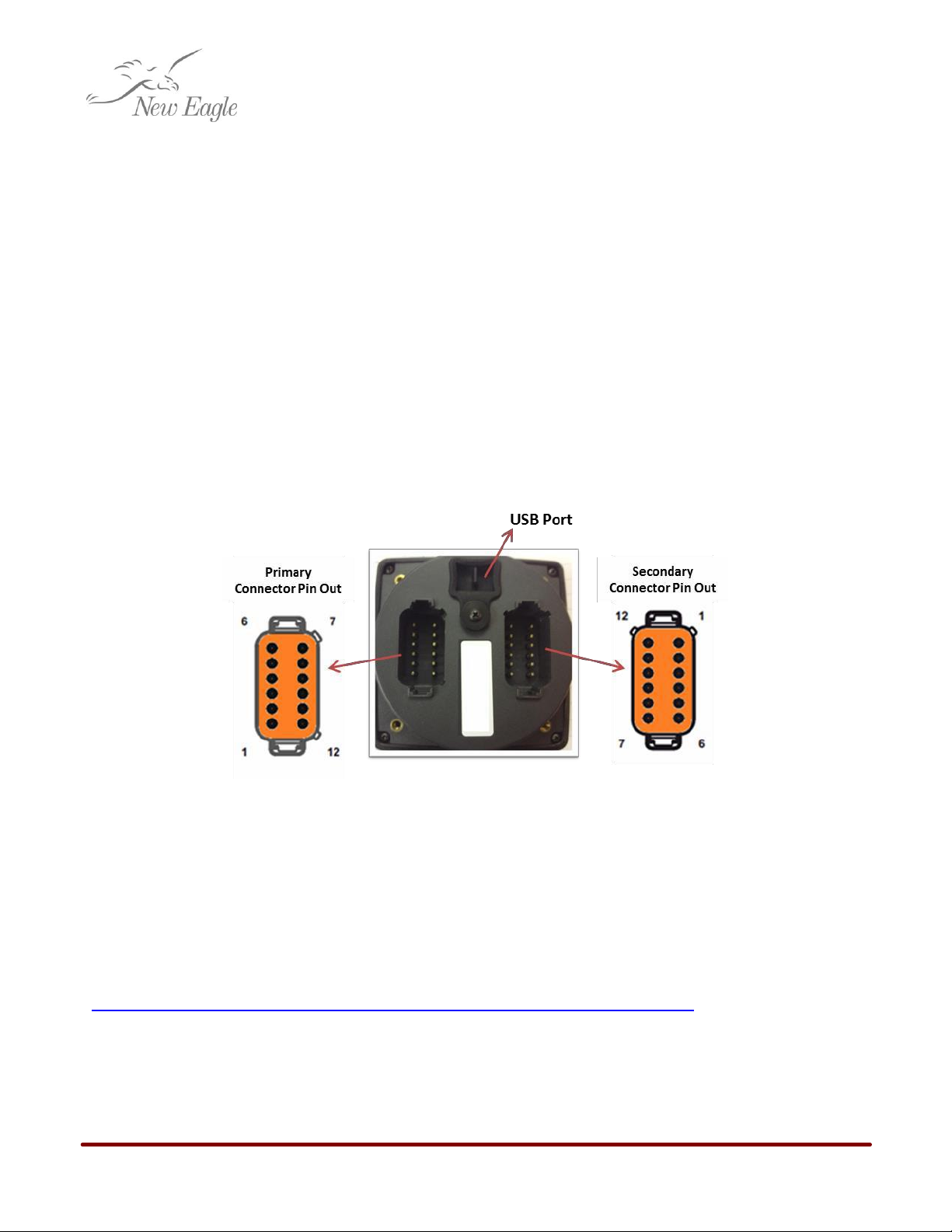

*¹The logger has two connectors, primary connector and secondary connector, primary connector is for data

logging, secondary connector is for extended functionalities, includes analog inputs, digital inputs, serial

transmit, etc. Please refer to the New Eagle VeeCAN320 Data Logger Datasheet for more information.

*²The user needs to copy “USB log offload.autorun” file to the USB stick before

logging. Please download it from New Eagle Wiki on the ‘NE VeeCAN320 Data

Logger’ page.

http://www.neweagle.net/support/wiki/index.php?title=NE_VeeCAN320_Data_Logger

3.1 Connector Pins –Primary Connector

Pin Purpose

1 GND GROUND

2 PWR POWER (10-30V DC).

SUPPLY SHOULD BE PROTECTED BY 500 mA –RATED CIRCUIT

BREAKER/FUSE

3 Not Used

4 Not Used

5 CAN2 (-) ISOLATED CAN SUPPLY (-)

6 CAN2 (+) ISOLATED CAN SUPPLY (+)

7 CAN2H ISOLATED CAN DATA H

8 CAN2L ISOLATED CAN DATA L

9 Not Used

10 Not Used

11 CAN1L PRIMARY CAN DATA L

12 CAN1H PRIMARY CAN DATA H

The CAN2 (isolated) power supply must be wired separately in order to utilize CAN2.

3.2 Harness

A harness (only for CAN1 channel so far) is available, which is designed to mate the logger with a CAN bus

environment.

Pin Wire Color Purpose

1 Black GND

2 Red PWR

5 Brown CAN2(-) not included in the harness so far

6 Grey CAN2(+) not included in the harness so far

7 Blue CAN2H

8 White CAN2L

11 Orange CAN1L

12 Green CAN1H

4. Data Logging

The logger utilizes a USB drive and data logging is limited only by the size of the USB. The logger is

configured to log all data both on CAN1 and CAN2 bus.

1. After the logger is powered up, the data logging screen is shown on the display (Figure 1).

2. Press and hold Button 5 to access the configuration menu (Figure 2).

3. Plug in the USB drive, after a few seconds, the logging is started, the screen will display ‘USB Stick

Inserted’and ‘Logging Active’. If the screen is still showing ‘USB Not Inserted’ after the USB drive is

plugged in for more than 10 seconds, then plug in the USB drive again, and wait around

6 seconds until ‘USB Inserted’ is shown on the screen.

4. Press the center ‘Eject’button to stop the logging session. The user can unplug the USB stick when

the screen displays ‘Logging INACTIVE’ and ‘USB Stick Ejected’. After unplugging the USB, the screen

will return to the initial data logging screen (Figure 1).NOTE: THE LOGGER CAN NO LONGER ENSURE

PROPER FILE CLOSURES AND SOME DATA LOSS MAY OCCUR IF THE USER UNPLUGS THE USB DRIVE

BEFORE STOPPING THE LOGGING SESSION.

5. To start a new logging session, repeat step 3 and step 4.

4.1 Log Files

The system names log files using the logging number. The logger will continue to run until there isn’t any space

available for creating new files. The result is that all data is maintained until removed from the USB drive. This

is an ideal mechanism for an engineering environment. If the user needs to log a large set of data, we would

recommend you to use a large volume USB stick (up to 64 GB USB stick has been tested).

4.2 File Layout

The data is saved as text files, this allows the users to import data into Excel or MATLAB and using a custom

script to convert the data. New Eagle’s Raptor-CAN offers a shortcut to this process by allowing the user to

easily convert the raw CAN into engineering units. See the Raptor-CAN section below.

Msg type

Msg Id

Size

Data (Byte0 to Byte7)

Time(us)

0x0CF00400, 1, 8, 0x00,0x00,0x00,0xCC,0x10,0x00,0x00,0x00, 302568000

0x0CF00400, 1, 8, 0x00,0x00,0x00,0x33,0x10,0x00,0x00,0x00, 302591000

0x0CF00400, 1, 8, 0x00,0x00,0x00,0x9C,0x0F,0x00,0x00,0x00, 302616000

0x0CF00400, 1, 8, 0x00,0x00,0x00,0x07,0x0F,0x00,0x00,0x00, 302641000

0x0CF00400, 1, 8, 0x00,0x00,0x00,0x75,0x0E,0x00,0x00,0x00, 302666000

0x0CF00400, 1, 8, 0x00,0x00,0x00,0xE5,0x0D,0x00,0x00,0x00, 302691000

0x0CF00400, 1, 8, 0x00,0x00,0x00,0x58,0x0D,0x00,0x00,0x00, 302716000

0x0CF00400, 1, 8, 0x00,0x00,0x00,0xCE,0x0C,0x00,0x00,0x00, 302741000

Where:

MsgId : The message id

Msg type: 0 if it is a standard message; 1 if it is an extended message

Size: The number of bytes of data received in the message

Byte[0..7]: The data received in the message

Time: The time that the message is received, Timer starts (0.000000) since the logger is powered on.

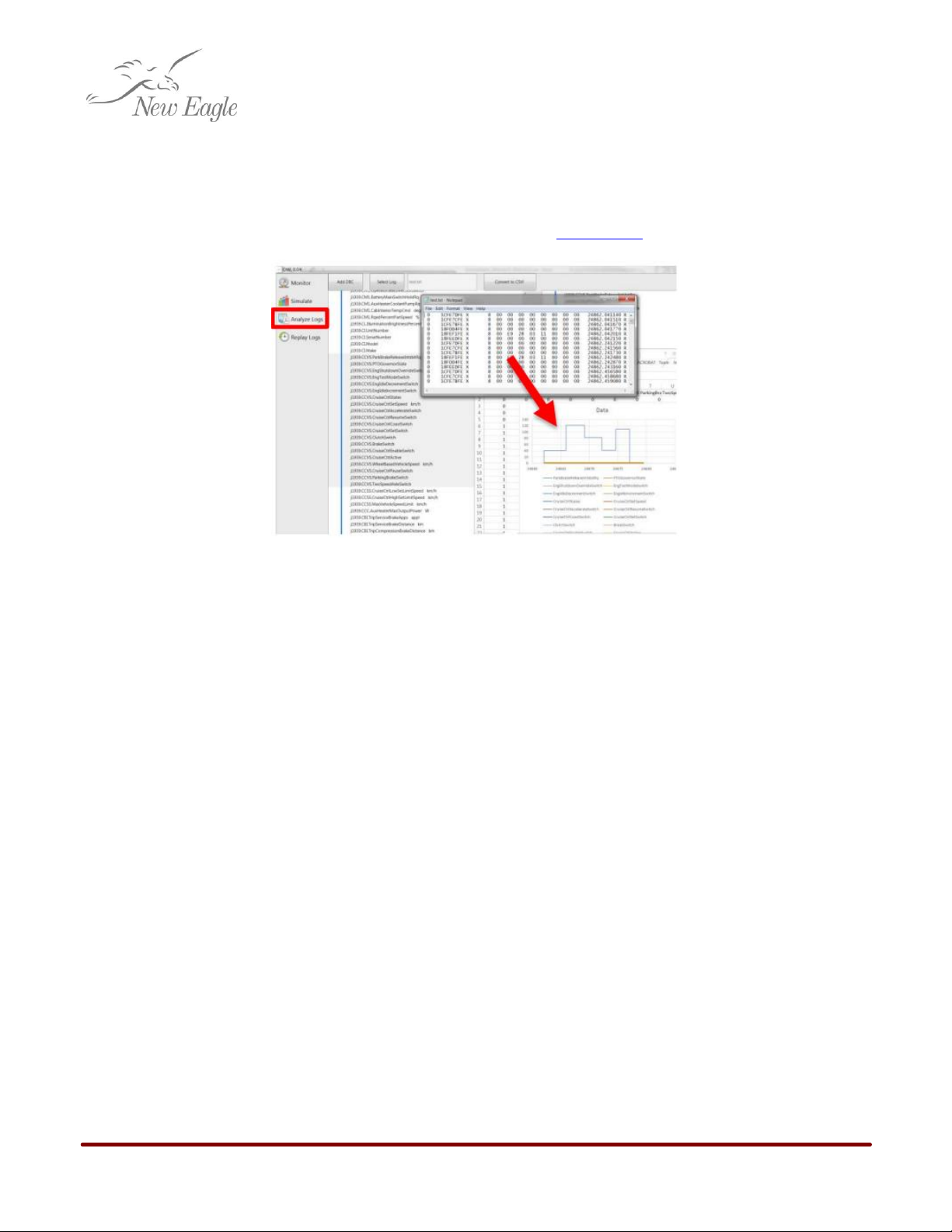

5. Raptor-CAN

Raptor-CAN is New Eagle’s simple tool used for communicating with and monitoring CAN systems using a

compatible CAN adaptor. Using Raptor-CAN with the VeeCAN Data logger gives the user the benefit of

converting the raw CAN data into engineering units. Please see our product wiki for more information.
