New Holland TDD PLUS TD80D PLUS Manuale utente

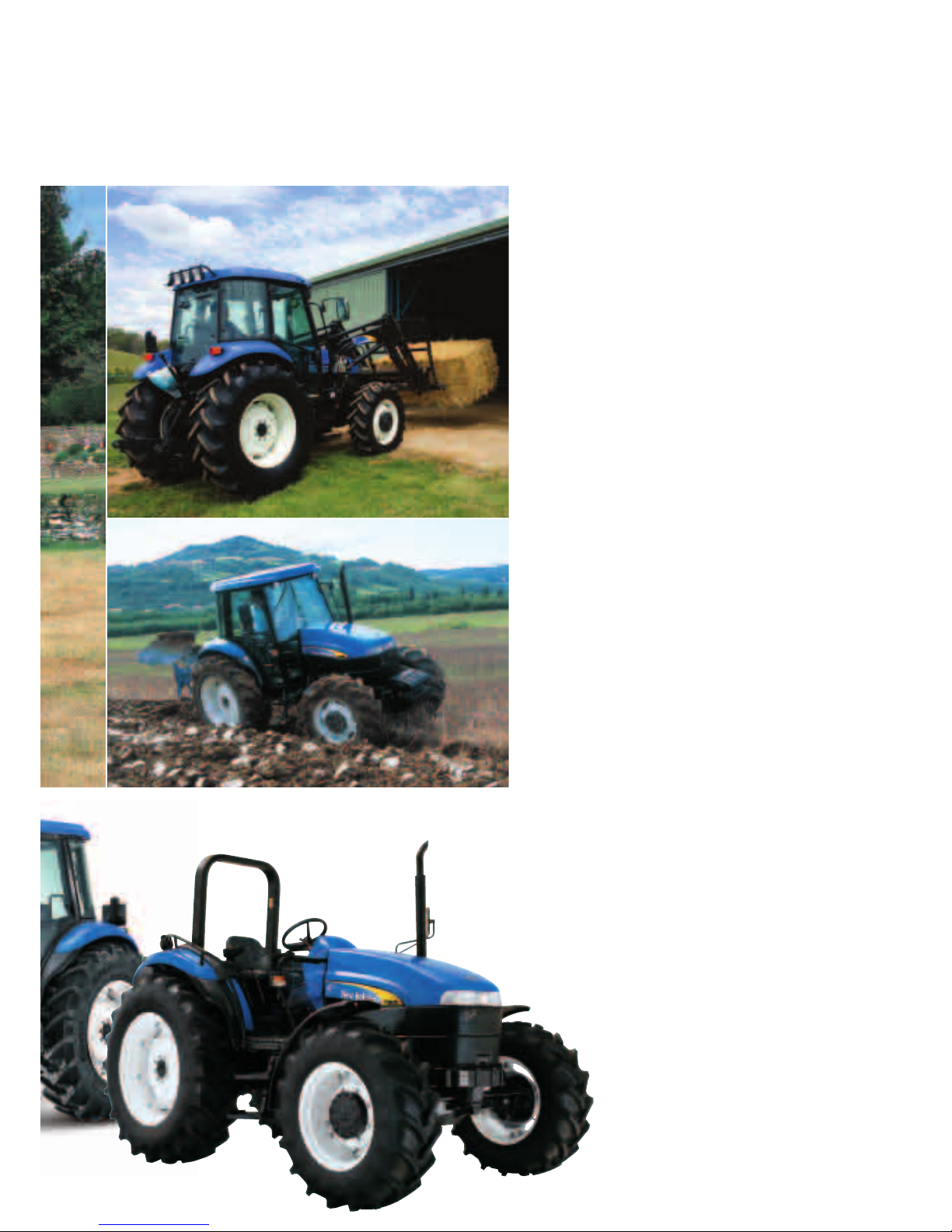

NEW HOLLAND TDD PLUS
TD60D Plus TD70D Plus TD80D Plus TD90D Plus TD95D Plus
COMMON SENSE TRACTORS
WITH HEAD TURNING LOOKS
Series TDD Plus tractors match great looks with class leading ergonomics, low noise,
excellent comfort, brilliant service access and superb all-round visibility. Take a look
at the operating environment. Low effort suspended pedals are fitted, reducing noise
coming up through the suspended floor platform. The Lift-O-Matic and hydraulic
controls are positioned so they are easy to reach. The gear levers are shaped to
make them easier to use. The PTO control is also more easy to operate without any
button to push. No other tractor in its class can match the ergonomic excellence of
a TDD Plus.
Then take a look at the specifications offered. Synchro Shuttle™ transmissions, with
creep speeds, plus a choice of 2WD with 30kph or 4WD with 40kph transport speeds
are available. Consider the design detail. The engine air filter and exhaust muffler
are mounted under the single-piece engine hood to provide a clear view over
the front of the tractor. The stylish cab features large glazed doors to make
getting in and out easier and offer an excellent field of vision to the sides.
There is even space for documents in a purpose made holder.
With Series TDD Plus tractors, beauty is more than skin deep.
2 3 TDD Plus
MODERN STYLE,TRADITIONAL SIMPLICITY
New Holland Series TDD Plus tractors combine simple
operation and maintenance with the benefits of modern
comfort, attractive styling and a choice of features.
The transmission covers all type of applications with the
Synchro Shuttle™ 20x12 30 or 40kph, with the creeper
option as standard. Series TDD Plus can be specified
with 2WD or 4WD.
TRACTORS TO MATCH YOUR NEEDS
The New Holland Series TDD Plus tractor
range offers a choice of specification to meet
the diverse needs of customers. A suspended,
flat floor platform is standard on less cab
models for improved levels of comfort
and reduced vibration.
The cabbed models offer an excellent
field of vision and class leading levels
of comfort. Air conditioning is standard.
PROVEN EffICIENCY
The rugged hydraulics are extremely
efficient, offering best in class rear
linkage lift capacity and proven
features that include the Lift-O-Matic™
and Flexion Bar systems. Up to four
rear and two mid-mount couplers can
be specified.
CAB.
PUTTING THE OPERATOR
IN COMfORTABLE CONTROL
New Holland puts operator comfort high on its list of design priorities.
The control levers have comfortable, hand-friendly grips. The features that are
used frequently, such as Lift-O-Matic, are positioned so they are easy to
reach. The flat floor is mounted on isolation blocks and the foot pedals are
suspended; two features that combine to reduce heat, noise and vibration
penetrating the operating area. A high quality seat, that adjusts quickly
and easily to suit all sizes and weights of operator, comes as standard.
Then there is the excellent visibility to the sides, front and rear.
With TDD Plus, First Class accommodation comes as standard.
4 5 TDD Plus
EVERY CONTROL WITHIN EASY REACH
It does not take long to become familiar
with the control layout of TDD Plus tractors.
Every function, from the PTO and gear
levers to the rear linkage and Lift-O-Matic
controls, are positioned in a logical and
easy to reach position. Within a short space
of time, operators new to a TDD Plus tractor
will work with familiar ease. Of equal
importance, New Holland quality ensures
everything moves with well oiled precision.
LESS-CAB VERSATILITY
Less cab models are specified with a sun
canopy. Designed to deflect direct sunlight,
heat and noise from the operator, the canopy
can be removed when access to low buildings
is necessary.
A CABBED TRACTOR WITH LESS-CAB VISIBILITY
Series TDD Plus cabbed tractors benefit from a
modern stylish cab with fully glazed doors and
opening curved rear side windows. By combining
narrow pillars with a large glazed area, the cab
offers an excellent all-round field of vision.
Air conditioning is standard.
Specifically developed for agriculture by New Holland, the 2.9 litre three-
cylinder and 3.9 litre four-cylinder engines powering Series TDD Plus
tractors are all new designs and can utilise biodiesel fuel B20 (EN12214
standard). Smooth, quiet and compliant with Tier II emission regulations,
these engines offer excellent power and torque characteristics.
Low fuel consumption and long service intervals help reduce whole life
operating costs.
ENGINE.
MODERN AND ECONOMICAL ENGINES
6 7 TDD Plus
POWER AND TORqUE
fOR VERSATILE PERfORMANCE
With maximum power developed
at 2500rpm and torque reserves
as high as 33%, Series TDD Plus
tractors are extremely versatile.
For demanding draft and PTO
applications, there is always
power in reserve.
LOW LEVEL fUEL fILLING
Series TDD Plus tractors are more than
just good looking. Advanced features
include a low level fuel tank that is
easily filled. The tank has sufficient
capacity for a full working day, even
in the most demanding applications.
EASY SERVICING
Daily maintenance and routine
servicing are easier on Series TDD Plus.
The narrow engine hood opens on gas
struts to provide full engine access.
All service filters are easy to reach and
change. Looking after a TDD Plus tractor
takes less time for lower whole life costs.
Nm
350
325
300
275
250
225
200 [kW/hp(CV)]
74/100
70/95
66/90
62/85
59/80
55/75
51/70
48/65
44/60
40/55
37/50
33/45
rpm 1000 1250 1500 1750 2000 2250 2500
TORqUE
POWER
TRANSMISSION.
EffICIENT, EASY
TO USE AND VERSATILE.
THE RIGHT SPEED fOR THE jOB
The Synchro Command™ transmission
has three ranges of four speeds plus two
creeper ranges.
The transmission design enables the
operator to select a working ratio and then
choose the right speed to match the job.
If conditions change, the overlap between
the speeds enables a different gear to be
selected within the same ratio. Up to eight
gears can be selected in the main working
speeds between 4 - 12kph.
Developed around proven transmission, hydraulic and axle
modules, TDD tractors offer proven dependability.
Matched to modern manufacturing, all components benefit from
exacting quality control at each production stage. This ensures
every part of a TDD tractor has to pass stringent tests before it is
built into the tractor.
Specified with a Synchro Shuttle™ transmission with matched
forward and reverse speeds and additional creep speeds. Low
power loss through the transmission is a key New Holland
feature. This is achieved by careful design, reducing the number
of gears that are engaged to produce a given operating speed.
For durability, the constant mesh gears are helically cut. This
feature helps reduce noise and vibration and is a key feature in
ensuring maximum durability. The standard transmission features
at 30kph transport ratio. Where local conditions allow, a 40kph
transmission is available (Standard with 4WD Cab Units).
8 9 TDD Plus
MATCHED fORWARD AND REVERSE
SPEEDS
The 12x12 Synchro Shuttle™ transmission
features a synchromesh reverse lever.
Changing direction is fast and easy, with
matched forward and reverse speeds.
This enables turns to be made faster
at the end of the field or when working
with a front loader.
0 10 20 30 4040 30 20 10
CREEP SPEEDS AS LOW AS 250m/h
For low speed work, a 20x12 creeper transmission is standard.
This increases the choice of forward ratios to suit the work
in hand. A key Series TDD Plus feature is ease of operation.
Selecting a low speed ratio is simple, enabling the operator
to select the right speed quickly and easily.
REVERSE
CREEPER NORMAL
fORWARD
kph
36.5 36.4
25.5 25.4
17.7 17.6
12.2 12.1
15.5 15.5
10.8 10.8
7.5 7.5
5.2 5.1
6.6 6.6
4.6 4.6
3.2 3.2
2.2 2.2
2.8
2.0
1.4
1.2
0.8
0.6
0.35
0.9
HYDRAULICS AND PTO.
SIMPLY THE BEST
Series TDD Plus offer easy to use performance. The powerful hydraulic
system is simple to operate, with the linkage levers and colour coded
remote valve levers mounted within easy reach of the operator.
The fully independent PTO has a choice of operating speeds.
Standard features include Lift-O-Matic™ rear linkage management
system and a choice of up to four rear and two mid-mount remote valves.
