DP700 Quick Start up Guide
Technical Specification
N
For the complete manual please download from:
http://newall.com , Click technical Support to access the download
page.
Environmental
Operating Temperature Storage Temperature
-10°C to 50°C -20 to 70°C
Environmental Conditions - IP40 (Stand Alone)
IP54 (Panel Mount)
Relative Humidity - maximum 95% for temperature up to 31°C
Disposal
At the end of it’s life, you should dispose of the DP700 in a safe
manner applicable to electronic goods.
The case work is suitable for recycling. Please consult local
regulations on disposal.
A full hard copy of the manual is available free of charge on request
023-81360-UK/0
Connections
Electrical
EU Directive 73/23/EEC (Low Voltage
Directive)
BS EN 55022:1998 Class B
BS EN 55024:1998
Input to Power Supply Unit (Supplied)
100-240V (47-63Hz)
External switch-mode
Output voltage 15VDC
Input Voltage to DP700
15-24VDC ±10%
Conforms to Low Voltage Directive
External PSU Input
HEAD OFFICE
Newall Measurement Systems Ltd.
Technology Gateway, Cornwall Road
South Wigston
Leicester LE18 4XH
United Kingdom
Telephone: +44 (0)116 264 2730
Facsimile: +44 (0)116 264 2731
Email: [email protected]
Web: http://newall.com
Newall Electronics, Inc.
1778 Dividend Drive
Columbus, OH 43228
Telephone: +1 614 771 0213
Toll Free: 800.229.4376
Facsimile: +1 614 771 0219
Email: [email protected]
Web: http://newall.com Note: Newall Measurements Systems reserves the right to change specifications without notice.
Warnings
The mains supply is connected into a switch mode power supply (separate from your DP700) via a
detachable supply cord supplied. If another supply cord is used, it must have fitted a C5, 10A,
EARTHED mains connector with a cord rated for at least 10A.
If a mains plug is not already fitted to the supply cord or is of the wrong type, then a suitable EARTHED
plug should be used which complies with the relevant specifications for plugs and socket-outlets.
You can only use the DP700 with Newall Spherosyn and Microsyn analogue encoders.
The power supply must be disconnected before opening the unit and completed by qualified personnel.
Turn off the power by disconnecting the power supply connector, before you connect the encoder(s)
Cabinet equipotential terminal
for grounding to machine
Cable Clamp
Encoder Input
Connection
1,2 or 3 According
to Model
RS232 Output
Setting up the Unit
How to enter setup
,
setup
language

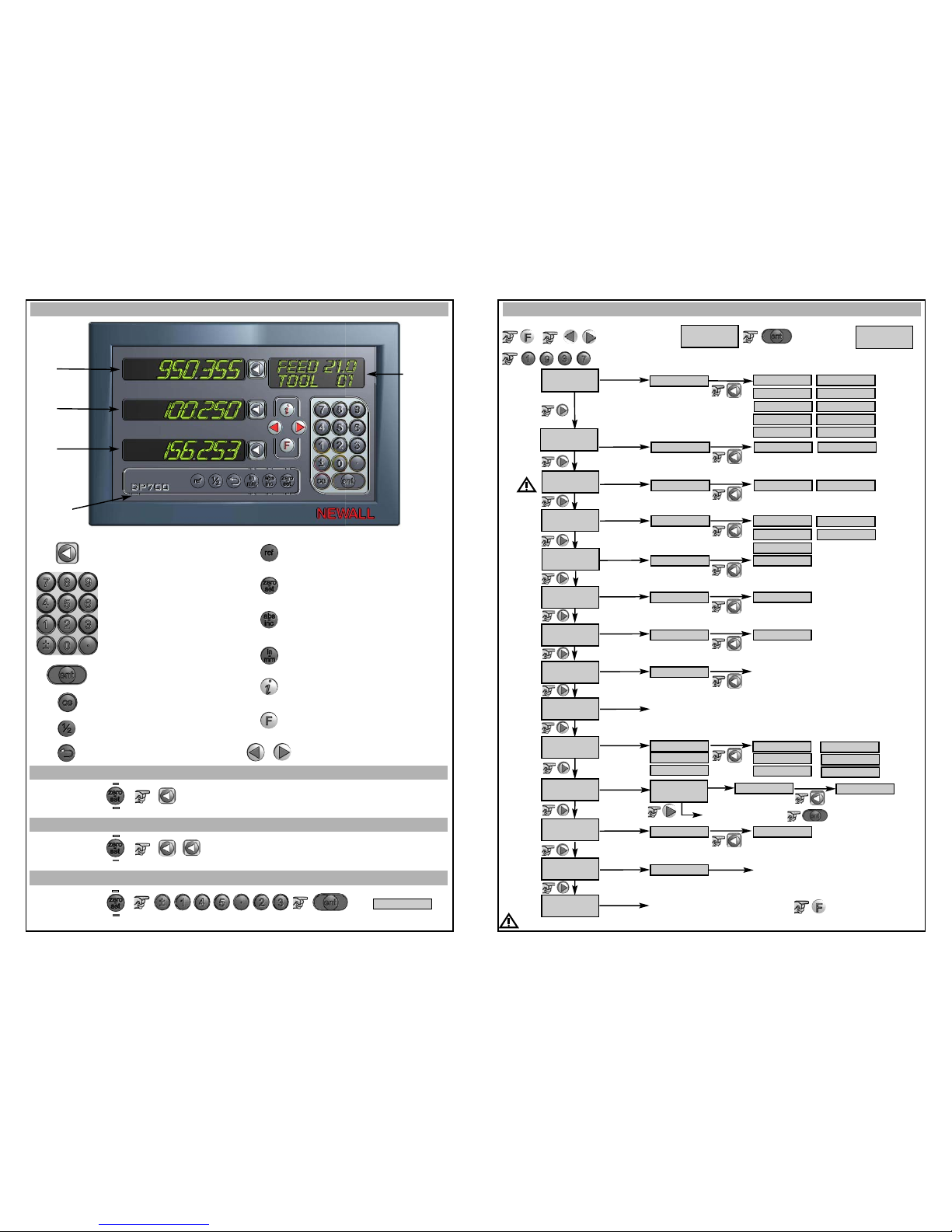

Understanding the Keypad
Axis 1
Axis 2
Axis 3
Default Settings Optional Settings
Eng gb francais eng us
Preset an Axis
=
Microsyn 10 Microsyn 5
Must be set to match encoder’s on the machine
*
*Lathe version, X axis set to DIA as default
Message
Display
Power
LED
Axis Selection Key
Numeric Keys
Enter Key
Clear Numeric Entry
Centre Find
Undo Key
Digifind / Reference
Switches between Zero
and Axis Preset modes
Switches between Absolute
and Incremental modes
Information selection (scrolls
through options on Message
display)
Function Menu Key
Function Navigation Keys
Switches between Inch
and mm display
Zero an Axis in Zero Mode
Ensure DP700 is
in Zero Mode of Axis 1, 2 or 3
Zero an Axis in Set Mode
Ensure DP700 is
in Set Mode of Axis 1, 2 or 3
Ensure DP700 is
in Set Mode
Until display shows display shows
Spherosyn or S2G
of axis 1
of axis 1, 2 or 3
of axis 1, 2 or 3
of axis 1, 2 or 3
of axis 1, 2 or 3
of axis 1, 2 or 3
of axis 1, 2 or 3
user defined, use numeric keypad to enter value
See full manual on website for more details
of axis 1
of axis 1
user defined, use numeric keypad to enter value
(value is in whole minutes)
of axis 1
to scroll through functions, to return to main menu
See full manual on website for more details to exit setup
of axis 1
eSPANOL DANSK
iTALLIANO cZECH
DEUTSCH PORTUGUE
RUSSIAN TURKISH
setup
TYPE GENERIC MILL LATHE
setup
ENCODER SPH 2G USN 10 USN 5
setup
RES 0.005 0.001 0.002
0.01 0.02
0.05
setup
DIR ---| |---
setup
MEASURE RAD DIA
setup
ZERO APP OFF ON
setup
ZERO LVL 12.700
setup
ERR COMP
setup
PLANE (----)
(----)
(----)
(----)
(----)
(----)
setup
FUNCS
setup
TOOLS ON OFF
setup
BEEP ON OFF
setup
SLEEP 0
setup
RESET
setup
COdE?
FUNCS
SETUP
-145.230
Note:
values in
mm.
