Newco Gevalia Manuale utente

Brewer

OPERATOR’S HANDBOOK

This handbook contains instructions for the GEVALIA Brewer.

Please read the handbook before using the machine.

Keep this fold out page open while reading the Operator’s Handbook.

OPERATOR’S HANDBOOK

Tank Overflow Tube

Program

Button

Reset Button

Brew Mechanism

ReleaseCatch(see

page 8 for detail)

Capsule Bin

Over-Temperature

Reset Button

Filling Funnel

Capsule Entry Flap

Spill Sensor

(Behind Capsule Bin)

Display

Capsule

Entry Slot

Cup Fill

Position

Door

Power Cord

Water Inlet

Fitting

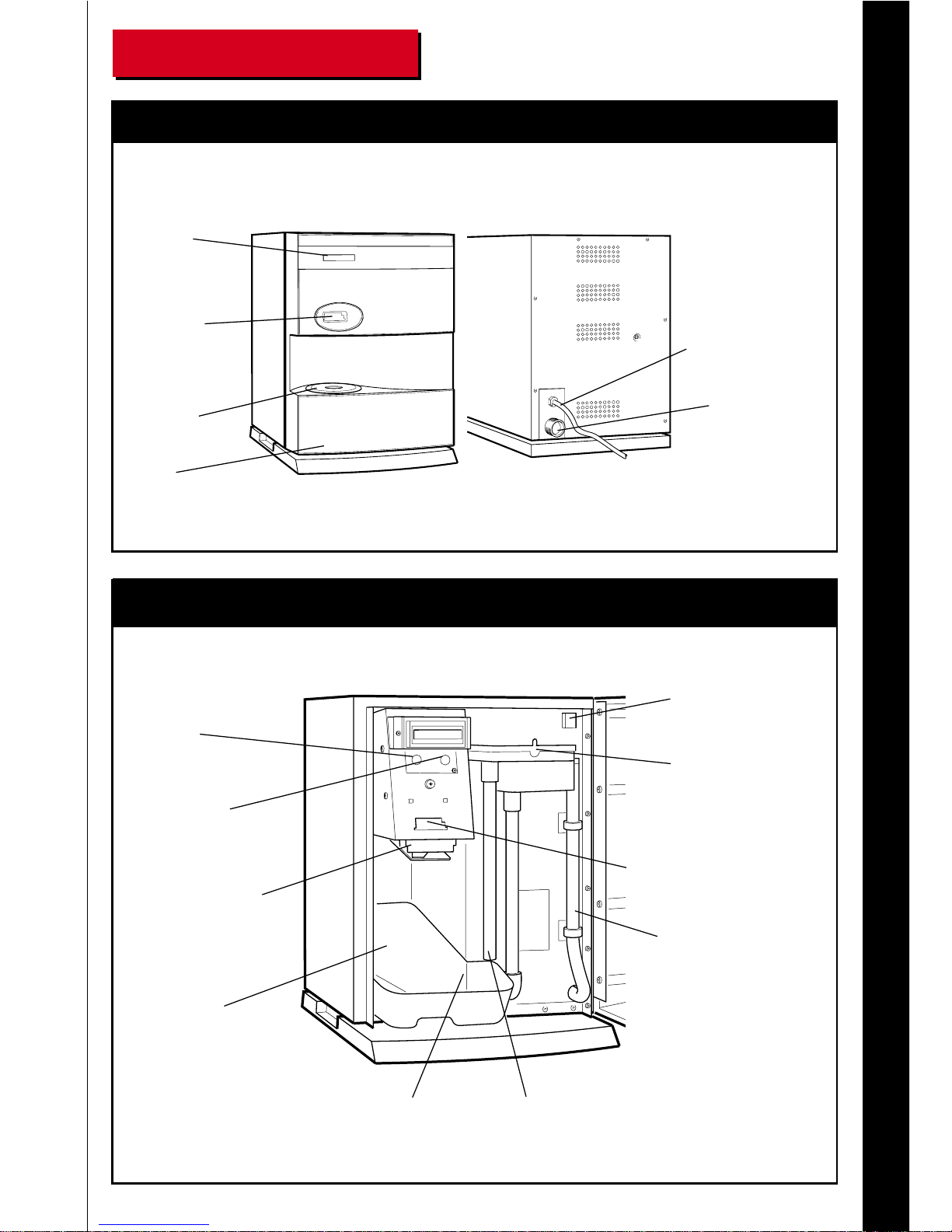

Machine Layout

ExternalFeatures

Internal Features With Door Open

Tank Drain Tube

ELECTRICALPOWERSUPPLY

The machine operates from a 120 V 50-60 Hz

single phase A.C. power supply.

POWERRATING

The machine is rated at 1.3 kW for Canada and

either 1.3 kW or 1.6 kW for US only. Current

drawn is approximately 10.8 and 13.3 A

respectively.

WATER SUPPLY OPTIONS

PLUMBED

1) Flush water line prior to brewer installation.

Connect to a cold water line.

2) Water pressure should be at least 20 psi. For

less than 25' run, use 1/4" copper tubing and

connectto1/2"orlargerwaterline.Forlonger

runs, use 3/8" copper tubing and connect to

1/2" or larger water line and provide an

adaptor fitting for connection to the brewer.

3) Ifinstalledwith asaddle valve theport should

have a minimum of 1/8" port hole for up to

25' run and 5/16" port hole for over 25' run.

4) Connect water line to plumbing fitting

extending from the rear of the brewer.

MANUALFILL

Jug Fill - the machine may be filled manually

by opening the front cover to expose the filling

funnel. The tank has an average working

capacity of 30 cups between refills.

CAPSULEBINCAPACITY

The capsule bin will hold up to thirty capsules.

Capacity can be increased by mounting the

machine on a base cabinet with built in trash

bin.

WEIGHT

Filledwithwater: 53 lbs / 24kg.

Empty: 40 lbs / 18kg.

CAUTION:Thismachineshould not be

used with artificially softened water.

18.3in/ 465mm

16.9in/ 430mm

1.9in/ 50mm

13.8in/ 350mm

Dimensions

Technical Details

OPERATOR’S HANDBOOK

Do Not Print

This

Page

Do Not Print

This

Page

OPERATOR’S HANDBOOK

Machine Layout Inside Front Cover

Technical Details Inside Front Cover

Important Safeguards 3

Setting Up 4

How to Get a Drink 6

Daily Maintenance 7

Weekly Maintenance 8

Adjusting Drinks Volume 10

Drinks Counter 10

What To Do If Things Go Wrong 11

Display Messages 12

Customer Service 16

Contents

OPERATOR’S HANDBOOK

PartNo. 792440/1

OPERATOR’S HANDBOOK

When using your Brewer, always follow these basic safety precautions:

1. Read all instructions before using the machine, and ensure that anyone who will

be involved with the cleaning or refilling of the machine also reads the

instructions.

2. This machine may contain up to 1-1/3 gallons of very hot water (up to 205° F).

Therefore, supervision should always be available when the machine is being

used near young children, the aged, or the infirm.

3. The machine should be situated on a strong horizontal surface, at a convenient

height, in a position where it is not likely to be knocked off.

4. The Power Cord should never trail from the machine, and should always be kept

away from hot surfaces and sharp edges.

5. Do not operate the machine if any part is damaged, e.g. Power Cord, until it has

been checked by a qualified Technical Service Representative.

6. Allow the machine to cool before handling or moving.

7. Never immerse the machine in water, or any other liquid, and never clean with a

water jet.

8. If the machine should accidentally freeze up, call a Technical Service

Representative to check it before switching on.

ALWAYSDISCONNECTTHEMACHINEFROMTHEELECTRICALPOWER

SUPPLY BEFORE CLEANING AND SERVICING.

Important Safeguards

OPERATOR’S HANDBOOK

Ensure water connection is made and

water is turned on.

Press and hold the Program button, and at

the same time, plug the power cord into

the wall socket.

Machine will display

Release Program button and press Reset

button to scroll through options (which

alternate between Plumbed and Manual)

until the display reads

PressandreleaseProgrambuttontoreturn

to normal operation. Water will fill into

machine until display reads

After a delay of approximately 15-20

minutes,the display will show 'Ready' and

the machine can be used.

Setting Up

Plumbed In Fill Option

OPERATOR’S HANDBOOK

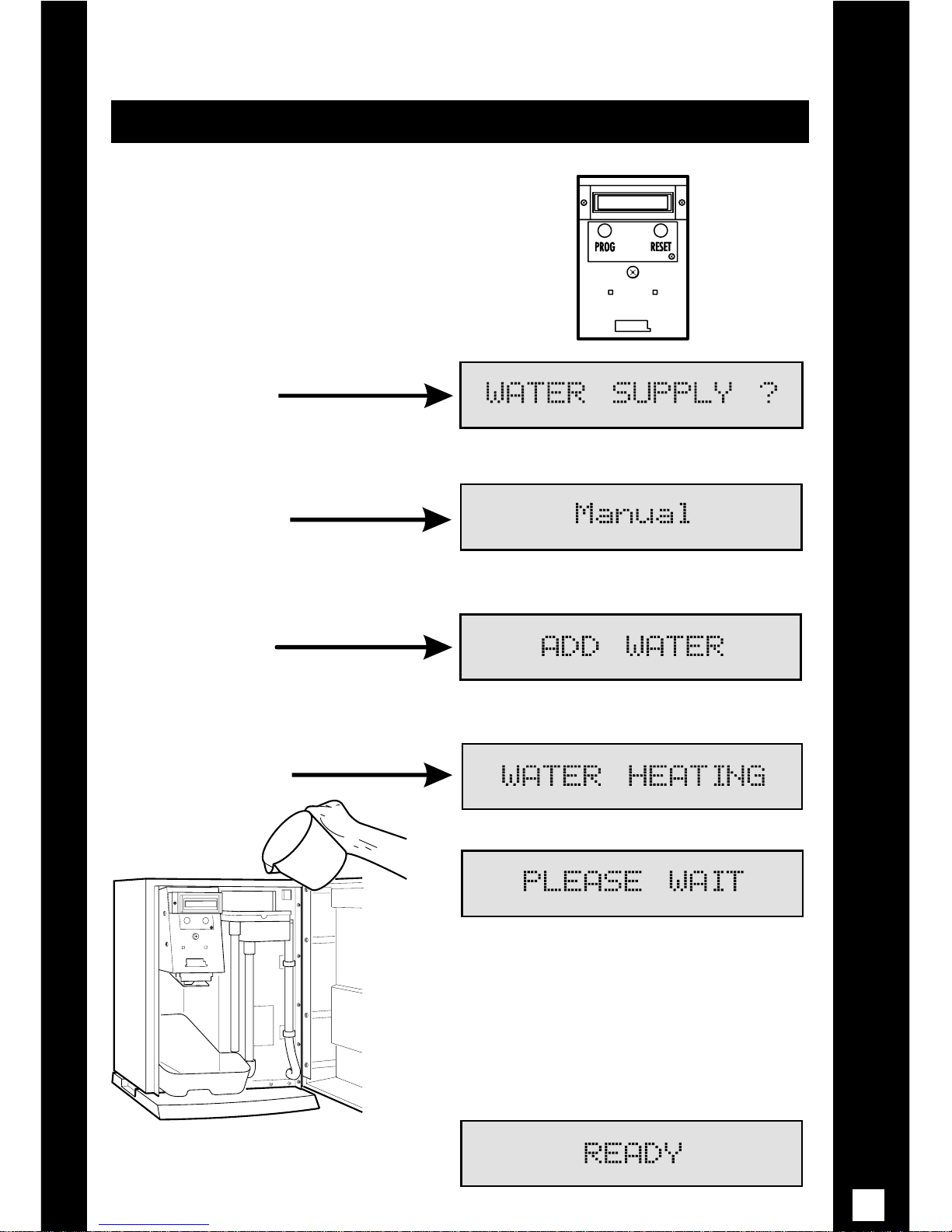

PressandholdProgrambuttonand, at the

same time, plug the power cord into the

wall socket.

Release Program button and press Reset

button to scroll through options (which

alternate between Plumbed and Manual)

until the display reads

(i.e. filled by hand into the fill funnel)

Press and release the Program button to

return to normal operation.

When display shows

Pour water into funnel, as shown, until

water is level with the 'full' mark on the

side of the fill funnel.

Display will then show

After a delay of approximately 15-20

minutes,thedisplaywill show'Ready'and

the machine can be used.

Machine will display

ManualFillOption
