Newer Technology MaxPower 802.11 Manuale utente

User Manual

MaxPower 802.11n/g/b Wireless Guide

Table of Contents

Introduction 3

Package Contents 3

Indicators & Ports 4

Front Panel 4

Rear Panel 4

Basic Setup 5

Hardware Installation 5

Router Conﬁguration 5

DDNS Settings 11

MAC Address Clone 13

Basic Wireless Conﬁguration 14

Wireless Security 15

Wireless MAC Filter 16

Advanced Wireless Settings 18

Wireless WDS Settings 21

VPN Passthrough 22

Internet Access Policy 23

Port Range Forwarding 24

Port Range Triggering 26

DMZ 27

Management 28

Log 29

Diagnostics 30

Factory Defaults 31

Router Status 32

Local Network Status 33

Wireless Network Status 34

Troubleshooting 35

Contacting Tech Support/Customer Service 37

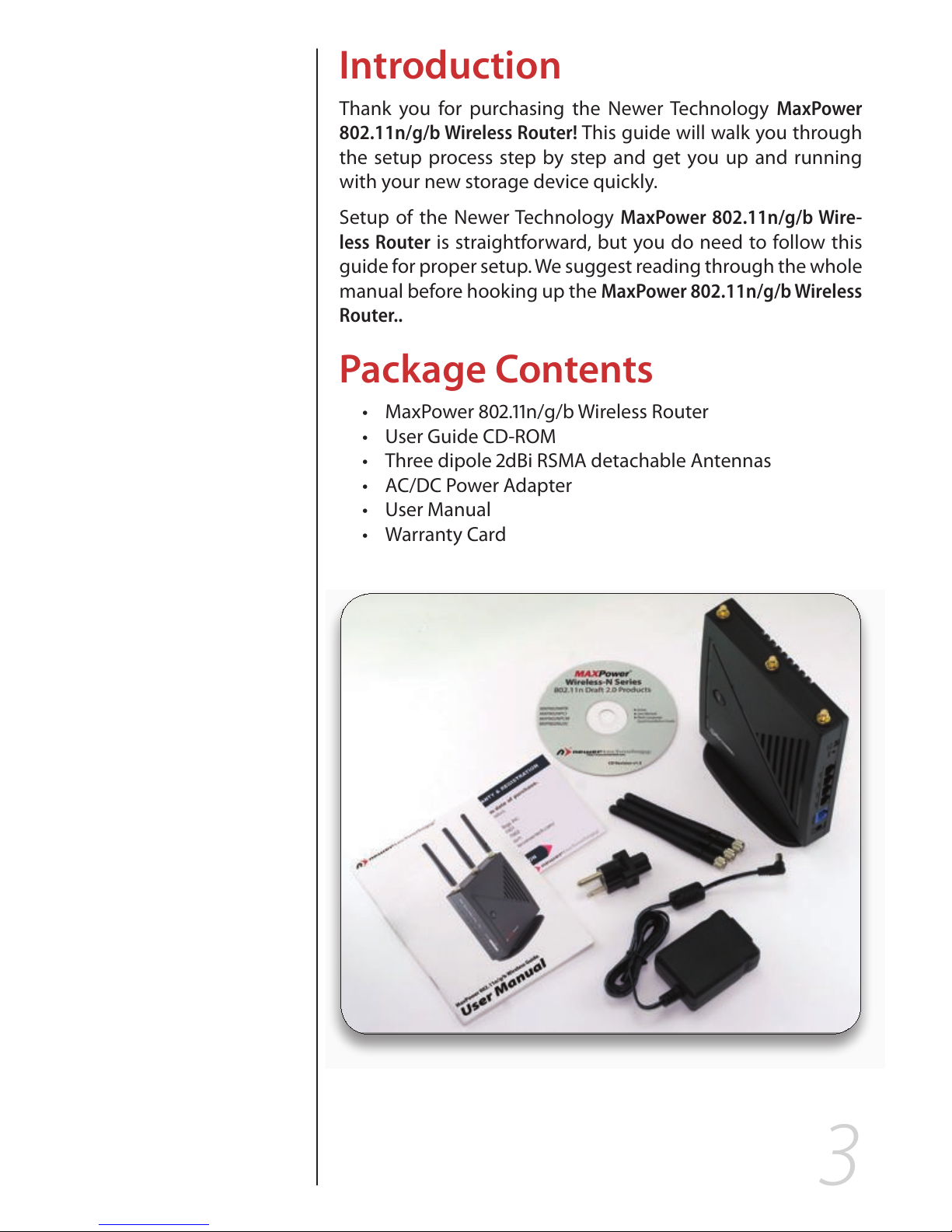

Introduction

Thank you for purchasing the Newer Technology MaxPower

802.11n/g/b Wireless Router! This guide will walk you through

the setup process step by step and get you up and running

with your new storage device quickly.

Setup of the Newer Technology MaxPower 802.11n/g/b Wire-

less Router is straightforward, but you do need to follow this

guide for proper setup. We suggest reading through the whole

manual before hooking up the MaxPower 802.11n/g/b Wireless

Router..

Package Contents

MaxPower 802.11n/g/b Wireless Routert

User Guide CD-ROMt

Three dipole 2dBi RSMA detachable Antennast

AC/DC Power Adaptert

User Manualt

Warranty Cardt

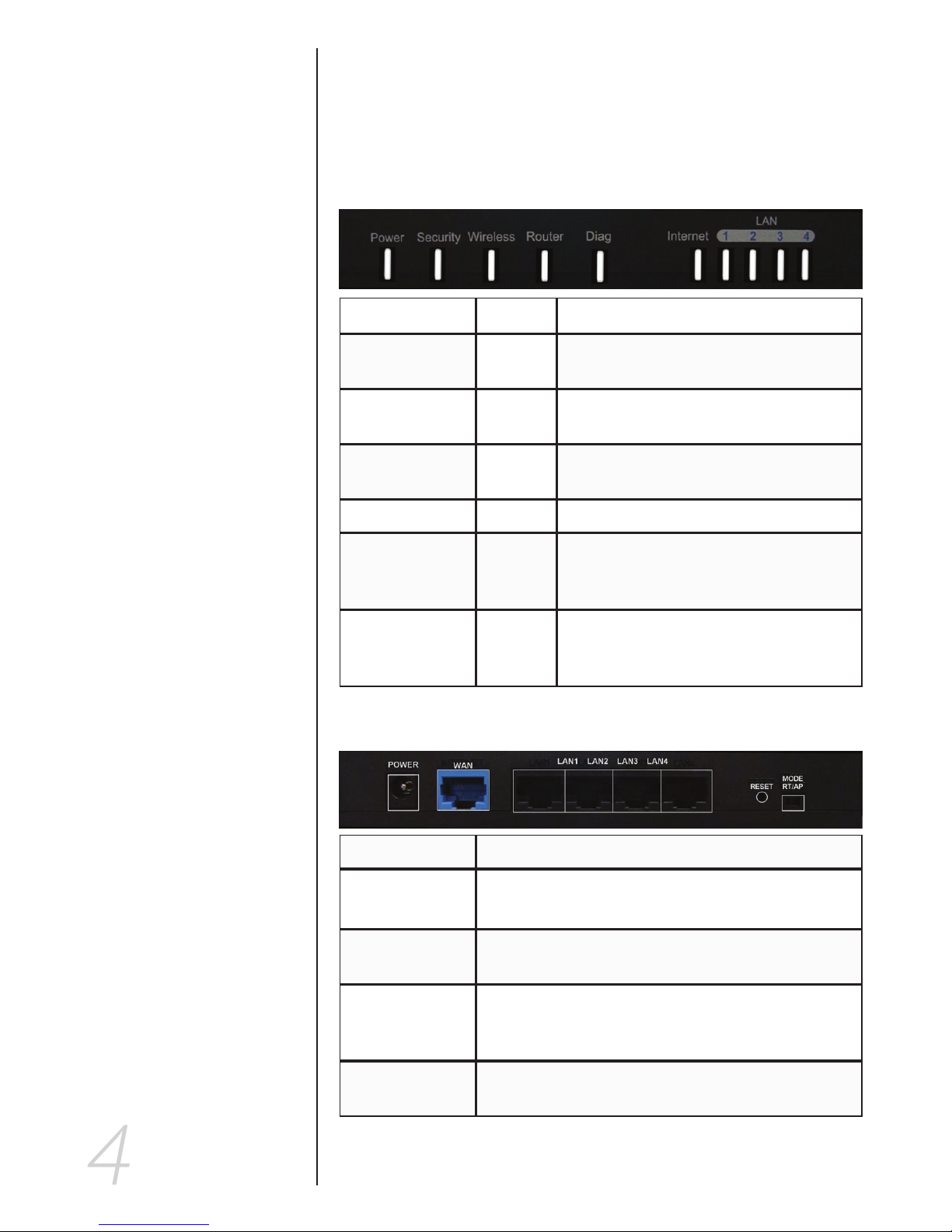

Indicators and Ports

Front Panel

The front panel consists of device status LEDs. Use the table

below to determine what each means.

Indicator Color Function

Power Green Indicates whether the unit is getting

power or not

Security Orange When blinking, this LED indicates the

WPS encryption function is active.

Wireless Green Indicates wireless network availability

and activity.

Router Green Lit when unit is working as a “Bridge.”

Diag Red Lights during startup diagnosis and

ﬁrmware updating. Also indicates when

system is functioning abnormally.

Internet/LAN 1-4 Green These indicators will light up when a link

has been established. Data transmission

is indicated by rapid blinking.

Rear Panel

Power The power adapter attaches here.

WAN Your broadband internet connection attaches

here.

LAN 1-4 These ports connect the router to your networked

PCs and other Ethernet network devices.

Reset The RESET button can restore device to factory

default settings by press this button for approx. 10

seconds while the unit is powered on

Router Mode

Switch

Allows you to switch between Router and Access

Point modes.

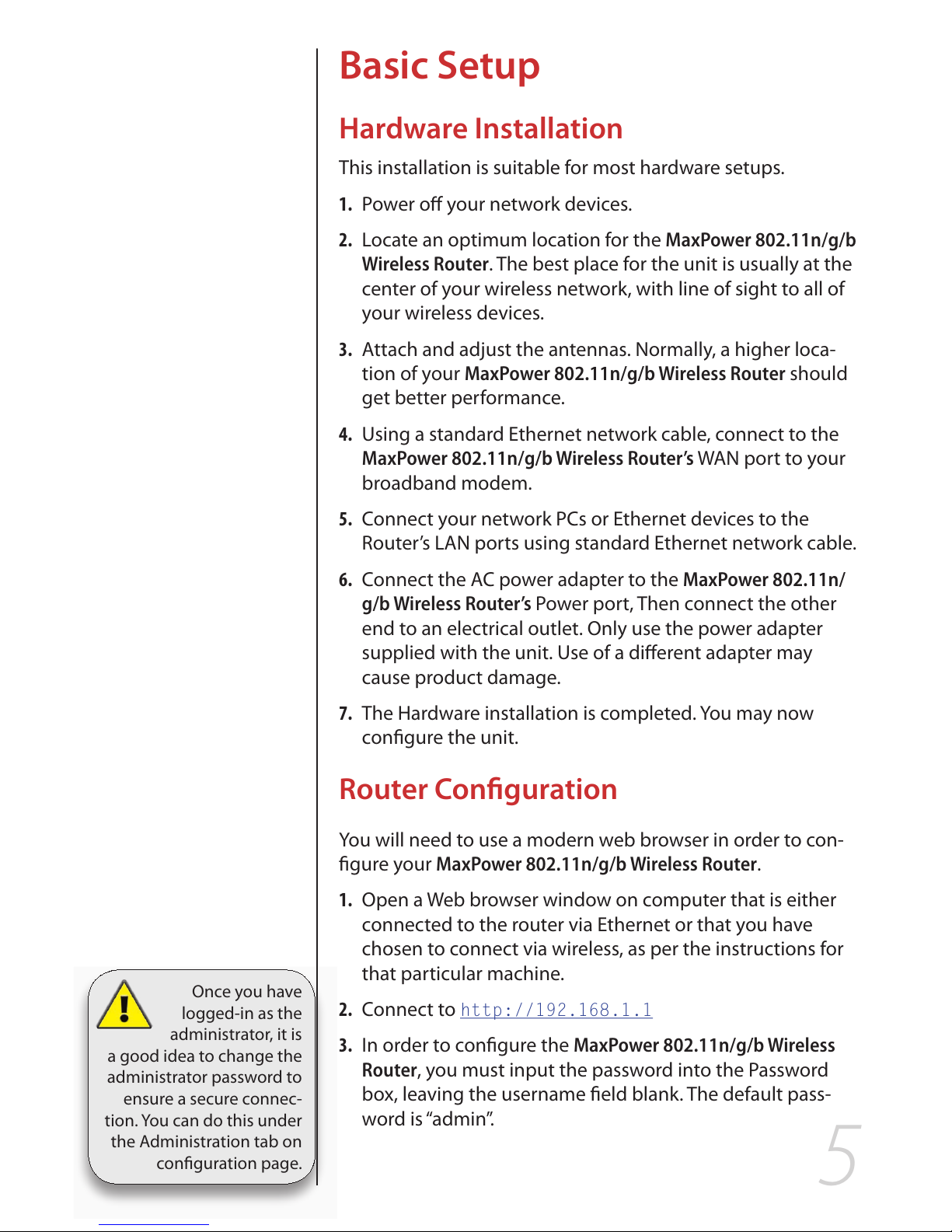

Basic Setup

Hardware Installation

This installation is suitable for most hardware setups.

Power oyour network devices.1.

Locate an optimum location for the2. MaxPower 802.11n/g/b

Wireless Router. The best place for the unit is usually at the

center of your wireless network, with line of sight to all of

your wireless devices.

Attach and adjust the antennas. Normally, a higher loca-3.

tion of your MaxPower 802.11n/g/b Wireless Router should

get better performance.

Using a standard Ethernet network cable, connect to the4.

MaxPower 802.11n/g/b Wireless Router’s WAN port to your

broadband modem.

Connect your network PCs or Ethernet devices to the5.

Router’s LAN ports using standard Ethernet network cable.

Connect the AC power adapter to the6. MaxPower 802.11n/

g/b Wireless Router’s Power port, Then connect the other

end to an electrical outlet. Only use the power adapter

supplied with the unit. Use of a dierent adapter may

cause product damage.

The Hardware installation is completed. You may now7.

congure the unit.

Router Conﬁguration

You will need to use a modern web browser in order to con-

gure your MaxPower 802.11n/g/b Wireless Router.

Open a Web browser window on computer that is either1.

connected to the router via Ethernet or that you have

chosen to connect via wireless, as per the instructions for

that particular machine.

Connect to2. http://192.168.1.1

In order to congure the3. MaxPower 802.11n/g/b Wireless

Router, you must input the password into the Password

box, leaving the username eld blank. The default pass-

word is “admin”.

Once you have

logged-in as the

administrator, it is

a good idea to change the

administrator password to

ensure a secure connec-

tion. You can do this under

the Administration tab on

conguration page.

Once you have entered the password, a screen with the fol-4.

lowing information will be displayed.

Most users will be able to congure the MaxPower 802.11n/g/b

Wireless Router and get it working properly using the default

settings. Some Internet Service Providers (ISPs) will require

that you enter broadband specic information into this device,

such as User Name, Password, IP Address, Default Gateway

Address, or DNS IP Address for Internet access. This informa-

tion can be obtained from your ISP, if required. More detailed

information about the dierent options for dierent settings

follows.

Internet Setup

Internet Connection Type:

Automatic Conﬁguration – DHCPt

This is default connection type. If your ISP supports

DHCP assigning dynamic IP address then please select

this type.

Static IPt

If you are required to use a xed IP address to connect to

the Internet, then select Static IP.

Internet IP Address: This is the Router’s WAN IP address.

It is provided by your ISP.

Subnet Mask: This is the Router’s Subnet Mask. If needed,

it will be provided by your ISP.

Default Gateway: This is the Router’s Gateway Address.

It, too, will be provided by your ISP.

DNS (1-3): Your ISP will provide you with at least one DNS

Server IP Address, which you will need to input here

PPPoEt

PPPoE (Point-to-Point Protocol over Ethernet) is a very

common connection type. If you are connected to the

Internet through DSL, check with your ISP to see if they

use PPPoE. If so, you will need to enable PPPoE.

User Name and Password: Enter the User Name and

Password provided by your ISP.

Connect on Demand: The Max Idle Time is allows the

Router to disconnect the Internet connection if there is

no trac through this Router during a specied period

of time. If your Internet connection has been terminated

due to going over this idle time, the Connect on Demand

option will trigger the Router to automatically re-estab-

lish your connection as soon as you try to access the In-

ternet again.

Keep Alive: The Redial Period causes the Router to peri-

odically check your Internet connection by a set period

of time. If the connection is terminated, then the Router

will automatically reconnect.

PPTPt

Point-to-Point Tunneling Protocol (PPTP), is a VPN tunnel

method that can use to encrypt data and prevent the un-

authorized viewing of condential data that is transmit-

ted across public networks.

Internet IP Address and Subnet Mask: This is the Router’s

IP Address and Subnet Mask. If your Internet

connection requires a Static IP address, then

your ISP will provide these numbers to you.

Default Gateway: Your ISP will provide you with the

Gateway IP Address.

User Name and Password: This is PPTP login User Name

and Password. Your ISP will provide you this information.

Keep Alive: The Redial Period causes the Router to peri-

odically check your Internet connection by a set period

of time. If the connection is terminated, then the Router

will automatically reconnect.

These connection types can be selected from the Internet

Connection Type drop-down menu. Fields for the appropri-

ate information will be displayed, depending on the connec-

tion type selected.

Optional Settings

Your ISP may require these settings. If your ISP provides this

information, make sure to enter it in the appropriate elds

here.

Host Name and Domain Name: These elds allow you to

input a host and domain name for the Router. Some ISPs re-

quire these names as identication. You may have to check

with your ISP to see if your broadband Internet service has

been congured with a host and domain name. In most

cases, leaving these elds blank will work.

MTU: MTU is the Maximum Transmission Unit. It species

the largest packet size permitted for Internet transmission.

Select Manual if you want to manually enter the largest

packet size that will be transmitted. The recommended

size, entered in the Size eld, is 1500. You should leave this

value in the 1200 to 1500 range. To have the Router select

the best MTU for your Internet connection, please select the

default setting--Auto.

Network Setup

The Network Setup section changes the Router’s local network

settings.

Router IP

IP Address and Subnet Mask: This is your router’s LAN

IP Address and Subnet Mask. The default IP Address is

192.168.1.1 and the default Subnet Mask is 255.255.255.0.

DHCP Server Settings

The settings allow you to congure the Router’s Dynamic Host

Conguration Protocol (DHCP) server function. The Router

can be used as a DHCP server for your network. A DHCP

server automatically assigns an IP address to each computer

on your network. If you choose to enable the Router’s DHCP

server option, you must make sure there is no other DHCP

server on your network. If you disable the Router’s DHCP

server function, you must congure the IP Address, Subnet

Mask, and DNS for each connected computer (note that each

IP Address must be unique).

DHCP Server: DHCP is enabled by factory default. If you al-

ready have a DHCP server on your network or you do not

want a DHCP server, then select Disable from the options.

Assign Static DHCP: This function can enable the DHCP

server to assign a particular IP address for an appointed

computer. If you want a computer to be assigned the same

IP address every time, then click the Assign Static IP button.

How to set a PC as Static DHCP client

On the Static DHCP Client List screen, enter the static

local IP address in the Assign this IP eld, and enter the

MAC address of the computer in the “To this MAC” eld.

Then, click the Enabled checkbox. When you have nished

your entries, click the Save Settings button to save your

changes or click the Cancel Changes button to cancel your

changes. To exit this screen, click the Close button.

How to set a DHCP client as Static DHCP client

Click the DHCP Client Table button can see a list of DHCP

client. On the DHCP Client Table, you will see a list of DHCP

clients with the following information: Client Names, In-

terfaces, IP Addresses, and MAC Addresses. From the “To

Sort by”drop-down menu, you can sort the table by Client

Name, Interface, IP Address, or MAC Address. If you want

to add any of the DHCP clients to the Static DHCP Client

List, then click the Save to Static DHCP Client List checkbox

and then click the Save Settings button. Click the Cancel

Changes button to cancel your changes. To view the most

up-to-date information, click the Refresh button. To exit

this screen, click the Close button.

Start IP Address: Enter a value for the DHCP server to start with

when issuing IP addresses. Because the Router’s default IP ad-

dress is 192.168.1.1, the Starting IP Address must be

192.168.1.2orgreater,butsmallerthan192.168.1.254.

The default Starting IP Address is 192.168.1.100.

Maximum Number of Users: Enter the maximum number

of PCs that you want the DHCP server to assign IP addresses

to. The absolute maximum is 253 - possible if 192.168.1.1 is

your starting IP address. The default is 50.

IP Address Range: The range of DHCP addresses. This range

is determined by the Maximum Number of Users.

Client Lease Time: The Client Lease Time is the amount

of time a network user will be allowed connection to the

Router with their current dynamic IP address. Enter the

amount of time, in minutes, that the user will be “leased”

this dynamic IP address. Once the leased time is up, the user

will get a new dynamic IP address automatically. The default

is 0 minutes, which means one day.

Static DNS 1-3: The Domain Name System (DNS) is how the

Internet translates domain or website names into Internet

addresses or URLs. Your ISP will provide you with at least

one DNS Server IP Address. If you wish to utilize another,

enter that IP Address in one of these elds. You can enter up

to 3 DNS Server IP Addresses here. The Router will use these

for quicker access to functioning DNS servers.

WINS: The Windows Internet Naming Service (WINS) man-

ages each PC’s interaction with the Internet. If you use a

WINS server, enter that server’s IP Address here. Otherwise,

leave this blank.

Time Settings

Select your time zone from this pull-down menu. Click the

check box if you want to automatically adjust for daylight sav-

ings time.

Once you are done changing the settings, click the Save Set-

tings button to apply your changes or Cancel Changes to re-

vert to what they were before. For further information click

Help.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Newer Technology Router wireless

Newer Technology

Newer Technology MAXPower Manuale utente

Manuali Router wireless popolari di altre marche

Milesight

Milesight UG67 Manuale utente

Airlogic

Airlogic AirSync Class 1 Manuale del proprietario

Samsung

Samsung WCH730B Manuale utente

TELEFONICA

TELEFONICA USB Adapter Manuale utente

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuale utente

Askey

Askey RAC2V1K Manuale utente

Alloy

Alloy WLF2454AP-S Manuale utente

TP-Link

TP-Link TL-WR542G Manuale utente

NETGEAR

NETGEAR WNR2000v4 Manuale utente

Hama

Hama 53120 Manuale utente

Intellinet

Intellinet 524582 Manuale utente

Asus

Asus RT-N10P Manuale utente

D-Link

D-Link DIR-506L Manuale utente

Sapido

Sapido GR297n Manuale utente

Asus

Asus DSL-N55U Manuale utente

AMTC

AMTC WR7502 Manuale utente

Compaq

Compaq CP-2W - iPAQ Connection Point Manuale utente

SMC Networks

SMC Networks WBR14-N2 FICHE Manuale utente
