NexComm Systems NEXPEED NBG440 Manuale utente

r’

’s

NexComm Systems

Tel: +82-31-781-1862, Fax: +82-31-781-1863

E-mail: suppor[email protected].kr

NEXPEED NBG440 User’s Manual

NexComm Systems, Inc. 1 PAGE

This document contains information that is the property of NexComm Systems Co., Inc.

All or part of this document may not be copied, reproduced, reduced to any electronic medium or

machine readable form, or otherwise duplicated, and information herein may not be used,

disseminated or otherwise disclosed, except with the prior written consent of NexComm Systems

Co., Inc.

April 29, 2004

This document may be subject to change for correction and upgrade.

Contact

NexComm Systems Co., Inc.

C-501, Bundang Techno-Park,

145 Yatap-Dong, Bundang-Ku, Sungnam-City, Kyunggi-Do,

463-760, Korea

Tel. : +82-31-781-1862

Fax : +82-31-781-1863

E-mail : suppor[email protected].kr

Homepage : http://www.nexcomm.co.kr

NEXPEED NBG440 User’s Manual

NexComm Systems, Inc. 2 PAGE

Contents

PART I: NEXPEED NBG440 Introduction ............................................................... 4

Introduction...................................................................................................................... 5

Specifications................................................................................................................... 7

Product Appearance ......................................................................................................... 9

PART II: Installing the Router ................................................................................. 11

Physical Environments................................................................................................... 12

Checking in the Box ...................................................................................................... 12

Connecting Cables and Connectors ............................................................................... 13

PART III: Configuring the Router ........................................................................... 16

Reviewing the Factory Default configuration................................................................ 17

Accessing the Console ................................................................................................... 18

User Mode ..................................................................................................................... 19

Configuring SHDSL Port............................................................................................... 21

Operation Mode of the Interface.................................................................................... 27

Configuring IP Routing and IP Address......................................................................... 30

Configuring Bridging..................................................................................................... 35

Configuring Multiplexed Link....................................................................................... 39

Configuring Link Encapsulation and Keepalive ............................................................ 45

Configuring Static IP Routes ......................................................................................... 47

Configuring the ARP Table............................................................................................ 50

Saving the Configuration ............................................................................................... 51

Rebooting the system..................................................................................................... 52

NEXPEED NBG440 User’s Manual

NexComm Systems, Inc. 3 PAGE

Contents(continued)

PART IV: Configuring advanced Functions............................................................ 53

Configuring description of the interface ........................................................................ 54

Configuring IEEE 802.1P/Q Tagged VLAN.................................................................. 55

Configuring VLAN for the built-in switch .................................................................... 67

Configuring DHCP ........................................................................................................ 73

Configuring IP Filter...................................................................................................... 76

Configuring NAT ........................................................................................................... 80

Configuring RIP............................................................................................................. 87

Load Balancing and Line-Backup.................................................................................. 90

PART V: System maintenance .................................................................................. 94

Accessing the router through Telnet............................................................................... 95

Configuring SNMP ........................................................................................................ 96

Upgrading the System Software .................................................................................... 99

Setting the Host name, Date and Time......................................................................... 103

PART VI: Configuration Examples........................................................................ 107

Example1. Bridging Configuration in 4-wire mode..................................................... 108

Example2. Routing Configuration in 4-wire mode...................................................... 111

Example3. Bridging Configuration in 2-wire mode..................................................... 115

Example4. Bridging Configuration using the MX0 interface ...................................... 118

Appendix................................................................................................................... 122

Connector Pin-outs ...................................................................................................... 123

NEXPEED NBG440 User’s Manual

NexComm Systems, Inc. 4 PAGE

PART I: NEXPEED NBG440 Introduction

□Overview and Features

□Specification

□Product Appearance

NEXPEED NBG440 User’s Manual

NexComm Systems, Inc. 5 PAGE

Introduction

Introduction to the NEXPEED NBG440 router

Overview

Implementing international standard-based ITU-T/ETSI G.SHDSL transmission (G.991.2) with

robust IP routing, concurrent bridging functions and built-in 4 port Ethernet switch, NBG440 is

perfect for mission-critical applications such as compus networking, multimedia services and

network gateway access.

Interoperating with NexComm’s Ethernet-based SHDSL Mini-DSLAM NS4024G, the NBG440

provides a cost effective alternative of Ethernet networking of Point to Multi-Point application for

SMBs that have multiple buildings in a campus-like environment. By leveraging Tag-based VLAN

and STP capabilities of the NBG440, the campus ensures a highly secure and reliable network. By

utilizing the Ethernet-based QoS capabilities the campus can take advantage of voice and video

applications. This application requires no new infrastructure, and results in a low cost, plug and

play solution with low management overhead.

Features

SHDSL is a technology based on the G.SHDSL(G.991.2) standard. NBG440 supports a packet-

based network technology that allows high-speed transmission over twisted-pair copper wire

between an Internet service provider central office and a customer site or on local loops created

within a building.

The features are as follows:

▄Supports 4 ports of 10/100M Ethernet LAN of automatic sensing.

▄Supports ITU-T G.991.2 (G.SHDSL) standard.

▄Supports identical user data rates in both upstream and downstream directions (symmetric

technology) and vary from 200 Kbps:

- up to 2.3 Mbps in two-wire(one pair) mode

- up to 4.6 Mbps in four-wire(two pair) mode

NEXPEED NBG440 User’s Manual

NexComm Systems, Inc. 6 PAGE

▄Supports TCP/IP, UDP, ICMP, and ARP protocol.

▄Supports HDLC, PPP, Frame Relay and ETHDLC as a transmission protocol.

▄Supports transparent bridging function.

- Functionality of IMUX (Link-multiplexing function)

- IEEE 802.1Q tag-based VLAN

- IEEE 802.1P Priority

▄Supports basic routing function and advanced features.

- Static Routes

- RIP 1 and RIP 2 by routing protocol

- Enables NAT and PAT as the address translation

- Functionality of Load-Balancing and line back-up

▄Offers DHCP Relay and DHCP Server functionality.

▄Supports Proxy ARP function.

▄Offers various methods of filtering function for IP packets.

▄Supports a SNTP (Simple Network Time Protocol) client.

▄Can be configured either by serial console or Telnet S/W.

▄HTTP server enables WEB based management.

▄Supports SNMP MIB1 and MIB2 and monitoring through SNMP-base application.

▄Front panel LEDs enable the easy check of the interface status.

▄PING utilities enable to check the network status.

▄Offer SHDSL service together with our product series of routers and modems.

(such as NS4024G, NBG420)

NEXPEED NBG440 User’s Manual

NexComm Systems, Inc. 7 PAGE

Specifications

NEXPEED NBG440 has 4-port 10/100M Ethernet switch, one SHDSL port and the console port.

[Table 1-1] The NBG440 router specification

Hardware Specifications

Memory DRAM : 16Mbyte

Flash Memory : 512Kbyte

DSL Port (for G.SHDSL) 2 pair SHDSL with one RJ-45

TC-PAM(G.991.2) line coding

LAN Port (for Ethernet) 4 ports with RJ-45

Console Port RS-232C (DB9 Connector)

Data Rate

DSL: 2 wire mode, 200Kbps ~ 2320Kbps (64kbps step)

4 wire mode, 384Kbps ~ 4608Kbps (128kbps step)

LAN: 10/100Mbps auto-negotiation

Power External Adapter 5V 2A

Dimensions 238mm(W) x 182mm(D) x 47mm(H)

Software Specifications

Ethernet TCP/IP

SHDSL HDLC/ETHDLC, PPP(PAP,CHAP), Frame-Relay

Bridging

Address Learning, 1024 Address support

Routing Static, RIP1/ RIP2

Management

Command Line Interface

TELNET

SNMP (MIB I, MIB II)

Web based management

Application

IEEE 802.1P/Q tag-based VLAN

DHCP Server and Relay

IP Packet Filtering at layer 2 or layer 3

Network Address Translation(NAT/ PAT)

Load-Balancing and redundancy / Link-multiplexing

ProxyARP, SNTP Client

TFTP upgrading

NEXPEED NBG440 User’s Manual

NexComm Systems, Inc. 8 PAGE

Power Requirements

DC input voltage +5V, 2A

Fuses

F1 : KST 250 Vac, 2 A

F2, F3 : F1250T , 250 V, 1.25 A

Power Adapter Requirements

This unit should be uses UL Listed AC/DC Adaptor, CCN: EPBU, EPBU7, QQGQ or QQGQ7 for

USA or Canada only. Marked with LPS or Limited Power Source for QQGQ or QQGQ7.

Rated input 100 VAC ~ 240 VAC, 0.3 A, 50/60 Hz

Rated output 5V DC, 2.0 A

NEXPEED NBG440 User’s Manual

NexComm Systems, Inc. 9 PAGE

Product Appearance

The front side for the NBG440 Router

The NEXPEED NBG440 router has various LEDs in the front panel to provide port status

information in real time.

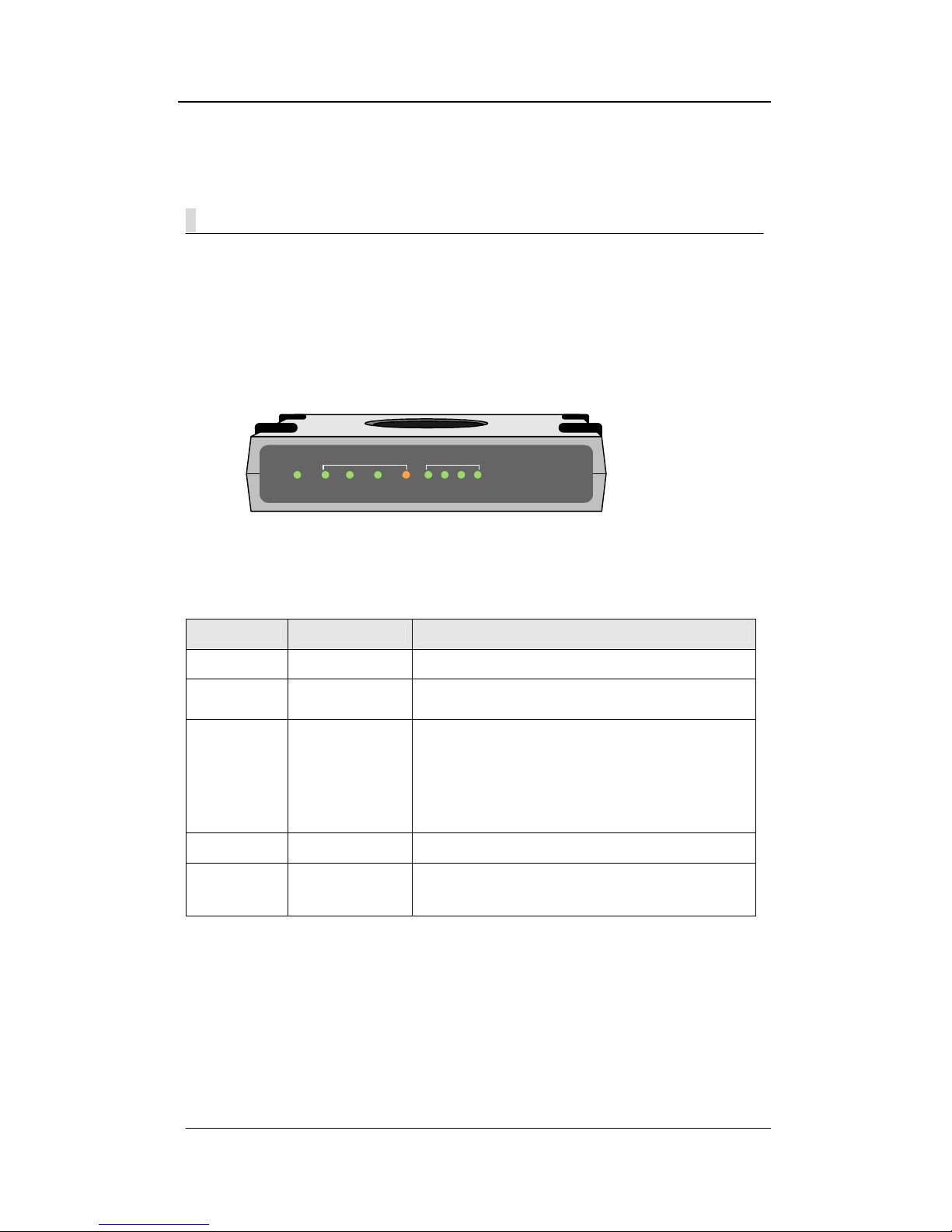

[Figure 1-1] The front side of NBG440

LEDs in the front side of the NBG440 router shows router’s status at the time.

[Table 1-2] Status of LEDs

LED Status & Color DESCRIPTION

PWR Off, Solid green On when power is supplied to the router

(LINE) 4W Solid green,

Solid orange

When the SHDSL is 2-wire mode, the color is green.

When the SHDSL is 4-wire mode, the color is orange.

(LINE) S0, S1

Off, Solid green,

Flashing green

On when the line is trained and the serial protocol is up.

- S0 : Sync. status for LINE1 (4th and 5th)

- S1 : Sync. status for LINE2 (1st and 2nd)

Blinks when the line is connected properly and the

synchronization process is taking place.

(LINE) ACT Flashing orange Blinks when a SHDSL port receives data.

(LAN)

1, 2, 3, 4

Off, Solid green,

Flashing orange

On when the Ethernet device is connected.

Blinks when a LAN port receives a packet.

PWR 4W S0 S1 ACT 1 2 3 4

LINE LAN
