How to setup the Shark CNC Spindle VFD (inverter)
to use the Spindle Speed Interface cable
DRAFT 3 06 09 2021 3
Small slotted or Phillips's
screwdriver
Medium Phillips's
screwdriver
Wire cutter and wire stripper
Zip tie
Shark CNC Spindle
Speed interface cable
1 to 1.5” long, braded or solid
18 or 20-gauge jumper wire
Parts from Next Wave Parts and tools supplied by customer
DRAFT 3 06 09 2021 4
1. Unplug VFD power supply cord.
( It’s OK to leave the power cable connected
to the top of the spindle.)

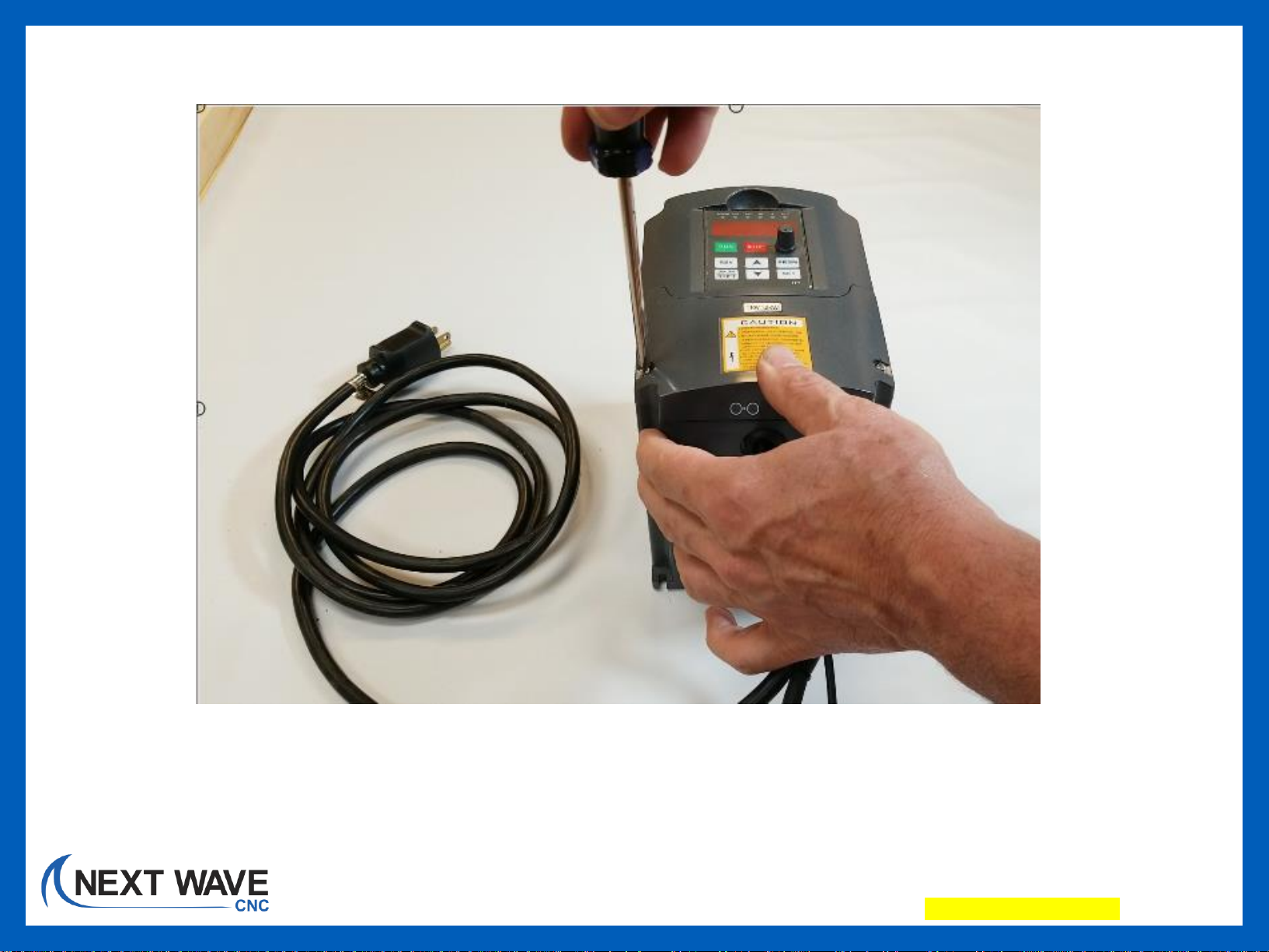

2. Remove the lower front
cover from the VFD.
DRAFT 3 06 09 2021 5
3. Move jumper to the VI (left) position.
DRAFT 3 06 09 2021 6
4. Use a small screwdriver to loosen terminals DCM, ACM, RS- and RS+
DRAFT 3 06 09 2021 7
5. Push the tail end of the speed control cable through the
round grommet in the bottom of the VFD.
TIP: Folding down the loose wire ends simplifies this step.
DRAFT 3 06 09 2021 8
6. Connect the jumper wire between terminals DCM and ACM
7. Connect green wire to terminal ACM
8. Connect black wire to RS-
9. Connect red wire to RS+
10. Tighten terminal connections and check that the new wires can’t be pulled out.
Jumper wire Green wire
DRAFT 3 06 09 2021 9
11. Zip tie the Spindle cable to the other cable. Trim the zip tie.
DRAFT 3 06 09 2021 10

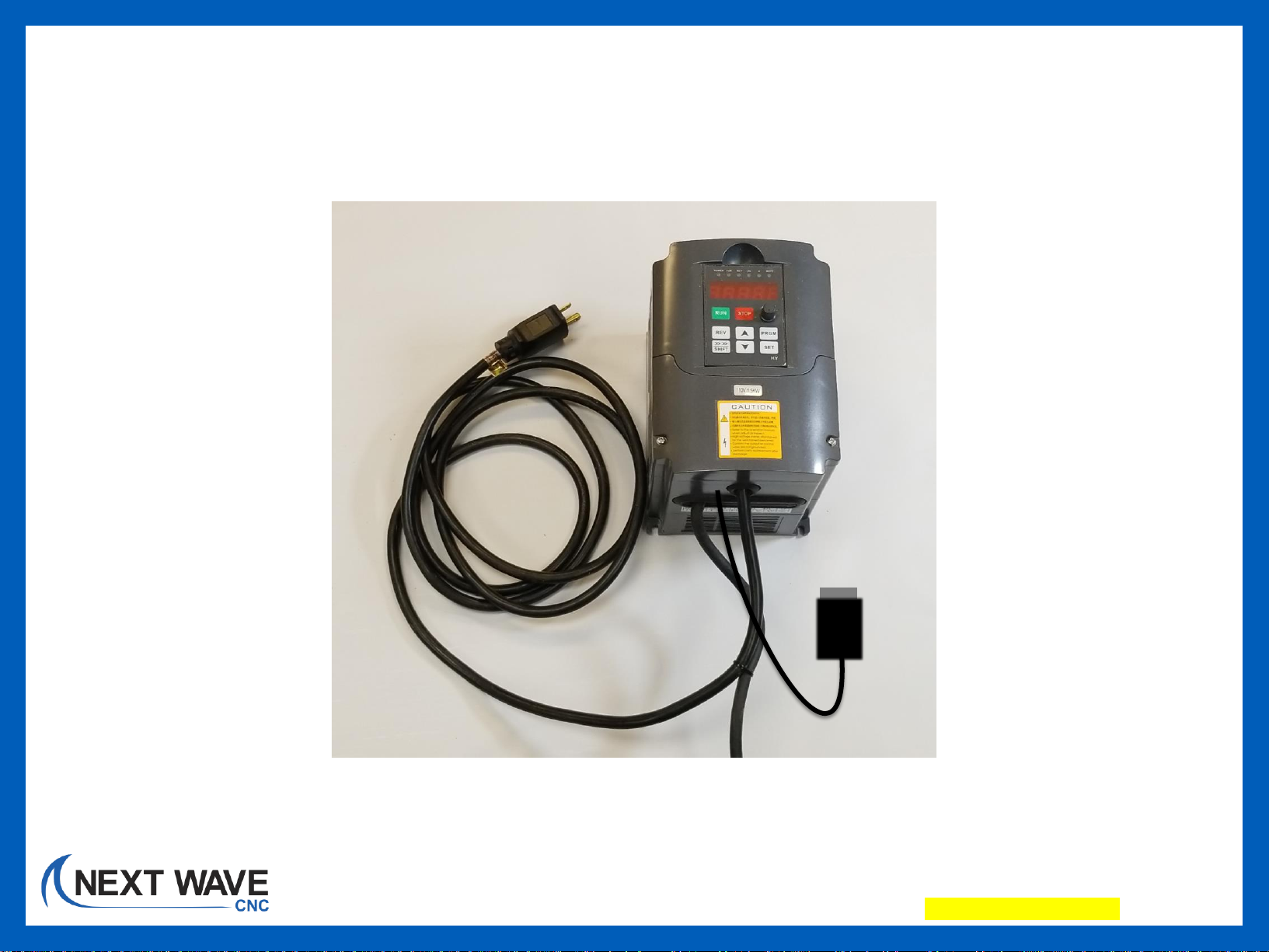

12. Reattached front panel.
