Nextar HGPS35 Manuale utente

Important Safety

Instructions

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to constitute

a risk of electric to

ersons.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (servicing)

instructions in the literature accompan

the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

POWER SUPPLY:

Connect the supplied adapter to the side of the unit in the slot marked “DC 5V IN”. Plug

the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty

inserting the plug, turn it over and reinsert it. If the unit will not be used for a long time,

disconnect the plug from the outlet.

NOTE:

Before plugging the power cord into an AC outlet, make sure that all the connections

have been made.

CAUTION: These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so.

Refer to service manual for servicing instructions.

Important Safety

Instructions

NOTES

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a damp cloth.

7) Do not block any of the ventilation openings. Install in accordance with the

manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. Apolarized plug

has two blades with one wider than the other. A grounding type plug has two blades and

a third grounding prong. The wide blade or the third prong is provided for your safety.

When the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is damaged,

liquid has been spilled or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.

Important Safety

Instructions

Warning

Failure to avoid the following potentially hazardous situations may result in injury or

property damage.

The unit is designed to provide you with route suggestions. It does not reflect road

closures or road conditions, traffic congestion, weather conditions, or other factors that

may affect safety or timing while driving.

Use the unit only as a navigational aid. Do not attempt to use the unit for any purpose

requiring precise measurement of direction, distance, location, or topography. This

product should not be used to determine ground proximity for aircraft navigation.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

Features

Navigation Function

Other Special Functions

Navigation Function: The unit is designed to provide you with route suggestions. It supports voice

navi

ation.

Power Adapter Switch: Automatically

adapts to voltage requirements in U.S and

other countries.

SD Card and USB Input:The unit is

designed with SD card and USB ports and

can be connected to SD card or other USB

device for file loading.

1 GB Flash Storage: Built in 1G Flash

Storage can store map data. Support file formats: Supports MP3 and

WMA Format files playback.

Accessories

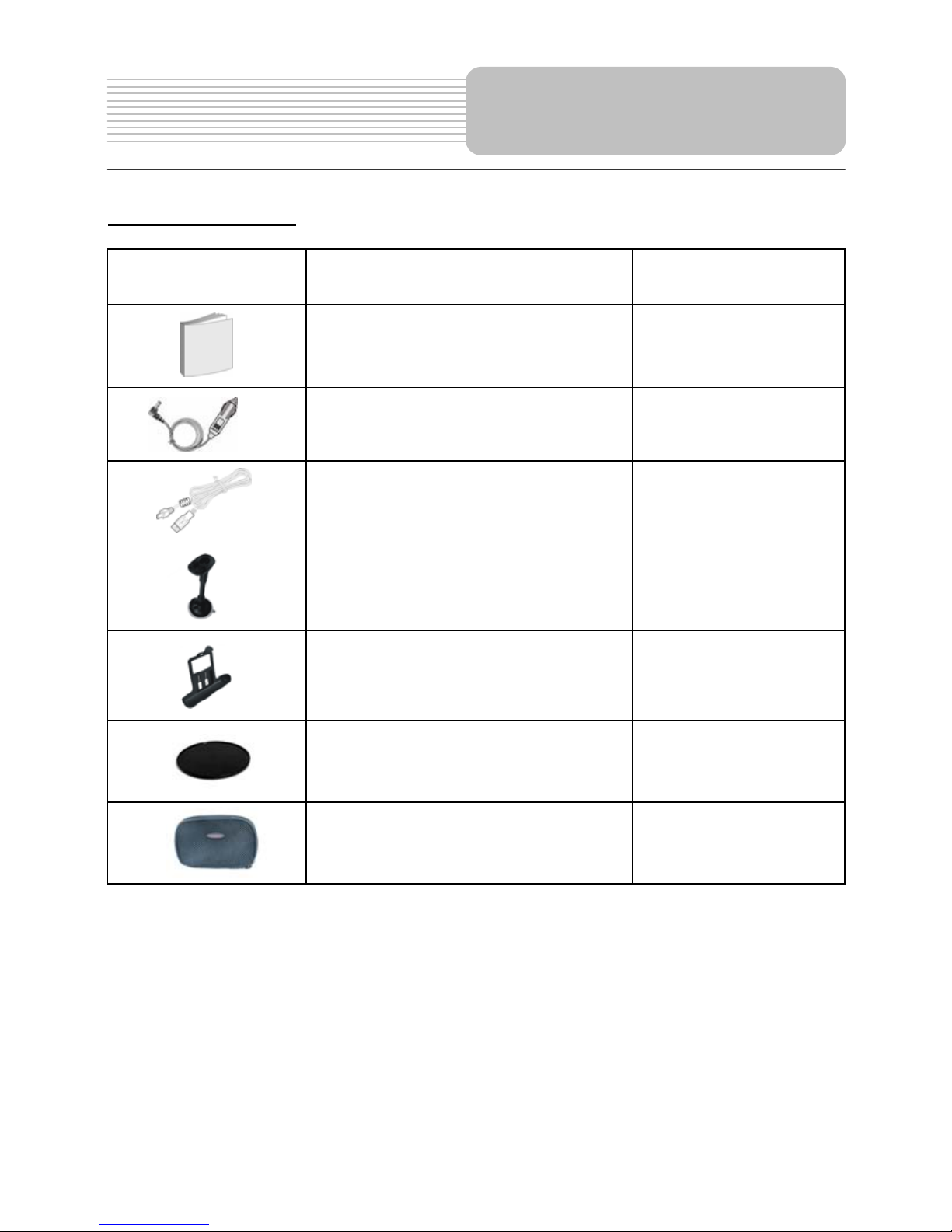

Accessories List

ITEM NAME QTY

Owner’s Manual 1

Car Adaptor 1

USB Cable 1

Windshield mount bracket 1

Mount cradle 1

Dashboard mount disk 1

Pouch 1

NOTE

Accessories and their part number are subject to modification without prior notice due to

improvements.

Contents

……………………………………….……..1

Important Safety Instructions

……………………………………………...4

Features

……………………………………………...5

……………………………………………...7

……………………………………….……..9

System Connections

………………………….…….……....…..11

………………………………………..…..12

………………………………………..…..16

………………………………………....…19

………………………………………..…..20

………………………………………..…..21

Power Supply Preparation

Troubleshooting

General Setup

Specifications

Accessories

View of Main Unit

Playing Music

Use of the Mount Accessories

Front View

iew of Main Unit

1. MENU button

Press to enter the main menu.

2. Speakers

3. POWER button

Press to enter or exit the standby mode.

4. Charge Indicator

When charging the battery, it is red; when the battery is fully charged, it turns green.

5. LCD Screen

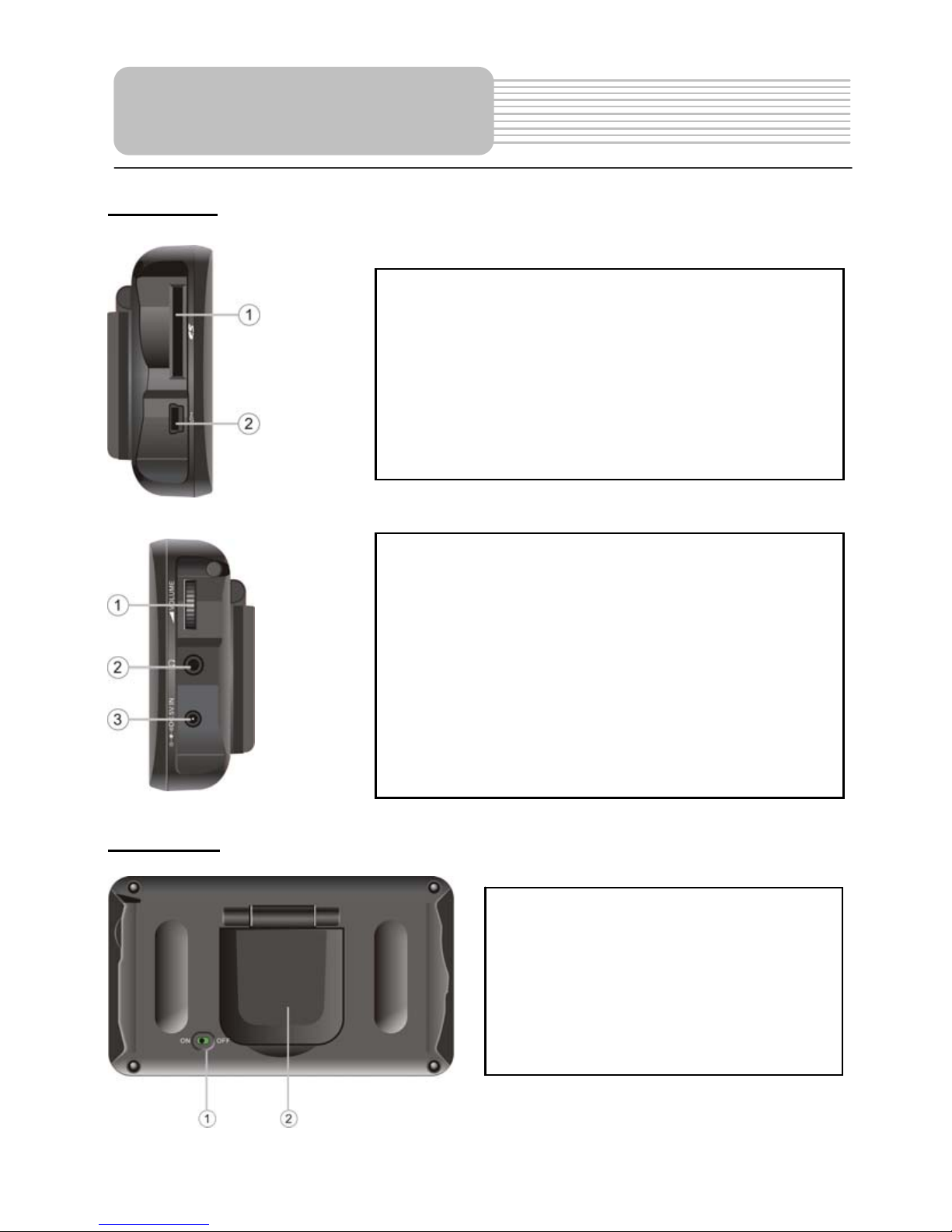

Side View

Rear View

View of Main Unit

1. ON/OFF switch

Used to switch power on or off.

2. GPS Antenna

Receiving GPS signals.

1. Card Port

Insert the SD/MMC card into the port.

2. USB port

1. Volume Control

Used to adjust the volume of the headphone

and speaker.

2. Headphone Jack

Used to connect headphones for private

listening. When the headphones are

connected to this jack, the speaker will be

turned off automatically.

3. DC 5V Input Jack

Used to connect to the supplied car adapter.

stem Connections

zAlways ensure that the unit and any other external device connected to the unit are

switched off and unplugged from the power supply before you attempt to connect

the unit to any external device.

Connecting to PC

The unit is designed with a USB port which allows you to connect the unit to PC for map

updating. See the below figure for details:

System requirements:

-Windows 98SE, ME , 2000 and XP

(Driver required for Windows 98SE)

-DVD Rom Drive ( for map upgrade purposes)

-Intel Pentium II 233 Mhz

-64 MB RAM

-50 MB available hard drive space

-Available serial port and/or USB Port

-256-color display adapter and monitor

(16 bit color required)

In the near future map updates will be available for down load from our website. Please

check www.nextar.com periodically for the information on downloads.

Inserting SD Card

The unit is designed with SD/MMC Card jack which allows you to insert the SD/MMC

card into the unit as shown below:

Connecting to Headphones

Connect the headphones to the right side of the unit for private listening.

When headphone is connected, the speakers will automatically turn off.

Note: Excessively loud volume could damage your hearing. So turn down the volume

before you connect the headphones, and then raise the volume to comfortable level.

System Connections
