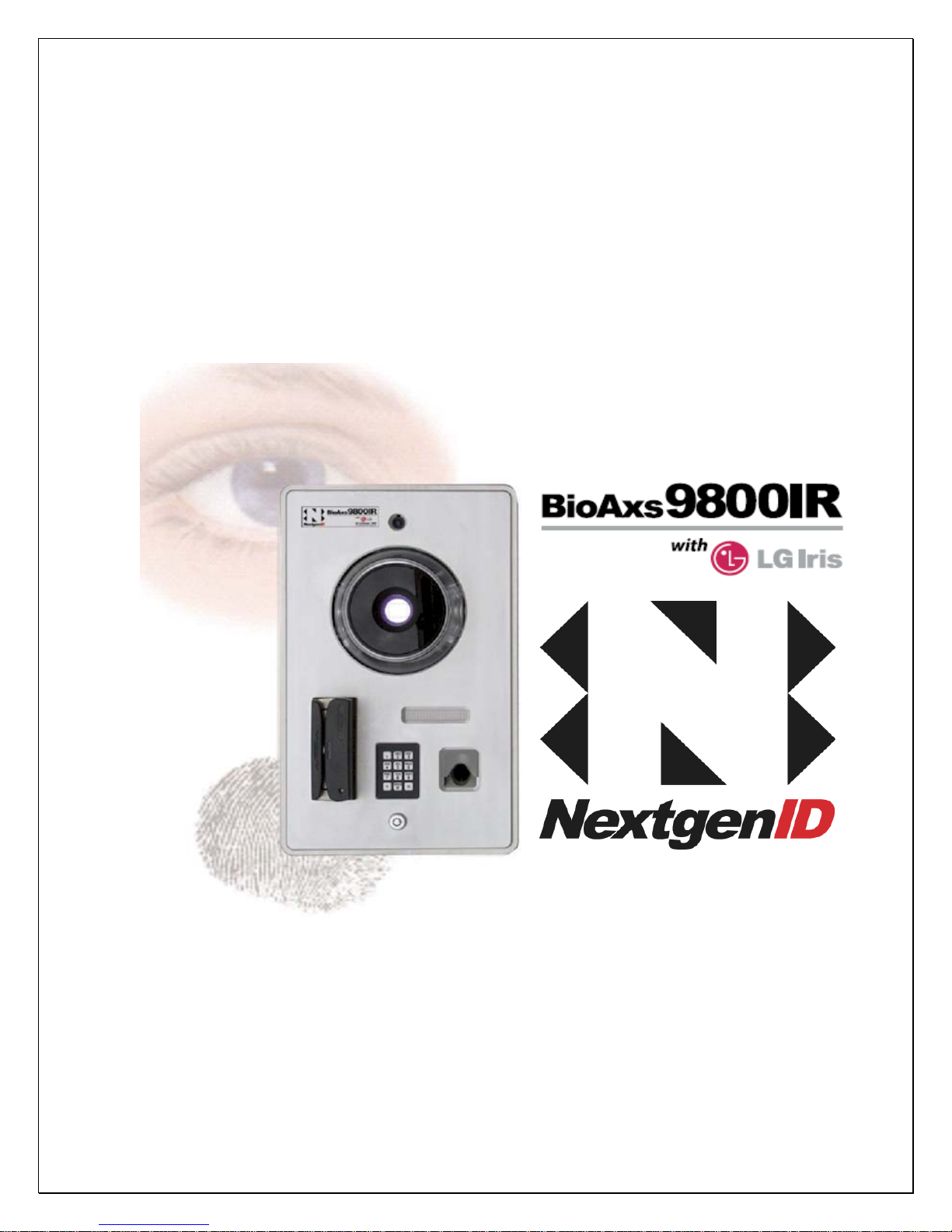

BioAxs 9800IR™

Multi-Modal Biometric Access Panel

Fingerprint & Iris Recognition

Installation & Operations Manual

Version 1.9

P/N: NG-DOC-BA9800IR-IOM

BioAxs 9800IR™ Installation & Operations Manual. Version 1.9

THIS PAGE INTENTIONALLY LEFT BLANK

BioAxs 9800IR™ Installation & Operations Manual. Version 1.9

Notices

Notice: The information in this document is subject to change without notice. Please contact

support@NextgenID.com and refer to P/N NG-DOC-BA9800IR-IOM

Notice: Any use of this product is subject to the terms and acceptance of the NextgenID Ltd

“Software Agreement.” You may request a copy of the “Software Agreement” from NextgenID Ltd

by contacting [email protected]. Please review this agreement carefully.

Notice: Windows™, Windows 2000™, Windows NT™, Windows XP™ are trademarks and/or

registered trademark of Microsoft Corporation in the United States and/or other countries.

Notice: IrisAccess™ is a registered trademark of LG Electronics Institute of Technology in the

United States and/or other countries.

Fire Safety Notice Never connect BioAxs Access Control devices or locks to doors,

gates or barriers without first consulting the local fire codes. You must consult with, and

get approval of, local fire officials before installing locks or devices on any doors that may

be fire exits. Use of request to exit push buttons may not be legal. A single action exit

mechanism may be required. Always obtain the proper permits and approvals in writing

before installing access control equipment, door locks and associated readers.

Notice: The NextgenID Ltd. Logo, and the NextgenID Ltd products referred to herein are either

the trademarks or the registered trademarks of NextgenID Ltd. All other trademarks are property

of their respective owners. NextgenID Ltd. assumes no responsibility for errors that may appear

in this manual. Information contained herein is subject to change without notice.

BioAxs 9800IR™ Installation & Operations Manual. Version 1.9

Contacts

Mailing Address

NextgenID, Ltd.

10226 San Pedro

Suite 100

San Antonio, TX 78216 USA

By Phone

Phone (210) 530-9991

Fax: (210) 530-9992

[email protected]

World Wide Web

Support.NextgenID.com

BioAxs 9800IR™ Installation & Operations Manual. Version 1.9

Contents

NOTICES........................................................................................................................... 3

CONTACTS ...................................................................................................................... 4

INTRODUCTION............................................................................................................. 8

BIOAXS 9800IR™ ™ FEATURES / GENERAL SPECIFICATIONS .................... 10

CHAPTER 1: PREPARING FOR INSTALLATION................................................. 12

SITE SURVEY AND PREPARATION................................................................................... 12

Locating the BioAxs 9800IR™ Access Panel........................................................... 12

Locating the Door Commander Module (DCM) ...................................................... 13

Ethernet Connectivity (LAN)..................................................................................... 13

Power Requirements................................................................................................. 13

Earth Ground............................................................................................................ 14

Cabling Runs / Conduit Installation......................................................................... 14

Installation Tools Required....................................................................................... 14

Customer / Installer Supplied Hardware and Cabling............................................. 14

ESD Precautions....................................................................................................... 15

CHAPTER 2: UNPACKING......................................................................................... 16

Unpacking the BioAxs 9800IR™ Access Control System......................................... 16

Verify Shipping Contents .......................................................................................... 17

Optional Equipment and Accessories....................................................................... 17

CHAPTER 3: HARDWARE SPECIFICATIONS ...................................................... 18

Power Requirements................................................................................................. 18

Battery Backup.......................................................................................................... 18

Output Power............................................................................................................ 18

Earth Ground............................................................................................................ 18

Relay Output Points.................................................................................................. 19

Alarm Input Points.................................................................................................... 19

Operating Temperatures........................................................................................... 19

Operating Relative Humidity.................................................................................... 19

Dimensions................................................................................................................ 19

Weight....................................................................................................................... 19

CHAPTER 4: WIRING SPECIFICATIONS............................................................... 20

Networking................................................................................................................ 20

DCM Communications Extender (Access Panel to DCM Extender Unit)................ 20

Access Panel Video Cable ........................................................................................ 21

Iris Recognition Video Cable.................................................................................... 21

Iris Recognition Serial Communications RS422 Cable............................................ 21

24V Power Cable...................................................................................................... 22

Alarm Input points .................................................................................................... 22

Relay outputs............................................................................................................. 22

BioAxs 9800IR™ Installation & Operations Manual. Version 1.9

Wiegand Signaling.................................................................................................... 22

Earth Ground............................................................................................................ 22

CHAPTER 5: WIRING OVERVIEW.......................................................................... 23

CHAPTER 6: INSTALLATION................................................................................... 25

DOOR COMMANDER MODULE INSTALLATION ............................................................... 25

Mount the Door Commander Module (DCM) Unit.................................................. 25

Mount the DCM Communications Extender Unit..................................................... 26

Install the FingerMatch™ Hardware Licensing Device.......................................... 26

Install the Uninterruptible Power Supply (UPS)...................................................... 27

DCM & DCM Communications Extender Power Connections................................ 27

Install the 24VDC Access Panel Power Supply........................................................ 27

BIOAXS 9800IR™ PANEL ENCLOSURE INSTALLATION ................................................. 27

Mounting the BioAxs 9800IR™ Access Panel Enclosure......................................... 27

WIRING INSTALLATION.................................................................................................. 29

Door Commander Module (DCM) Connections....................................................... 29

BioAxs 9800IR™ Access Panel DCB Wiring Connections...................................... 32

Powering the System................................................................................................. 38

NEXTGENID COMMAND CENTER SERVER AND CLIENT SOFTWARE............................... 39

ACTIVATING THE BIOAXS 9800IR™............................................................................. 39

CHAPTER 8: USING THE PANEL............................................................................ 40

PRE-REQUISITES FOR PANEL USE .................................................................................. 40

Hardware Installation............................................................................................... 40

Access Panel Activation............................................................................................ 40

Member Enrollment and Privilege Assignment........................................................ 40

INTRODUCTION .............................................................................................................. 40

Authentication Protocol Overview for the BioAxs 9800IR™................................... 41

STEP 1: MEMBER IDENTIFICATION................................................................................. 42

Using Personal Identification Numbers (PIN) ......................................................... 42

Panel Feedback......................................................................................................... 42

STEP 2: MEMBER VERIFICATION.................................................................................... 42

Panel Feedback......................................................................................................... 42

STEP 3: MEMBER VALIDATION ...................................................................................... 42

Member Profile Expiration....................................................................................... 42

Access Panel ‘Lockdown’ State................................................................................ 43

Panel Feedback......................................................................................................... 43

STEP 4: ACCESS VALIDATION ........................................................................................ 43

Member Access Privileges........................................................................................ 43

Guest Privileges........................................................................................................ 44

STEP 5: GUEST PROMPTS (CONDITIONAL) ..................................................................... 44

Panel Feedback......................................................................................................... 44

ACCESS PANEL MODES OF OPERATION.......................................................................... 45

IH: PIN plus Iris or Fingerprint............................................................................... 45

II: PIN plus Iris or Fingerprint with Tailgating Countermeasure ........................... 45

JE: Wiegand (Proximity Card / Magnetic Swipe) plus Iris or Fingerprint.............. 46

BioAxs 9800IR™ Installation & Operations Manual. Version 1.9

JF: Wiegand (Proximity Card / Magnetic Swipe) plus Iris or Fingerprint with

Tailgating Countermeasure...................................................................................... 46

KE: Common Access Card (CAC) plus Iris or Fingerprint...................................... 46

KF: Common Access Card (CAC) plus Iris or Fingerprint with Tailgating

Countermeasure........................................................................................................ 46

Miscellaneous Configurations.................................................................................. 47

APPENDIX A: GENERAL MAINTENANCE TASKS.............................................. 48

FINGERPRINT SENSOR HARDWARE MAINTENANCE........................................................ 48

Cleaning the Sensor.................................................................................................. 48

Sensor Maintenance Warnings................................................................................. 48

FINGERPRINT SENSOR FREQUENTLY ASKED QUESTIONS ............................................... 49

APPENDIX B: BIOMETRIC RECOGNITION PERFORMANCE ......................... 50

Fingerprint Recognition Performance Issues........................................................... 50

Iris Recognition Performance Issues........................................................................ 50

NOTES............................................................................................................................. 51

BioAxs 9800IR™ Installation & Operations Manual. Version 1.9

Introduction

Biometric Access Control

A computerized method used to identify people based on their unique physical characteristics

before granting access to secure facilities.

Why biometric access control is better

Today, more than ever before, it’s important to know that only authorized people are in your

secure areas. NextgenID biometric access control products provide secure, affordable access

control for all security needs.

Far superior to pin numbers or card systems, which can be shared or stolen, biometrics utilize a

person’s unique physical characteristics to identify the user. NextgenID biometric identification

and verification systems ensure that only legitimate members can enter your secure area.

NextgenID BioAxs multi-biometric hardware and software platform allows users to choose what

biometric technologies they want to deploy at each point to be secured. The BioAxs 9800IR™ is

part of the NextgenID BioAxs™ family of multi-biometric, multi-modal access control panels and

utilizes both fingerprint and iris biometrics.

Modular / Scalable

The modular, multi-biometric BioAxs solution is designed to treat each biometric component as a

verification or identification device within the scalable framework of a particular door’s security

requirements. NextgenID hardware and algorithm neutrality allow particular algorithms and

sensors to be easily integrated to meet customer requirements.

Multi-Modal Authentication Protocol

The BioAxs 9800IR™ provides multi-modal authentication modes meaning the facilities access

control administrator can adjust the access protocol necessary to obtain entry to the protected

facility. Combining traditional access control methods such as card readers, PIN Entry devices

with the latest in biometric authentication technology, the BioAxs 9800IR™ provides a robust

access control solution to a variety of threat conditions present in today’s environment.

Flexible Authentication Protocols

The BioAxs 9800IR system can be configured as an “and” system that requires both biometrics to

be verified for access to be granted. The BioAxs 9800IR™ can also be configured as an “or”

system that allows users to authenticate either their iris or their fingerprint.

Threat Level Scalability

Based on the current perceived level of threat to a given facility, the BioAxs 9800IR™ system

allows the access control administrator to configure predefined operating configurations for the

access panels. As threat conditions increase the level of the security for a facility, the panel

behavior may be ‘scaled up’ to require additional credentials for granting access. Examples of

these techniques include: combining a proximity card and biometric, adding a PIN or requiring

multiple biometrics before granting access.

Patented Dual Biometric System

The BioAxs 9800IR’s patented system combines the power of two biometrics, iris and fingerprint

with the optional added security of tailgating detection to provide a formidable access control

solution for your secure facility. The system comes standard with the LG IrisAccess™

verification/identification algorithm and NextgenID FingerMatch verification/identification

algorithm.

BioAxs 9800IR™ Installation & Operations Manual. Version 1.9

FingerMatch™ fingerprint matching technology

FingerMatch™ uses both global (features that are discernible by the naked eye) and local (tiny,

unique characteristics of fingerprint ridges) feature analysis to match a fingerprint. Based on

these distinct features, fingerprints are given a unique set of numbers, which are sent to a

database to find a match. Once a match is made, the user is allowed access.

Our FingerMatch™ technology performs a fast and efficient search of large databases, making

our product the perfect solution for high traffic doors.

Stand Alone Capability

The BioAxs 9800IR™ is capable of functioning as a “stand alone” device and will open magnetic

locks or strike plates, handle request to exit buttons, and accept fire alarm shunts. The BioAxs

9800IR comes standard with an onboard proprietary door controller board and our powerful

Command Center Access Control Software. The Command Center allows for complex granting of

access privileges. Users can be granted access to a particular door during defined days and/or

hours. User Groups can be created to assign the same door privileges to a large group of users

(i.e., Lab A Technicians). All door events are accompanied by pictures and are logged for easy

searching, viewing and reporting.

Integrates with existing Access Control Systems

The BioAxs 9800IR™ can act like just another card reader on an existing access control system

and will pass card reader output to the access controller in 26-bit Wiegand data format

Weatherproof Design

The BioAxs 9800IR™ is available in a weatherproofed model that can operate in most outdoor

conditions. Down pour conditions make fingerprint authentication extremely difficult as a user not

carrying an umbrella will be unable to sufficiently wipe his or her finger semi-dry before

authenticating. Fingerprint readers cannot read prints through a significant layer of water. For

unhindered performance, BioStation™ outdoor mounting or a commercial awning will provide the

necessary “dry zone” for users to wipe the moisture from their finger. Obviously, users prefer the

amenity of an outdoor authentication spot protected from the elements. It is also available in an

XTRM Model that can operate at temperatures from -40°c to +60°c.

Flexible System Architecture

Both the hardware and software architecture of our system is designed to be extremely flexible. If

you would like to enhance an existing card swipe or proximity card system with a

BioAxs 9800IR™, we are able to accept and deliver the reader’s information in standard card

reader format via 26-bit Wiegand input and output.

Flexible Mounting Options

The BioAxs 9800IR™ is available in flush or surface mount designs that utilize wall-mount, low-

voltage lighting, (indoor and outdoor available). The BioAxs 9800IR™ is also available in

NextgenID’s BioStation™ integrated lighting solution. The BioStation™ lights the user’s face from

three positions to provide a uniform, ideally lit image for recognition.

BioAxs 9800IR™ Installation & Operations Manual. Version 1.9

BioAxs 9800IR™ ™ Features / General Specifications

Iris Recognition Unit featuring

LG Iris' IrisAccess™ 3000

Onboard Panel Camera

Fingerprint Recognition

Sensor

Wiegand / Common Accces Card

Reader (Optional)

Integrated Keypad

Text Display

Speaker (hidden)

Figure 1 - BioAxs 9800IR™ Biometric Access Panel Front View

Feature Specification

Fingerprint Identification Algorithm NextgenID FingerMatch™

IRIS Recognition Identification Algorithm Algorithm independent Multi Biometric Platform. The

BioAxs 9800IR™ comes standard with LG Iris’ IrisAccess™

Iris Recognition Engine

Real time network monitoring Yes

Fingerprint Enrollments per User 10 Templates (All Fingers)

Fingerprint FAR 0.001%

Fingerprint Lookup Modes Verification & Identification 1-N, 1-1, 1-Few

Fingerprint FRR (After Capture) 0.01%

Iris Equal Error Rate (EER) 1 in 1.2 million

On-The Fly Adjustable Authentication Mode Standard

Iris Recognition Lookup Modes Verification 1-1, 1-Few

Identification/ Authentication Modes (some

modes listed require optional equipment e.g.

card reader)

PIN Only

Card Only

PIN + Finger

Card + Finger

PIN + Iris

Card + Iris

PIN + [Finger or Iris]

Card + [Finger or Iris]

Card + Iris + Finger

PIN + Iris + Finger

DoD Common Access Card Configurations also available

Fingerprint Identification Time (After Image

Capture) 1 second / 30000 Templates Identification Mode

Fingerprint Verification Time (After Image

Capture) Sub-1 second

Indice
