Nexxt Smart Wi-Fi dual plug Manuale utente
WARRANTY
nexxtsolutions.com/warranty
YEAR
2
Smart Wi-Fi dual plug
Outdoor
User guide
Thank you for purchasing the Smart Wi-Fi Outdoor dual
plug from Nexxt Solutions. We are excited to be part of
making your life easier, safer and for bringing peace of
mind into your home.
Package content
• Smart outdoor dual plug
• Silicone outlet cover
• Quick start guide
Product overview
1. AC smart sockets: plug in your device and control it
through the application using your smartphone. Each
outlet can be managed independently.
2. Power button: turns the device on and o.
3. Grounded plug: to safely connect it to a wall AC outlet.
4. LED light: indicates the device operating status.
5. Silicone cover: protects the receptacles from dust,
water, and debris when nothing is plugged in
English
4
3
5
1
2
Status indicator
Green Solid
SolidBlue
Blue/green Solid/
blinking
The smart plug is
connected to the network,
but the device is o
The device is on
In pairing mode, the blue
LED remains ON while the
green LED blinks.
LED
indicator Status Description
* Important safety guidelines
- Suitable for indoor/outdoor and damp locations. Do not
immerse or expose the unit directly to water.
- Plug into a 3-prong outlet, with the unit and cord at least
4.6 ft (1.4m) above ground level, and the receptacles
facing downwards.
- Risk of electrical shock. Do not open, this device does not
contain any user-serviceable parts inside.
Installing the Nexxt Solutions
Home App
Download Nexxt Home app from Google Play or Apple App
Store.
60 %
9:41 AM
Nexxt Home
Nexxt Solutions Home App
Cancel
GET
Accvent LLC
Login with existing account
Create New Account
SOLUTIONS
Iniciarsesión con cuenta existente
Crear Cuenta Nueva
SOLUTIONS
60 %
9:41 AM
Nexxt Home
Nexxt Solutions Home App
Cancel
INSTALL
Accvent LLC
Step 1
Register by email. Fill in the required elds.
Step 2
Enter the verication code you received.
60 %
9:41 AM
Enter verication code
Verication code has been sent to your
60 %
9:41 AM
Register by email
United States of America
Email
Get authentication code
Step 3
Create a new password and then select Completed.
60 %
9:41 AM
Set Password
Completed
6-20 characters, including letters and numbers
Step 4
The Nexxt Solutions Home App account account has been
successfully set up.
Add device
Step 1
Select Add device, followed by the smart outdoor dual
plug.

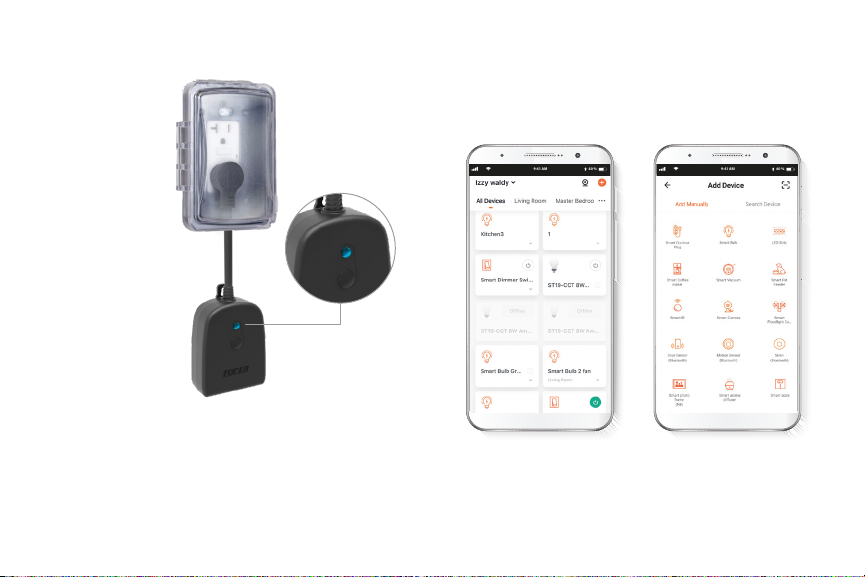

Plug in
Plug in the Nexxt Smart dual smart plug and press the
power button to turn it on. Make sure the blue-green LED
on the device is blinking, indicating that it has entered into
the pairing process. This is the default mode. Otherwise,
press and hold the power/reset button until the blue-green
LED light starts ashing to manually restart the device.
60 %
9:41 AM
60 %
9:41 AM
Step 3
Make sure the indicator light on the app is blinking. Tap on
Conrm the indicator light blinks rapidly to continue.
Step 2
You must connect to a 2.4GHz WiFi network. Enter your
network password. Make sure you enter the correct
password, otherwise the device will not connect.
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM
Main device
Main switch
Click on the power button image on the app to turn the
plug on and o.
Plug 1 and plug 2
Check the status of each receptacle and individually turn
each of them on or o.
Step 4
When Device added successfully is displayed, assign a
location and click on Done.
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM
Configuration tools
Countdown
Enables the countdown timer to turn the device on and o.
Countdown setup
Click on the plug icon to turn the device on or o. To
schedule the timer, click on the countdown icon to set the
time as needed to turn the device on or o.

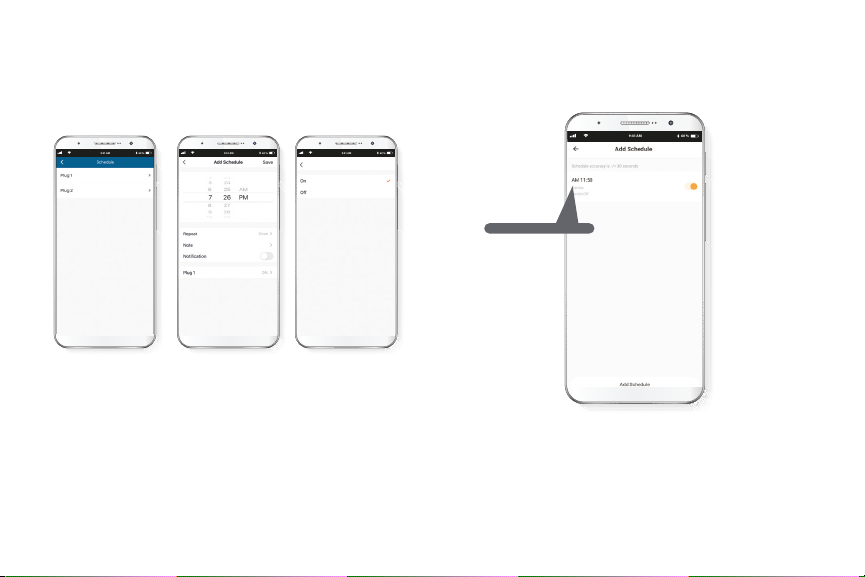

Schedule
Allows you to add time and day schedule for the device to
turn on or o.
Schedule setup
Step 1
Click on the schedule icon to access the Add schedule
screen.
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM
Step 2
Set the time you wish to schedule. Select Repeat to set
daily settings. Select Switch to schedule on/o status. Click
on Conrm, followed by Save on the upper right-hand
corner to store a schedule.
60 %
9:41 AM
60 %
9:41 AM
60 %
9:41 AM
Delete setup
To remove a schedule on iOS, slide item to the left , and for
Android, press and hold Schedule, followed by Delete.
60 %
9:41 AM
Press and hold the Schedule
