Nice TTDW Specifiche tecniche

TTDW

LED control range

EN - Instructions and warnings for installation and use

2 – ENGLISH

ENGLISH

Translation of the original instructions in full

CONTENTS

GENERAL SAFETY WARNINGS AND

PRECAUTIONS

1 GENERALSAFETYWARNINGSANDPRECAUTIONS

a

WARNING! Important safety instructions. Observe all the

instructions as improper installation may cause serious

damages.

a

WARNING! Important safety instructions. It is important

to comply with these instructions to ensure personal

safety. Store these instructions carefully.

a

According to the latest European legislation, an automat-

ed device must be constructed in conformity to the har-

monised rules specied in the current Machinery Direc-

tive, which allow for declaring the presumed conformity

of the automation. Consequently, all the operations for

connecting the product to the mains electricity, its com-

missioning and maintenance must be carried out exclu-

sively by a qualied and expert technician.

a

In order to avoid any danger from inadvertent resetting

of the thermal cut-off device, this appliance must not be

powered through an external switching device, such as a

timer, or connected to a supply that is regularly powered

or switched off by the circuit.

WARNING! Please abide by the following warnings:

–Before commencing the installation, check the “Product techni-

cal specications”, in particular whether this product is suitable

for automating your guided part. Should it not be suitable, do

NOT proceed with the installation.

–The product cannot be used before it has been commissioned

as specied in the “Testing and commissioning” chapter.

–Before proceeding with the product’s installation, check that all

the materials are in good working order and suited to the intend-

ed applications.

–The product is not intended for use by persons (including chil-

dren) with reduced physical, sensory or mental capacities, nor

by anyone lacking sufcient experience or familiarity with the

product.

–Children must not play with the appliance.

–Do not allow children to play with the product’s control devices.

Keep the remote controls out of reach of children.

–The system’s power supply network must include a disconnec-

tion device (not supplied) with a contact opening gap permit-

ting complete disconnection under the conditions envisaged by

Overvoltage Category III.

–Handle the product with care during installation, taking care to

avoid crushing, denting or dropping it, or allowing contact with

liquids of any kind. Keep the product away from sources of heat

and naked ames. Failure to observe the above can damage the

product, and increase the risk of danger or malfunction. Should

this happen, stop installation immediately and contact Custom-

er Service.

–The manufacturer declines all liability for damages to property,

objects or people resulting from failure to observe the assem-

bly instructions. In such cases, the warranty for material defects

shall not apply.

1 GENERAL SAFETY WARNINGS AND PRECAUTIONS . . . . . 2

2 PRODUCT DESCRIPTION AND INTENDED USE . . . . . . . . . 3

2.1 List of constituent parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

3 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3.1 Pre-installation checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

3.2 Product usage limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

3.3 Product identification and overall dimensions . . . . . . . . . . . . . . . . . .3

3.4 Product installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

4 ELECTRICAL CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . 4

4.1 Preliminary checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

4.2 Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

5 PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

5.1 TWO-WAY and ONE-WAY operation . . . . . . . . . . . . . . . . . . . . . . . . .4

5.2 Transmitter pairings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

5.2.1 Memorising the FIRST TRANSMITTER. . . . . . . . . . . . . . . . . . . . .5

5.2.2 MEMORISING AN ADDITIONAL TRANSMITTER . . . . . . . . . . . . .5

5.3 LOCKING AND UNLOCKING THE MEMORY . . . . . . . . . . . . . . . . . .7

5.4 DELETION PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

5.4.1 DELETION procedures (with MEMORISED transmitter) . . . . . . . .7

5.4.2 DELETION procedures (with NON-MEMORISED transmitter in

ONE-WAY mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

5.4.3 Pre-defined (PRESET) or personalised (CUSTOM) intensities . . . .8

5.4.4 Setting the independent outputs . . . . . . . . . . . . . . . . . . . . . . . . .9

5.4.5 Priority of the outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

5.4.6 Pairing of the LED channel with the transmitter . . . . . . . . . . . . .10

6 COMMANDS FROM THE TRANSMITTER . . . . . . . . . . . . . . 10

7 TESTING AND COMMISSIONING. . . . . . . . . . . . . . . . . . . . . 11

8 PRODUCT MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . 11

9 PRODUCT DISPOSAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

10 TECHNICAL SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . 11

10.1 Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

10.2 Suggested power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

11 CONFORMITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

ENGLISH – 3

–Cleaning and maintenance reserved for the user must not be

carried out by unsupervised children.

–Before intervening on the system (maintenance, cleaning), al-

ways disconnect the product from the mains power supply and

from any batteries.

–Check the system frequently.

–The packing materials of the product must be disposed of in

compliance with local regulations.

–Before connecting the power supply unit to the mains, make

sure that the LEDs are properly connected to the receiver.

–Incorrect connection of the LED diodes (reversed polarity) could

damage them, therefore be very careful to position the poles

correctly when connecting them.

–When it is switched on, the receiver resumes the same condition

prior to being switched off.

–The product must not be incorporated or installed in insulating

products such as mineral wool or polystyrene, or similar prod-

ucts.

PRODUCT DESCRIPTION AND INTENDED

USE

2 PRODUCTDESCRIPTIONANDINTENDEDUSE

Led Control Range TTDW is a “dimmer” combined with a radio receiver

that allows for controlling 1-colour LEDs (W). For it to work, it must be

a paired transmitter it is possible to set the programmes. The LEDs are

controlled exclusively via radio through the paired transmitters.

a

CAUTION! – Any use other than that specied herein or in

environmental conditions other than those stated in this

manual is to be considered improper and is strictly for-

bidden!

2.1 LIST OF CONSTITUENT PARTS

The TTDW is made up of a casing that protects the command and control

boards. “Figure 1” shows the main parts making up the TTDW.

A Connection to the LED strips

B Connection to the 24Vdc power supply unit

INSTALLATION

3 INSTALLATION

3.1 PRE-INSTALLATION CHECKS

Before proceeding with the product’s installation, it is necessary to:

–check the integrity of the supply

–check that all the materials are in good working order and suited to the

intended use

–check that all operating conditions comply with that specied in the “

Product usage limits” paragraph and in the “TECHNICAL SPECIFI-

CATIONS” chapter

–check that the chosen installation location is compatible with the prod-

uct’s overall dimensions (see “Figure 2”)

–check that the surface chosen for installing the product is solid and can

ensure stable attachment

–make sure that the installation area is not subject to ooding; if neces-

sary, the product must be installed appropriately raised above ground

level

–check that the space around the product allows safe and easy access.

3.2 PRODUCT USAGE LIMITS

The product can be used exclusively with 24Vdc power supply units

and with 24 V LED strips of adequate power (refer to the “TECHNICAL

SPECIFICATIONS” chapter).

3.3 PRODUCT IDENTIFICATION AND OVERALL

DIMENSIONS

The overall dimensions and label (A) that allow for identifying the product

are shown in “Figure 2”.

98 mm

26 mm

20 mm

Tc point

4 – ENGLISH

3.4 PRODUCT INSTALLATION

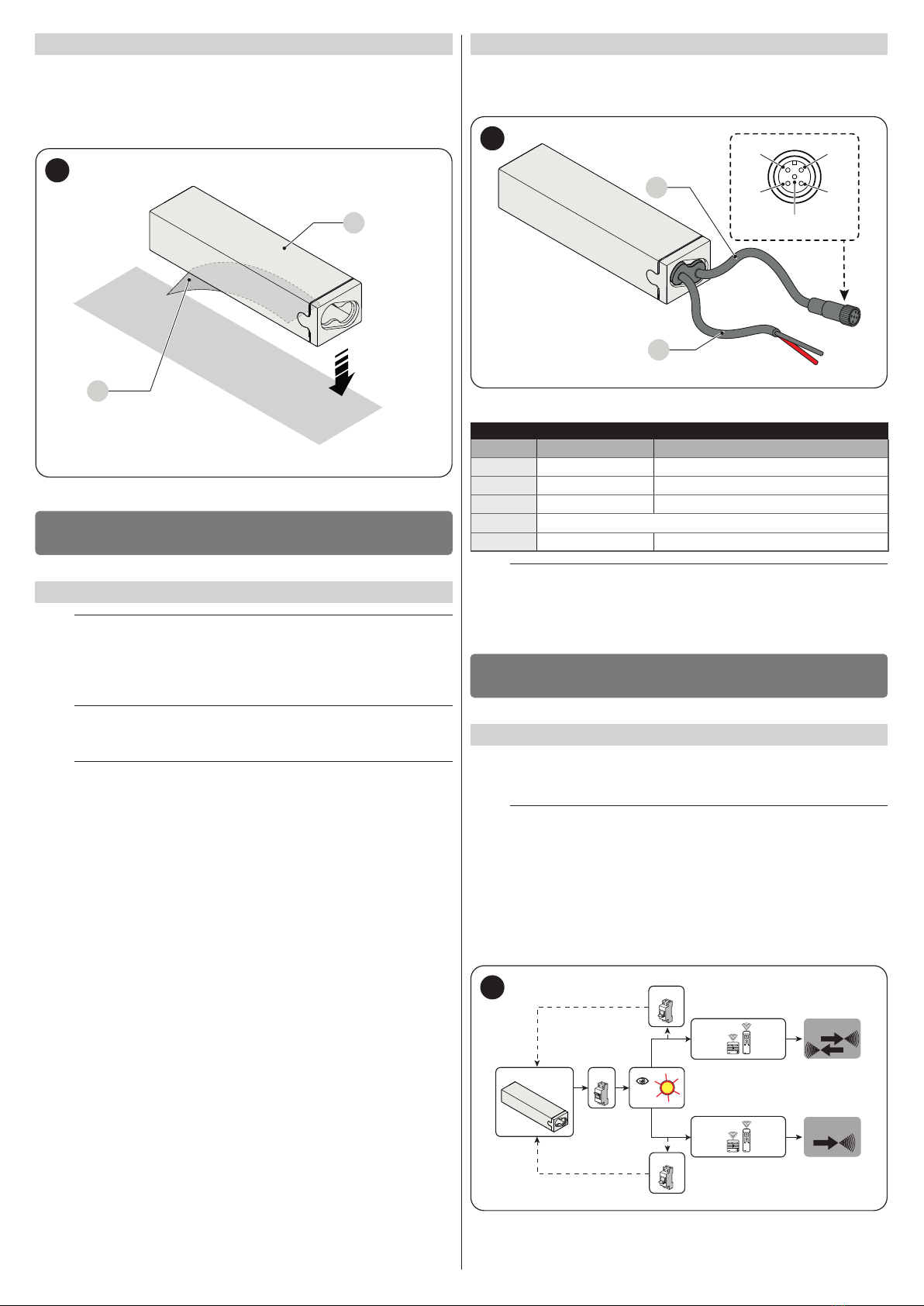

To fasten TTDW (“Figure 3”):

1. position the box (A) and fasten it with bi-adhesive tape (B) (not

supplied)

2. make the electrical connections by operating as described in the

“ELECTRICAL CONNECTIONS” chapter.

ELECTRICAL CONNECTIONS

4 ELECTRICALCONNECTIONS

4.1 PRELIMINARY CHECKS

f

All electrical connections must be made with the sys-

tem disconnected from the mains electricity and with the

emergency power supply (if present in the automation)

disconnected.

a

The connection operations must only be carried out by

qualied personnel.

f

Mount a device on the electric power line that completely

disconnects the automation from the grid.

–The disconnection device must have contacts with a sufcient

gap to ensure complete disconnection, under the Category III

overvoltage conditions, in accordance with the installation in-

structions. If necessary, this device guarantees quick and safe

disconnection from the mains power and therefore must be

positioned in sight of the automation. If located in a concealed

position, it must be equipped with a system that prevents inad-

vertent or unauthorised reconnection of power, to avoid poten-

tial hazards.

4.2 ELECTRICAL CONNECTIONS

To make the electrical connections:

–connect the cable (A) to the chosen 24Vdc power supply unit

–connect the connector (B) to the LED strips.

Table 1

OUTPUTS TOWARDS LED STRIPS

PIN Exit W1-W2-W3-W4

1OUT 3 White 3 (W3)

2OUT 1 White 1 (W1)

3OUT 2 White 2 (W2)

4Common (+)

5OUT 4 White 4 (W4)

l

For connecting multiple LED strips, make sure you use

suitable cables and adapters compatible with the con-

nector (B).

PROGRAMMING

5 PROGRAMMING

5.1 TWO-WAY AND ONE-WAY OPERATION

The Led Control Range can operate with both TWO-WAY and ONE-

WAY transmission. The transmission mode is determined by the rst trans-

mitter (ONE-WAY or TWO-WAY) paired with the system.

l

WARNING: if the system is new (has no transmitter mem-

orised), when it is switched on the paired LED strip will

emit a ash. Run one of the memorisation procedures for

the rst transmitter described in the paragraph “Memo-

rising the FIRST TRANSMITTER”. If the paired LED strip

does not emit any ash when the system is switched on,

it means that at least one memorised transmitter is al-

ready present.

OFF

ERA

NEW ON

BiDi

MONO

(x 1)

ENGLISH – 5

5.2 TRANSMITTER PAIRINGS

The functions and programming modes described below must be made

with a transmitter paired (memorised) with the system.

l

WARNING: once the transmitter has been memorised,

it will be assigned the default channel, which varies de-

pending on whether or not the outputs have been set

as independent (refer to the procedure described in the

paragraph “Setting the independent outputs”). The as-

signed channel will be: W1+W2+W3+W4 if the setting has

a single independent output, W1+W2 with two independ-

ent outputs and W1 if the setting has three independent

outputs. To change the transmitter channel, perform the

procedure described in the paragraph “Pairing of the LED

channel with the transmitter”.

5.2.1 MEMORISING THE FIRST TRANSMITTER

5.2.1.1 TWO-WAY mode

RAPID PROCEDURE (only for memorising the rst transmitter)

To memorise the rst transmitter (“Figure 6”):

1. disconnect the power supply to the system. Wait 5 s. Power the

system again. One ash of the LED strips indicates that the system

has no paired transmitter

2. within 10 s from the power-up, simultaneously press pand qfor

3 s on the transmitter to be paired. Three ashes of the LED strips,

relative to the chosen channel, will conrm the correct pairing.

OFF ON

5sec

2End

(= 3s)

(x 1)

(x 3)

NORMAL PROCEDURE

To memorise the rst transmitter (“Figure 7”):

1. disconnect the power supply to the system. Wait 5 s. Power the

system again. One ash of the LED strips indicates that the system

has no paired transmitter

2. within 10 s from the power-up, press PRG for 5 s on the transmitter

to be paired. Over the next 2 minutes, all LED systems within the

radio range will start ashing, each for a random duration

3. choose the LED system involved in the programming and, with the

LED lit, press and release the p key (once)

4. in the LED system involved, with the LED lit, press and release the

q key (once)

5. the LED strip will ash three times to conrm the memorisation.

OFF ON

5sec

1 2 3

(= ON)

(= 5s)

PRG PRG

(x 1)

4End

(= ON)(x 3)

(x 1)

5.2.1.2 ONE-WAY mode

To memorise the rst transmitter (“Figure 8”):

1. disconnect the power supply to the system. Wait 5 s. Power the

system again. One ash of the LED strips indicates that the system

has no paired transmitter

2. within 10 s from the power-up, press ofor 3 s on the transmitter

to be paired. Three ashes of the LED strips, relative to the chosen

channel, will conrm the correct pairing.

OFF ON

5sec

2End

(= 3s)

(x 1)

(x 3)

5.2.2 MEMORISING AN ADDITIONAL TRANSMITTER

To perform the procedure described below, it is necessary to have a new

transmitter to memorise and an old previously memorised transmitter. The

two transmitters must have the “PRG” and “ESC” keys (such as, for exam-

ple, “ERA P” and “ERA W” series transmitters). The procedure memorises

all the keys of the new transmitter, in “Mode I”, replicating the same con-

guration of the old transmitter.

5.2.2.1 TWO-WAY mode

The system, congured to operate in TWO-WAY mode, can memorise up

to 30 transmitters.

6 – ENGLISH

To memorise the transmitter (“Figure 9”):

1. on the OLD transmitter: press and release the PRG key. The LED

strip will ash twice

2. on the NEW transmitter: press and hold the STOP key for 5 s

then release it. The LED strip will ash twice

3. on the OLD transmitter: press and release the PRG key. The LED

strip will ash twice

4. on the NEW transmitter: press and release the STOP key. The

LED strip will ash three times to conrm the memorisation.

(x 1)

(x 2)

OLD PRG

(x 2)

OLD PRG

(x 2)

NEW

5sec

3 4

NEW

(x 1)

(x 3)

(x 1)

End

5.2.2.2 ONE-WAY mode and transmitters having the “PRG”

and “ESC” keys

The system, congured to operate in ONE-WAY mode, can memorise up

to 30 transmitters.

To memorise the transmitter (“Figure 10”):

1. on the OLD transmitter: press and hold the PRG key. The LED

strip will ash twice and, after a brief pause, will emit two more

ashes. Release the PRG key

2. on the NEW transmitter: press and hold the PRG key for 7 s. The

LED strip will ash twice. Release the PRG key

3. on the OLD transmitter: press and release the PRG key. The LED

strip will ash three times to conrm the memorisation.

OLD

NEW

(x 2)

...

PRG

(x 2)

7sec (x 2)

3End

(x 1)

(x 3)

OLD PRG

5.2.2.3 ONE-WAY mode and transmitters lacking the “PRG”

and “ESC” keys

To memorise the transmitter (“Figure 11”):

1. on the NEW transmitter: press the okey for 7 s

2. on the OLD transmitter: press the okey 3 times

3. on the NEW transmitter: press the okey for 3 s. The LED strip

will ash three times to conrm the memorisation.

OLD

(x 3)

3End

NEW

7sec

(x 3)

NEW

3sec

ENGLISH – 7

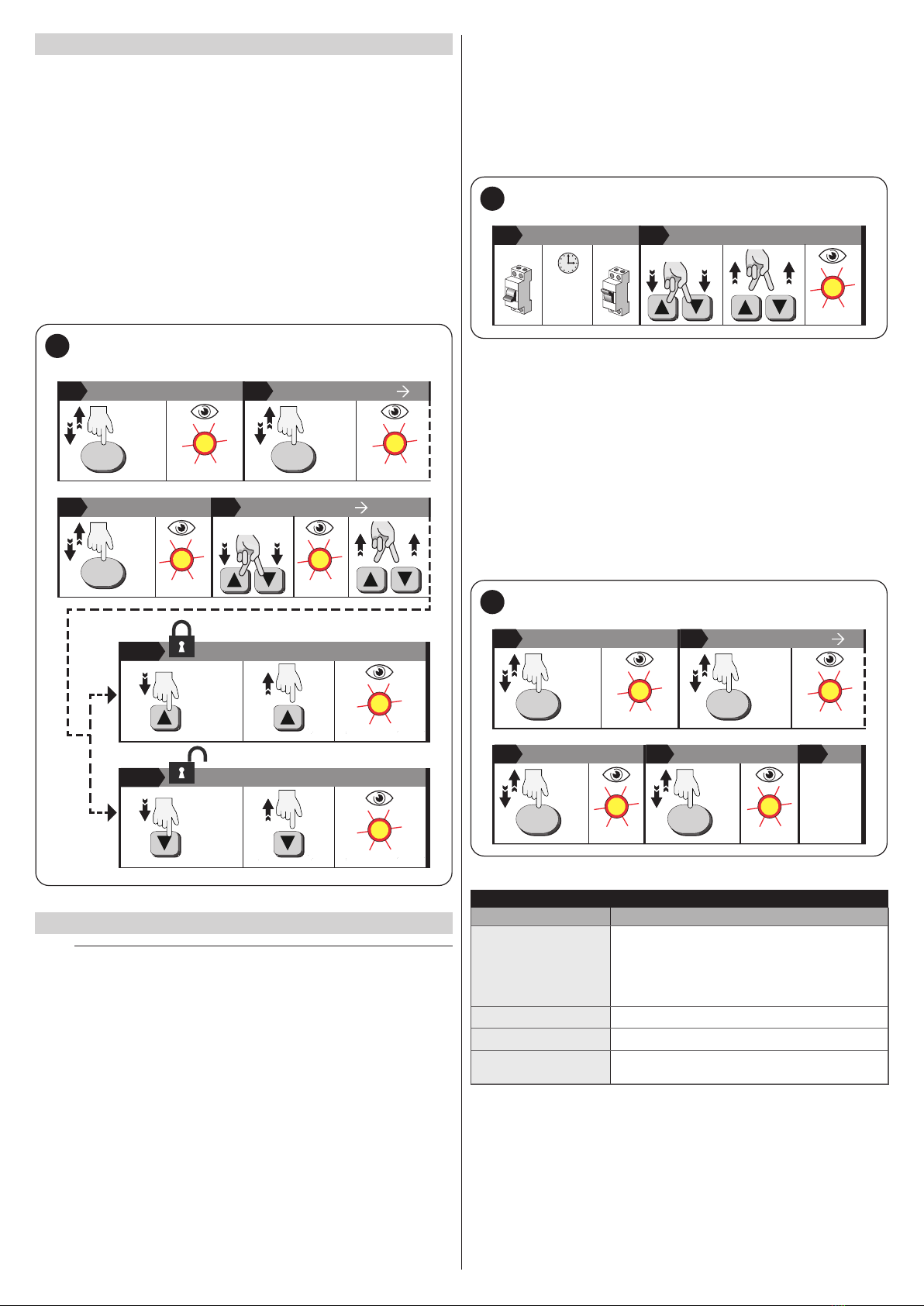

5.3 LOCKING AND UNLOCKING THE MEMORY

Activating the memory lock allows for preventing the accidental and ran-

dom memorisation of other unintended or unauthorised transmitters.

To do this (“Figure 12”):

1. press PRG once on the transmitter. The paired LED strip will ash

twice

2. press PRG once on the transmitter. The paired LED strip will ash

twice

3. press PRG once on the transmitter. The paired LED strip will ash

three times

4. simultaneously press pand qfor 5 s. The paired LED strip will

ash four times. Release the buttons

–to LOCK the memory press p for 5 s. The paired LED strip will ash

three times

–to UNLOCK the memory press p for 5 s. The paired LED strip will ash

ve times.

3 4

(x 1)

PRG

5a / 5b

5 a End

x 3

1 2

(x 1)

PRG

x 2

(x 1)

PRG

x 2

(= 5s)

x 5

(= 5s)

5 b End

(= 5s)

x 4

5.4 DELETION PROCEDURES

a

The deletion procedures are irreversible. The deletion

of one or more remote controls eliminates the settings

memorised in the system relative to the remote controls

themselves. The FULL deletion procedure restores the

system’s factory conditions. At the end of the procedure,

all settings previously memorised will be lost.

5.4.1 DELETION PROCEDURES (WITH MEMORISED

TRANSMITTER)

RAPID PROCEDURE (only for deleting ALL SETTINGS)

To do this (“Figure 13”):

1. disconnect the power supply to the system. Wait 5 s. Power the

system again

2. within 10 s from the power-up, press pand qfor 3 s. The paired

LED strip will ash ve times to conrm the deletion.

1 2 End

OFF ON

5sec

x 5

(= 3s)

NORMAL PROCEDURE

To do this (“Figure 14”):

1. press PRG once on the transmitter. The paired LED strip will ash

twice

2. press PRG once on the transmitter. The paired LED strip will ash

twice

3. press PRG once on the transmitter. The paired LED strip will ash

three times

4. press PRG once on the transmitter. The paired LED strip will ash

four times

5. press the keys indicated in “Table 2” to select the desired option

among those available. At the end of the procedure, the paired LED

strip will ash three or ve times to conrm the deletion.

1 2

(x 1)

PRG

x 2

(x 1)

PRG

x 2

3 4 5

(x 1)

PRG

x 3

(x 1)

PRG

x 4

(... see

the table

and press

the keys)

End

Table 2

DELETION

Buttons Setting

px 3 s

Deletion of a SINGLE REMOTE CONTROL:

after selecting this option, press oon the

remote control to be eliminated to complete the

procedure. The paired LED strip will ash ve

times

p+ qx 3 s Deletion of ALL SETTINGS

ox 3 s Deletion of ALL REMOTE CONTROLS

PRG FULL deletion (reset to the system’s factory

settings)

8 – ENGLISH

5.4.2 DELETION PROCEDURES (WITH NON-MEMORISED

TRANSMITTER IN ONE-WAY MODE)

l

In TWO-WAY mode, follow the procedure indicated in

the paragraph “Memorising the FIRST TRANSMITTER”,

sub-paragraph “TWO-WAY mode”.

To do this (“Figure 15”):

1. disconnect the power supply to the system. Wait 5 s. Power the

system again

2. within 10 s from the power-up, press ofor 5 s on the non-memo-

rised transmitter. The paired LED strip will emit two or three ashes

3. disconnect the power supply to the system. Wait 5 s. Power the

system again

4. press PRG once on the transmitter. The paired LED strip will ash

twice

5. press PRG once on the transmitter. The paired LED strip will ash

twice

6. press PRG once on the transmitter. The paired LED strip will ash

three times

7. press PRG once on the transmitter. The paired LED strip will ash

four times

8. press the keys indicated in “Table 3” to select the desired option

among those available. At the end of the procedure, the paired LED

strip will ash three or ve times to conrm the deletion.

OFF ON

5sec

OFF ON

5sec

3 4

NEW x 2

(= 5s)

PRG

6 7 8

(x 1)

PRG

x 3

(x 1)

PRG

x 4

(... see

the table

and press

the keys)

End

(x 1)

x 2PRG

(x 1)

x 2

Table 3

DELETION

Buttons Setting

px 3 s

Deletion of a SINGLE REMOTE CONTROL:

after selecting this option, press oon the

remote control to be eliminated to complete the

procedure

p+ qx 3 s Deletion of ALL SETTINGS

ox 3 s Deletion of ALL REMOTE CONTROLS

PRG FULL deletion (reset to the system’s factory

settings)

5.4.3 PRE-DEFINED (PRESET) OR PERSONALISED (CUSTOM)

INTENSITIES

The system leaves the factory (PRESET) with 4 pre-congured and availa-

ble intensities. Activating the “CUSTOM” function allows for memorising

personalised intensities which can then be recalled.

l

After enabling the “CUSTOM” function, the personalised

intensity must be set using a memorised transmitter, as

explained in the “COMMANDS FROM THE TRANSMIT-

TER” chapter.

5.4.3.1 Setting through memorised transmitters

To activate the “PRESET/CUSTOM” function (“Figure 16”):

1. press PRG once on the transmitter. The paired LED strip will ash

twice

2. press PRG once on the transmitter. The paired LED strip will ash

twice

3. press o for 3 s. The paired LED strip will ash twice. Release o

4. press pfor 3 s or qfor 3 s to select the desired option among

those available in “Table 4”. If the pkey is pressed, the paired LED

strip will ash three times, while if the qkey is pressed the LED strip

will ash four times. Release the pressed key.

1 32

x 3

(x 4)

PRG

4End

( )

(>3s)

x 2x 2

(x 1)

PRG

x 2

(x 1) (>3s)

Table 4

PRE-DEFINED (PRESET) OR PERSONALISED (CUSTOM) INTENSITIES

Buttons Setting

px 3 s Factory PRESET intensities: 4 xed pre-set

parameters at 25%, 50%, 75% and 100%.

qx 3 s CUSTOM intensities: customisable by the user

(factory setting: 50%).

ENGLISH – 9

5.4.4 SETTING THE INDEPENDENT OUTPUTS

This function allows for deciding whether or not to make outputs W1-W2-

W3-W4 independent.

5.4.4.1 Setting through memorised transmitters

To do this (“Figure 17”):

1. press PRG once on the transmitter. The paired LED strip will ash

twice

2. press PRG once on the transmitter. The paired LED strip will ash

twice

3. press p for 3 s. The paired LED strip will ash four times. Release

4. press p (several rimes) until you select the desired option among

those available in “Table 5”. The paired LED strip will show the

selected behaviour after 5 s

5. press o for 3 s to conrm the choice and exit the function. The

paired LED strip will ash three times. Release o.

3 4 5

5End

x 4

(3s) x 3

1 2

(x 1)

PRG

x 2

(x 1)

PRG

x 2

(x ...)(= 3s)

5sec (x ...)

Table 5

SETTING THE INDEPENDENT OUTPUTS

No. of button presses Setting

p(x 1) SINGLE output (default W1+W2+W3+W4)

p(x 2) TWO independent outputs (W1+W2) and

(W3+W4)

p(x 3) THREE independent outputs (W1-W2- W3)

5.4.5 PRIORITY OF THE OUTPUTS

This function allows for controlling the power-on priority of the LED strips

by choosing among two different congurations:

–if the function is ENABLED, a command given to one or more LED chan-

nels will switch off the other channels

–if the function is DISABLED, the command given to one or more LED

channels is exclusive and will not inuence the non-controlled channels,

which will remain in their previous condition (on or off).

5.4.5.1 Setting through memorised transmitters

To do this (“Figure 18”):

1. press PRG once on the transmitter. The paired LED strip will ash

twice

2. press PRG once on the transmitter. The paired LED strip will ash

twice

3. press PRG once on the transmitter. The paired LED strip will ash

three times

4. press p for 3 s to ACTIVATE (the LED strip will emit two ashes)

the function or press q for 3 s to DEACTIVATE (the LED strip will

ash three times) the function (Table 6). Release the pressed key.

(x 2)

( ) ( ) (x 3)

(3s)

( )

End

1 32

PRG

x 2

(x 1)

PRG

x 2

(x 1)

PRG

x 3

(x 1)

Table 6

PRIORITY OF THE OUTPUTS

Buttons Setting

px 3 s Function ENABLED

qx 3 s Function DISABLED (factory setting)

10 – ENGLISH

5.4.6 PAIRING OF THE LED CHANNEL WITH THE

TRANSMITTER

l

WARNING: in order to use this function it is necessary to

have correctly performed the procedure described in the

paragraph Setting the independent outputs.

To pair the channel that powers the desired LED strip to the transmitter

(“Figure 19”):

1. press PRG once on the transmitter. The paired LED strip will ash

twice

2. press por quntil you select the desired option among those

available in “Table 7”.

3. press o for 3 s to conrm the choice and exit the function. The

paired LED strip will ash three times.

1 2

(x 3)

(x 1)

PRG ( )

(3s)

End

x 2

Table 7

CONFIGURATION WITH A SINGLE OUTPUT (DEFAULT)

Buttons Channel activated

W1+W2+W3+W4

OFF

CONFIGURATION WITH TWO INDEPENDENT OUTPUTS

Buttons Channel activated

W1+W2

W3+W4

W1+W2+W3+W4

OFF

CONFIGURATION WITH THREE INDEPENDENT OUTPUTS

Buttons Channel activated

W1+W2

W1+W3

W2+W3

W1+W2+W3

OFF

COMMANDS FROM THE TRANSMITTER

6 COMMANDSFROMTHETRANSMITTER

The table shown below summarises the keys to be pressed on the trans-

mitter for sending the main commands to the system.

Table 8

COMMANDS FROM THE TRANSMITTER (PRESET)

Buttons Channel activated

p(x 1) Power-on

p(> 1 s) Increase of the light intensity

oSelection of the light intensity

q(> 1 s) Decrease of the light intensity

q(x 1) Switch-off

SLIDER + Increase of the light intensity

SLIDER - Decrease of the light intensity

Table 9

COMMANDS FROM THE TRANSMITTER (CUSTOM)

Buttons Channel activated

p(x 1) Power-on

p(> 1 s) Increase of the light intensity

oSelection of the light intensity

q(> 1 s) Decrease of the light intensity

q(x 1) Switch-off

p+ qSaving of the “custom” intensity (the LED strip will ash

three times to conrm the memorisation)

SLIDER + Increase of the light intensity

SLIDER - Decrease of the light intensity

Indice

Altri manuali Nice Attrezzatura di illuminazione

Nice

Nice LLW Specifiche tecniche

Nice

Nice TTDRGB Specifiche tecniche

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
