Night Owl DP2 Series Manuale utente

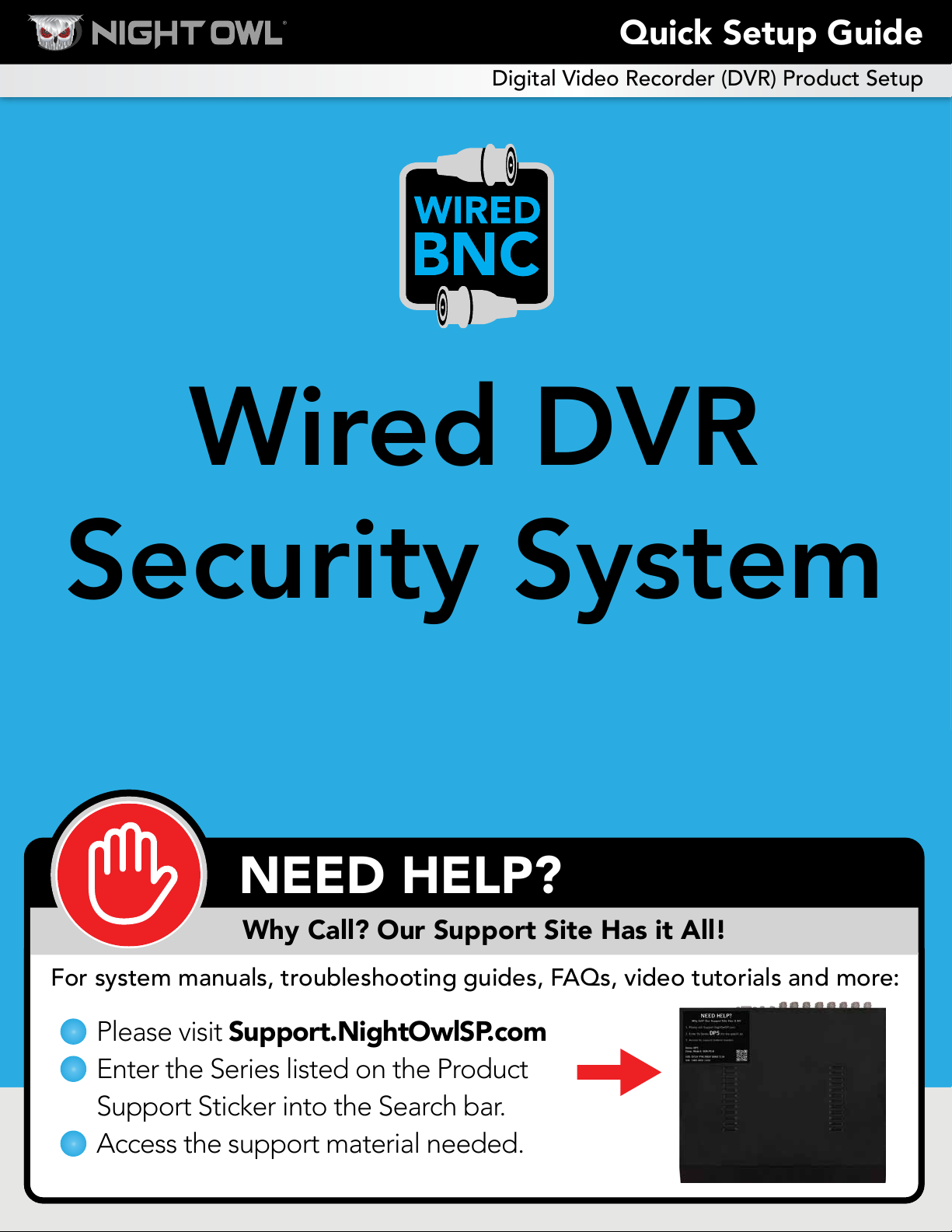

Quick Setup Guide

Digital Video Recorder (DVR) Product Setup

Quick Setup Guide

NEED HELP?

For system manuals, troubleshooting guides, FAQs, video tutorials and more:

Please visit Support.NightOwlSP.com

Enter the Series listed on the Product

Support Sticker into the Search bar.

Access the support material needed.

Why Call? Our Support Site Has it All!

Wired DVR

Security System

Night Owl Technical Support

If you require Technical Support, you should always go to Support.NightOwlSP.com

first. With 24/7 access to system manuals, troubleshooting guides, FAQs, video

tutorials, and more, you'll have all the support you could need.

DVR Hardware Setup Video

Your device is running the latest firmware version.

Your device is registered. To register your device:

Download Night Owl Protect from your Smart Device's App Store.

Click "Sign Up" to create an account.

Go to NightOwlSP.com/NOProtect and manually register your device.

You are in front of the device with it powered on and connected to TV a Monitor.

Follow along as we guide you through the DVR's hardware

setup. Step-by-step instructions make it even easier to

connect your system!

Still need more support? Before calling Night Owl Technical Support, keep in

mind we can only provide phone support if:

For more Support Videos, go to Night Owl’s YouTube page by

typing www.youtube.com/nightowlsp into your web browser.

Use the QR Code for easy access to the DVR Hardware

Setup Video on Night Owl’s YouTube Channel.

Thank you for being a Night Owl Customer! Secure, Protect, Connect your world!

What’s in the Box

DVR

DVR Power Adapter

(x1)

USB Mouse

(x1)

6 ft. HDMI

(x1)

6 ft. Ethernet

(x1)

Power

Splitter(s)

(1 per 4 Cameras)

Monitor Router

RESET LAN1 LAN2 LAN3 LAN4 WAN

Camera(s) Camera Power

Adapter(s)

(1 per 4 Cameras)

Mounting

Hardware

(Varies by Model)

60 ft. Video/Power

Cables

(1 per Camera)

DISCLAIMER: The exact components of your system, images, and quantities may vary depending on

your model number. While these may vary, this QSG addresses the setup of your DVR and cameras.

DVR / Accessories

Camera / Accessories

Items Not Included

NOTE: A TV or Monitor with a

minimum 1080p HD resolution and

an HDMI input is required for the

initial setup. Use all of the included

Night Owl accessories. Third-party

accessories may not work correctly.

Plug one end of the included HDMI cable into the

HDMI port on the back of the DVR.

Plug the other end of the HDMI cable into the back

of your TV or Monitor.

Plug the USB mouse into the USB port on the back

of the DVR.

HDMIHDMI

Plug one end of the included Ethernet cable into

the LAN port on the back of the DVR.

Plug the other end of the Ethernet cable into a port

on the back of your router or modem.

ETHERNET

ROUTER

(NOT INCLUDED)

STOP: BEFORE installing, connect and test each

camera locally to confirm they function properly.

PWR

HDD

Connect the end of the camera’s cable to the end

of a video / power cable labeled TO CAMERA ONLY.

VIDEO / POWER CABLEFROM CAMERA

Connect the video / power cable labeled TO

DVR ONLY to an open video input on the DVR.

NOTE: Make sure you twist

and lock BNC connectors.

Connect the red female power leads of the video / power

cables to the male power splitter ends.

POWER SPLITTER

CONNECTORS

POWER CABLE

CONNECTORS

Connect the power splitter to the camera power

adapter and plug the adapter into a surge

protector or Uninterruptible Power Supply (UPS).

CAMERA POWER

ADAPTER

POWER

SPLITTER

SURGE PROTECTOR

(NOT INCLUDED)

Connect the DVR power adapter to the Power Input

on the rear of the DVR.

POWER

SURGE PROTECTOR

(NOT INCLUDED)

Plug the DVR power adapter into a surge

protector or Uninterruptible Power Supply (UPS).

Some systems beep upon booting up.

Step 1: Connecting Your System

USB ETHERNET

NOTE: Make sure the UPS or

surge protector is switched ON.

RESET LAN1 LAN2 LAN3 LAN4 WAN

NOTE: To view cameras, TV or Monitor must be

tuned to the same input the HDMI is plugged into.

NOTE: Night Owl recommends connecting to the

Internet for the best user experience.

NOTE: Watch our DVR Setup Video on YouTube.

To CAMERA

Step 2: Download Night Owl Protect

If you're a First Time User, download

Night Owl Protect from the App Store or

Google Play Store onto your Smart

Device. If you already have an account

skip to Step 3b.

Create and verify your Night Owl Protect

account. Use the Night Owl Protect login

credentials to log into the DVR in Step 3b.

Step 3: Startup Wizard

STOP: Connected DVRs automatically search for the latest

ﬁrmware version. If you are NOT going to connect your DVR

to the Internet, follow the onscreen prompts for updating the

ﬁrmware and registering the device.

Skip to “Don’t Want to Connect the DVR to the Internet.”

If you have NOT created a Night Owl

Protect account, click “First Time

Users” and follow the onscreen steps.

If you have a Night Owl Protect

account, click “Already have an

account,” and skip to step 3b.

3c After logging into your Night Owl

Protect account, the Startup Wizard

continues to lead you through the

setup process. Click “Complete Setup”

to complete the Startup Wizard.

3b Log in using your Night Owl Protect

credentials (use the login credentials

created in step 2b).

NOTE: The DVR is automatically added to

the Night Owl Protect App when you log in

using your Night Owl Protect credentials.

NOTE: Setup is the same

for Smartphone and Tablet.

I Don’t Want to Connect the DVR to the Internet

Night Owl Strongly Recommends connecting the DVR to the Internet.

If you have decided not to connect:

You must manually update the device's ﬁrmware to the latest version to

receive Technical Phone Support. The latest ﬁrmware version is available on

the device’s support page on the Night Owl Support Site.

The DVR must be registered to receive Technical Phone Support.

You cannot view your system remotely.

Resetting your password is a much longer process to ensure security

4a Go to NightOwlSP.com/NOProtect to

found on the DVR's support sticker to

complete registration.

4c Once the DVR is added to the App,

complete the Startup Wizard and

camera installation.

4b Create Local Password

1. Default username is “admin”

2. Create a password

(any alphanumeric combo with a minimum of

8 characters; MUST include a number, a low-

ercase, and uppercase letter).

3. Click “Continue” to go to the Login Screen.

Notes

Quick Setup Guide

QSG-DPREV 200609

For system manuals, troubleshooting guides, FAQs, video tutorials and more:

Please visit Support.NightOwlSP.com

Enter the Series listed on the Product Support Sticker

(on top of the DVR) into the Search bar.

Access the support material needed.

iPhone, iPad, Mac and Mac OS X are registered trademarks of Apple Inc. Windows, Windows XP, Windows Vista, Windows 7,

Windows 8 and Windows 10 are registered trademarks of Microsoft Corporation in the United States and/or other countries.

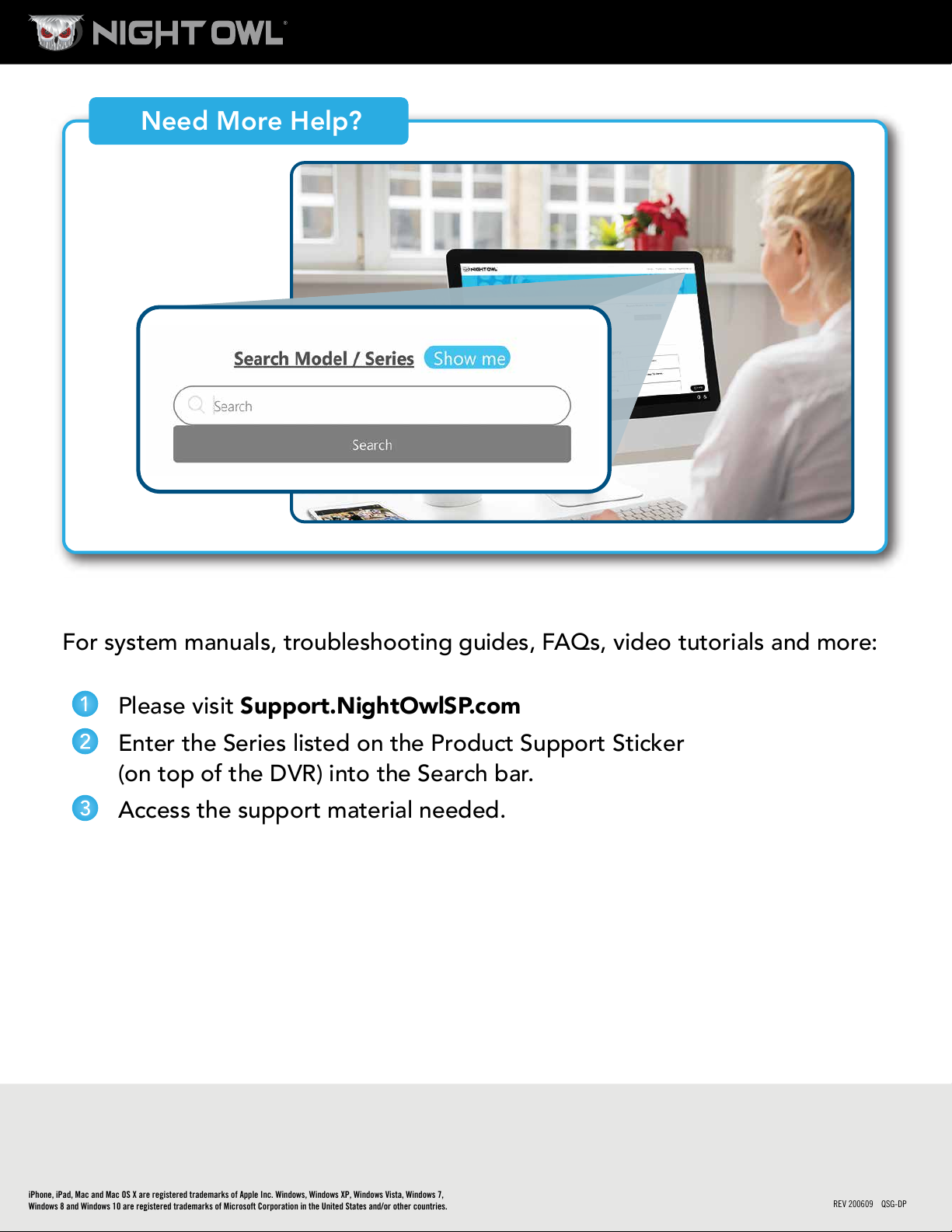

Need More Help?
